Model # ENH4X48T21A1 Official ICP evaporator coil

Here are the diagrams and repair parts for Official ICP ENH4X48T21A1 evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Grommet 1173157
#NI

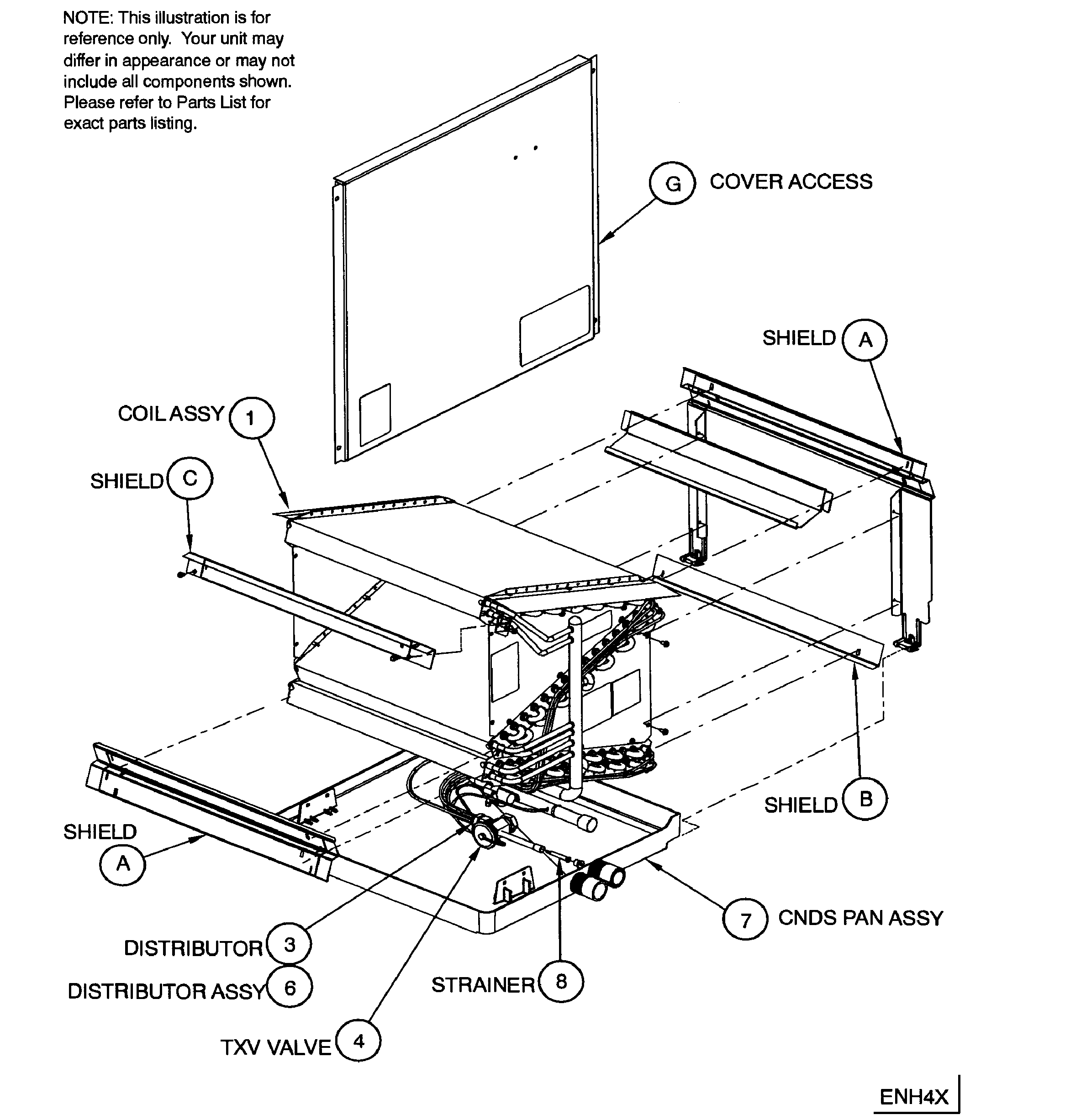

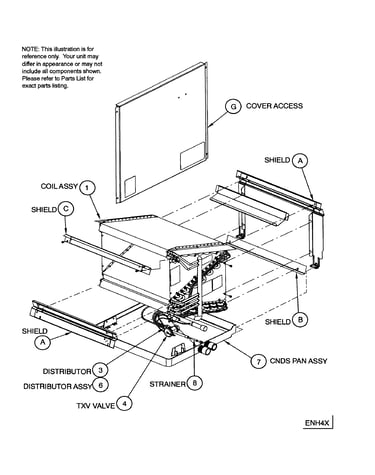

Evap coil diagram

Grommet

Part #1173157

This item is not returnable
$2.16
In Stock
Adapter 1085010
#NI

Evap coil diagram

Adapter

Part #1085010

$10.20
In Stock
Shield A 1176840
#A

Evap coil diagram

Shield a

Part #1176840

$26.40
In Stock
Shield 1176827
#C

Evap coil diagram

Shield

Part #1176827

$27.04
In Stock
Grommet 1173160
#NI

Evap coil diagram

Grommet

Part #1173160

This item is not returnable
$2.86
In Stock
Access Cover 1183273
#G

Evap coil diagram

Access cover

Part #1183273

The manufacturer no longer makes this part, and there's no substitute part

Washer 1174012
#NI

Evap coil diagram

Washer

Part #1174012

The manufacturer no longer makes this part, and there's no substitute part

Shield B 1176841
#B

Evap coil diagram

Shield b

Part #1176841

The manufacturer no longer makes this part, and there's no substitute part

Distributor 1183262
#6

Evap coil diagram

Distributor

Part #1183262

The manufacturer no longer makes this part, and there's no substitute part

Cnds Pan Assy 1183266
#7

Evap coil diagram

Cnds pan assy

Part #1183266

The manufacturer no longer makes this part, and there's no substitute part
