Here are the diagrams and repair parts for Official Kenmore 66516604300 undercounter dishwasher, as well as links to manuals and error code tables, if available.

Owner’s manual

By Schematic

By Part

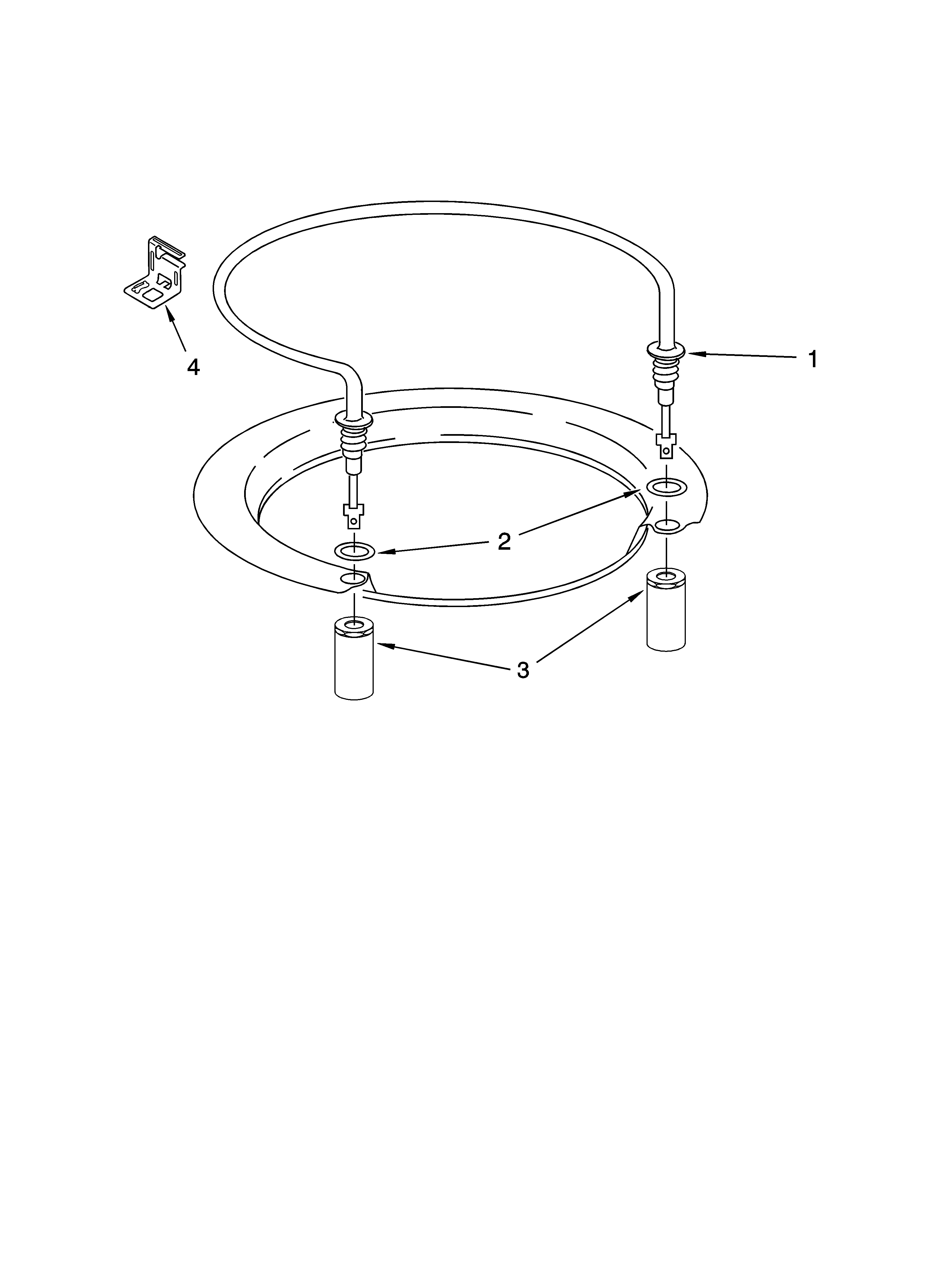

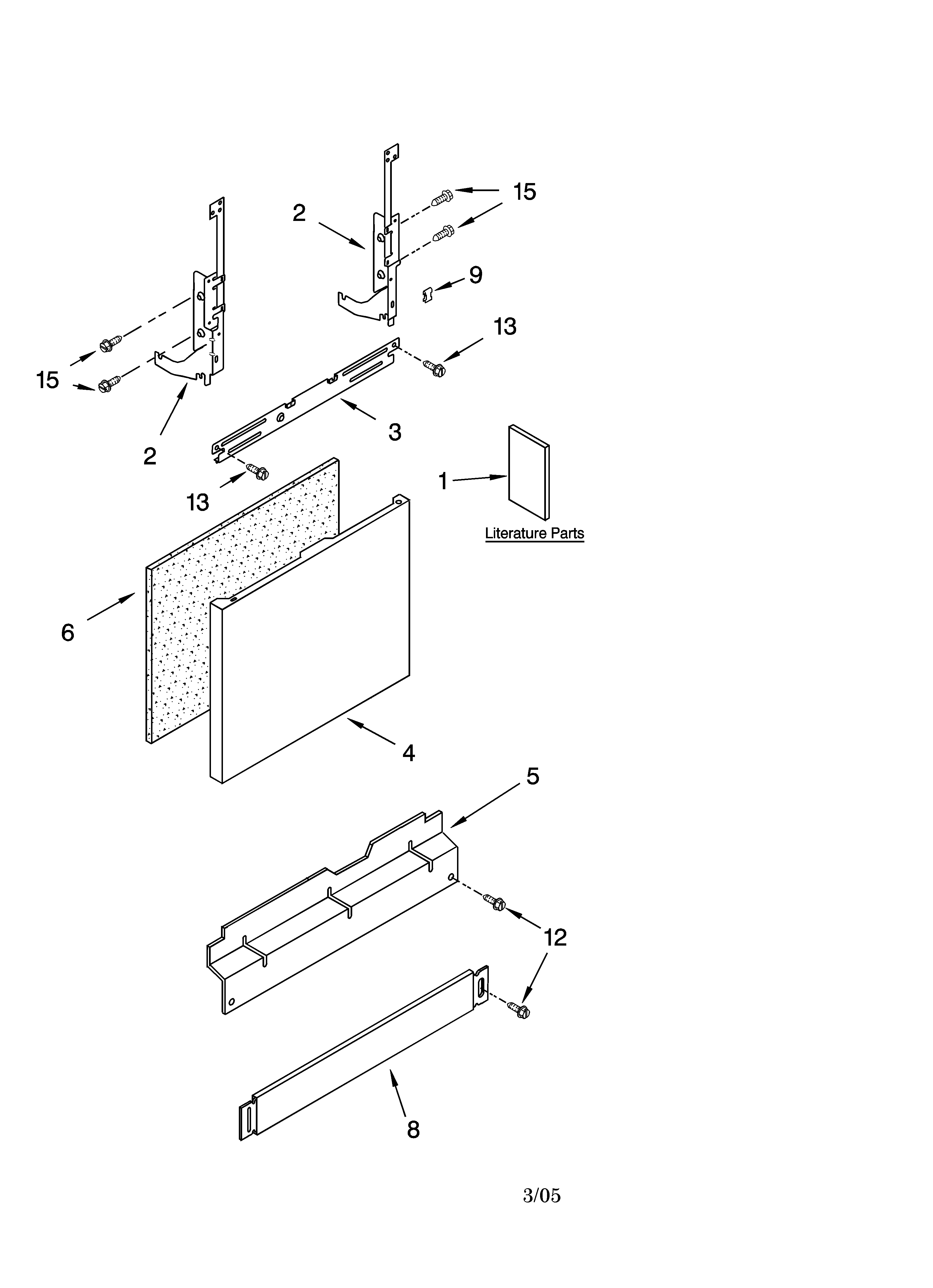

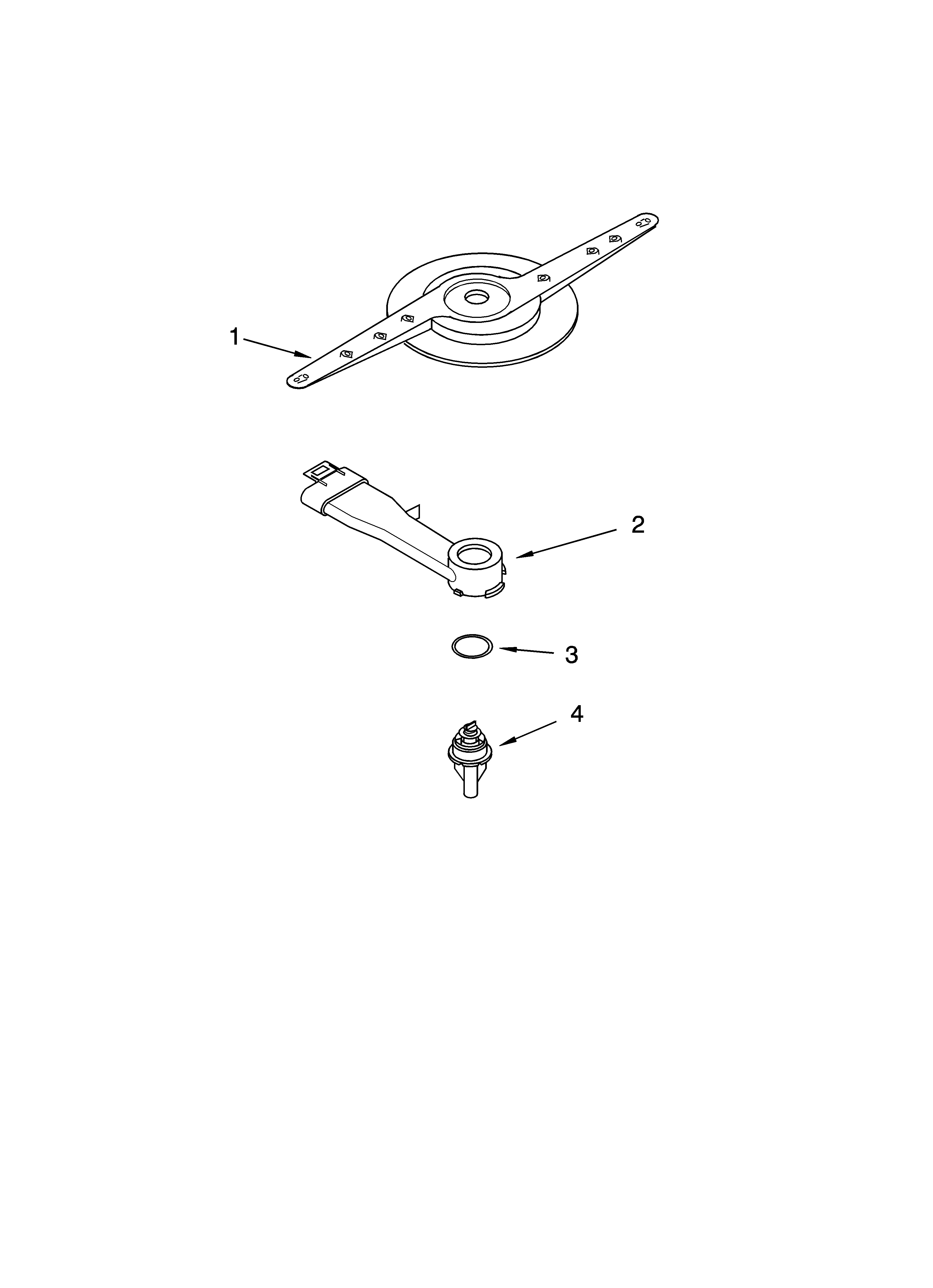

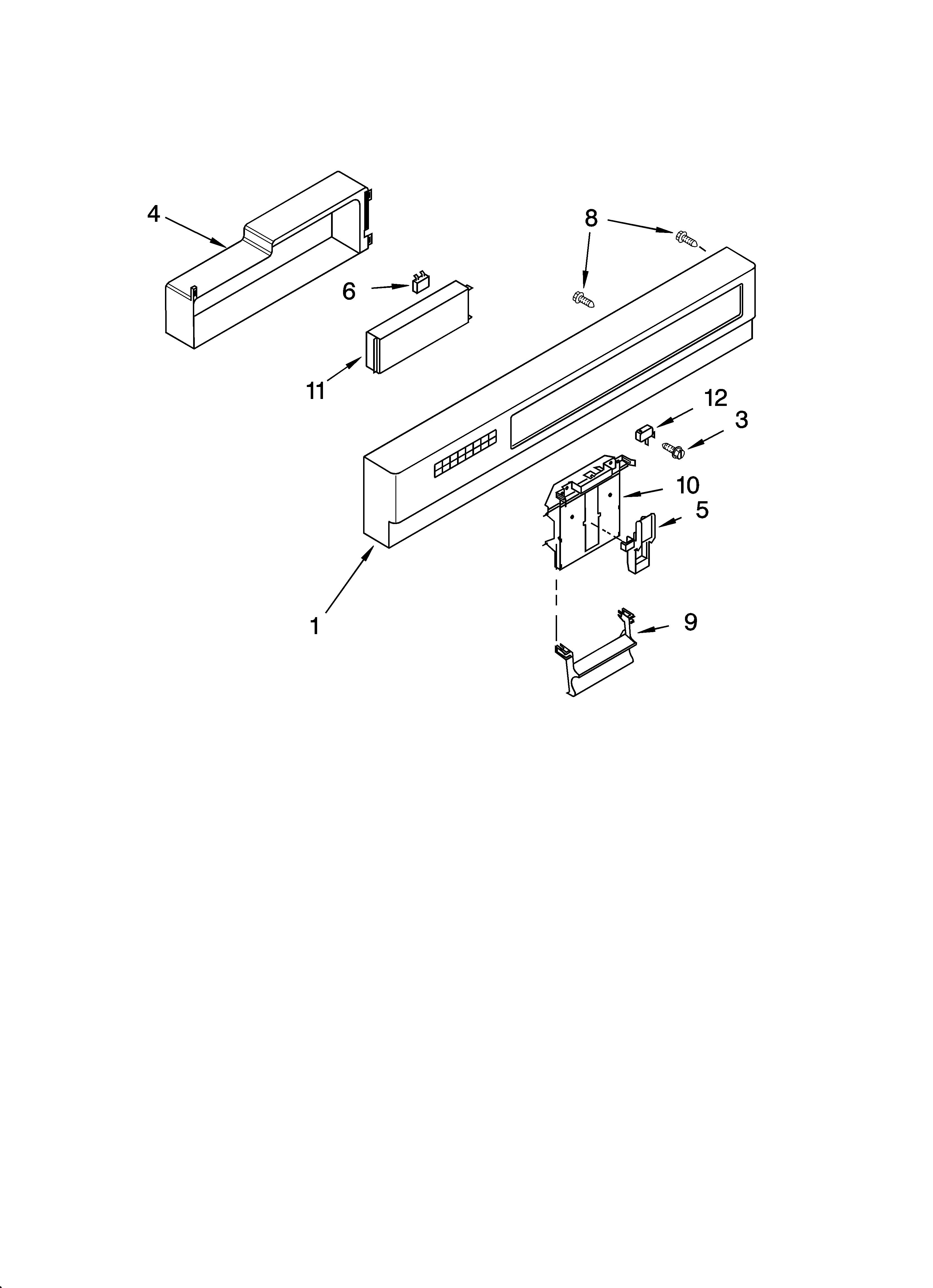

SELECT DIAGRAM

Browse Parts for66516604300 Undercounter Dishwasher

#10

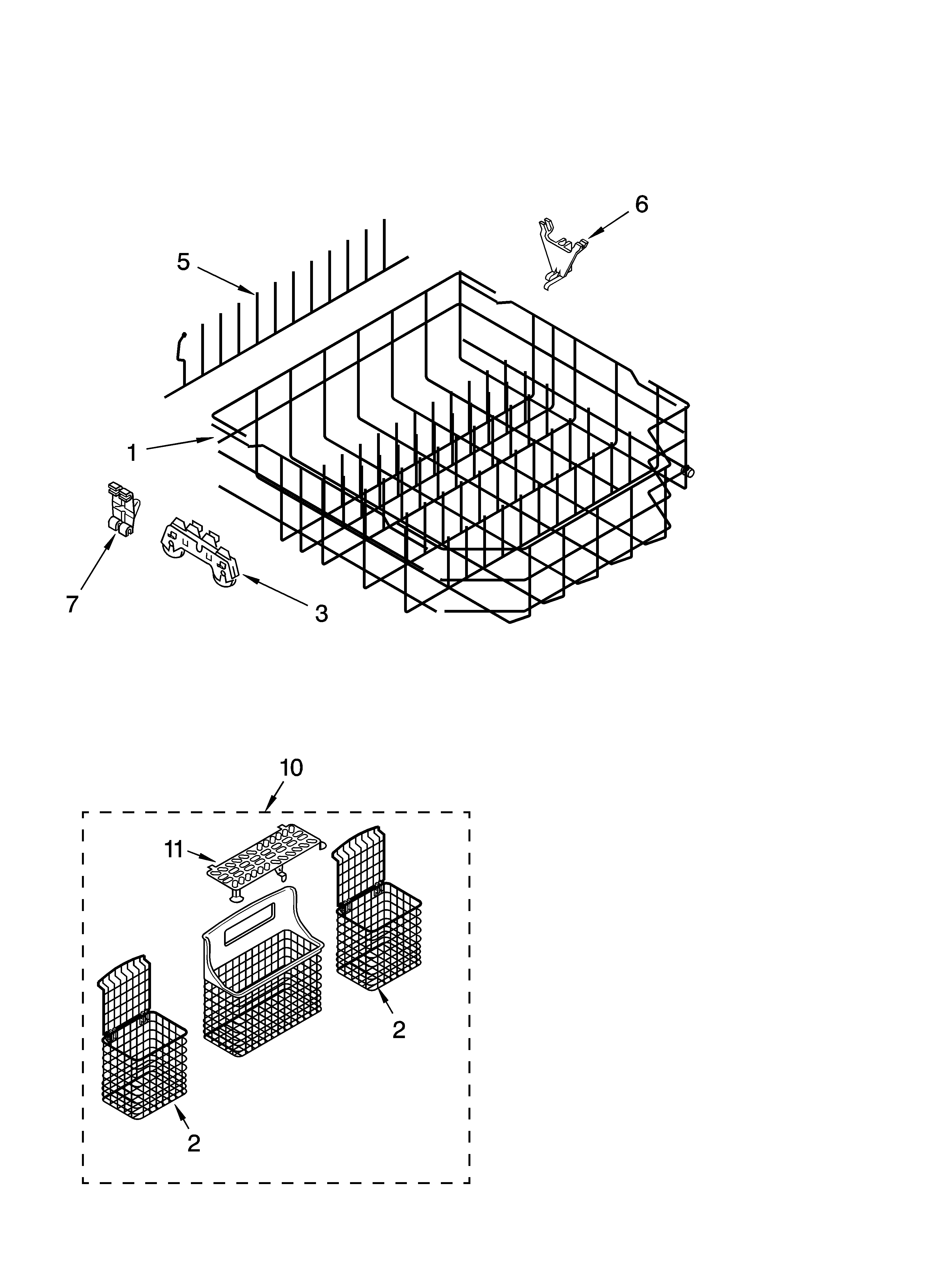

Lower rack parts diagram
Silverware basket
Part #8268858
Replaced by #W10807920
?
Manufacturer substitution
This part replaces 8268858. Substitute parts can look different from the original.
4.6 (251)
$41.07 |
13% OFF Phone Price : $47.07
In Stock
Qty
#3

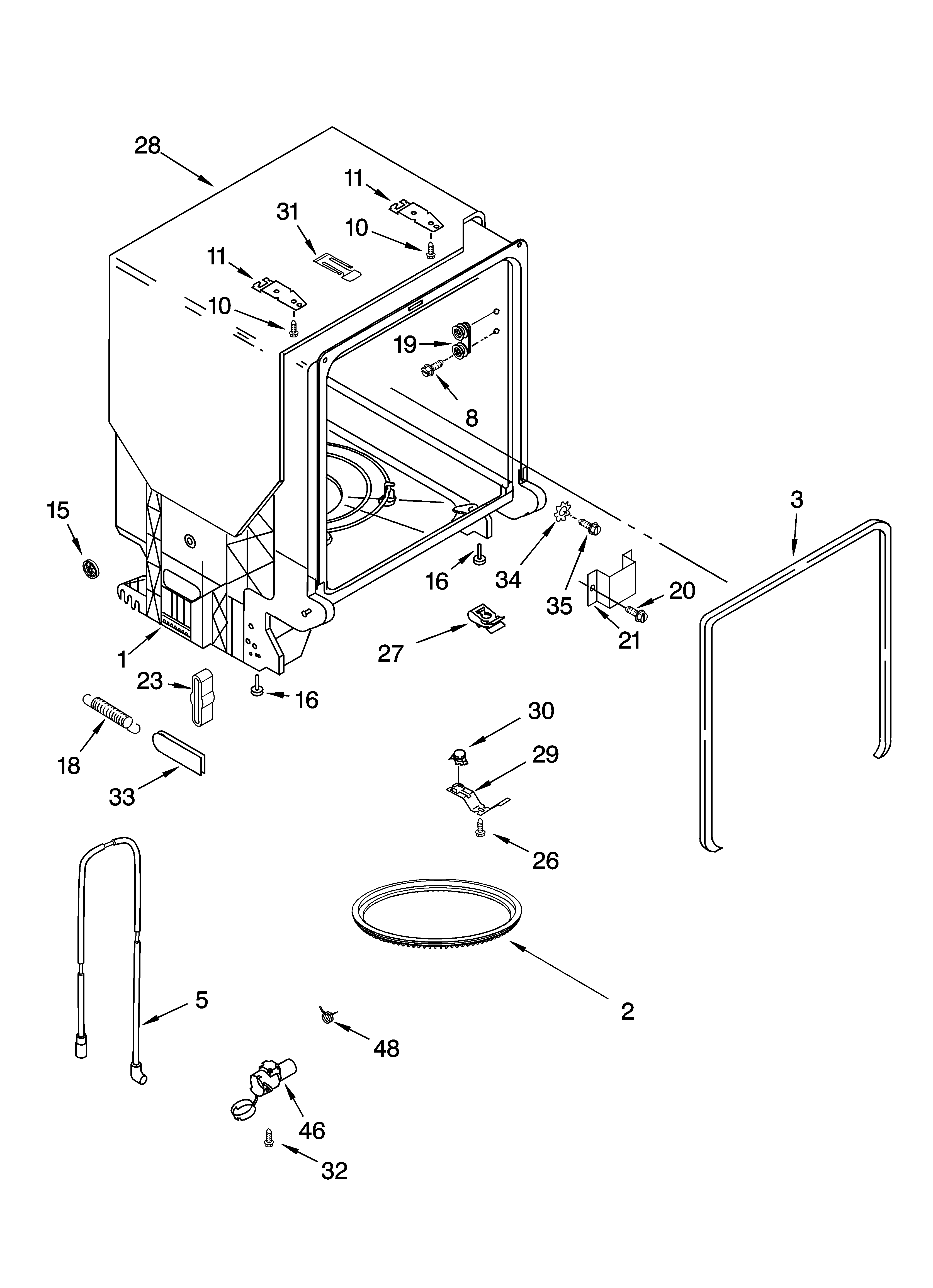

Tub and frame parts diagram
Dishwasher door seal
Part #8268888
Replaced by #W10542314
?
Manufacturer substitution
This part replaces 8268888. Substitute parts can look different from the original.
4.2 (39)
$49.59 |
11% OFF Phone Price : $55.59
In Stock
Qty
#5

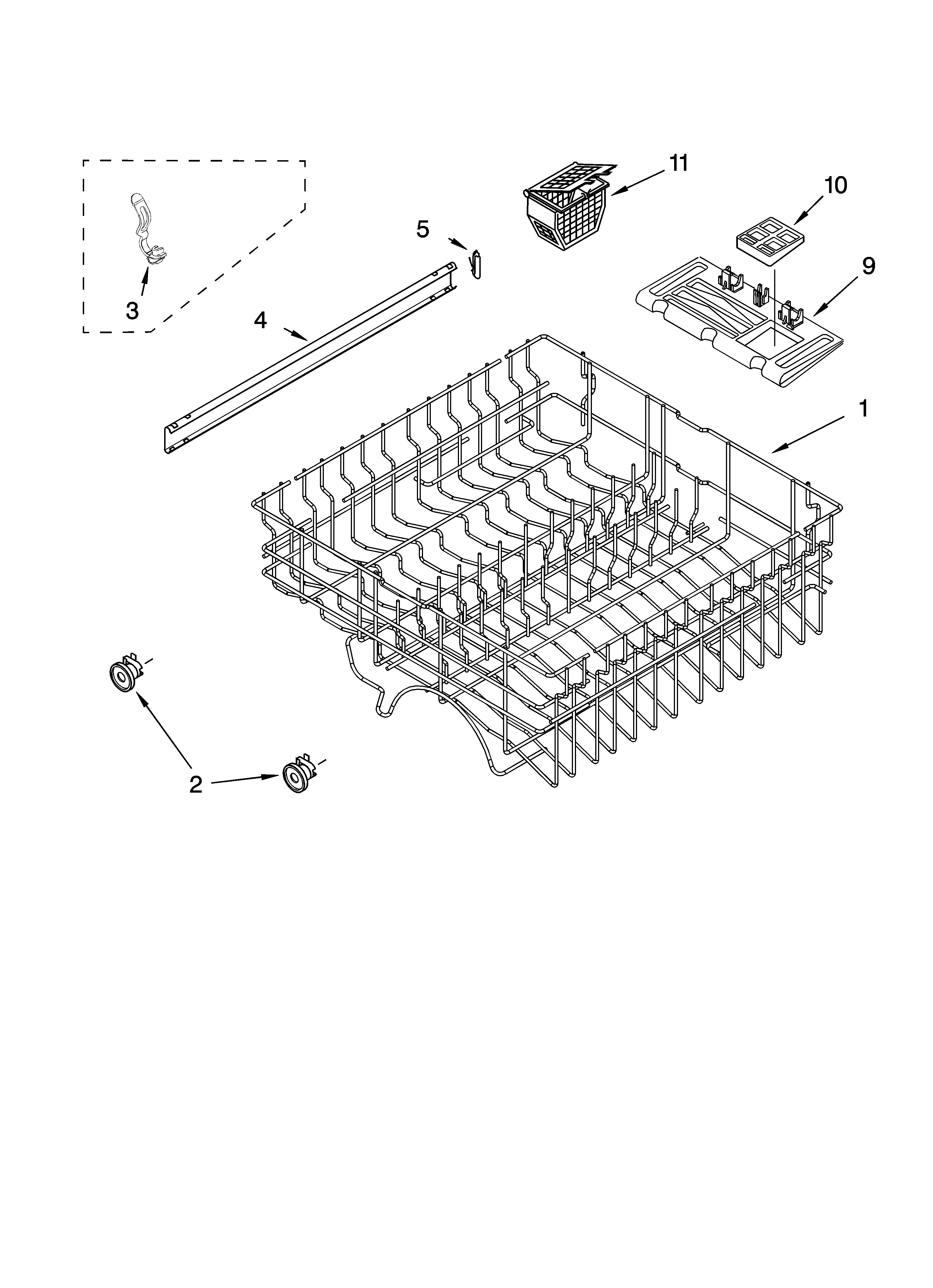

Upper rack and track parts diagram
Stop
Part #8524581
Replaced by #WP8565925
?
Manufacturer substitution
This part replaces 8524581. Substitute parts can look different from the original.
4.4 (57)
$6.92 |
13% OFF Phone Price : $7.92
In Stock
Qty
#8

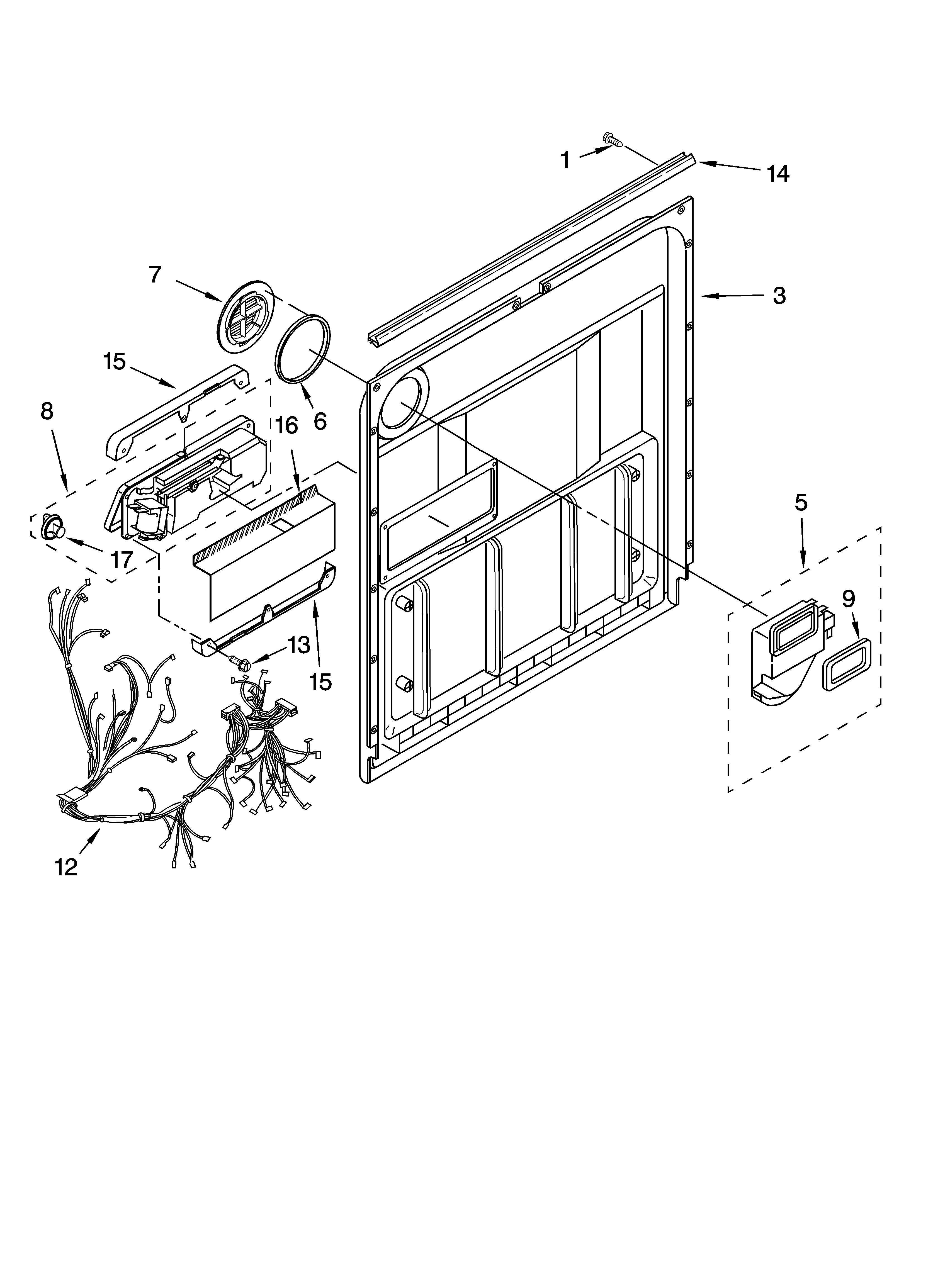

Door and latch parts diagram
Dishwasher dispenser
Part #8270032
Replaced by #WP8558129
?
Manufacturer substitution
This part replaces 8270032. Substitute parts can look different from the original.
4 (22)
$46.87 |
11% OFF Phone Price : $52.87
In Stock
Qty
#14

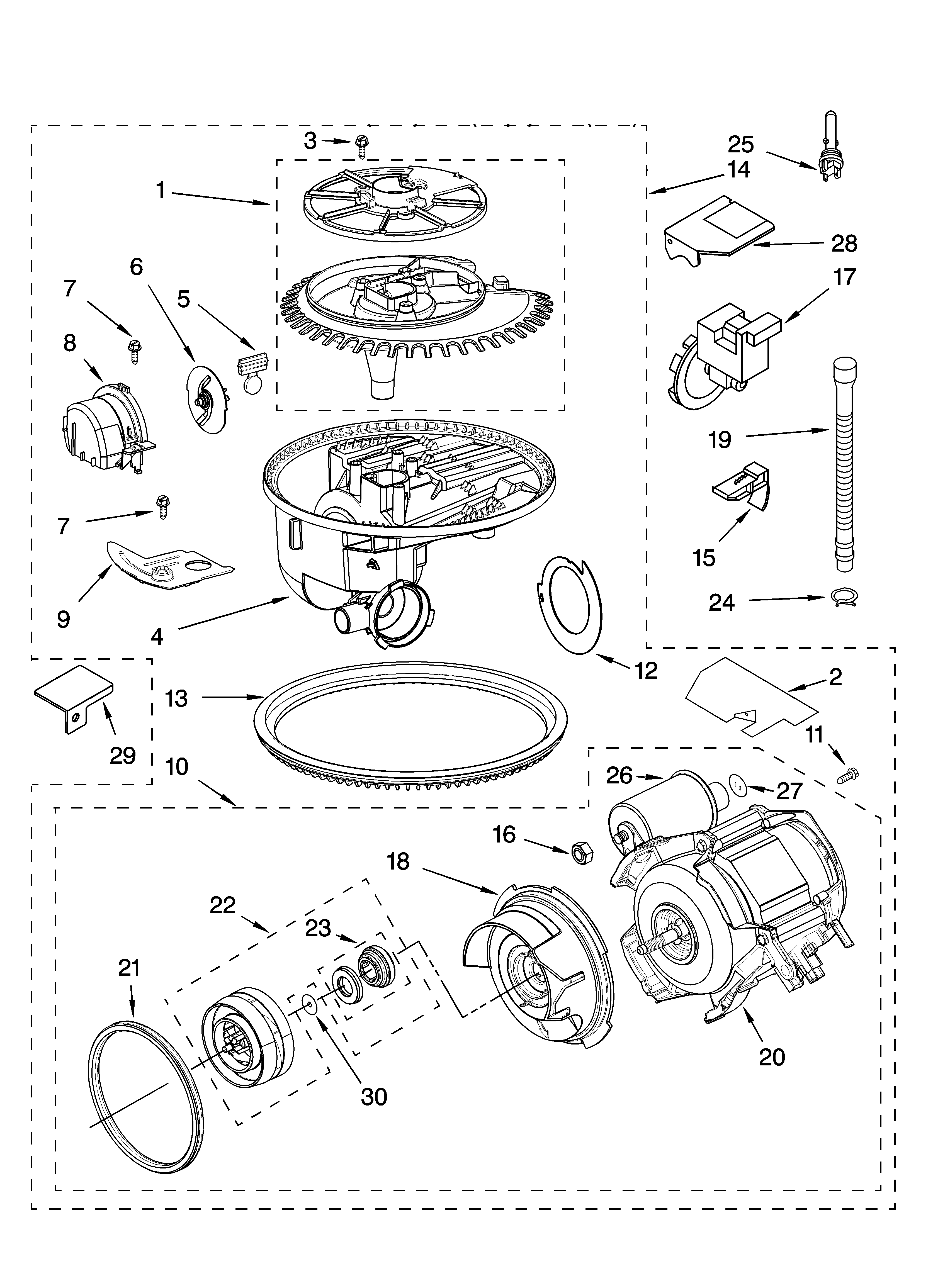

Pump and motor parts diagram
Pump motor
Part #8534884
Replaced by #W10782773
?
Manufacturer substitution
This part replaces 8534884. Substitute parts can look different from the original.
3.6 (18)
$160.82 |
7% OFF Phone Price : $172.82
In Stock
Qty
#7

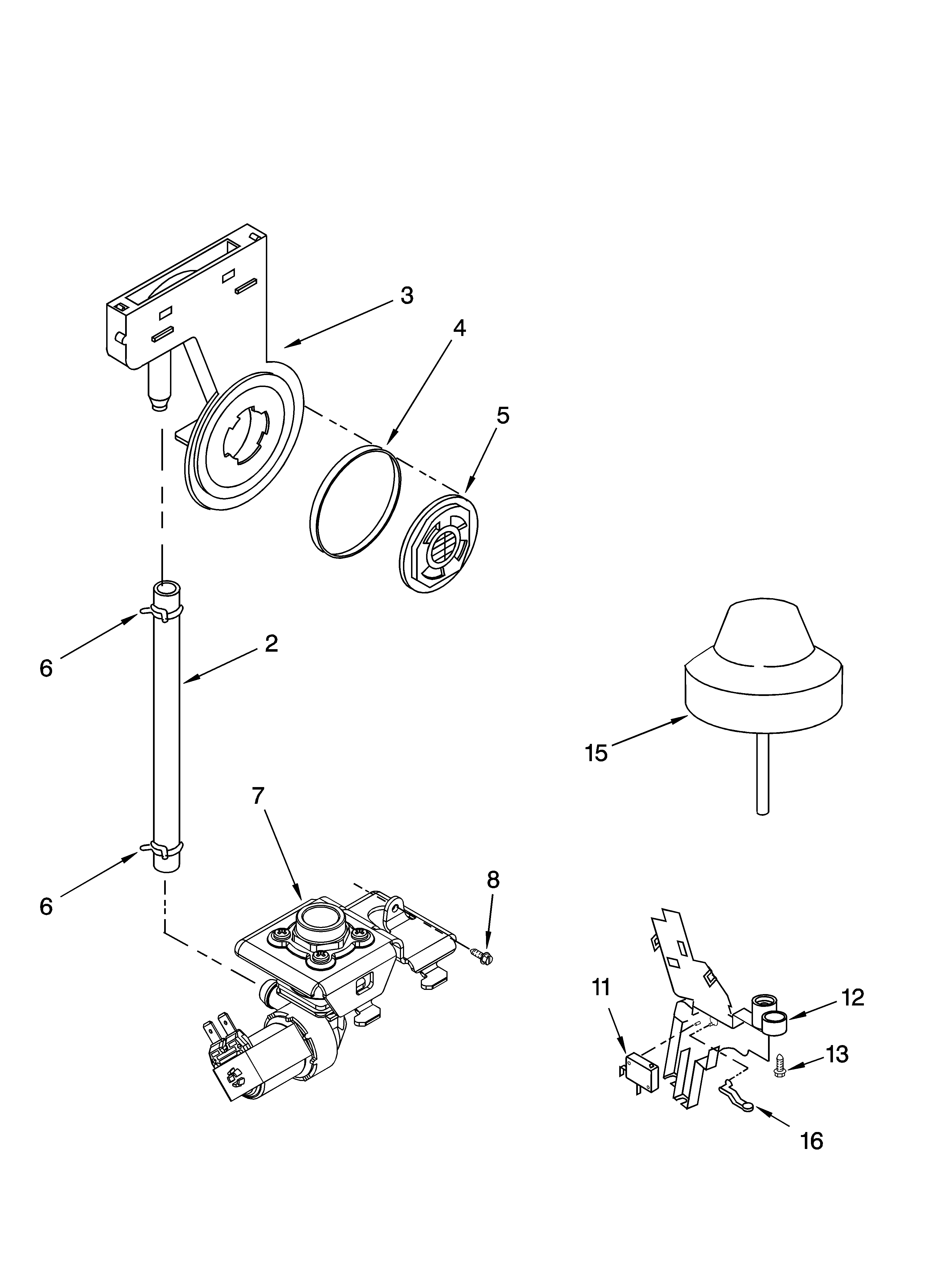

Fill and overfill parts diagram
Dishwasher water inlet valve
Part #8531670
Replaced by #WP8531669
?
Manufacturer substitution
This part replaces 8531670. Substitute parts can look different from the original.
4.4 (11)
$55.15 |
10% OFF Phone Price : $61.15
In Stock
Qty
#5
Lower rack parts diagram
Dishwasher tine row
Part #8519589
Replaced by #W10728160
?
Manufacturer substitution
This part replaces 8519589. Substitute parts can look different from the original.
4.2 (21)
$37.73 |
14% OFF Phone Price : $43.73
In Stock
Qty
#5

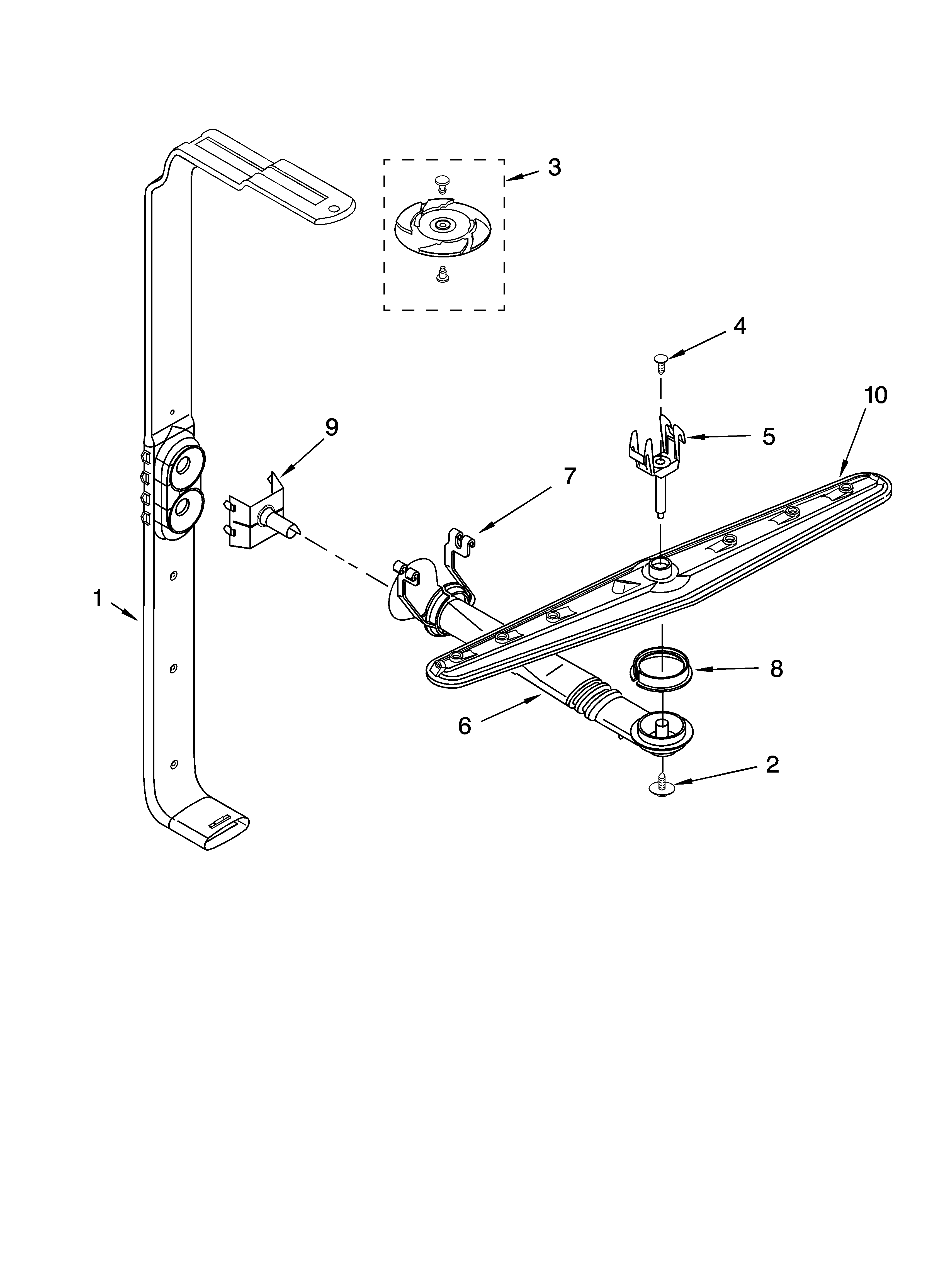

Upper wash and rinse parts diagram
Dishwasher upper spray arm mount
Part #8539324
Replaced by #WP8539324
?
Manufacturer substitution
This part replaces 8539324. Substitute parts can look different from the original.
3.9 (34)
$8.84 |
10% OFF Phone Price : $9.84
In Stock
Qty
#10
Pump and motor parts diagram
Dishwasher pump motor
Part #8534942
Replaced by #WPW10757217
?
Manufacturer substitution
This part replaces 8534942. Substitute parts can look different from the original.
4.3 (16)
$146.13 |
8% OFF Phone Price : $158.13
In Stock
Qty
#20
Pump and motor parts diagram
Motor
Part #8534941
Replaced by #WPW10757217
?
Manufacturer substitution
This part replaces 8534941. Substitute parts can look different from the original.
4.3 (16)
$146.13 |
8% OFF Phone Price : $158.13
In Stock
Qty
