KitchenAid
Electric Wall Oven

Model # KEBI171WBL2 Official KitchenAid electric built-in oven

Here are the diagrams and repair parts for Official KitchenAid KEBI171WBL2 electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

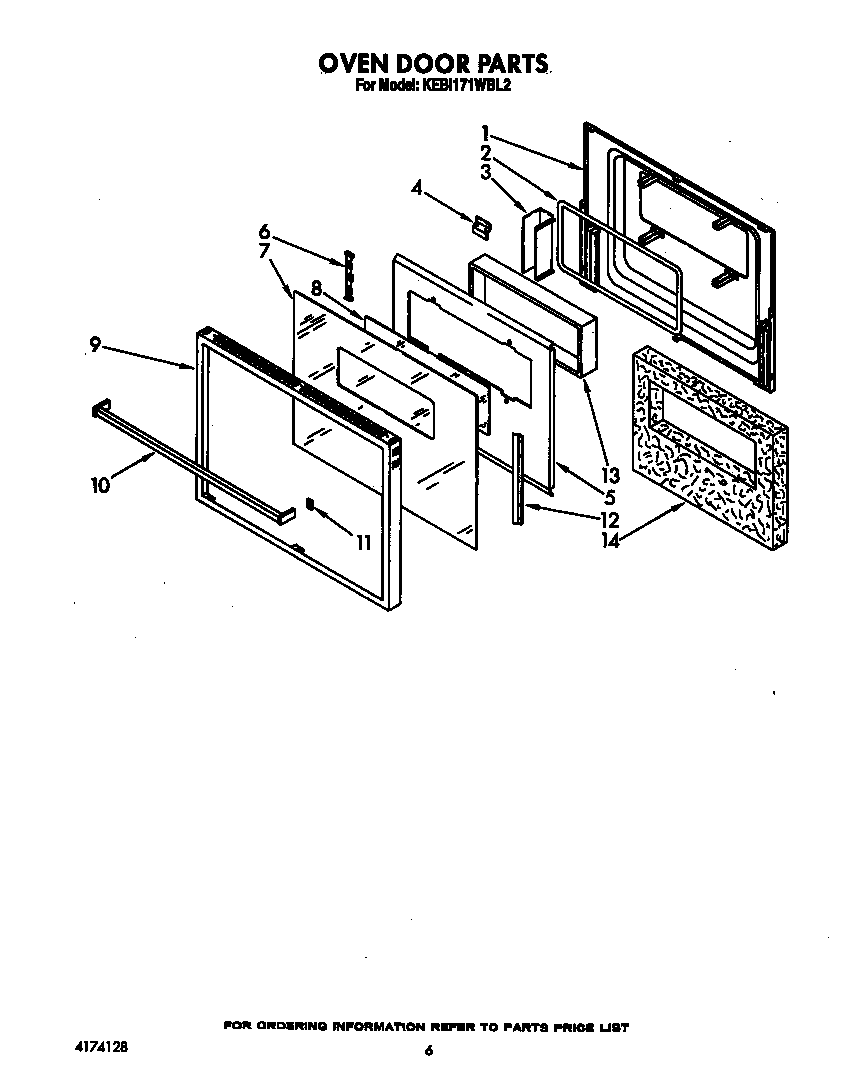

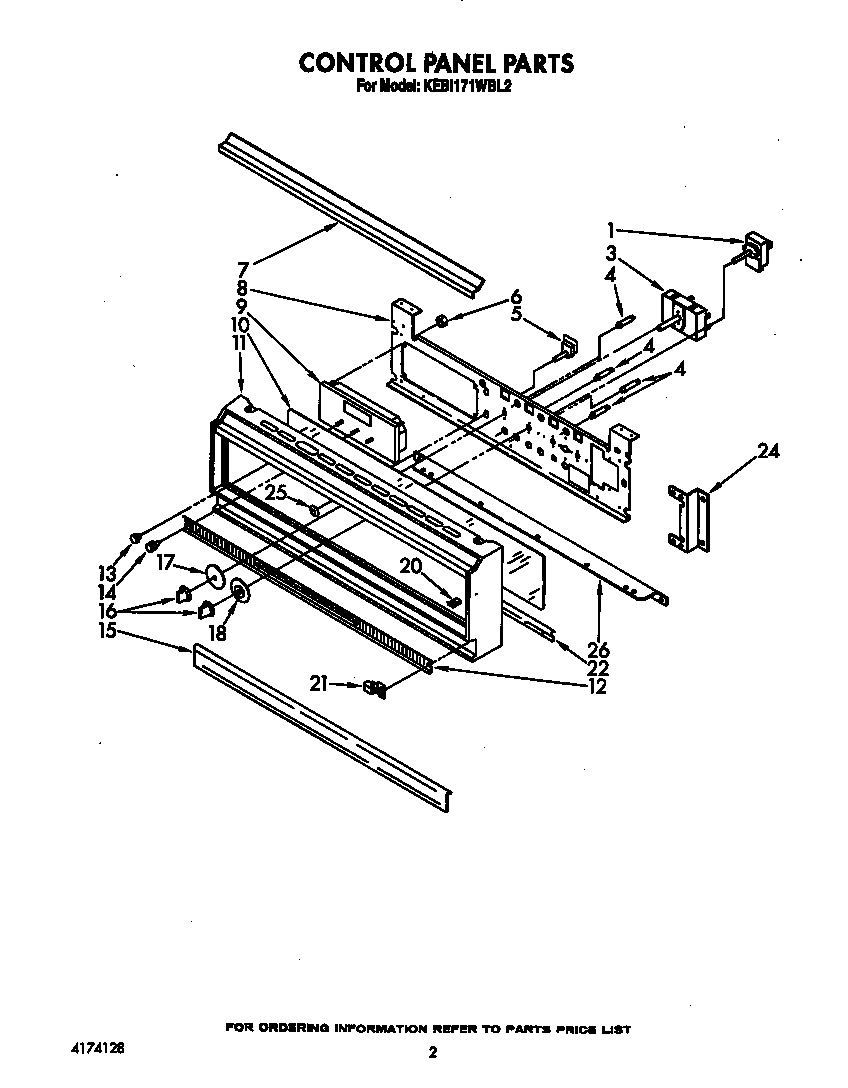

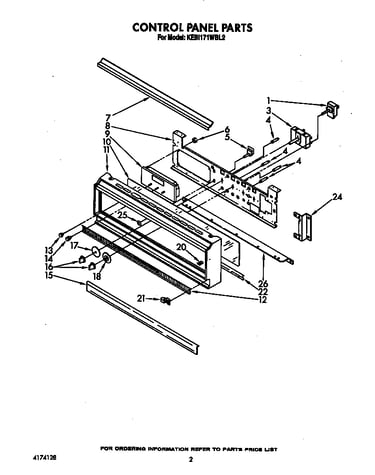

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Light Bulb 311255
#12

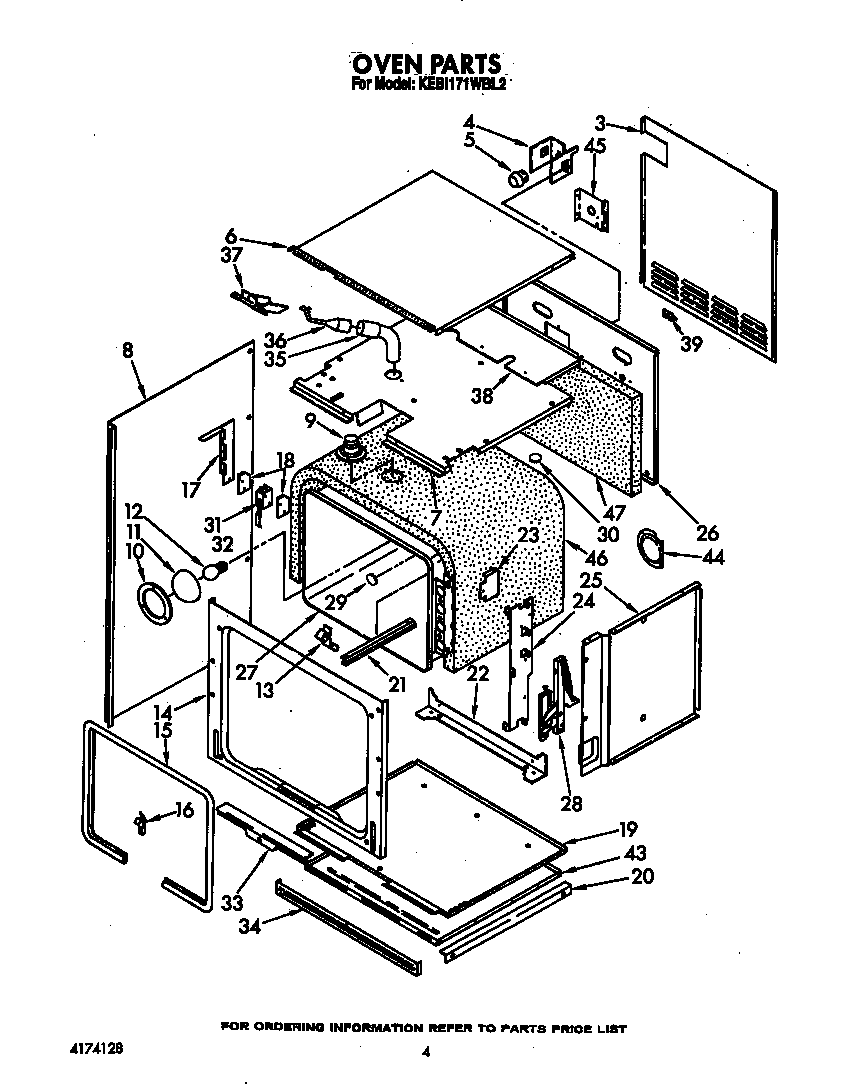

Oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Screw 4159450
#33A

Oven diagram

Screw

Part #4159450

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 4159450. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Terminal Block 258076
#2

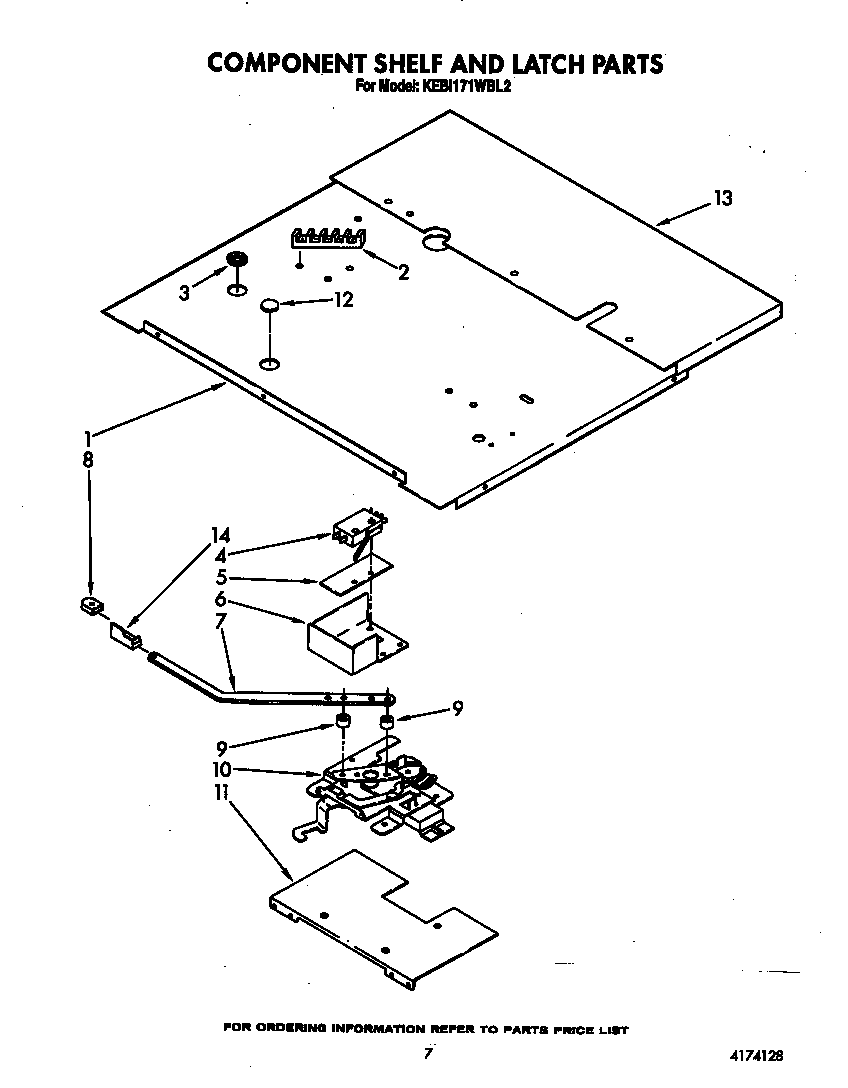

Component shelf and latch diagram

Terminal block

Part #258076

Replaced by #WP8203546

?
Manufacturer substitution
This part replaces 258076. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Range Bake Element 661416
#7

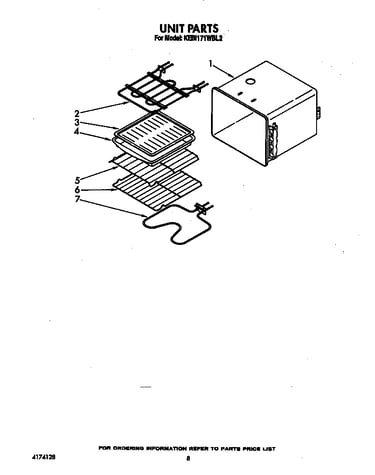

Unit diagram

Range bake element

Part #661416

Replaced by #WP661416

?
Manufacturer substitution
This part replaces 661416. Substitute parts can look different from the original.
$71.58 |
8% OFF Phone Price : $77.58
In Stock
Clip Bulb 313382
#13

Oven diagram

Clip bulb

Part #313382

Replaced by #98005642

?
Manufacturer substitution
This part replaces 313382. Substitute parts can look different from the original.
$35.73
In Stock
Grid Pan 3147563
#3

Unit diagram

Grid pan

Part #3147563

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3147563. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Broiler Pan 3147845
#4

Unit diagram

Broiler pan

Part #3147845

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3147845. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Tube Clamp 3179669
#7

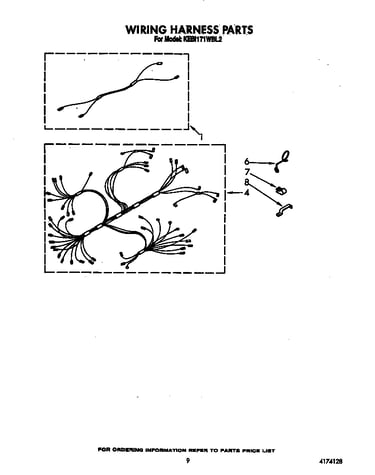

Wiring harness diagram

Tube clamp

Part #3179669

Replaced by #WP308605

?
Manufacturer substitution
This part replaces 3179669. Substitute parts can look different from the original.
This item is not returnable
$6.46
In Stock
Range Screw 3177991
Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp 4159037
#8

Wiring harness diagram

Clamp

Part #4159037

Replaced by #7111P002-60

?
Manufacturer substitution
This part replaces 4159037. Substitute parts can look different from the original.
This item is not returnable
$6.39
In Stock
