Model # WICB103CV1WC Official GE washer

Here are the diagrams and repair parts for Official GE WICB103CV1WC washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |
Split Ring WH2X1195
#313

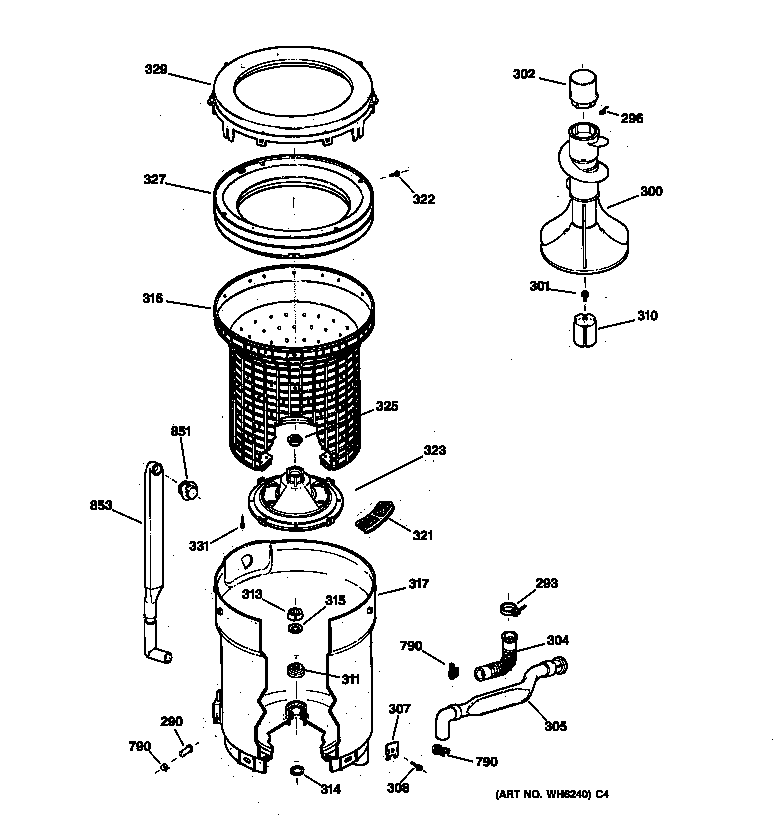

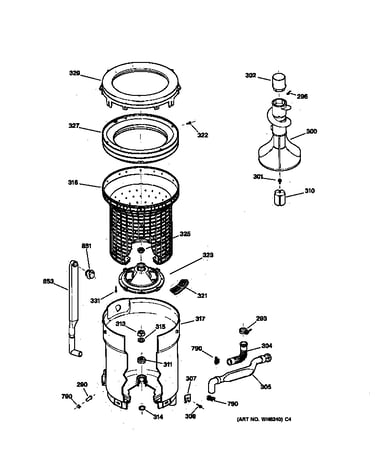

Tub, basket & agitator diagram

Split ring

Part #WH2X1195

Replaced by #WH02X10265

?
Manufacturer substitution
This part replaces WH2X1195. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Washer Tub Mounting Hub Washer (replaces Wh02x1199) WH2X1199
#315

Tub, basket & agitator diagram

Washer tub mounting hub washer (replaces wh02x1199)

Part #WH2X1199

BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Washer Suspension Rod Kit (replaces Wh16x0543) WH16X543
#415

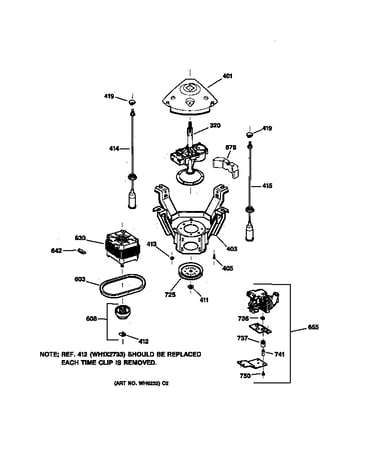

Suspension, pump & drive components diagram

Washer suspension rod kit (replaces wh16x0543)

Part #WH16X543

BEST SELLER
$33.98 |
15% OFF Phone Price : $39.98
In Stock
Washer Water-level Pressure Switch Hose (replaces Wh41x0365) WH41X365
#811

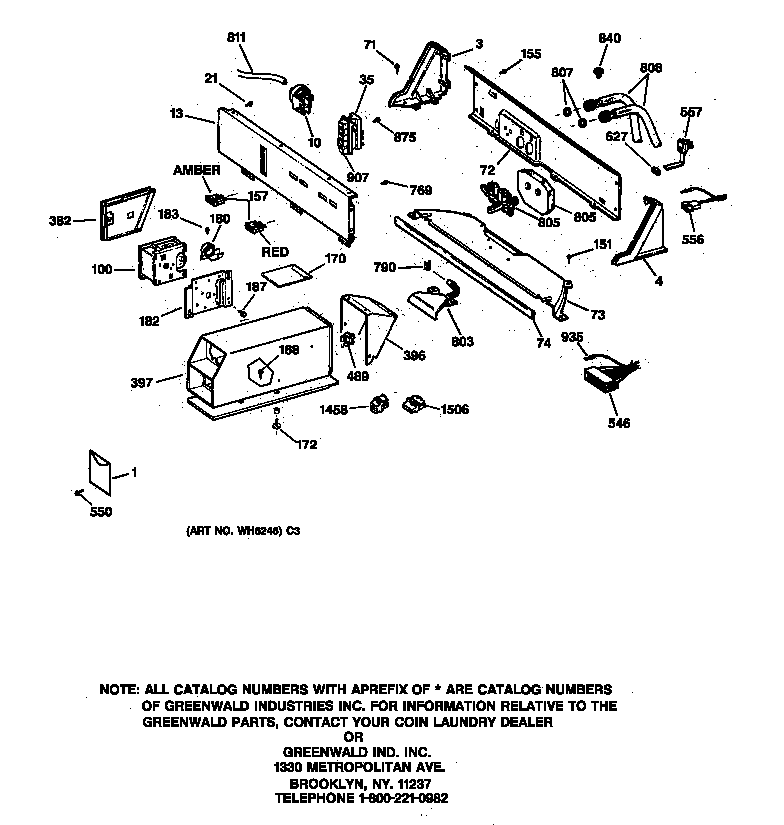

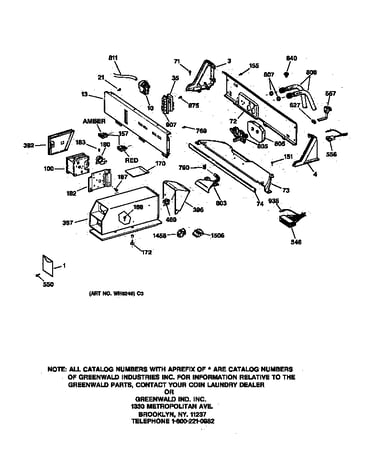

Backsplash & coin box assembly diagram

Washer water-level pressure switch hose (replaces wh41x0365)

Part #WH41X365

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Hub WH45X10013
#323

Tub, basket & agitator diagram

Hub

Part #WH45X10013

Replaced by #WH45X10027

?
Manufacturer substitution
This part replaces WH45X10013. Substitute parts can look different from the original.
$81.96 |
7% OFF Phone Price : $87.96
In Stock
Washer Drain Hose Support Clip (replaces Wh16x0513) WH16X513
#834

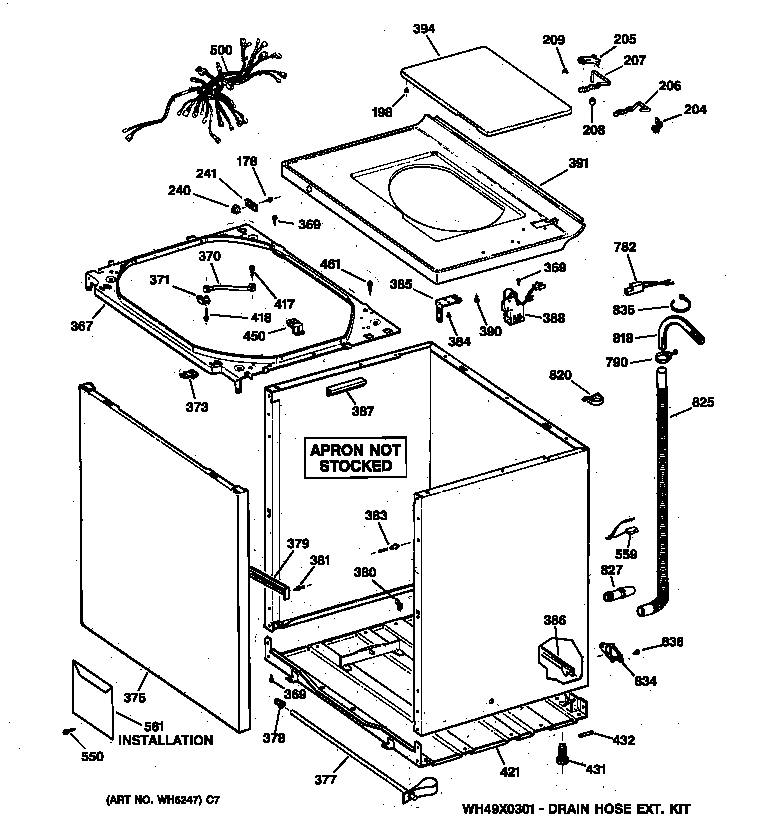

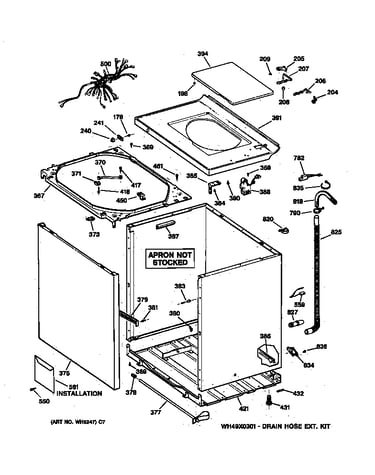

Cabinet, cover & front panel diagram

Washer drain hose support clip (replaces wh16x0513)

Part #WH16X513

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Washer Gear Case And Brake Assembly WH38X10002
#320

Suspension, pump & drive components diagram

Washer gear case and brake assembly

Part #WH38X10002

$294.99 |
$12.00 OFF Phone Price : $306.99
In Stock
Scr&washer WH2X694
#417

Cabinet, cover & front panel diagram

Scr&washer

Part #WH2X694

Replaced by #WH2X694D

?
Manufacturer substitution
This part replaces WH2X694. Substitute parts can look different from the original.
This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
Washer Screw WH2X1201
#405

Suspension, pump & drive components diagram

Washer screw

Part #WH2X1201

$6.51 |
13% OFF Phone Price : $7.51
In Stock
Screw, 2-pack WZ5X158
#461

Cabinet, cover & front panel diagram

Screw, 2-pack

Part #WZ5X158

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WZ5X158. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your washers
