Frigidaire
Downdraft Ventilation System

Model # FH36DD50MSB Official Frigidaire vent hood

Here are the diagrams and repair parts for Official Frigidaire FH36DD50MSB vent hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

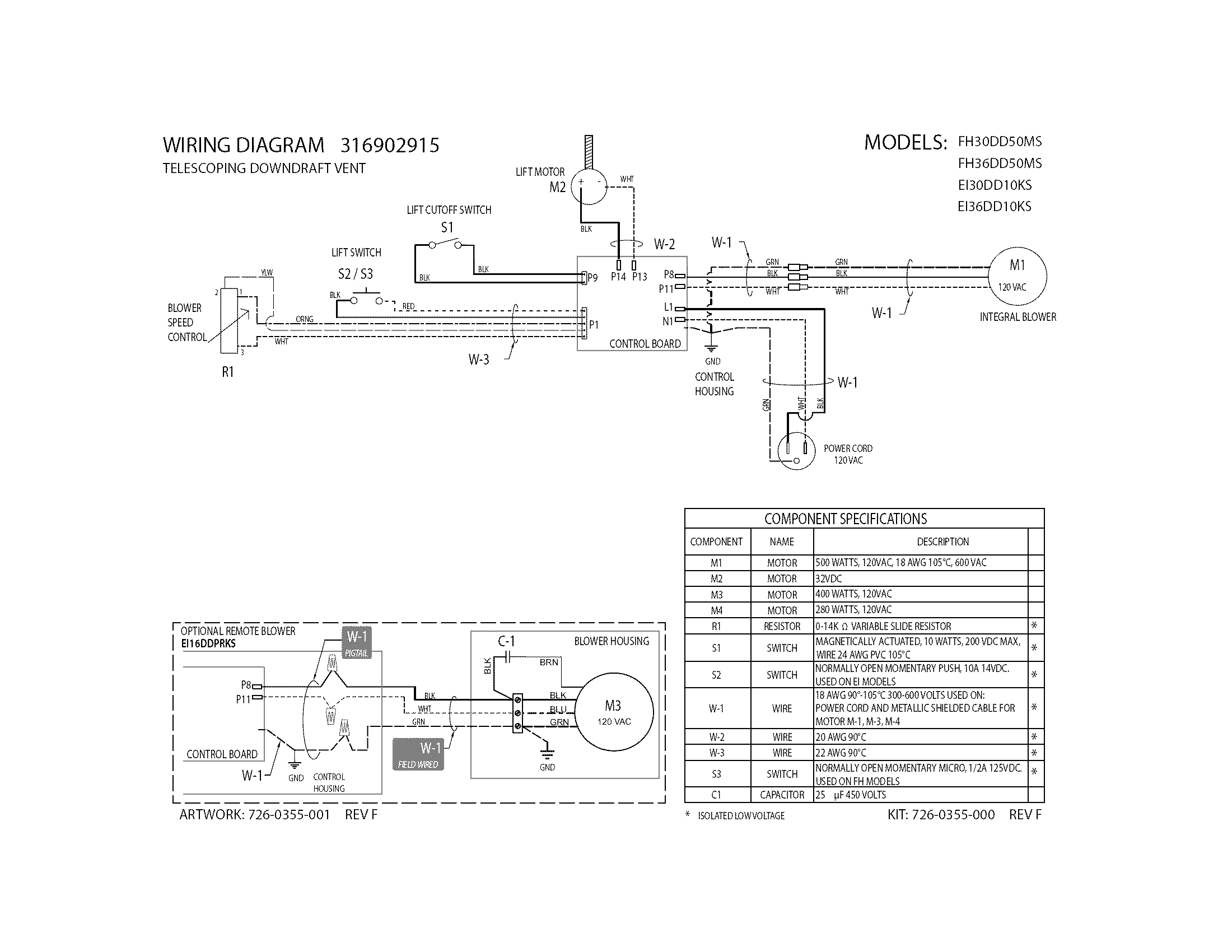

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Range Knob 5304487445
#20

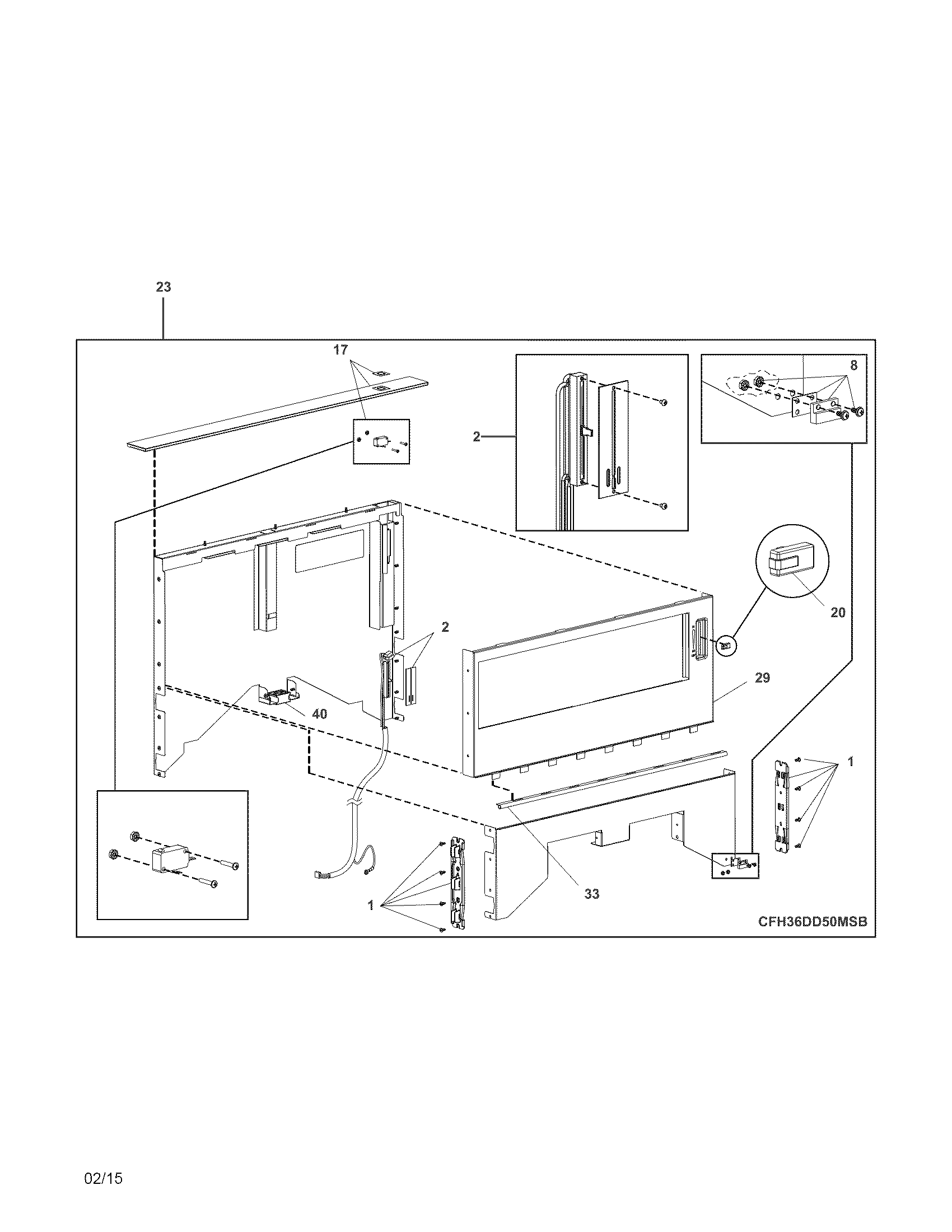

Chimney assembly diagram

Range knob

Part #5304487445

$101.89 |
11% OFF Phone Price : $113.89
In Stock
Range Downdraft Vent Blower Motor Assembly 5304487452
#26

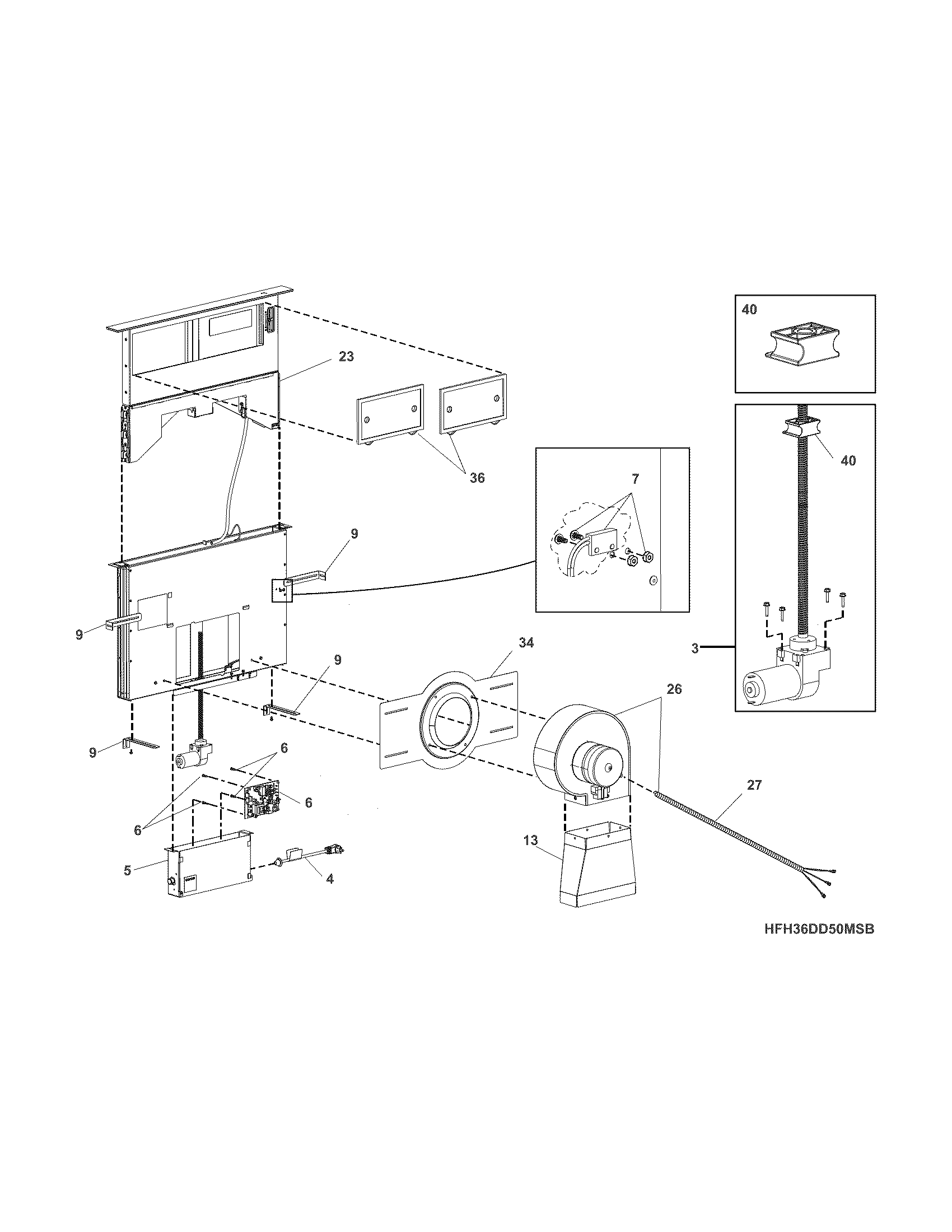

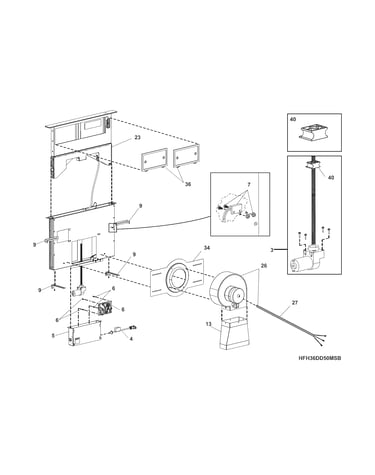

Body/motor parts diagram

Range downdraft vent blower motor assembly

Part #5304487452

The manufacturer no longer makes this part, and there's no substitute part

Downdraft Vent Grease Filter Kit, 3-in 5304487463
#36

Body/motor parts diagram

Downdraft vent grease filter kit, 3-in

Part #5304487463

The manufacturer no longer makes this part, and there's no substitute part

Downdraft Vent Electronic Control Board 5304500764
#6

Body/motor parts diagram

Downdraft vent electronic control board

Part #5304500764

The manufacturer no longer makes this part, and there's no substitute part

Switch Kit 5304487434
#7

Body/motor parts diagram

Switch kit

Part #5304487434

The manufacturer no longer makes this part, and there's no substitute part

Wiring Harness 5304487454
#27

Body/motor parts diagram

Wiring harness

Part #5304487454

The manufacturer no longer makes this part, and there's no substitute part

Magnet Kit 5304487435
#8

Chimney assembly diagram

Magnet kit

Part #5304487435

The manufacturer no longer makes this part, and there's no substitute part

Panel 5304487456
#29

Chimney assembly diagram

Panel

Part #5304487456

The manufacturer no longer makes this part, and there's no substitute part

Plate 5304487461
#34

Body/motor parts diagram

Plate

Part #5304487461

The manufacturer no longer makes this part, and there's no substitute part

Downdraft Vent Gear Motor And Control Board Housing 5304487432
#5

Body/motor parts diagram

Downdraft vent gear motor and control board housing

Part #5304487432

The manufacturer no longer makes this part, and there's no substitute part
