Model # 3091 Official Porter Cable laminate trimmer

Here are the diagrams and repair parts for Official Porter Cable 3091 laminate trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Terminal 845946
#118

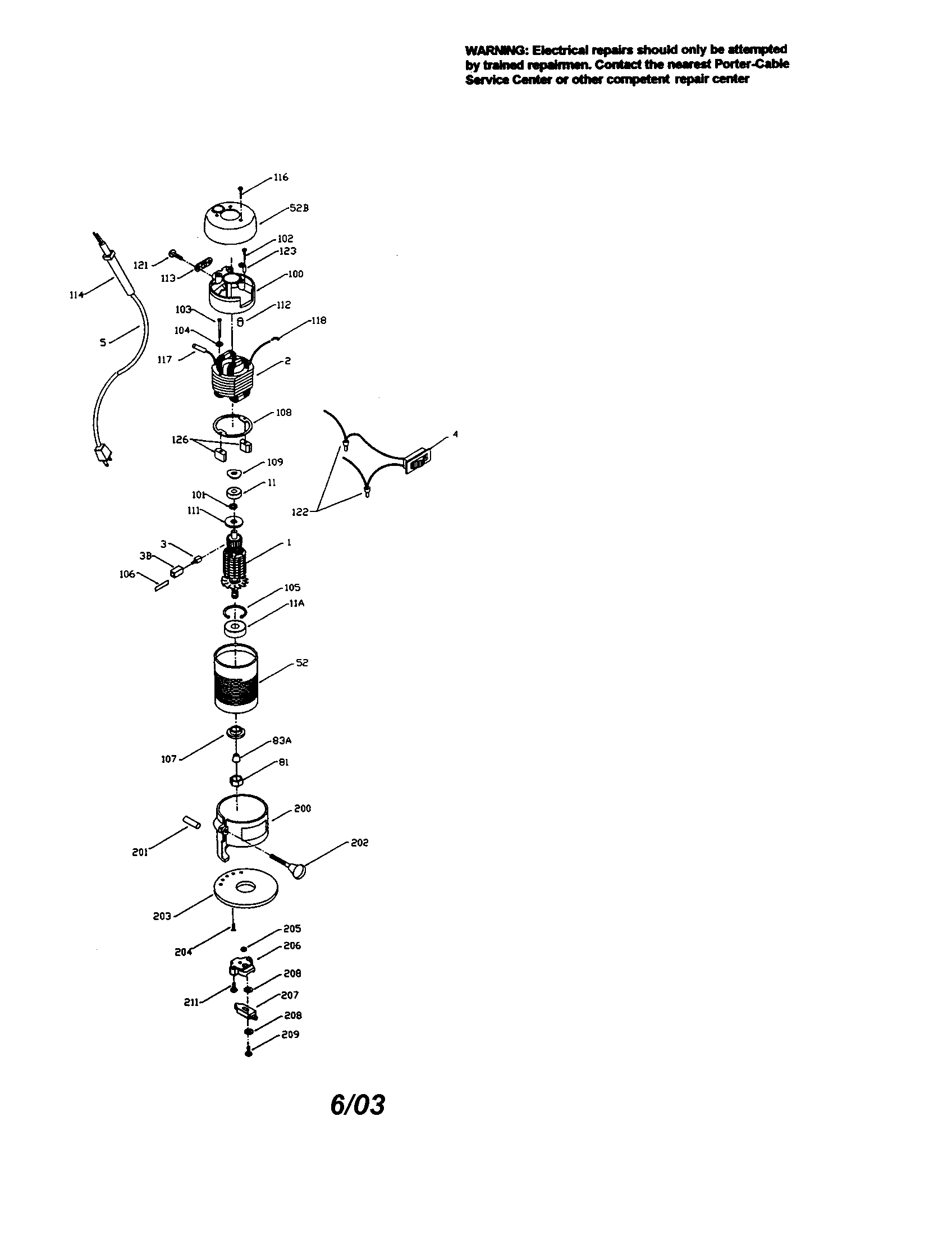

Laminate trimmer diagram

Terminal

Part #845946

The manufacturer no longer makes this part, and there's no substitute part

Armature 883524
#1

Laminate trimmer diagram

Armature

Part #883524

The manufacturer no longer makes this part, and there's no substitute part

Sub Base Screw 803158
#204

Laminate trimmer diagram

Sub base screw

Part #803158

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder 849326
#3B

Laminate trimmer diagram

Brush holder

Part #849326

The manufacturer no longer makes this part, and there's no substitute part

Spacer 849328
#101

Laminate trimmer diagram

Spacer

Part #849328

The manufacturer no longer makes this part, and there's no substitute part

Screw 810281
#202

Laminate trimmer diagram

Screw

Part #810281

The manufacturer no longer makes this part, and there's no substitute part

Commutator End Bearing Plug 695936
#112

Laminate trimmer diagram

Commutator end bearing plug

Part #695936

The manufacturer no longer makes this part, and there's no substitute part

Laminate Trimmer Baseplate 810272
#203

Laminate trimmer diagram

Laminate trimmer baseplate

Part #810272

The manufacturer no longer makes this part, and there's no substitute part

O-ring 879716
#104A

Laminate trimmer diagram

O-ring

Part #879716

The manufacturer no longer makes this part, and there's no substitute part

Retainer 849826
#107

Laminate trimmer diagram

Retainer

Part #849826

The manufacturer no longer makes this part, and there's no substitute part
