Model # 1U12EH2VHA Official Haier ductless split air conditioner

Here are the diagrams and repair parts for Official Haier 1U12EH2VHA ductless split air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Terminal Block WJ27X23010
#24

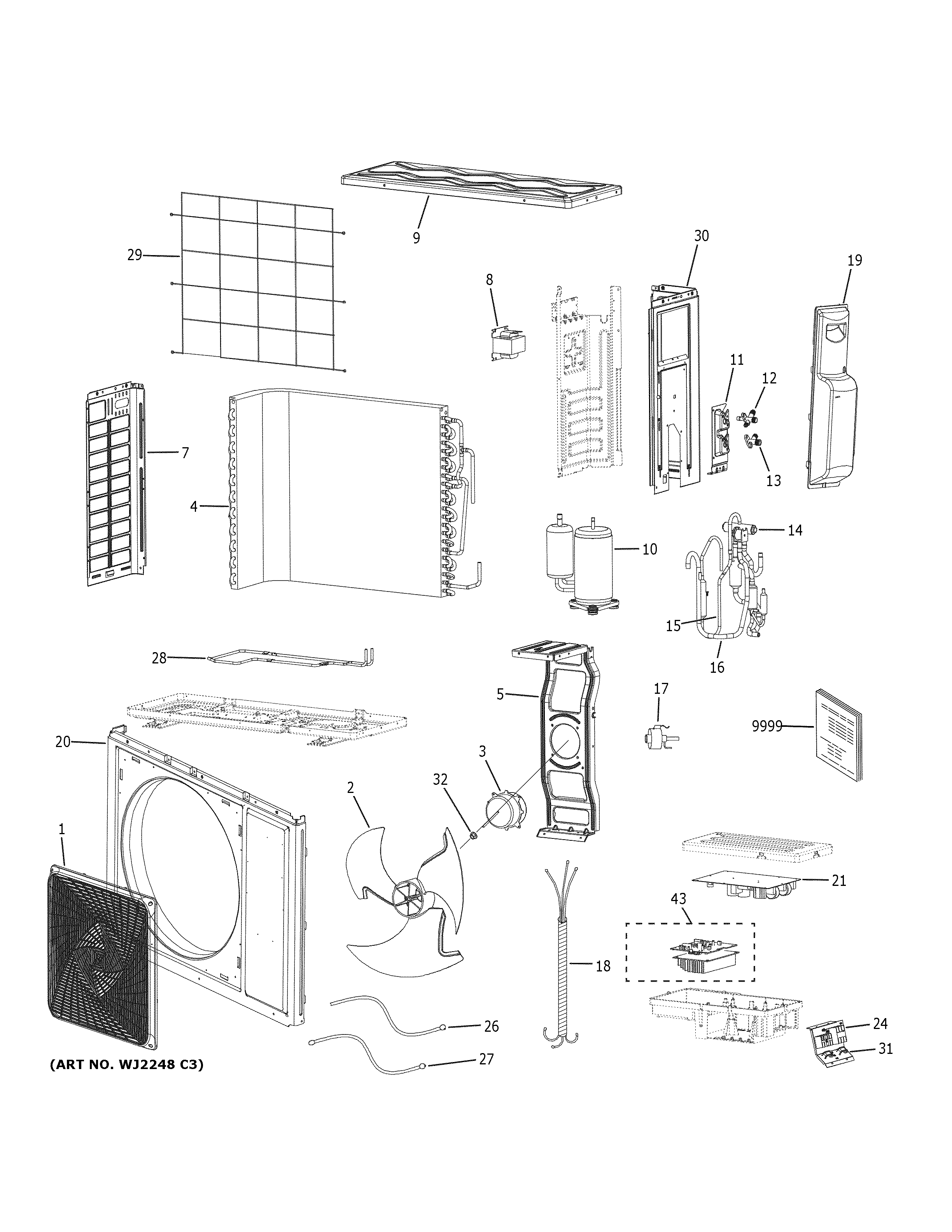

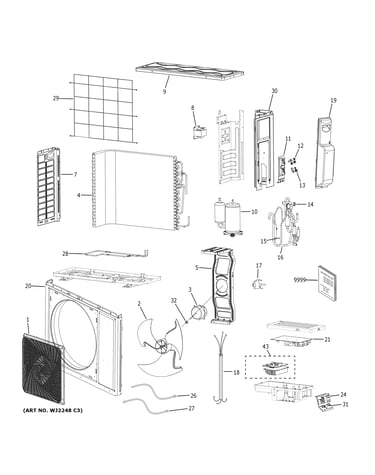

Ductless split a/c diagram

Terminal block

Part #WJ27X23010

$13.20
In Stock
Outdoor Fan Motor WJ94X23152
#3

Ductless split a/c diagram

Outdoor fan motor

Part #WJ94X23152

$158.24
In Stock
4-way Valve WJ53X22987
#14

Ductless split a/c diagram

4-way valve

Part #WJ53X22987

$63.91
In Stock
Left Side Panel WJ76X23151
#7

Ductless split a/c diagram

Left side panel

Part #WJ76X23151

$36.91
In Stock
Discharge Tube WJ53X23165
#15

Ductless split a/c diagram

Discharge tube

Part #WJ53X23165

$25.42
In Stock
Stop Valve Cover WJ76X23160
#19

Ductless split a/c diagram

Stop valve cover

Part #WJ76X23160

$15.71
In Stock
Inverter Assembly WJ26X24103
#43

Ductless split a/c diagram

Inverter assembly

Part #WJ26X24103

$199.71
In Stock
Fan Blade WJ73X23149
#2

Ductless split a/c diagram

Fan blade

Part #WJ73X23149

$43.38
In Stock
Suction Tube WJ53X23168
#16

Ductless split a/c diagram

Suction tube

Part #WJ53X23168

$28.60
In Stock
Reactor WJ27X23157
#8

Ductless split a/c diagram

Reactor

Part #WJ27X23157

$41.58
In Stock
