Troybilt
Gas Line Trimmer

Model # 41AD260G401 Official Troybilt trimmer - 9/02

Here are the diagrams and repair parts for Official Troybilt 41AD260G401 trimmer - 9/02, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Knob Asm-bmp 791-153066
#23

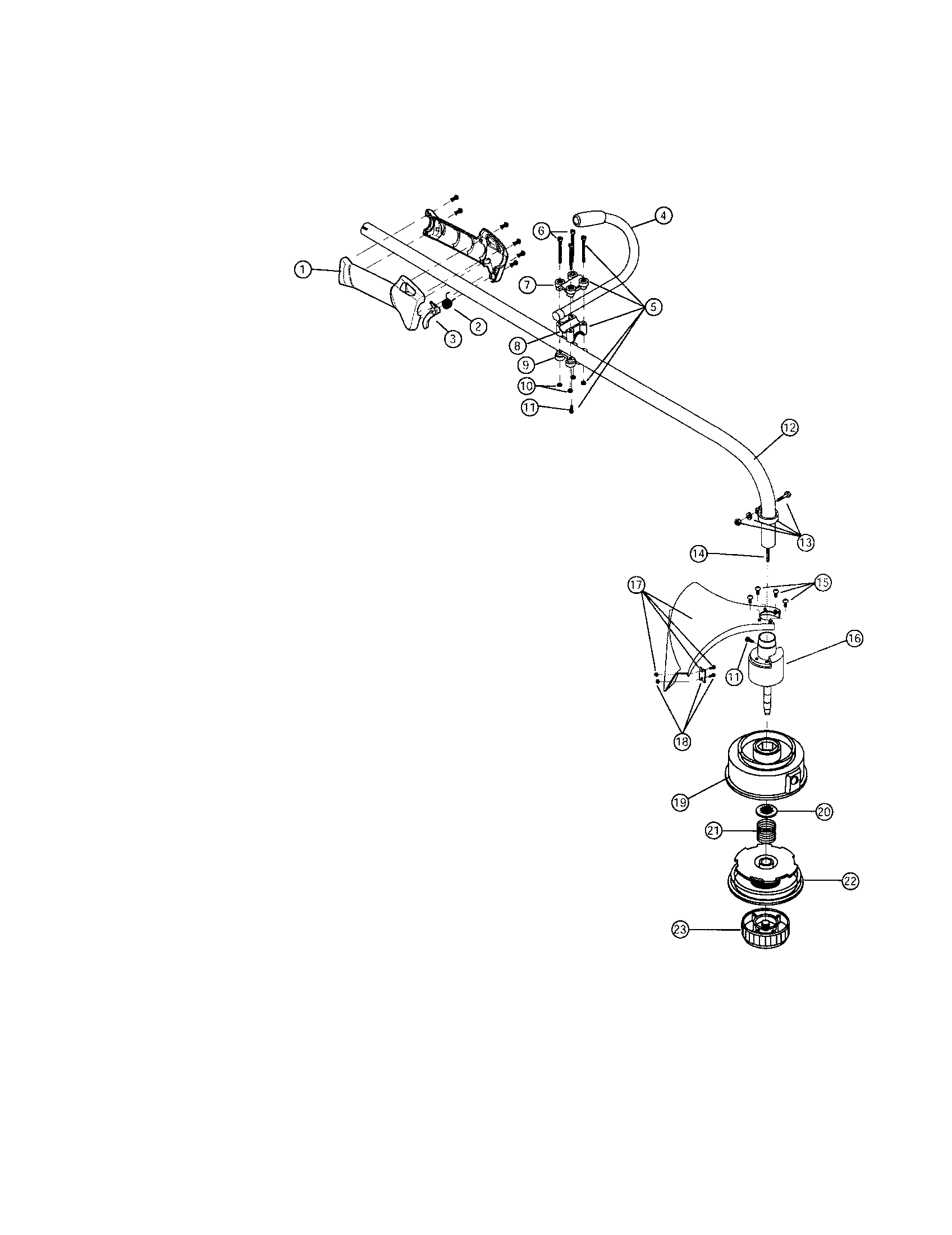

Boom and trimmer diagram

Knob asm-bmp

Part #791-153066

Replaced by #791-153066B

?
Manufacturer substitution
This part replaces 791-153066. Substitute parts can look different from the original.
BEST SELLER
$17.91 |
10% OFF Phone Price : $19.91
In Stock
Spring 791-610317
#21

Boom and trimmer diagram

Spring

Part #791-610317

The manufacturer no longer makes this part, and there's no substitute part

Push Rod 791-181033
#13

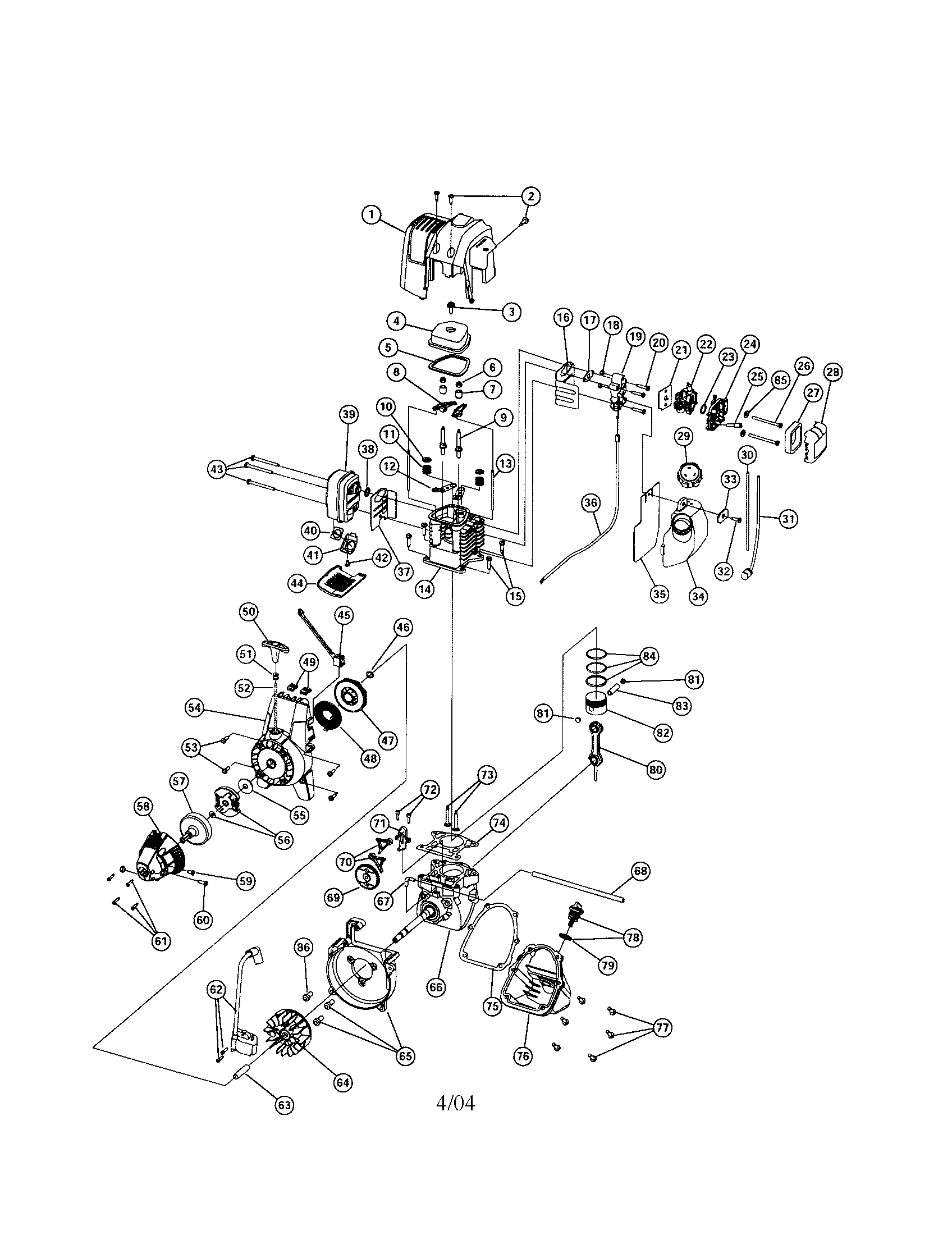

Engine parts diagram

Push rod

Part #791-181033

The manufacturer no longer makes this part, and there's no substitute part

Cylinder Head 791-182653
#14

Engine parts diagram

Cylinder head

Part #791-182653

The manufacturer no longer makes this part, and there's no substitute part

Screen 791-180890
#40

Engine parts diagram

Screen

Part #791-180890

The manufacturer no longer makes this part, and there's no substitute part

Screw 791-181345
#61

Engine parts diagram

Screw

Part #791-181345

The manufacturer no longer makes this part, and there's no substitute part

Muffler 791-182359
#39

Engine parts diagram

Muffler

Part #791-182359

The manufacturer no longer makes this part, and there's no substitute part

Retainer 791-610660
#20

Boom and trimmer diagram

Retainer

Part #791-610660

The manufacturer no longer makes this part, and there's no substitute part

Spool 791-153619
#19

Boom and trimmer diagram

Spool

Part #791-153619

The manufacturer no longer makes this part, and there's no substitute part

Screw 791-182344
#15

Engine parts diagram

Screw

Part #791-182344

The manufacturer no longer makes this part, and there's no substitute part
