Model # VTD52EASR1WB Official GE electric dryer

Here are the diagrams and repair parts for Official GE VTD52EASR1WB electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

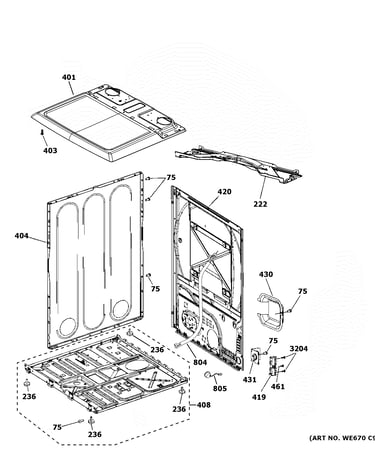

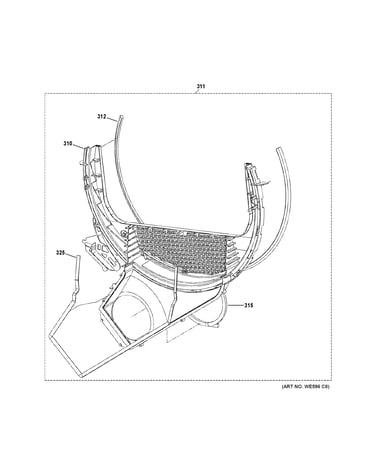

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
G.e. Dryer Heater Assembly WE11X21156
#512

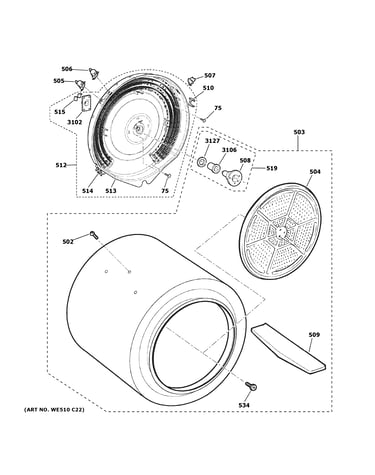

Drum diagram

G.e. dryer heater assembly

Part #WE11X21156

BEST SELLER
$134.37 |
8% OFF Phone Price : $146.37
In Stock
Dryer High-limit Thermostat WE04X26139
#507

Drum diagram

Dryer high-limit thermostat

Part #WE04X26139

BEST SELLER
$21.89 |
22% OFF Phone Price : $27.89
In Stock
Kenmore Dryer Drum Support Shaft (replaces We03m0033) WE3M33
#519

Drum diagram

Kenmore dryer drum support shaft (replaces we03m0033)

Part #WE3M33

BEST SELLER
$31.67 |
16% OFF Phone Price : $37.67
In Stock
Dryer Heating Element Control Thermistor (replaces We04m0398, We4m333) WE4M398
#506

Drum diagram

Dryer heating element control thermistor (replaces we04m0398, we4m333)

Part #WE4M398

BEST SELLER
$33.90 |
15% OFF Phone Price : $39.90
In Stock
Dryer Door Switch (replaces We10x23879) WE04X28977
#380

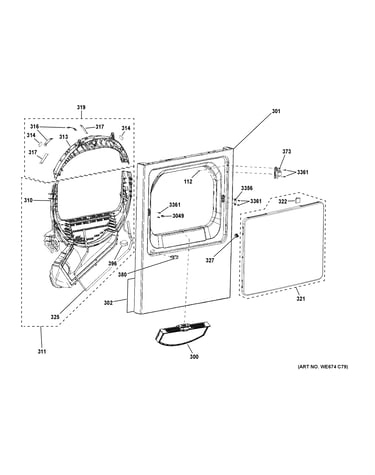

Front panel & door diagram

Dryer door switch (replaces we10x23879)

Part #WE04X28977

BEST SELLER
$10.28 |
16% OFF Phone Price : $12.28
In Stock
Kenmore Dryer Rear Bearing WE1M462
#3106

Drum diagram

Kenmore dryer rear bearing

Part #WE1M462

BEST SELLER
$24.24 |
20% OFF Phone Price : $30.24
In Stock
Dryer Drum Bearing Kit WE03X25314
#319

Front panel & door diagram

Dryer drum bearing kit

Part #WE03X25314

BEST SELLER
$58.64 |
9% OFF Phone Price : $64.64
In Stock
Dryer Thermistor (replaces We04m0391, We04m0448, We4m391) WE4M448
#241

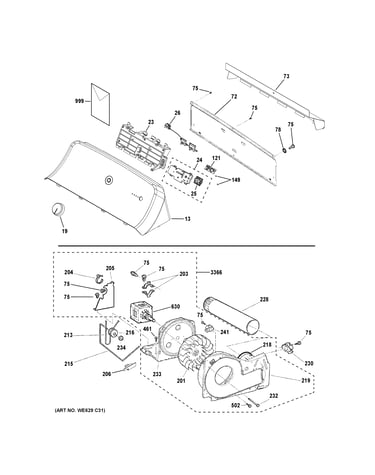

Backsplash, blower & motor assembly diagram

Dryer thermistor (replaces we04m0391, we04m0448, we4m391)

Part #WE4M448

BEST SELLER
$37.26 |
14% OFF Phone Price : $43.26
In Stock
Dryer Drum Glide Bearing, Upper WE3M52
#316

Front panel & door diagram

Dryer drum glide bearing, upper

Part #WE3M52

Replaced by #WE03X37320

?
Manufacturer substitution
This part replaces WE3M52. Substitute parts can look different from the original.
BEST SELLER
$24.93 |
19% OFF Phone Price : $30.93
In Stock
Dryer Drum Bearing Bracket (replaces We01m0300) WE1M300
#3102

Drum diagram

Dryer drum bearing bracket (replaces we01m0300)

Part #WE1M300

BEST SELLER
$15.97 |
11% OFF Phone Price : $17.97
In Stock
