Kenmore
Dishwasher

Model # 58765070 Official Kenmore portable dishwasher

Here are the diagrams and repair parts for Official Kenmore 58765070 portable dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 209 parts  |
Screw 804636
#4

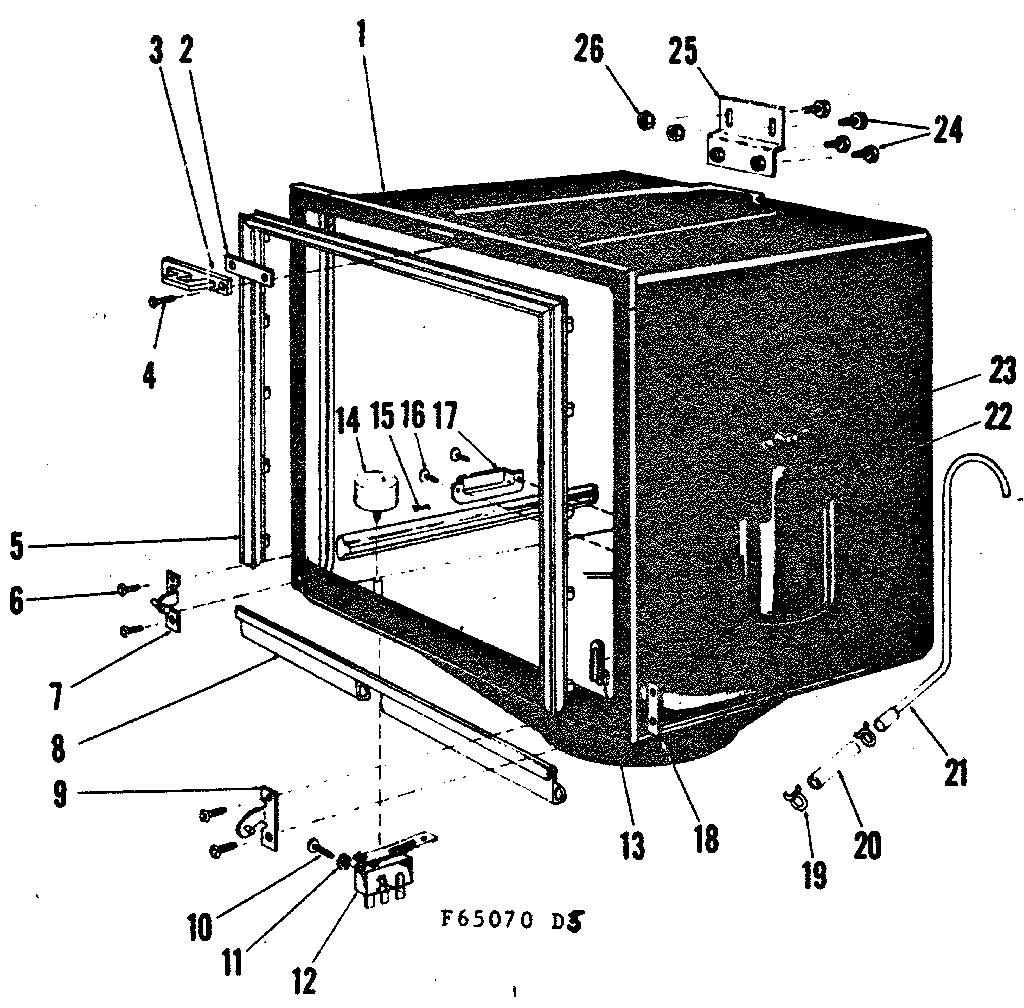

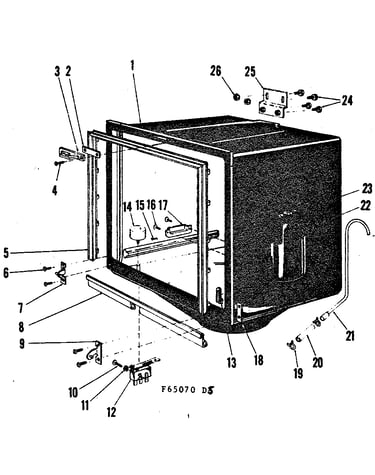

Tub details diagram

Screw

Part #804636

Replaced by #131302901

?
Manufacturer substitution
This part replaces 804636. Substitute parts can look different from the original.
This item is not returnable
$5.40 |
16% OFF Phone Price : $6.40
In Stock
Nut 804527
#28

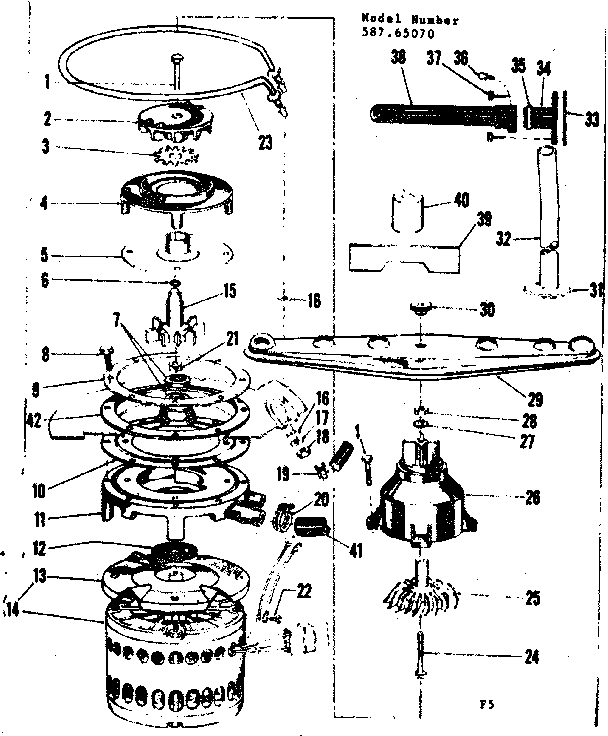

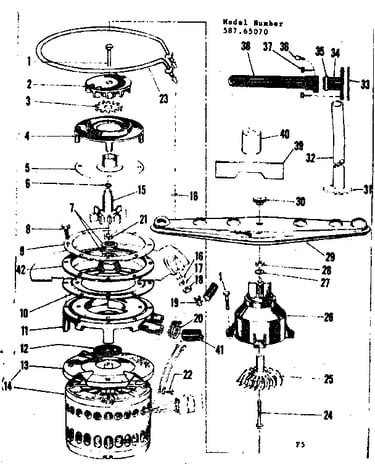

Motor, heater & spray arm details diagram

Nut

Part #804527

Replaced by #316205500

?
Manufacturer substitution
This part replaces 804527. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Spray Arm 804482
#29

Motor, heater & spray arm details diagram

Spray arm

Part #804482

Replaced by #5300808961

?
Manufacturer substitution
This part replaces 804482. Substitute parts can look different from the original.
$142.10
In Stock
Washer 800787
#17

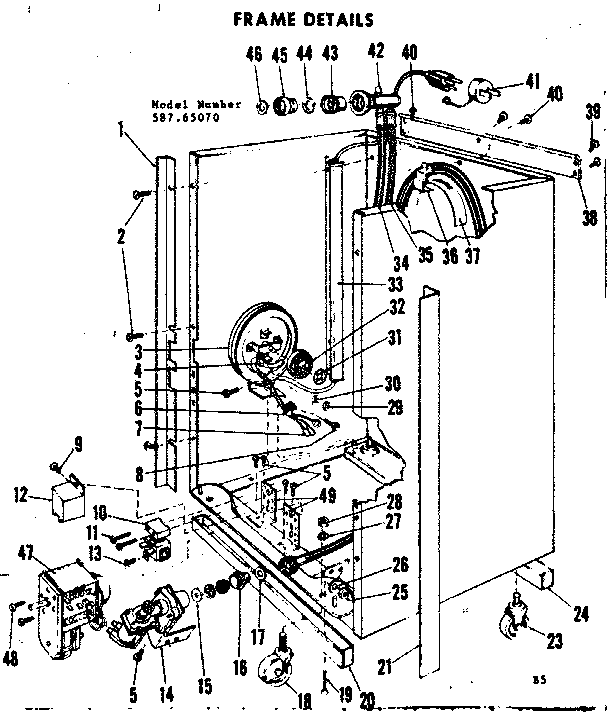

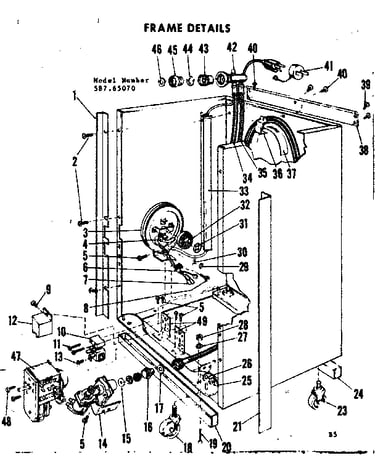

Frame details diagram

Washer

Part #800787

Replaced by #5300800787

?
Manufacturer substitution
This part replaces 800787. Substitute parts can look different from the original.
This item is not returnable
$2.91
In Stock
Base Channel 805094
#20

Frame details diagram

Base channel

Part #805094

The manufacturer no longer makes this part, and there's no substitute part

Washer Screw GM454033
#13

Frame details diagram

Washer screw

Part #GM454033

The manufacturer no longer makes this part, and there's no substitute part

Tub 805271
#1

Tub details diagram

Tub

Part #805271

The manufacturer no longer makes this part, and there's no substitute part

Screw 804517
#8

Frame details diagram

Screw

Part #804517

The manufacturer no longer makes this part, and there's no substitute part

Bracket Assembly 805251
#31

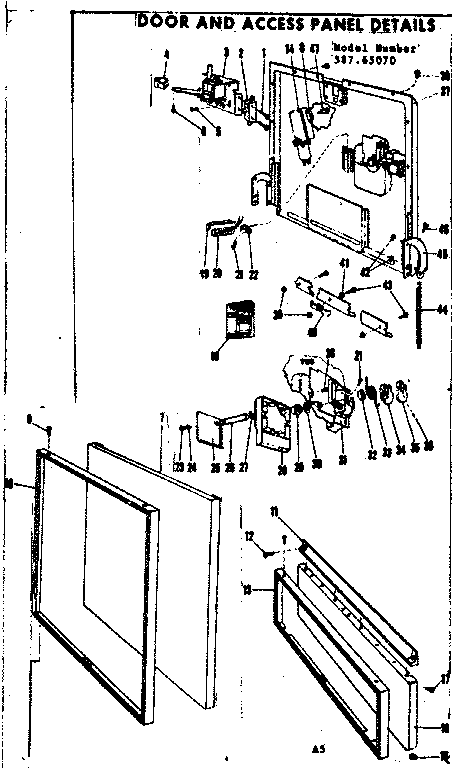

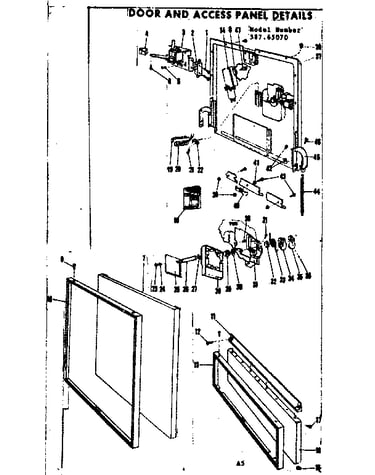

Door & access panel details diagram

Bracket assembly

Part #805251

The manufacturer no longer makes this part, and there's no substitute part

Base Channel 805093
#24

Frame details diagram

Base channel

Part #805093

The manufacturer no longer makes this part, and there's no substitute part
