Model # FFC15K3CW2 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFC15K3CW2 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Filter Drier 216938600
#4

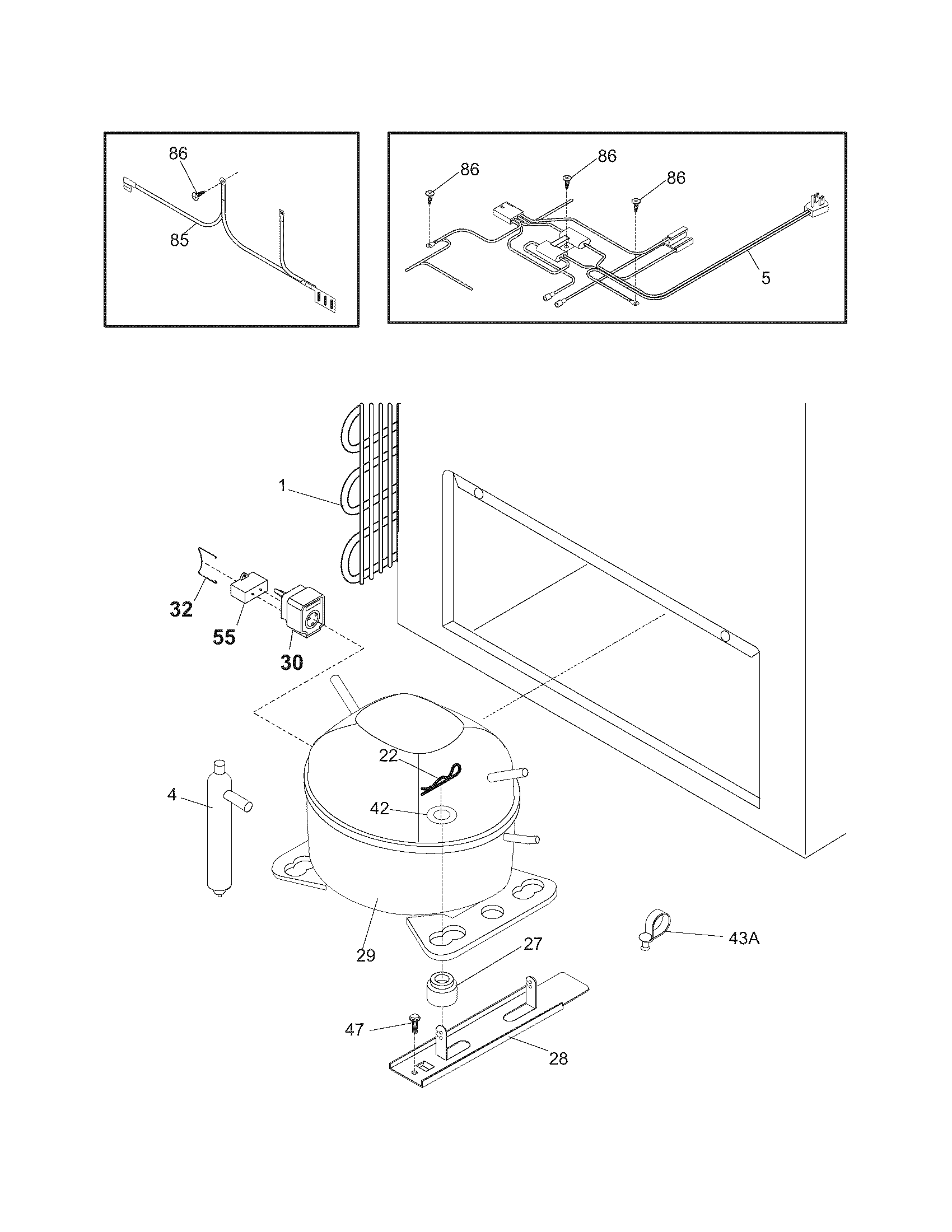

System diagram

Filter drier

Part #216938600

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216938600. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Door Key 216702900
#5

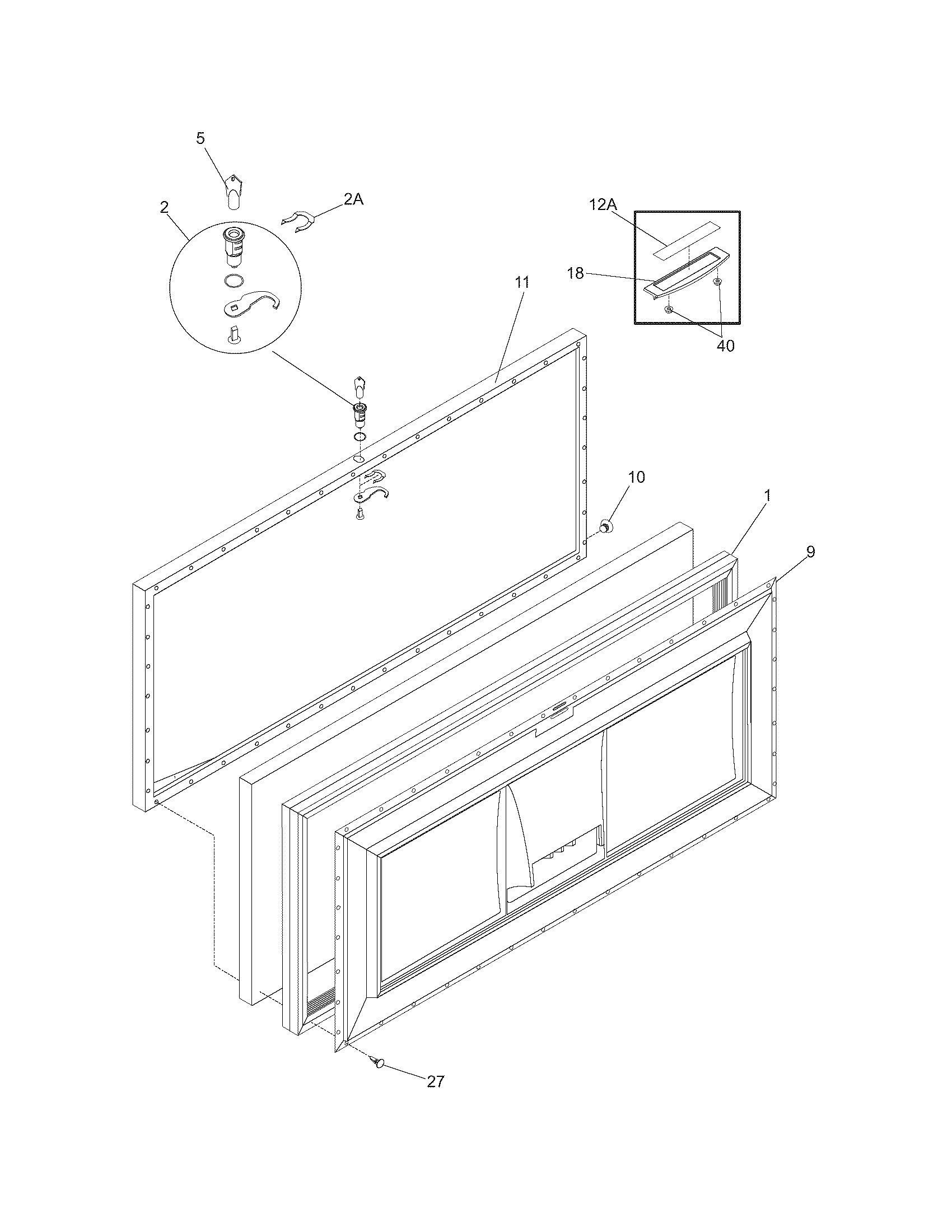

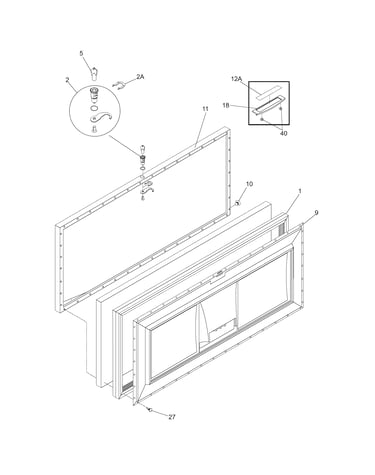

Door diagram

Freezer door key

Part #216702900

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216702900. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Compressor 216977300
#29

System diagram

Compressor

Part #216977300

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 216977300. Substitute parts can look different from the original.
BEST SELLER
$449.52 |
$12.00 OFF Phone Price : $461.52
In Stock
Chest Freezer Run Capacitor 218909913
#55

System diagram

Chest freezer run capacitor

Part #218909913

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 218909913. Substitute parts can look different from the original.
BEST SELLER
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Freezer Temperature Control Knob 216707200
#18

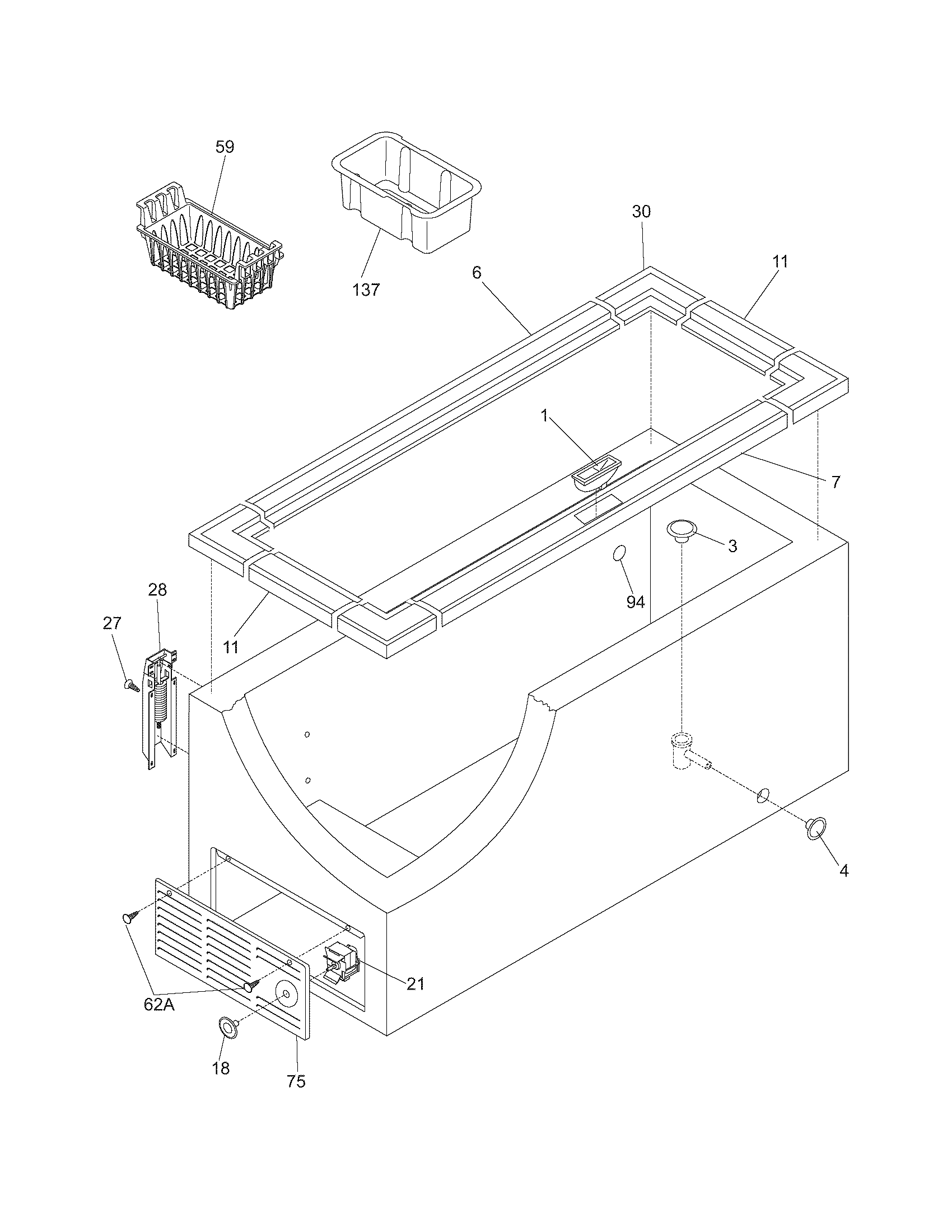

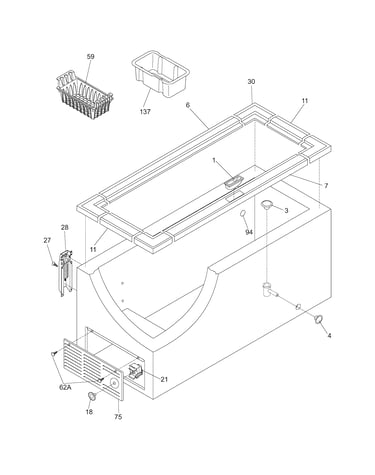

Cabinet diagram

Freezer temperature control knob

Part #216707200

$37.39 |
14% OFF Phone Price : $43.39
In Stock
Freezer Temperature Control Thermostat 216714601
#21

Cabinet diagram

Freezer temperature control thermostat

Part #216714601

$90.23 |
6% OFF Phone Price : $96.23
In Stock
Controller 216954201
#30

System diagram

Controller

Part #216954201

Replaced by #241707705

?
Manufacturer substitution
This part replaces 216954201. Substitute parts can look different from the original.
$44.41 |
12% OFF Phone Price : $50.41
In Stock
Grommet 5308002681
#27

System diagram

Grommet

Part #5308002681

Replaced by #216498900

?
Manufacturer substitution
This part replaces 5308002681. Substitute parts can look different from the original.
This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
Screw (i 216036600
#86

System diagram

Screw (i

Part #216036600

Replaced by #216036601

?
Manufacturer substitution
This part replaces 216036600. Substitute parts can look different from the original.
$12.57
In Stock
Screw 5303302714
#62A

Cabinet diagram

Screw

Part #5303302714

Replaced by #131420300

?
Manufacturer substitution
This part replaces 5303302714. Substitute parts can look different from the original.
This item is not returnable
$15.80
In Stock
