Model # AZ39H12DADM1 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ39H12DADM1 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Room Air Conditioner Air Filter WP85X10008
#1021

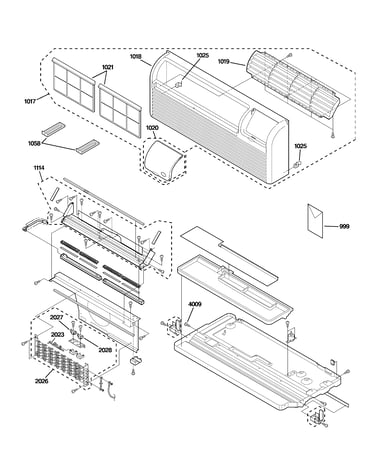

Grille, heater & base pan parts diagram

Room air conditioner air filter

Part #WP85X10008

This item is not returnable
$26.02 |
19% OFF Phone Price : $32.02
In Stock
Room Air Conditioner Heater High-limit Thermostat WP28X10014
#2027

Grille, heater & base pan parts diagram

Room air conditioner heater high-limit thermostat

Part #WP28X10014

$53.44
In Stock
Thermistor WP27X10057
Thermistor

Part #WP27X10057

$54.07
In Stock
Sheet Control WP07X10008
#2006

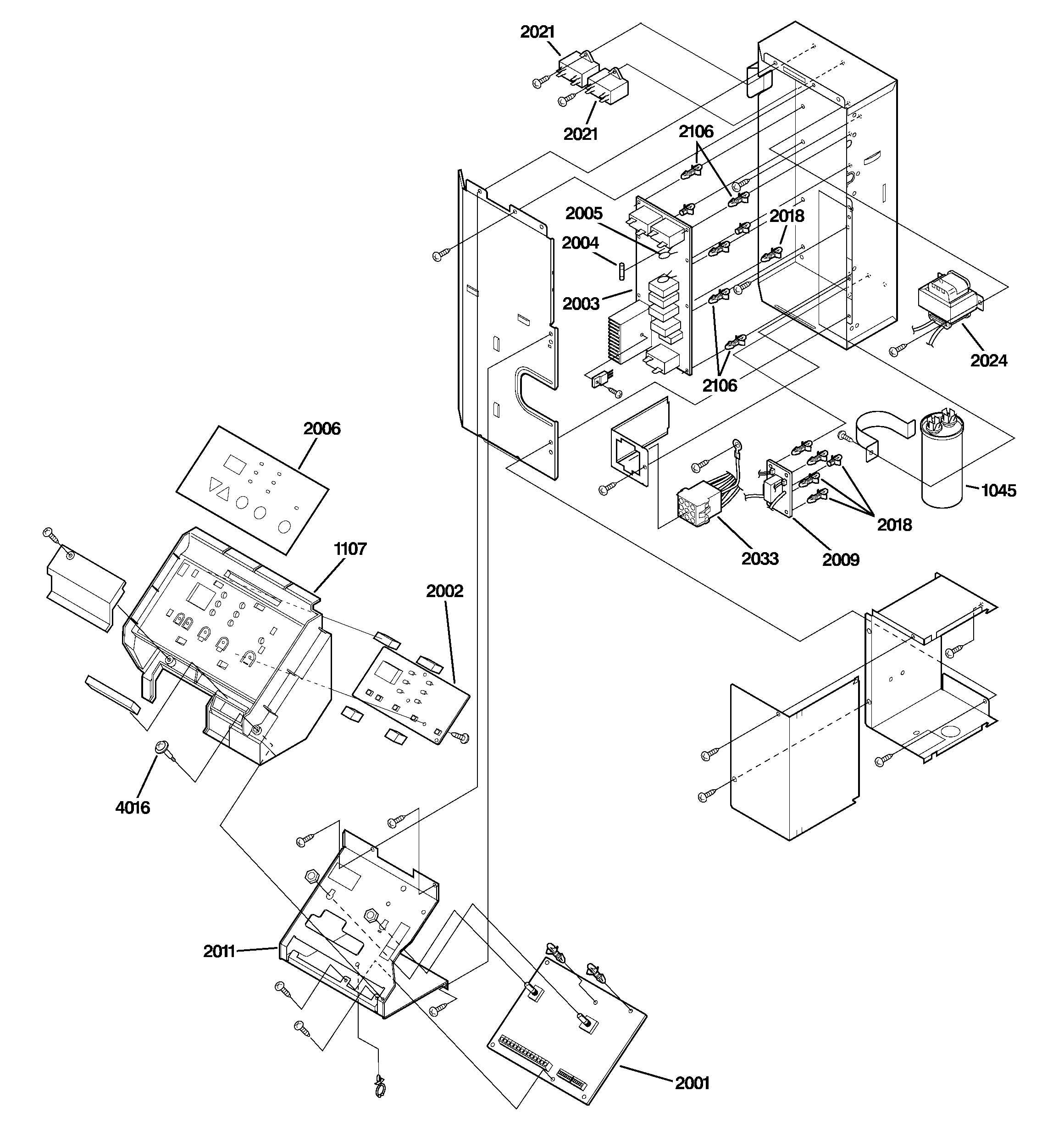

Control parts diagram

Sheet control

Part #WP07X10008

$32.91
In Stock
Special Screw WP01X10019
#4002

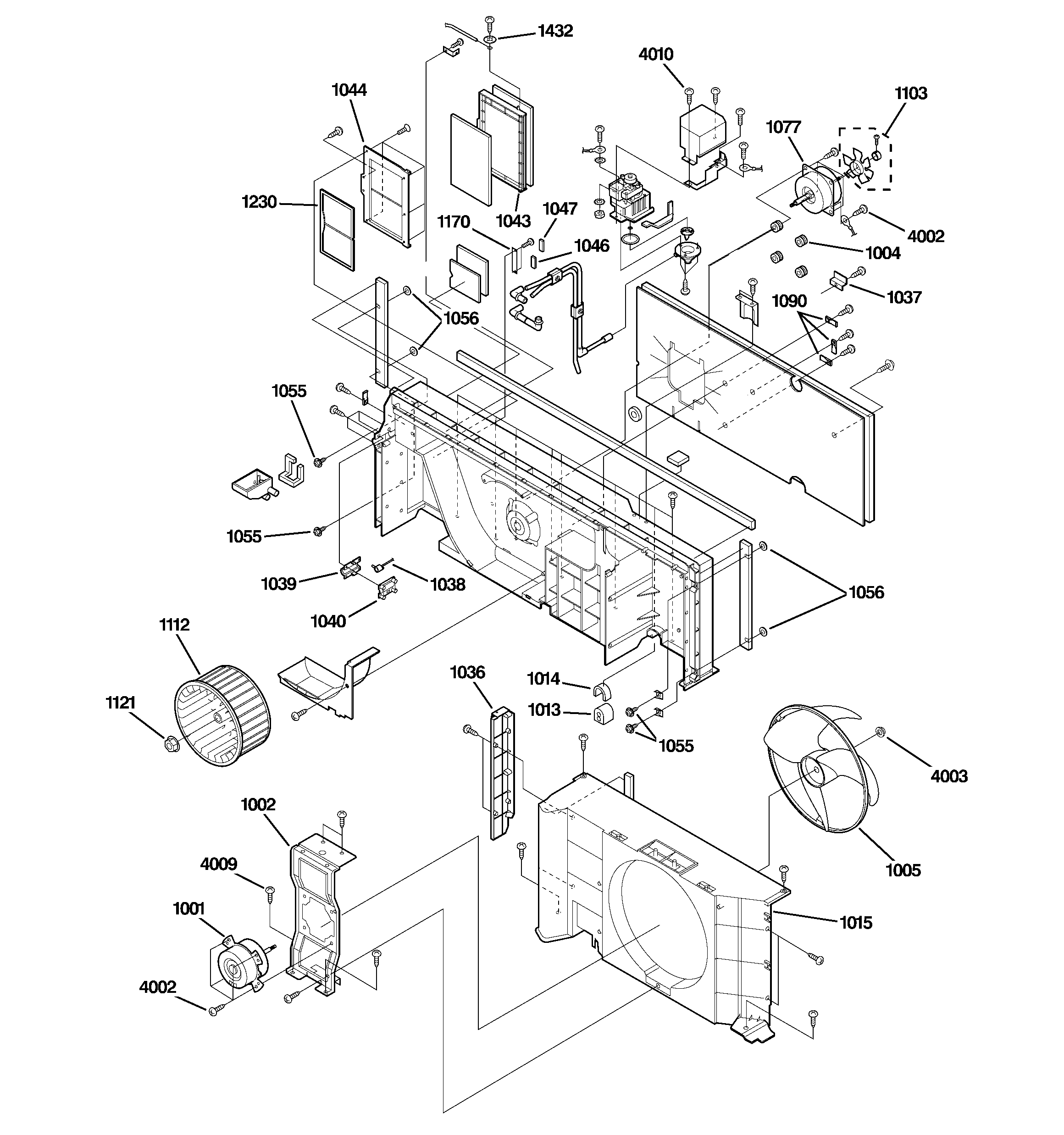

Motor & chassis parts diagram

Special screw

Part #WP01X10019

This item is not returnable
$4.35
In Stock
Special Screw WP01X10024
#1055

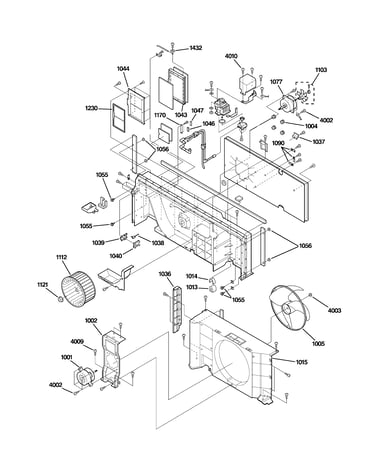

Motor & chassis parts diagram

Special screw

Part #WP01X10024

This item is not returnable
$4.35
In Stock
Room Air Conditioner Fan Motor Capacitor WP20X10022
#2021

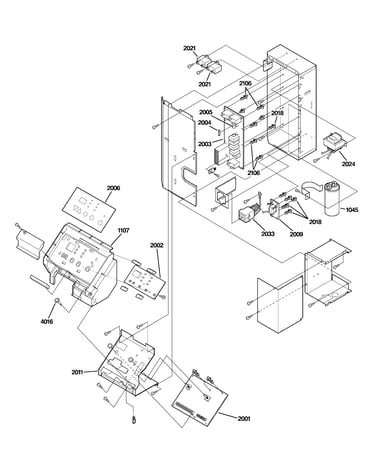

Control parts diagram

Room air conditioner fan motor capacitor

Part #WP20X10022

$27.56 |
18% OFF Phone Price : $33.56
In Stock
Bulkhead Insert WJ40X10015
#1014

Motor & chassis parts diagram

Bulkhead insert

Part #WJ40X10015

This item is not returnable
$4.35
In Stock
Complete Cushion WJ01X10002
#3011

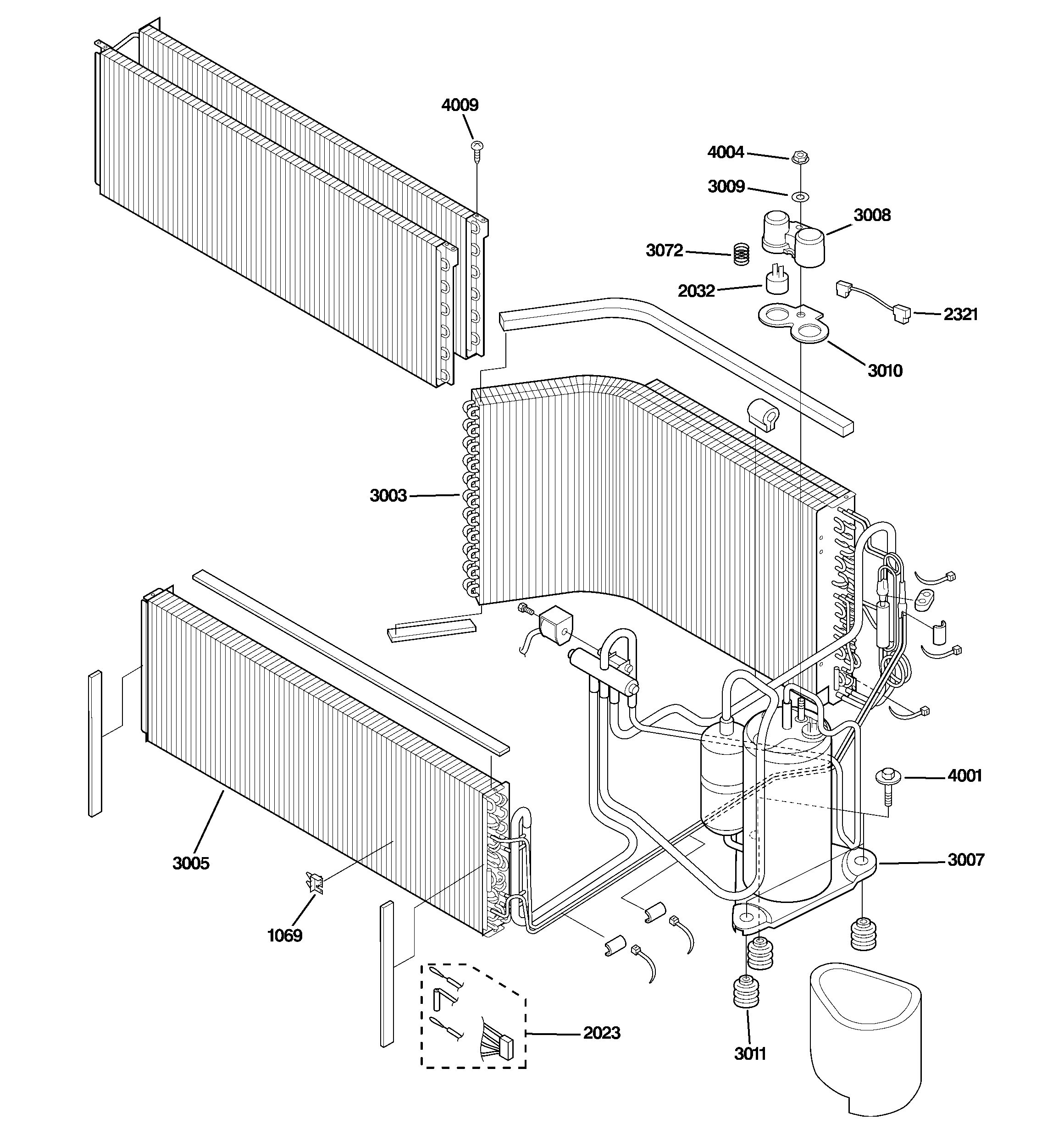

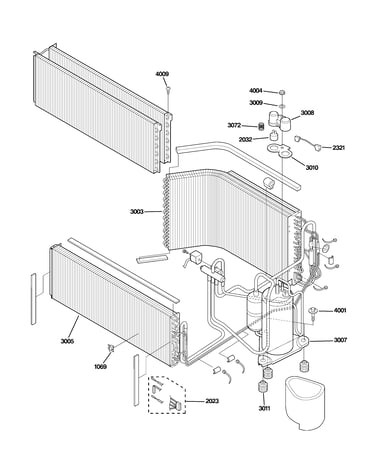

Unit parts diagram

Complete cushion

Part #WJ01X10002

This item is not returnable
$11.37 |
15% OFF Phone Price : $13.37
In Stock
Damper Lever WP70X10031
#1038

Motor & chassis parts diagram

Damper lever

Part #WP70X10031

This item is not returnable
$4.35
In Stock
