Model # MER7685BW0 Official Maytag 30" electric freestanding range
Here are the diagrams and repair parts for Official Maytag MER7685BW0 30" electric freestanding range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

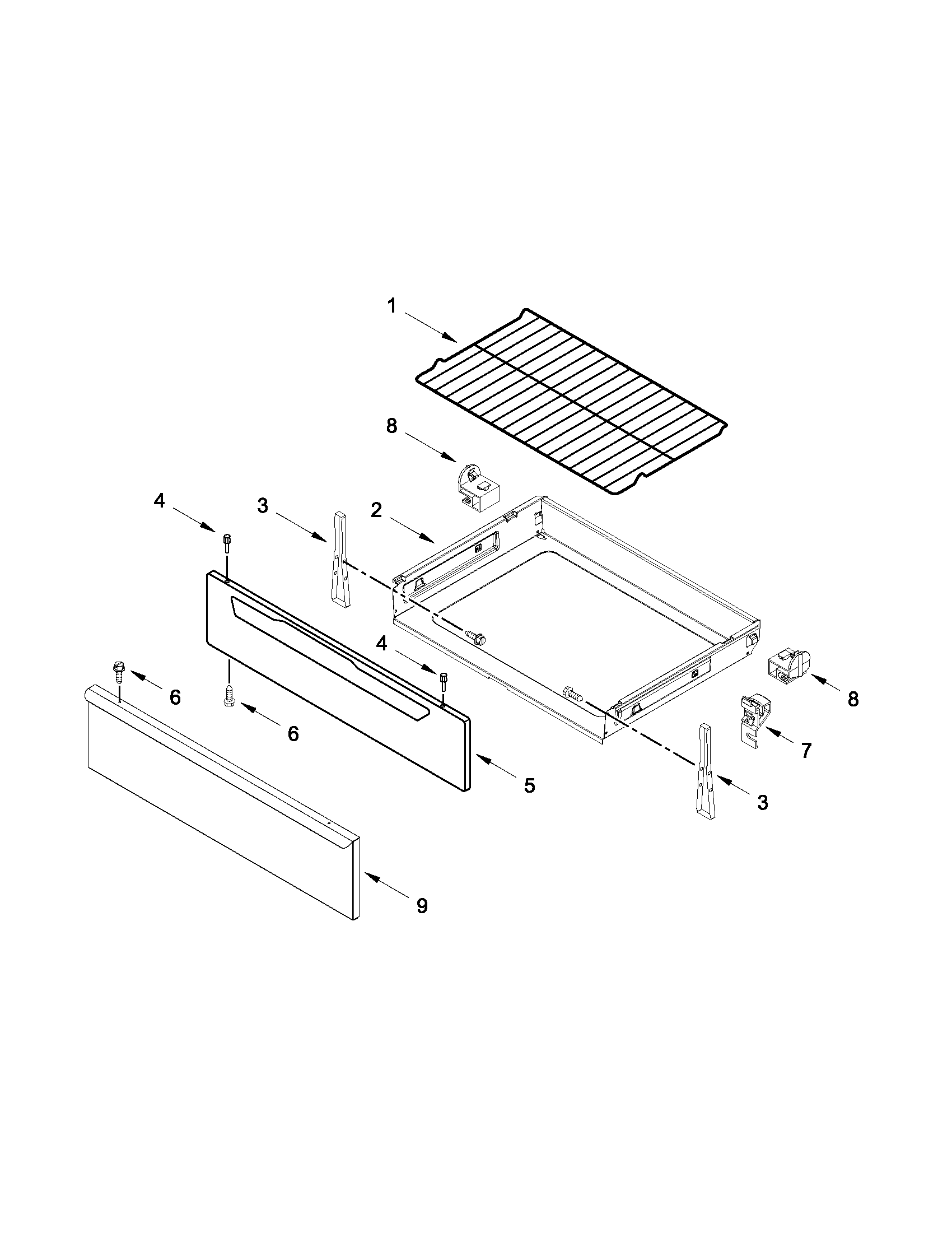

SELECT DIAGRAM
Browse Parts forMER7685BW0 Ranges
- #4B

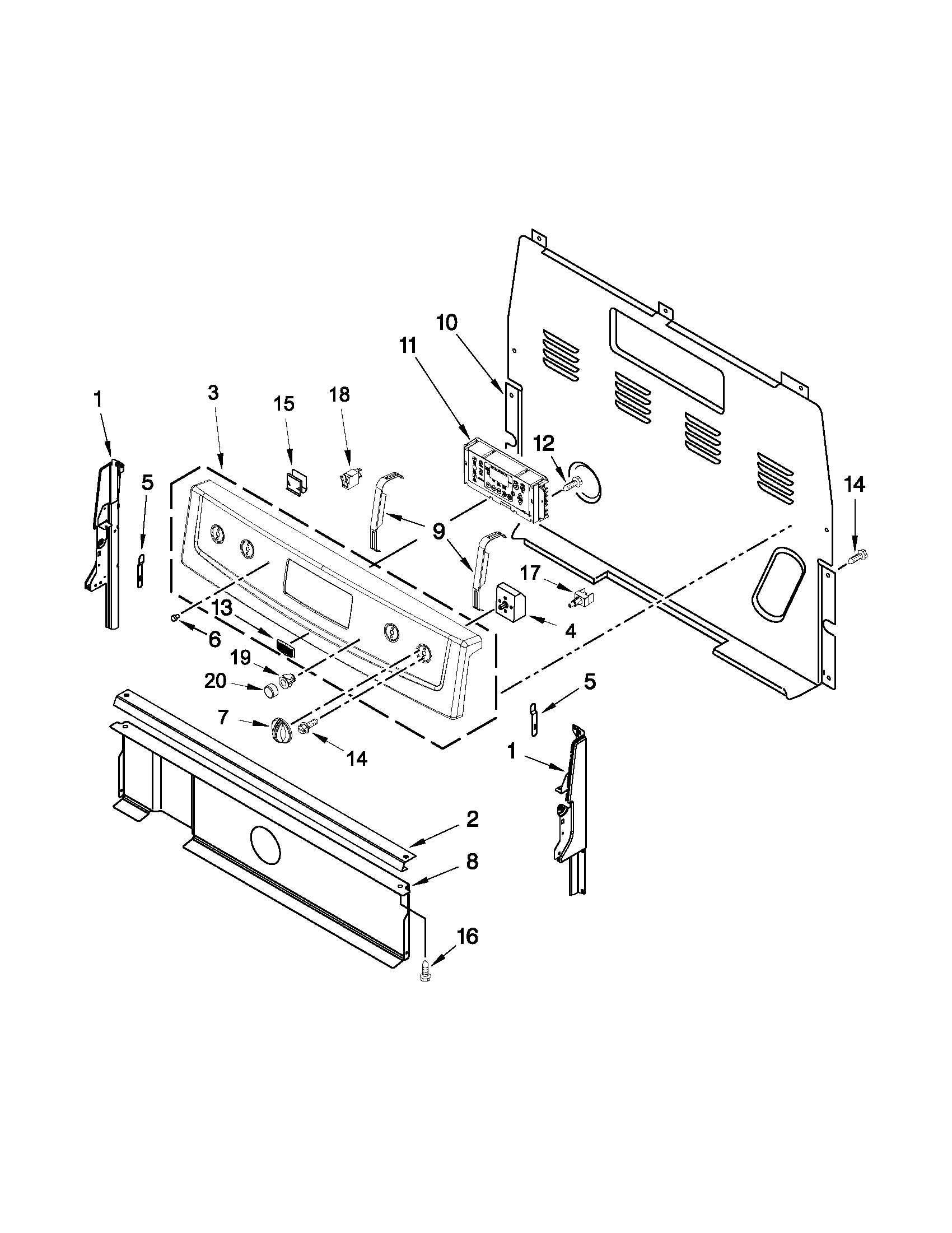

Control panel parts diagram
Range dual surface element control switchPart #W10434452
Replaced by #WPW10434452
?Manufacturer substitutionThis part replaces W10434452. Substitute parts can look different from the original.$74.14 |7% OFF Phone Price : $80.14In Stock - #27

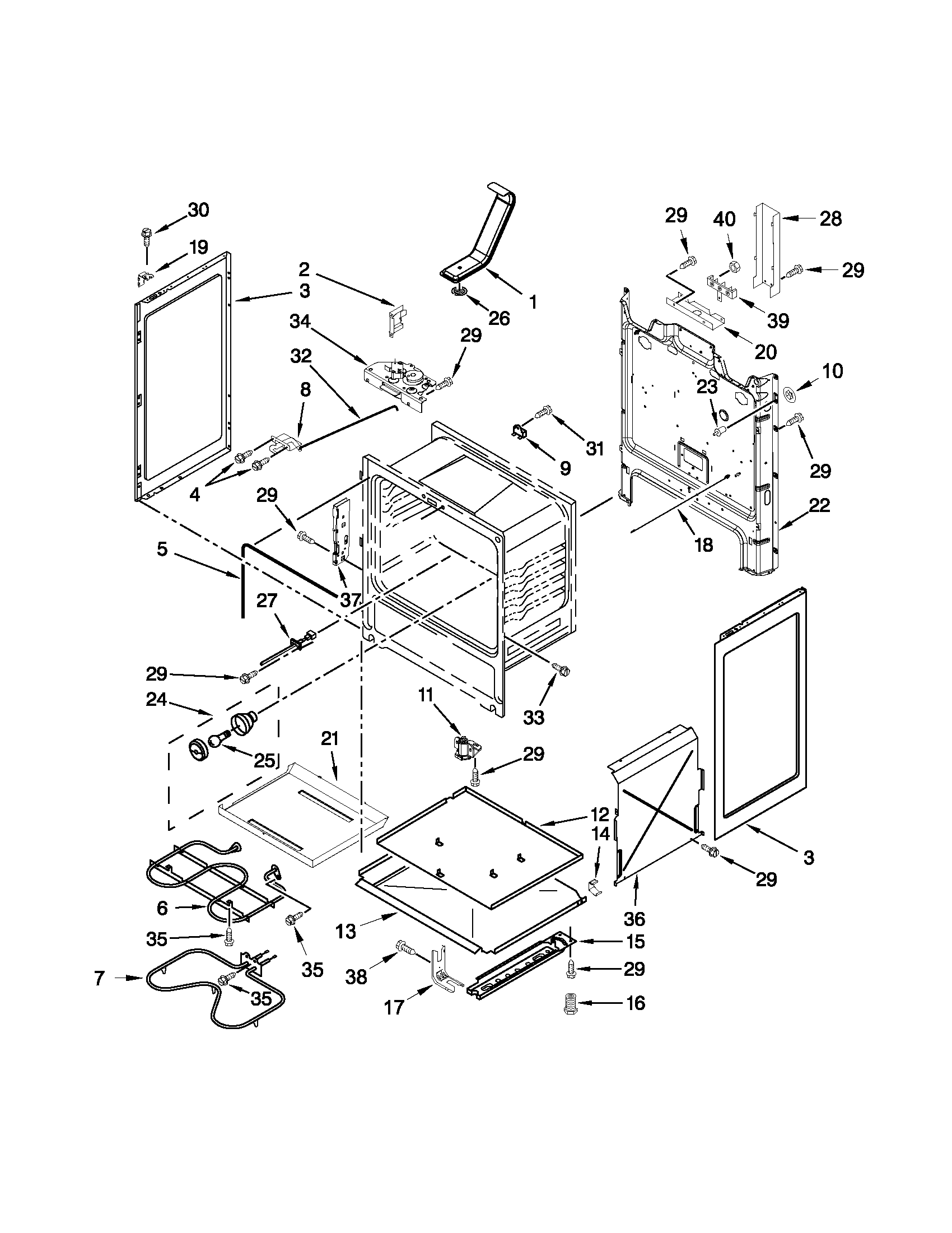

Chassis parts diagram
Range oven temperature sensorPart #W10181986
Replaced by #WPW10181986
?Manufacturer substitutionThis part replaces W10181986. Substitute parts can look different from the original.$58.66 |9% OFF Phone Price : $64.66In Stock - #39
Chassis parts diagram
Range terminal blockPart #W10245259
Replaced by #WPW10245259
?Manufacturer substitutionThis part replaces W10245259. Substitute parts can look different from the original.$24.63 |24% OFF Was : $32.40In Stock - #3

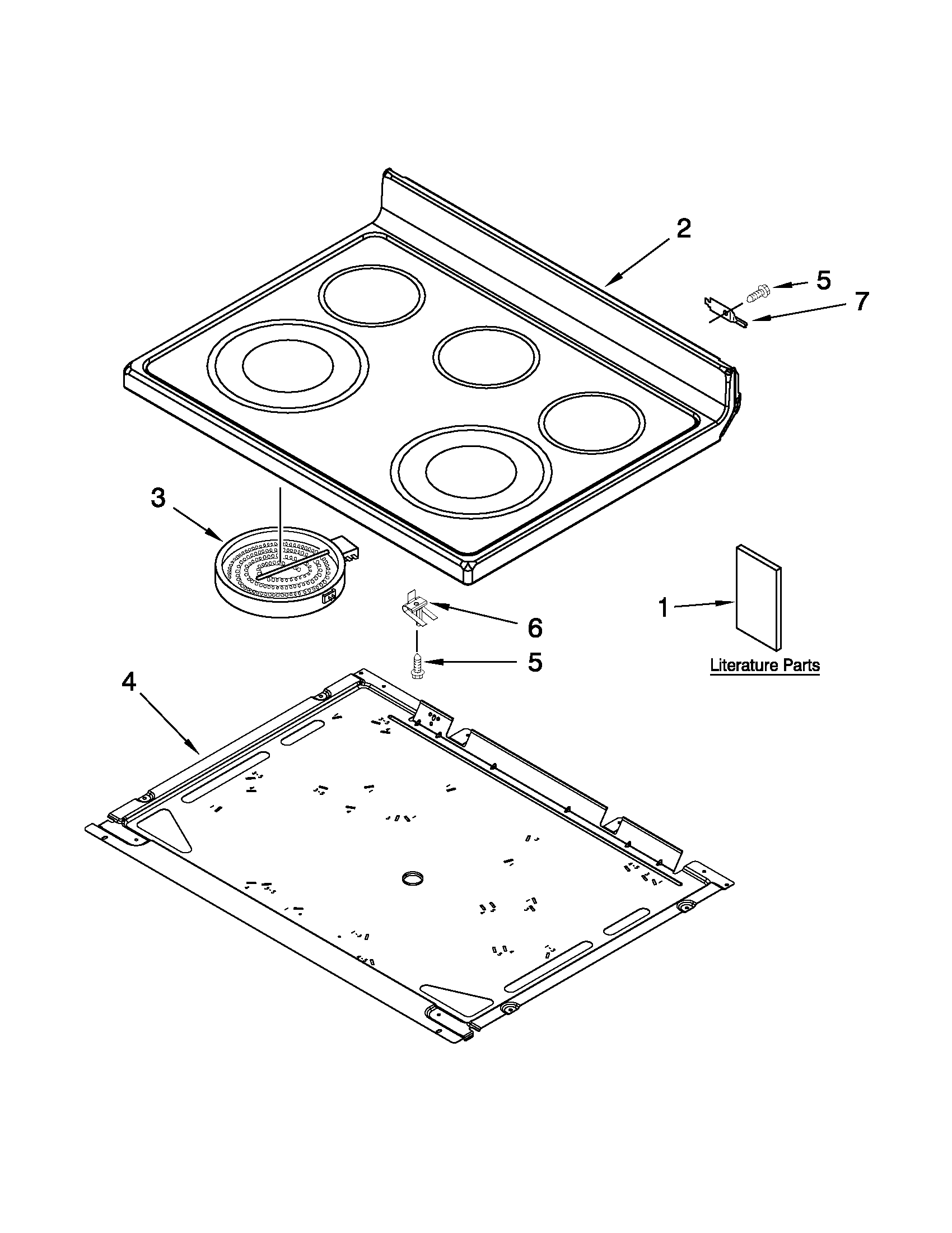

Cooktop parts diagram
Range dual radiant surface elementPart #W10275048
Replaced by #W11517959
?Manufacturer substitutionThis part replaces W10275048. Substitute parts can look different from the original.$70.82 |8% OFF Phone Price : $76.82In Stock - #9
Chassis parts diagram
Range safety thermostatPart #3196548
Replaced by #WP3196548
?Manufacturer substitutionThis part replaces 3196548. Substitute parts can look different from the original.$23.07 |21% OFF Phone Price : $29.07In Stock - #1A

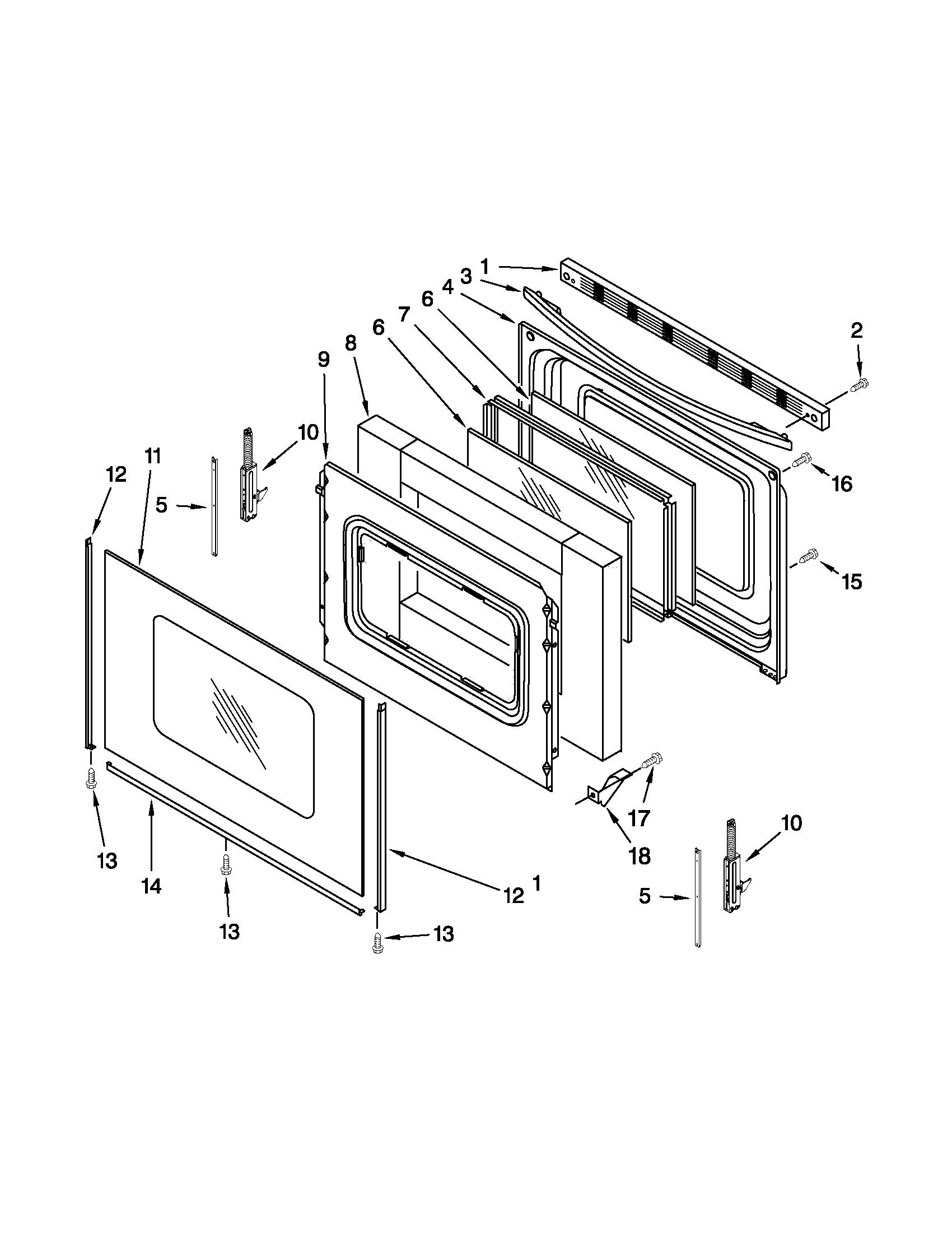

Door parts diagram
Range oven door vent capPart #W10310922
Replaced by #WPW10310922
?Manufacturer substitutionThis part replaces W10310922. Substitute parts can look different from the original.$88.49 |6% OFF Phone Price : $94.49In Stock - #12C
Door parts diagram
Door trimPart #8523165
Replaced by #W10761014
?Manufacturer substitutionThis part replaces 8523165. Substitute parts can look different from the original.$36.21 |14% OFF Phone Price : $42.21In Stock - #17
Door parts diagram
Range screwPart #W10200660
Replaced by #WPW10200660
?Manufacturer substitutionThis part replaces W10200660. Substitute parts can look different from the original.This item is not returnable$6.00 |14% OFF Phone Price : $7.00In Stock - #12B
Door parts diagram
Range door trim, left (black)Part #8523171
Replaced by #W10761018
?Manufacturer substitutionThis part replaces 8523171. Substitute parts can look different from the original.$31.47 |16% OFF Phone Price : $37.47In Stock - #10
Door parts diagram
Range oven door hingePart #W10299227
Replaced by #WPW10299227
?Manufacturer substitutionThis part replaces W10299227. Substitute parts can look different from the original.$40.37 |13% OFF Phone Price : $46.37In Stock
