Model # 1753866180 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 1753866180 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |

Latch 660081-001
#17

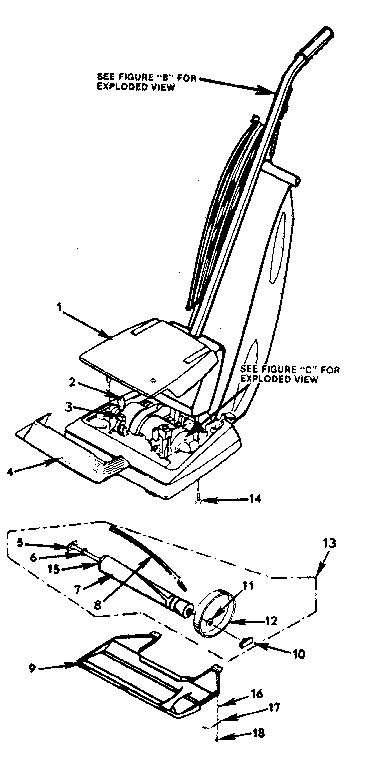

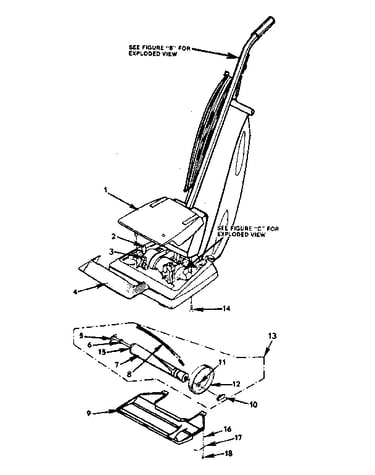

Unit parts diagram

Latch

Part #660081-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 660548-001
#7

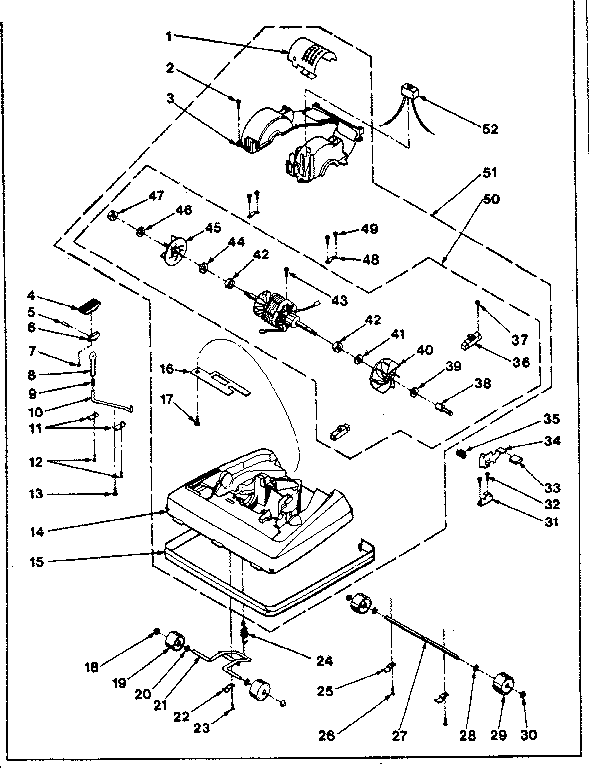

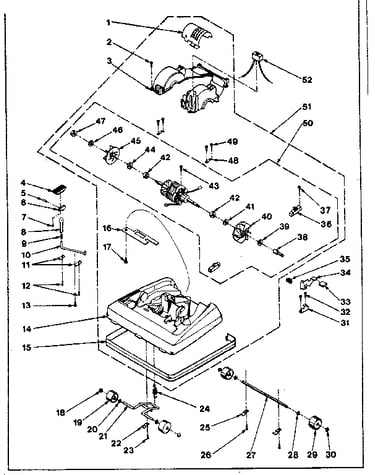

Nozzle and motor assembly diagram

Screw

Part #660548-001

The manufacturer no longer makes this part, and there's no substitute part

Wheel 644172-102
#29

Nozzle and motor assembly diagram

Wheel

Part #644172-102

The manufacturer no longer makes this part, and there's no substitute part

Lamp 644328-001
#2

Unit parts diagram

Lamp

Part #644328-001

The manufacturer no longer makes this part, and there's no substitute part

Retainer Plate 643015-000
Retainer plate

Part #643015-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 706382-321
Washer

Part #706382-321

The manufacturer no longer makes this part, and there's no substitute part

Motor Cover 644363-003
#1

Nozzle and motor assembly diagram

Motor cover

Part #644363-003

The manufacturer no longer makes this part, and there's no substitute part

Brush 998010-002
#36

Nozzle and motor assembly diagram

Brush

Part #998010-002

The manufacturer no longer makes this part, and there's no substitute part

Garter Spring 966116-001
#17

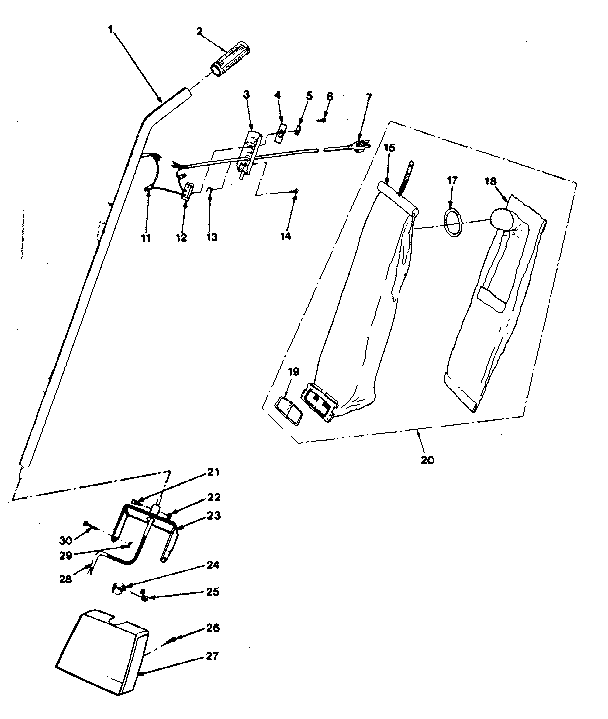

Handle and bag housing diagram

Garter spring

Part #966116-001

The manufacturer no longer makes this part, and there's no substitute part

Cover 644880-005
#3

Handle and bag housing diagram

Cover

Part #644880-005

The manufacturer no longer makes this part, and there's no substitute part
