Model # 30-3860-00-01 Official Tappan gas range - 5995206132
Here are the diagrams and repair parts for Official Tappan 30-3860-00-01 gas range - 5995206132, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for30-3860-00-01 Ranges
- #15

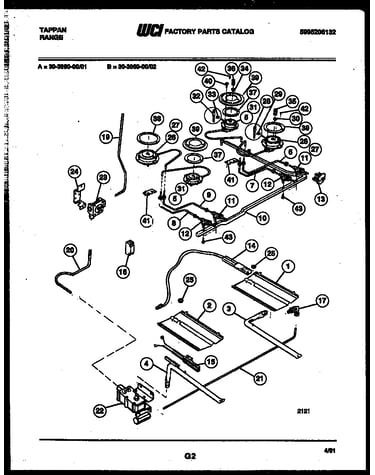

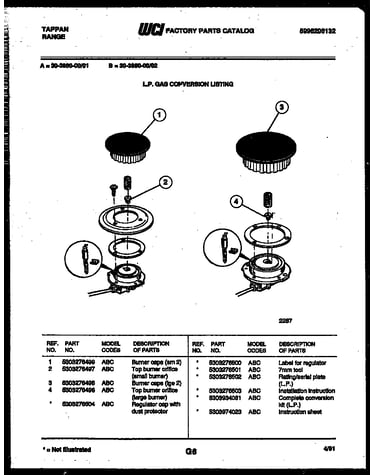

Burner, manifold and gas control diagram
IgniterPart #5303131300
Replaced by #5303935066
?Manufacturer substitutionThis part replaces 5303131300. Substitute parts can look different from the original.$34.33 |15% OFF Phone Price : $40.33In Stock - #2

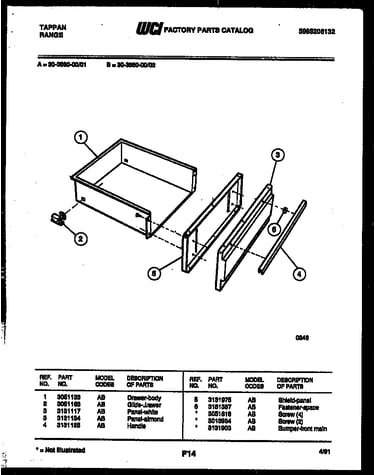

Drawer parts diagram
Range drawer glidePart #3051163
This item is not returnable$4.61 |18% OFF Phone Price : $5.61In Stock - #16

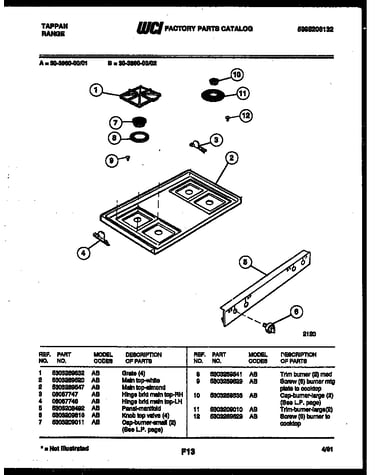

Burner, manifold and gas control diagram
Ignition modulePart #5303207522
Replaced by #5304505695
?Manufacturer substitutionThis part replaces 5303207522. Substitute parts can look different from the original.$54.91 |10% OFF Phone Price : $60.91In Stock - #41

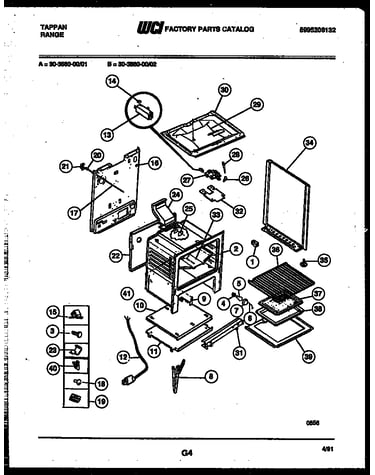

Body parts diagram
Oven temperature probePart #3204593
Replaced by #5304497424
?Manufacturer substitutionThis part replaces 3204593. Substitute parts can look different from the original.This item is not returnable$30.62 |16% OFF Phone Price : $36.62In Stock - #14
Burner, manifold and gas control diagram
IgniterPart #5308067970
Replaced by #5303935068
?Manufacturer substitutionThis part replaces 5308067970. Substitute parts can look different from the original.$96.47 |11% OFF Phone Price : $108.47In Stock - #8
Body parts diagram
ChannelPart #5303051414
Replaced by #316007002
?Manufacturer substitutionThis part replaces 5303051414. Substitute parts can look different from the original.$200.63 |6% OFF Phone Price : $212.63In Stock #NI

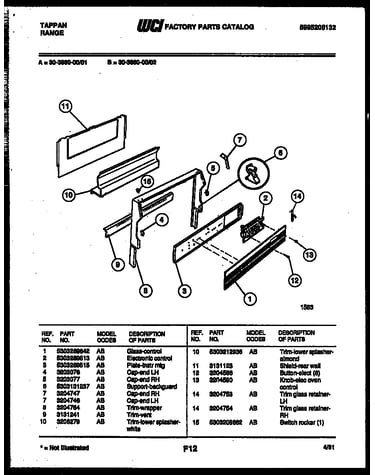

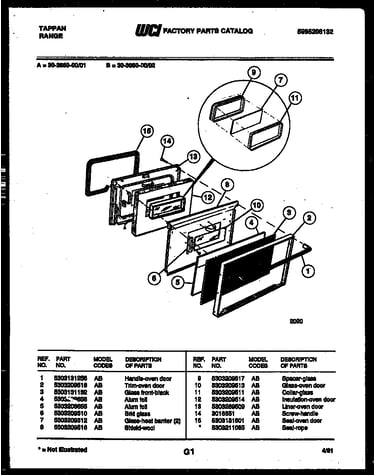

All parts diagram
ScrewPart #3051818
Replaced by #5303300265
?Manufacturer substitutionThis part replaces 3051818. Substitute parts can look different from the original.This item is not returnable$16.40In Stock- #24
Burner, manifold and gas control diagram
BracketPart #08067934
Replaced by #316091600
?Manufacturer substitutionThis part replaces 08067934. Substitute parts can look different from the original.$61.98In Stock - #15
Body parts diagram
Range spring clipPart #3051124
Replaced by #3205821
?Manufacturer substitutionThis part replaces 3051124. Substitute parts can look different from the original.$31.93In Stock - #39D
Body parts diagram
Range oven insulationPart #08067973
$42.28 |12% OFF Phone Price : $48.28In Stock
