KitchenAid
Electric Wall Oven

Model # KEBC247KWH04 Official KitchenAid electric built-in oven

Here are the diagrams and repair parts for Official KitchenAid KEBC247KWH04 electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

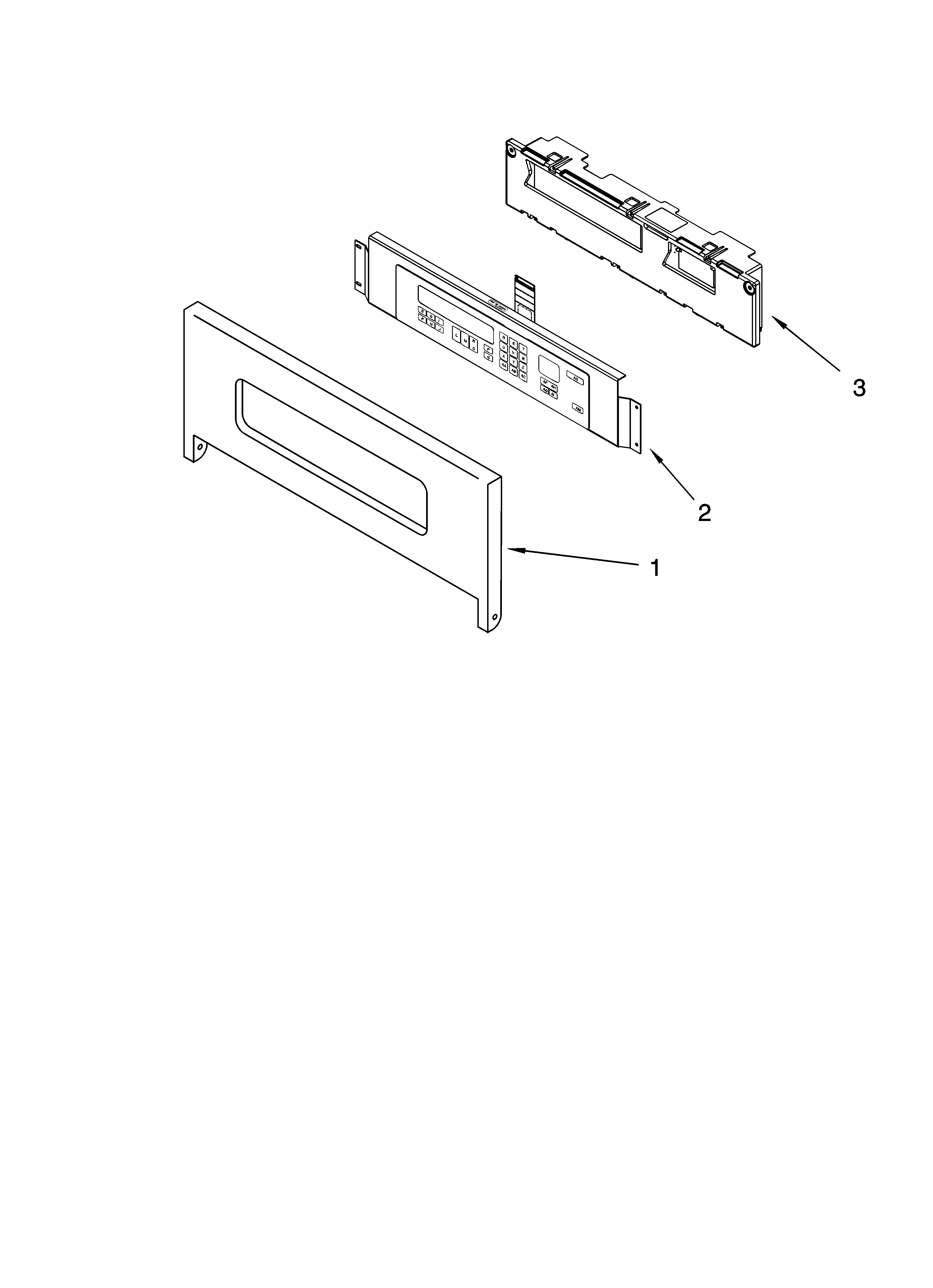

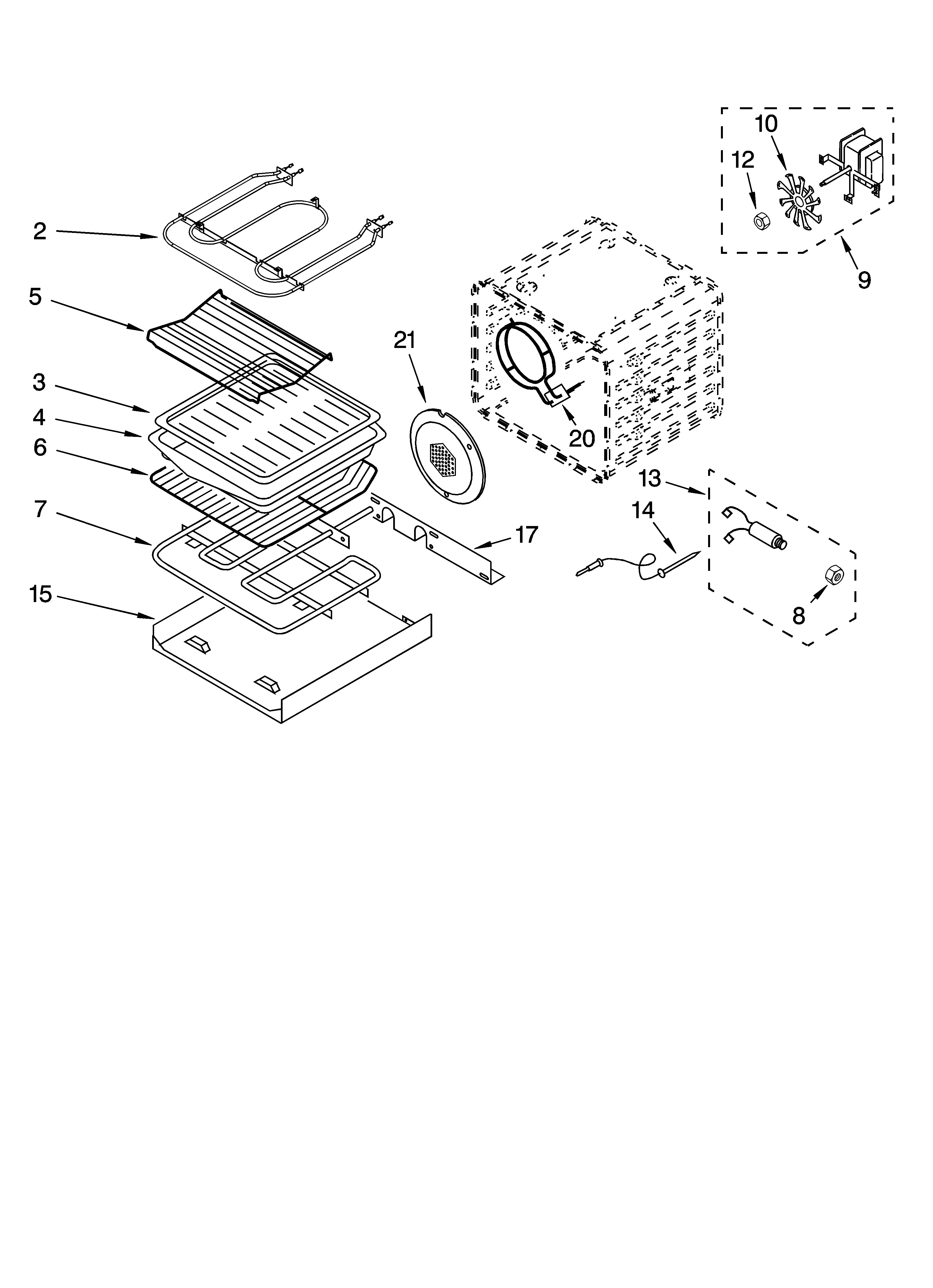

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Wall Oven Temperature Sensor 4455636
#29

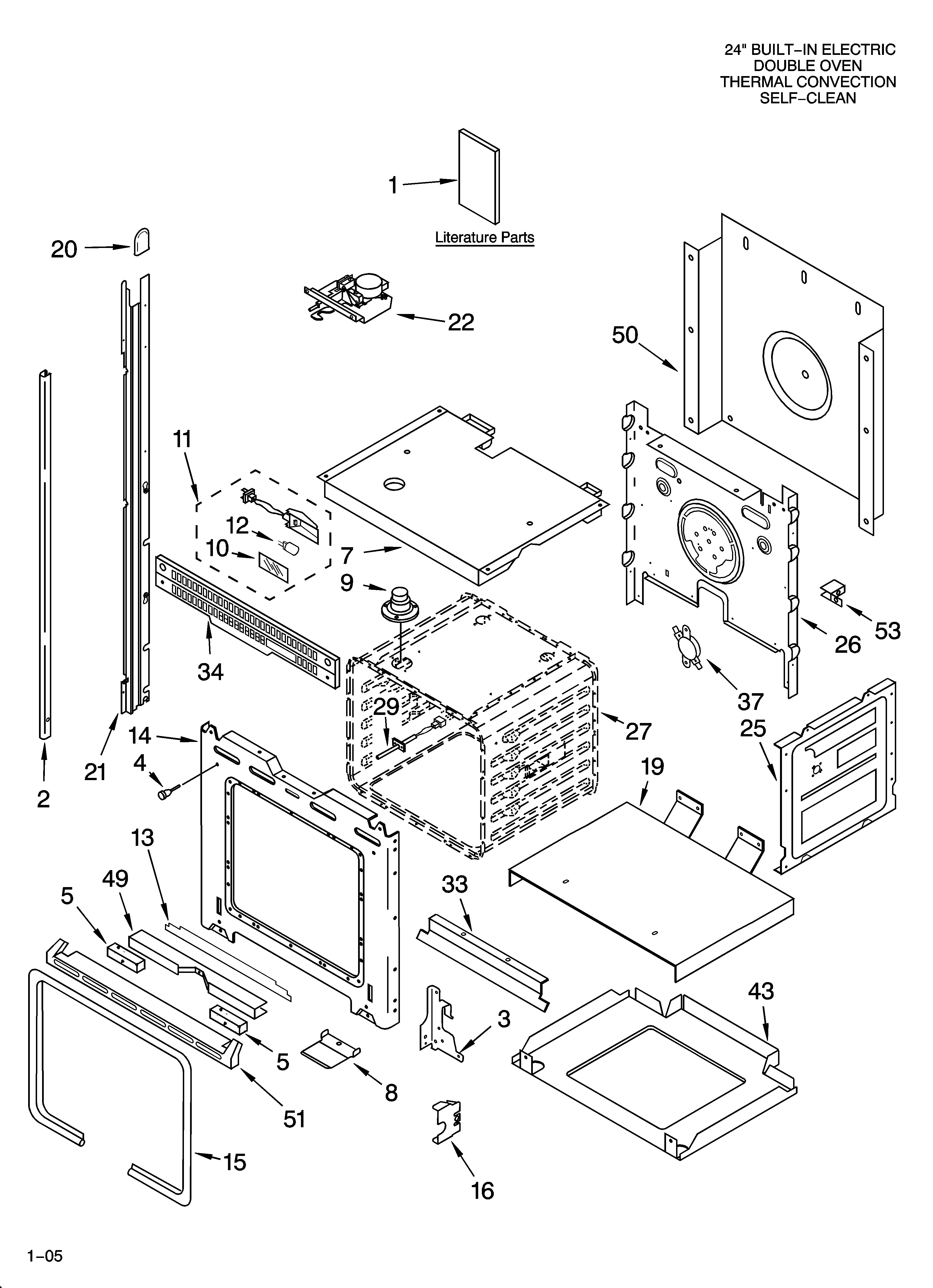

Oven parts diagram

Wall oven temperature sensor

Part #4455636

Replaced by #WPW10131825

?
Manufacturer substitution
This part replaces 4455636. Substitute parts can look different from the original.
BEST SELLER
$63.52 |
9% OFF Phone Price : $69.52
In Stock
Appliance Touch-up Paint 72017
#NI

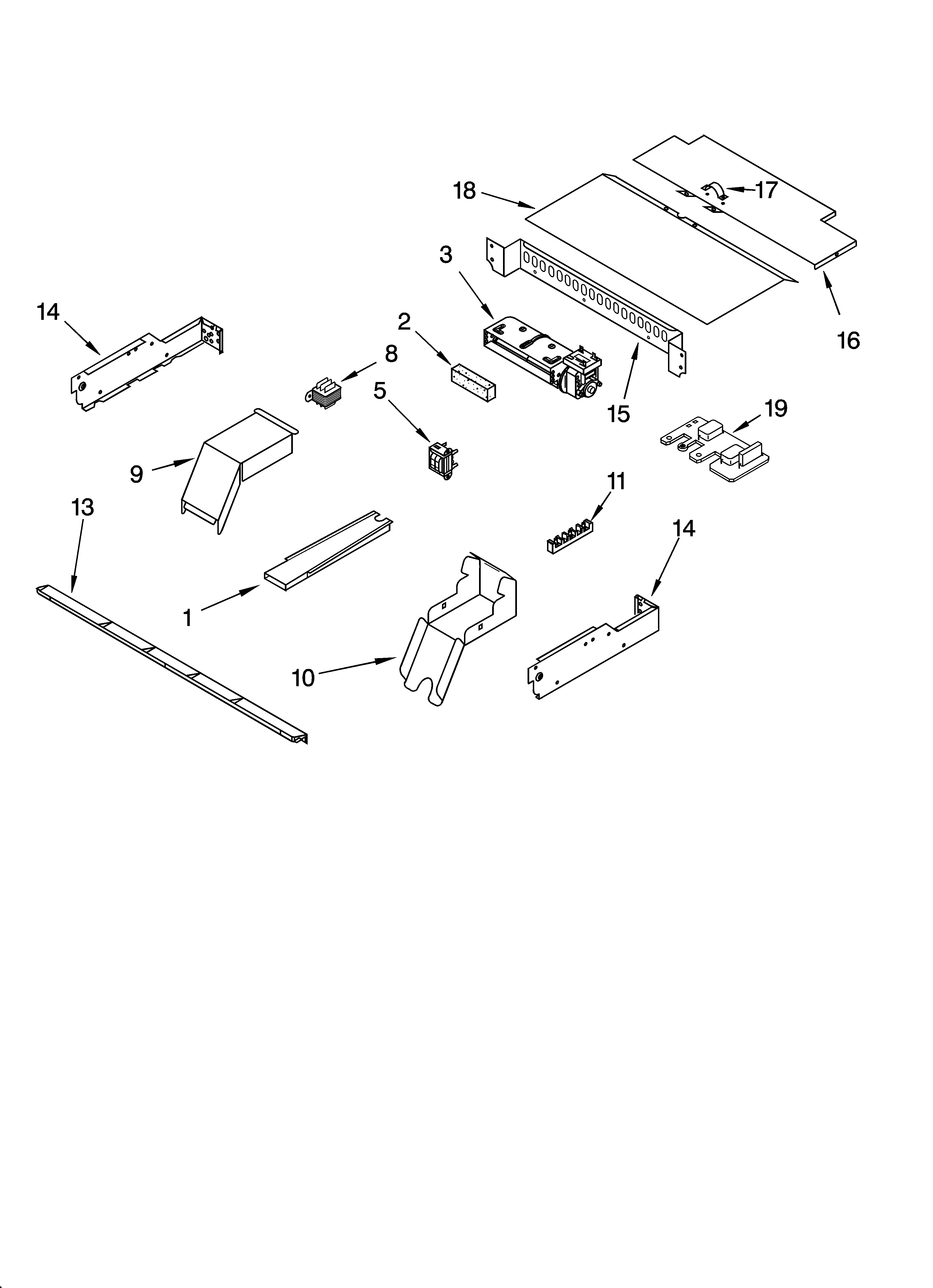

Top venting parts, optional parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Range High-limit Thermostat 9759242
#37

Oven parts diagram

Range high-limit thermostat

Part #9759242

Replaced by #WP9759242

?
Manufacturer substitution
This part replaces 9759242. Substitute parts can look different from the original.
BEST SELLER
$48.75 |
11% OFF Phone Price : $54.75
In Stock
Blower 6610168
#3

Top venting parts, optional parts diagram

Blower

Part #6610168

Replaced by #WPW10016550

?
Manufacturer substitution
This part replaces 6610168. Substitute parts can look different from the original.
BEST SELLER
$141.90 |
8% OFF Phone Price : $153.90
In Stock
Touch-up Paint (black) 72032
#NI

Top venting parts, optional parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Blower 4457289
#3A

Top venting parts, optional parts diagram

Blower

Part #4457289

Replaced by #WPW10176670

?
Manufacturer substitution
This part replaces 4457289. Substitute parts can look different from the original.
$130.46 |
8% OFF Phone Price : $142.46
In Stock
Adhesive 482338
#NI

Top venting parts, optional parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Oven Door Latch 9759481
#22

Oven parts diagram

Oven door latch

Part #9759481

Replaced by #WPW10195934

?
Manufacturer substitution
This part replaces 9759481. Substitute parts can look different from the original.
$138.86 |
8% OFF Was : $150.93
In Stock
Screw 3196176
#9A

Oven parts diagram

Screw

Part #3196176

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 3196176. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Wall Oven Door Inner Glass 4449247
#3

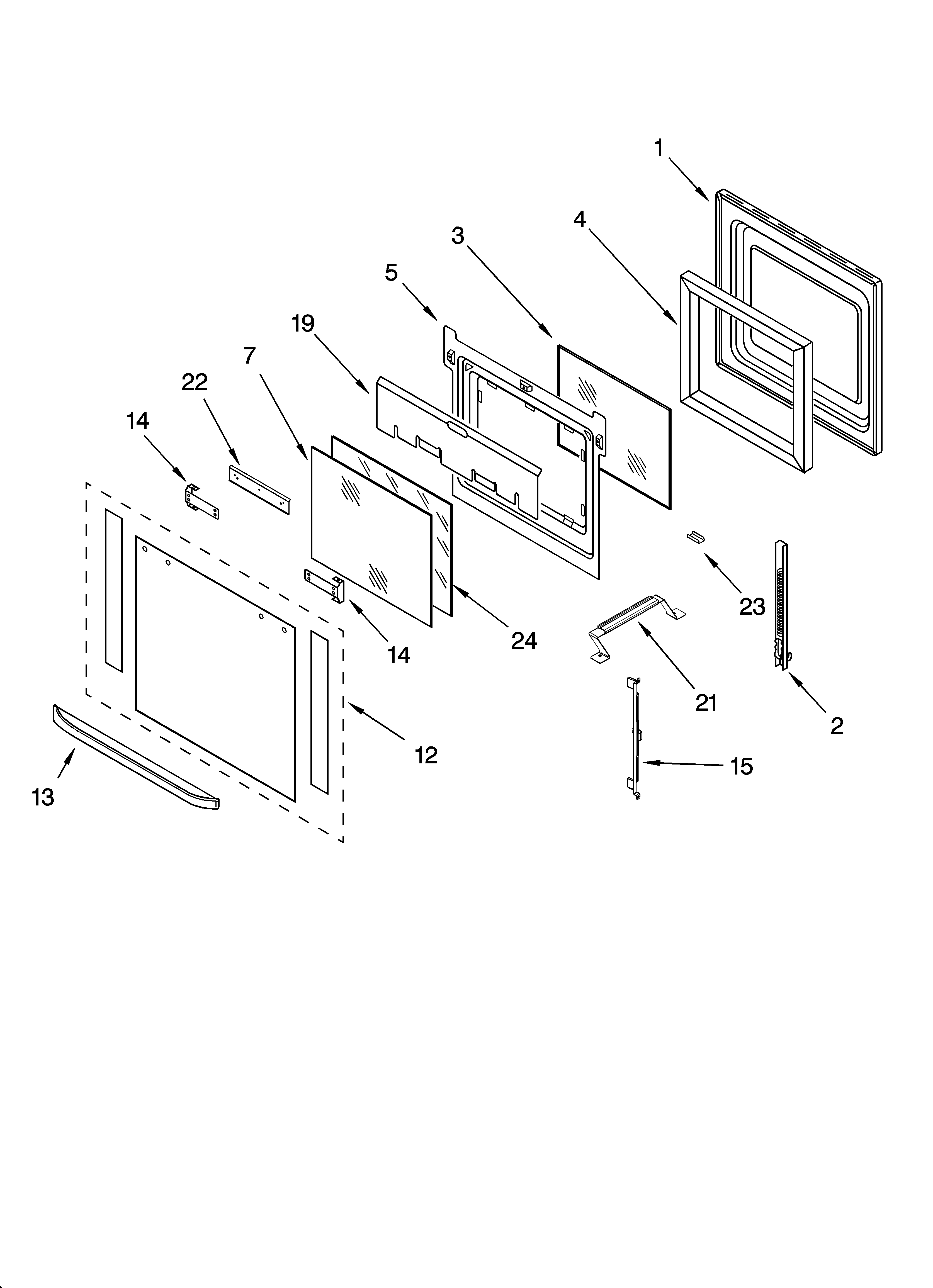

Oven door parts diagram

Wall oven door inner glass

Part #4449247

Replaced by #WP4449247

?
Manufacturer substitution
This part replaces 4449247. Substitute parts can look different from the original.
$71.19 |
8% OFF Phone Price : $77.19
In Stock
