Side-By-Side Refrigerator

Model # ZISS480NMD Official GE refrigerator

Here are the diagrams and repair parts for Official GE ZISS480NMD refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

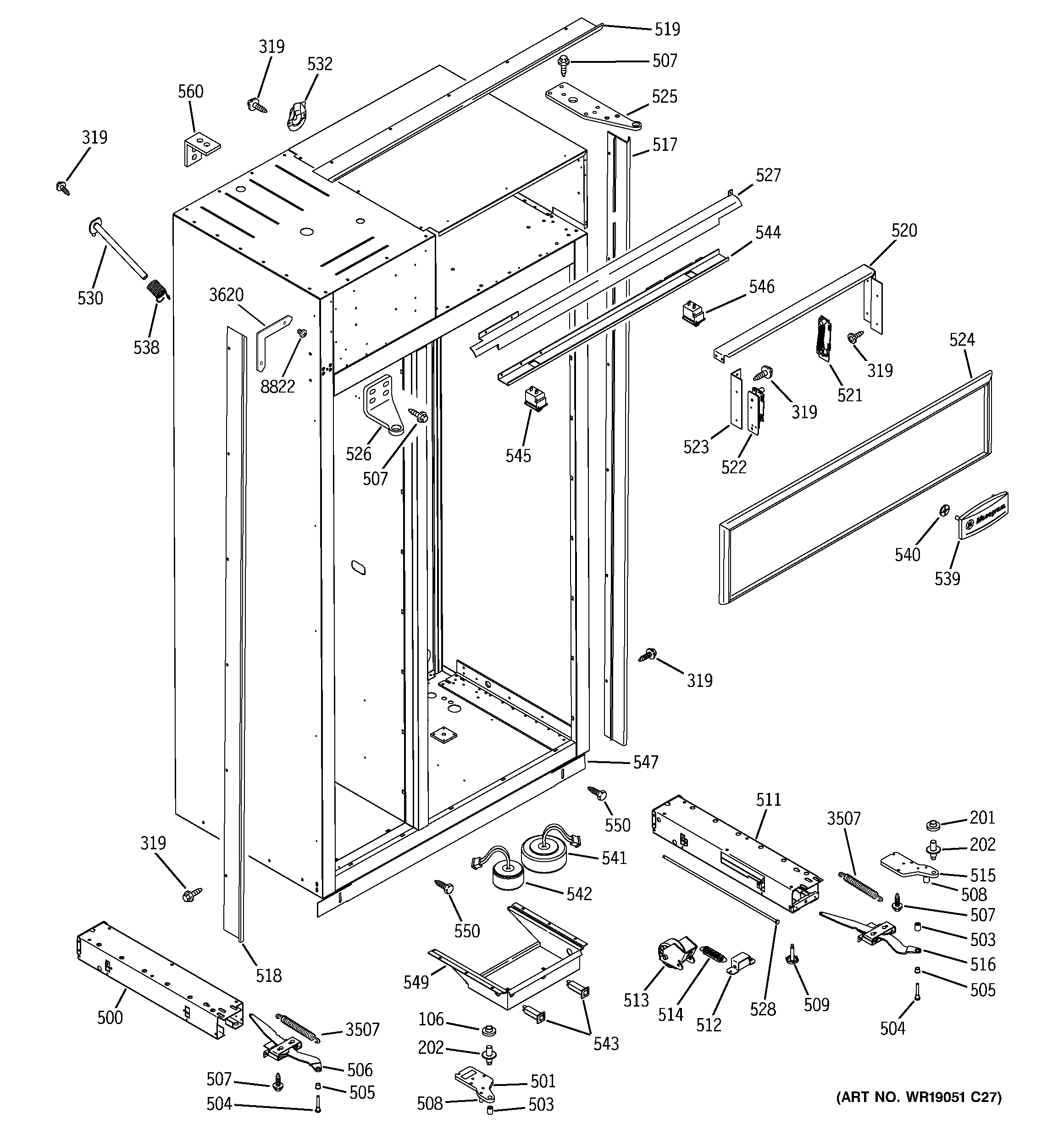

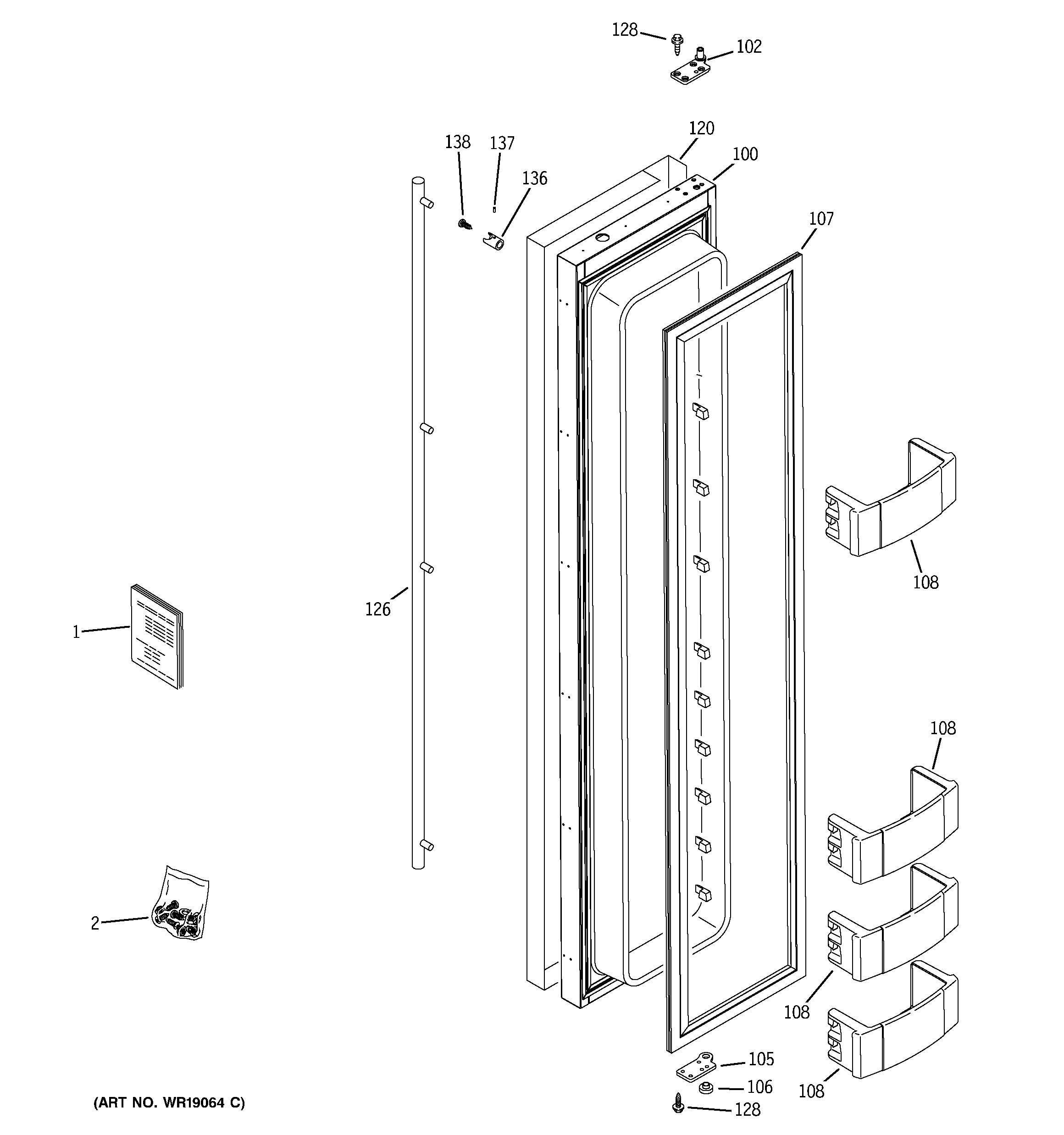

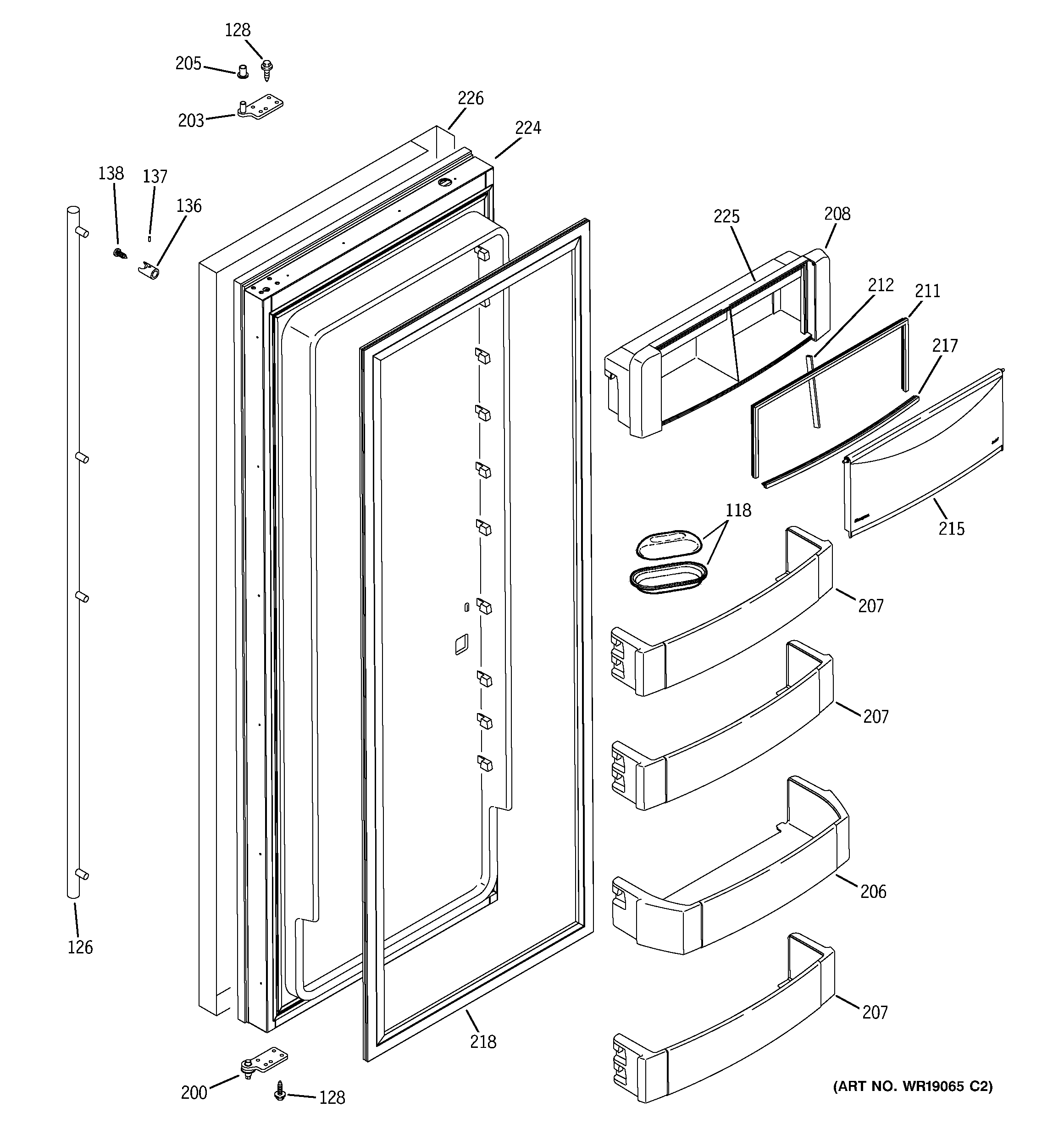

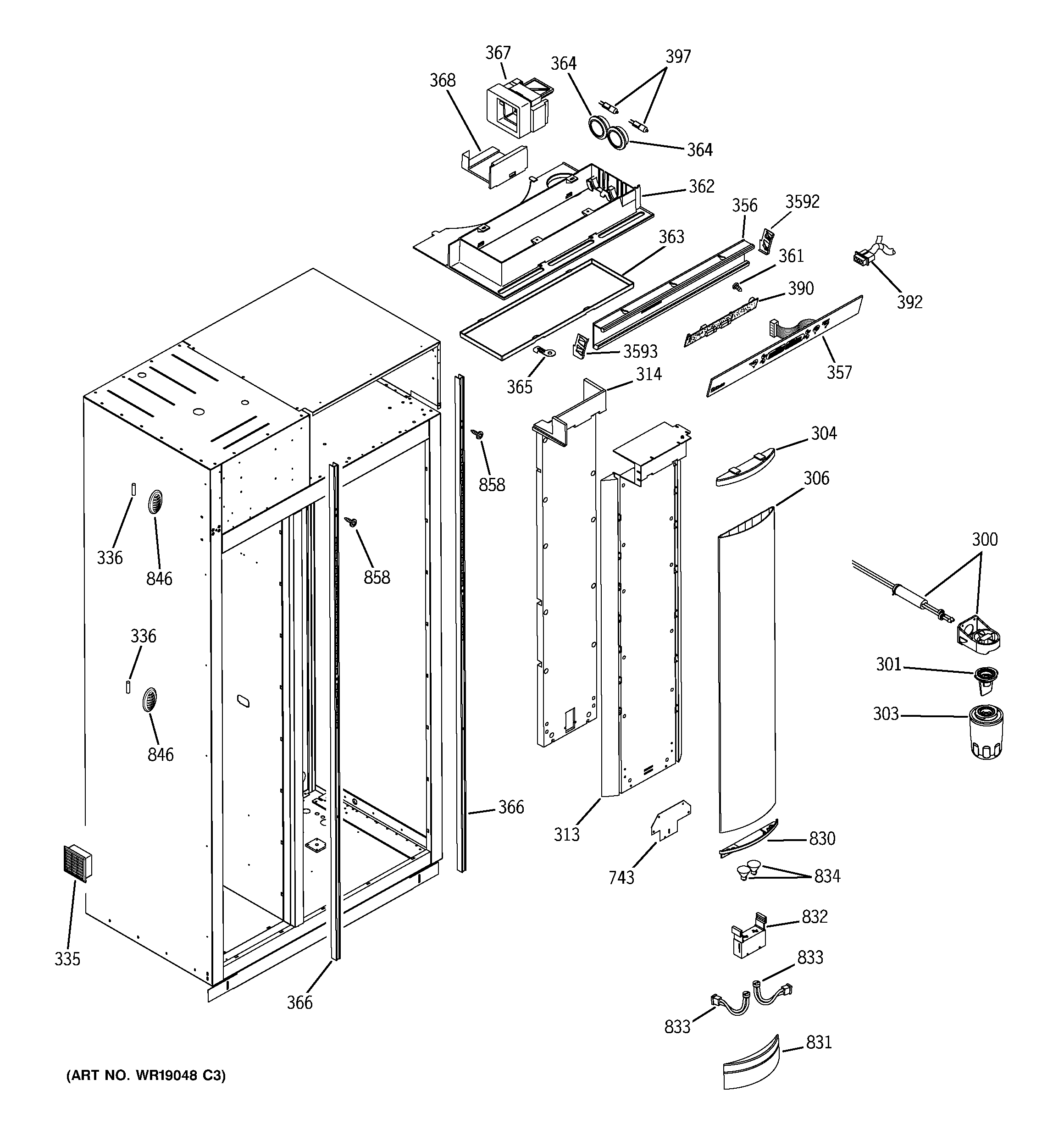

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 250 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Temperature Sensor WR55X10030
#389

Quick chill diagram

Temperature sensor

Part #WR55X10030

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10030. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Ice Maker WR30X10012
#810

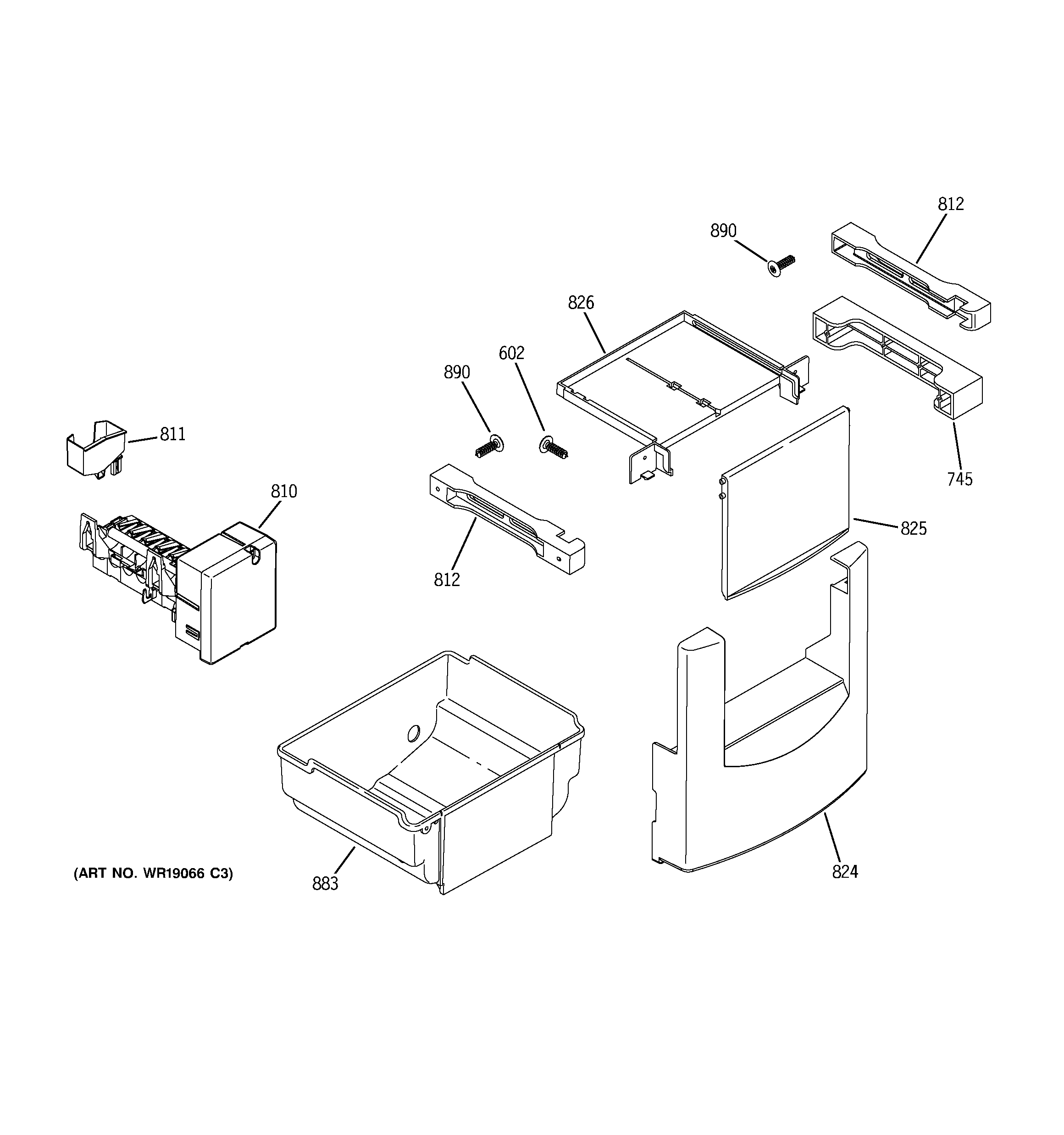

Ice maker & dispenser diagram

Refrigerator ice maker

Part #WR30X10012

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10012. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Dryer Filter WR86X0096
#706

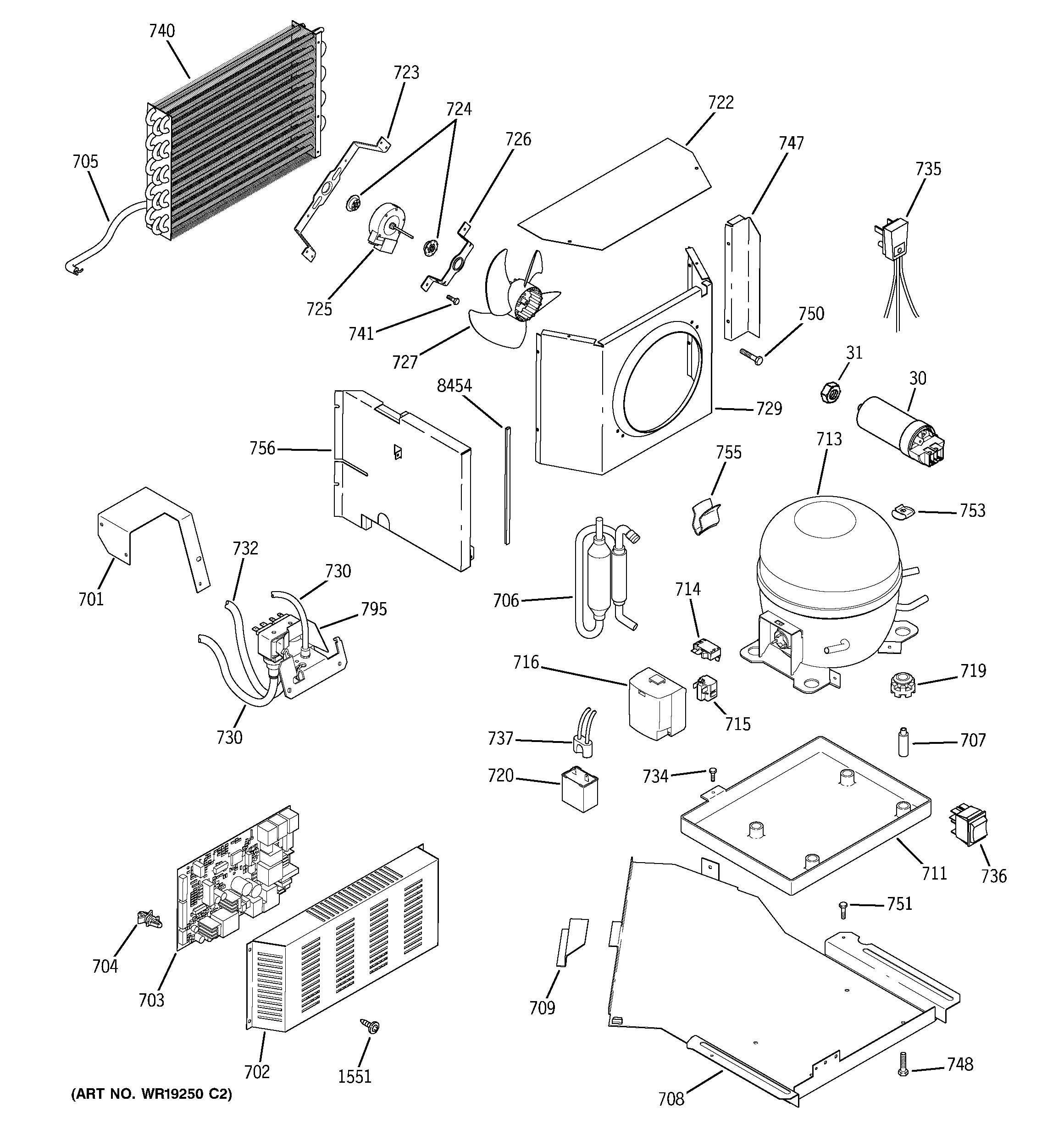

Sealed system & mother board diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Water Inlet Valve Assembly WR57X10032
#795

Sealed system & mother board diagram

Refrigerator water inlet valve assembly

Part #WR57X10032

Replaced by #WR57X33326

?
Manufacturer substitution
This part replaces WR57X10032. Substitute parts can look different from the original.
BEST SELLER
$64.94 |
9% OFF Was : $71.36
In Stock
Motor Dc Con WR60X10053
#725

Sealed system & mother board diagram

Motor dc con

Part #WR60X10053

Replaced by #WR60X10209

?
Manufacturer substitution
This part replaces WR60X10053. Substitute parts can look different from the original.
BEST SELLER
$57.54 |
9% OFF Phone Price : $63.54
In Stock
Refrigerator Reservoir-to-dispenser Water Tubing (replaces Wr17x10732, Wr17x11439, Wr17x3104, Wr17x3140, Wr17x3228) WR17X2891
#732

Sealed system & mother board diagram

Refrigerator reservoir-to-dispenser water tubing (replaces wr17x10732, wr17x11439, wr17x3104, wr17x3140, wr17x3228)

Part #WR17X2891

BEST SELLER
$24.41 |
20% OFF Phone Price : $30.41
In Stock
Thermostat Evaporator WR50X10036
#895

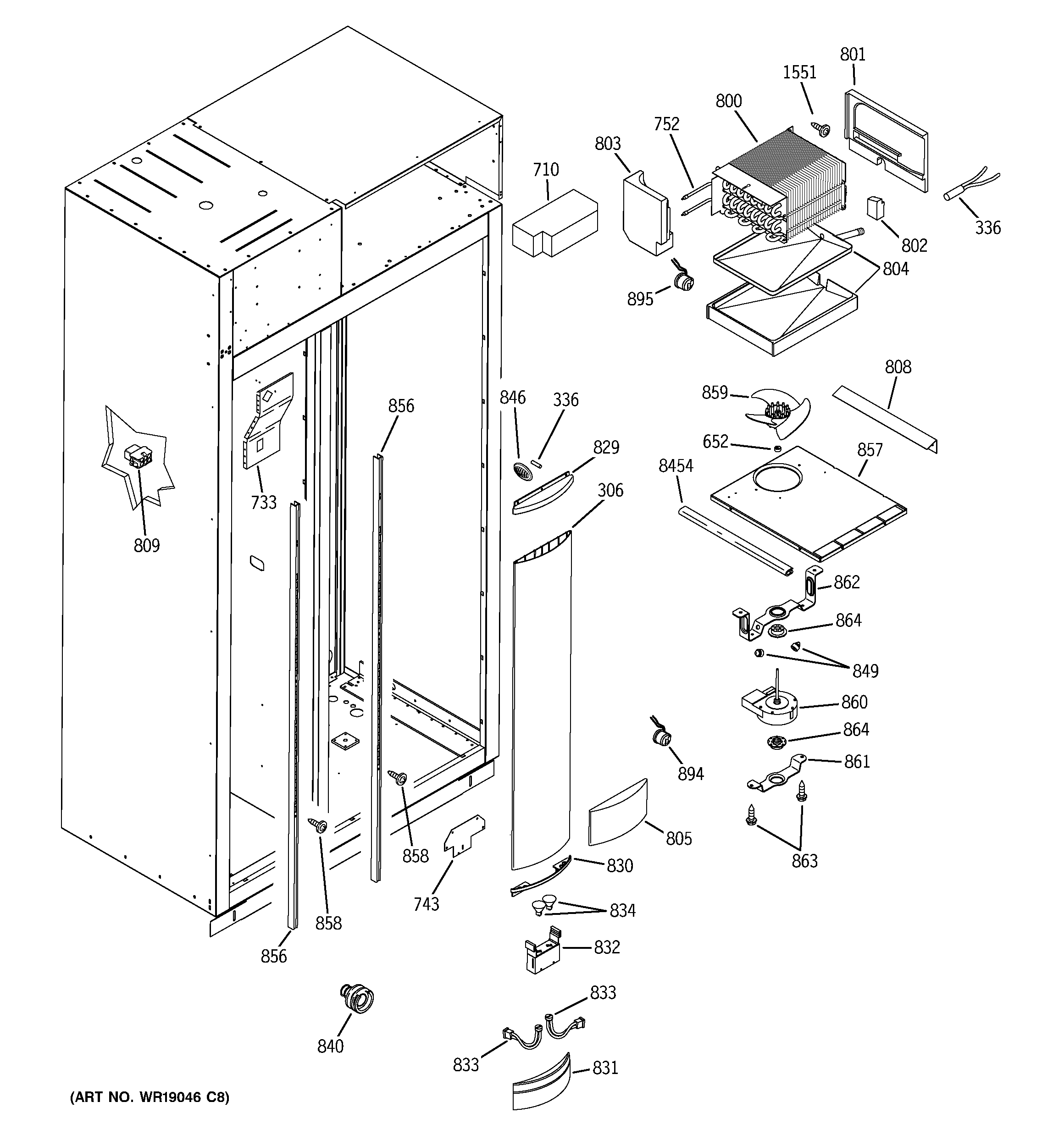

Freezer section diagram
