Model # JES1133WN02 Official GE microwave
Here are the diagrams and repair parts for Official GE JES1133WN02 microwave, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts forJES1133WN02 Microwaves
- #1445

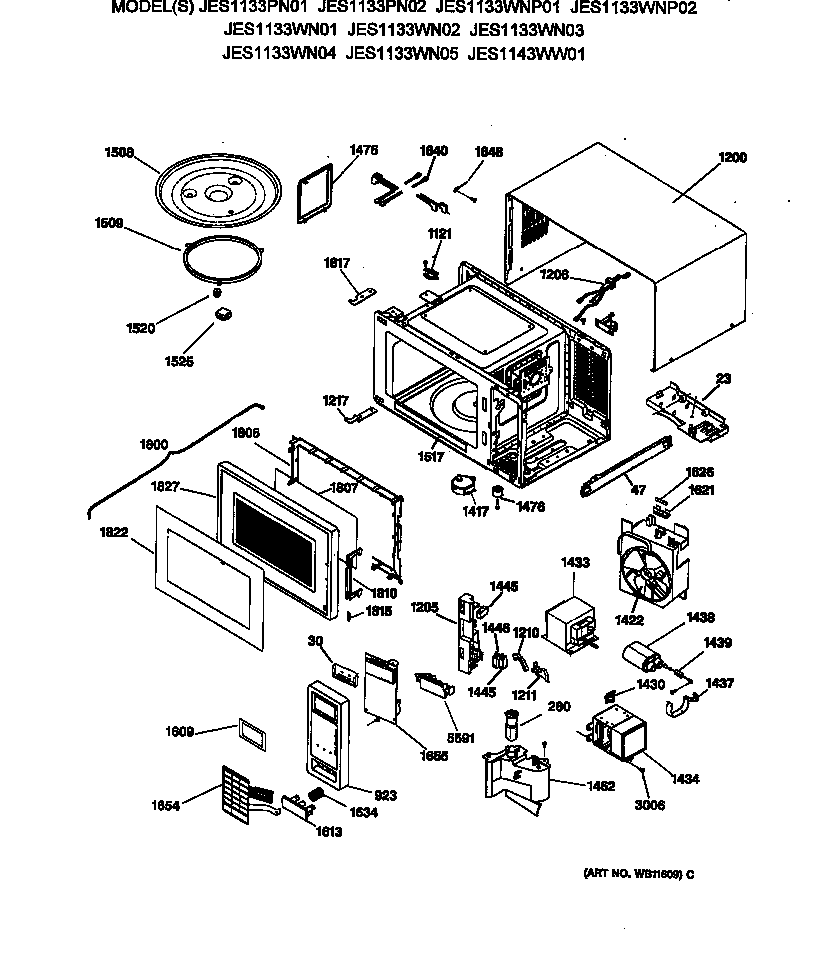

Microwave diagram
SwitchPart #WB24X801
Replaced by #WB24X829
?Manufacturer substitutionThis part replaces WB24X801. Substitute parts can look different from the original.$30.39 |16% OFF Phone Price : $36.39In Stock - #1439
Microwave diagram
DiodePart #WB27X944
Replaced by #WB27X1160
?Manufacturer substitutionThis part replaces WB27X944. Substitute parts can look different from the original.$91.95 |6% OFF Phone Price : $97.95In Stock - #1508
Microwave diagram
Cooking trayPart #WB49X682
Replaced by #WB39X10003
?Manufacturer substitutionThis part replaces WB49X682. Substitute parts can look different from the original.$83.49 |7% OFF Phone Price : $89.49In Stock - #1626
Microwave diagram
Fuse 250vPart #WB27X951
Replaced by #WB27X7
?Manufacturer substitutionThis part replaces WB27X951. Substitute parts can look different from the original.$12.04 |14% OFF Phone Price : $14.04In Stock - #1417
Microwave diagram
Microwave turntable motorPart #WB26X172
$77.66 |7% OFF Phone Price : $83.66In Stock #NI
All parts diagram
Jes1143wwPart #49-8710
$10.71In Stock- #1434
Microwave diagram
MagnetronPart #WB27X950
Replaced by #WB27X10585
?Manufacturer substitutionThis part replaces WB27X950. Substitute parts can look different from the original.$56.57 |17% OFF Phone Price : $68.03In Stock - #1446
Microwave diagram
SwitchPart #WB24X800
Replaced by #WB24X830
?Manufacturer substitutionThis part replaces WB24X800. Substitute parts can look different from the original.$32.81 |15% OFF Phone Price : $38.81In Stock - #3006
Microwave diagram
Sc washerPart #WB1X1436
Replaced by #WB01X10084
?Manufacturer substitutionThis part replaces WB1X1436. Substitute parts can look different from the original.$7.40 |12% OFF Phone Price : $8.40In Stock #NI
All parts diagram
Use and care guidePart #49-8510
Replaced by #49-8525
?Manufacturer substitutionThis part replaces 49-8510. Substitute parts can look different from the original.$10.71In Stock
