Model # GHDRE527H0WW Official GE washer
Here are the diagrams and repair parts for Official GE GHDRE527H0WW washer, as well as links to manuals and error code tables, if available.
Installation guideBy Schematic
By Part

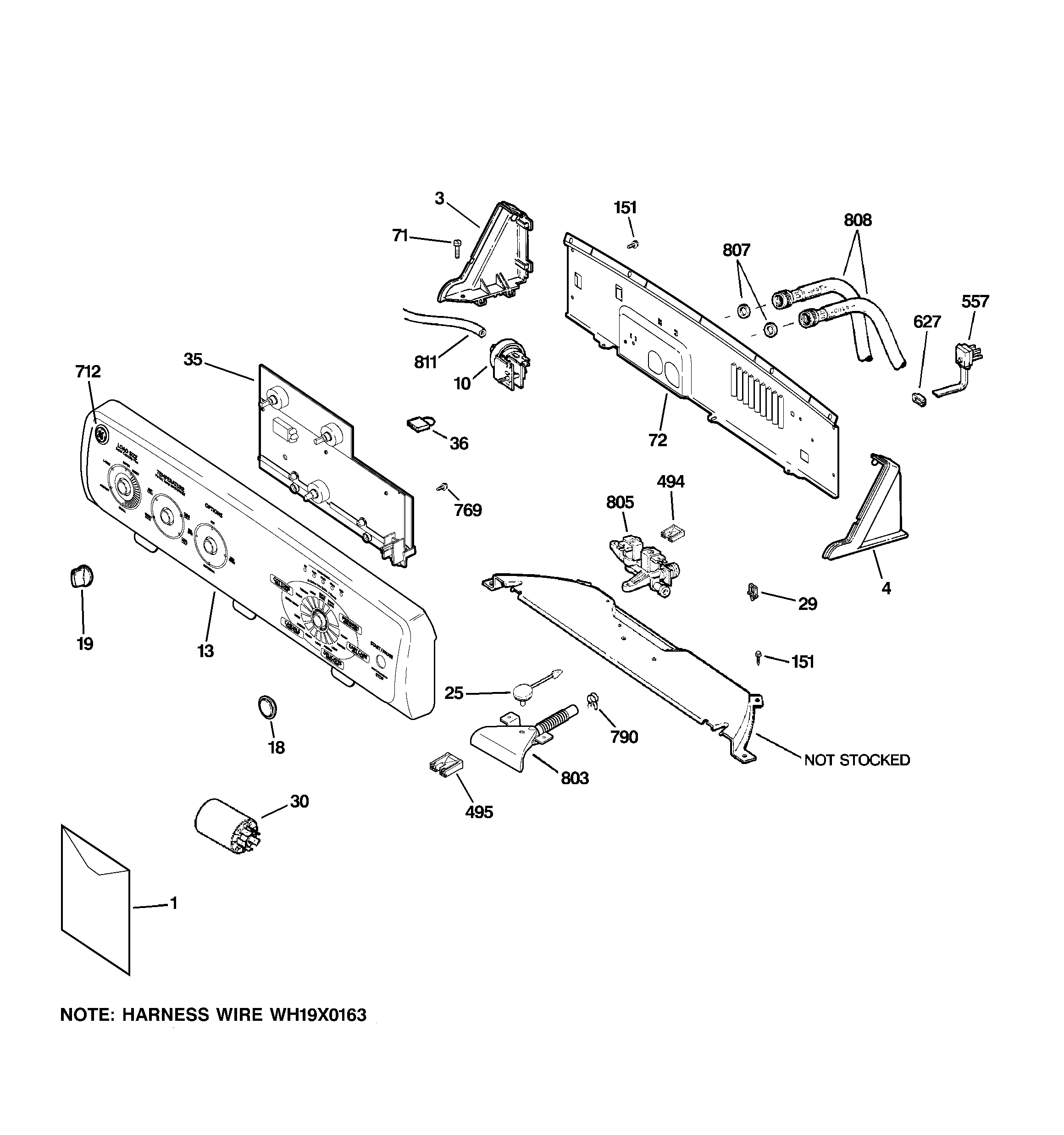

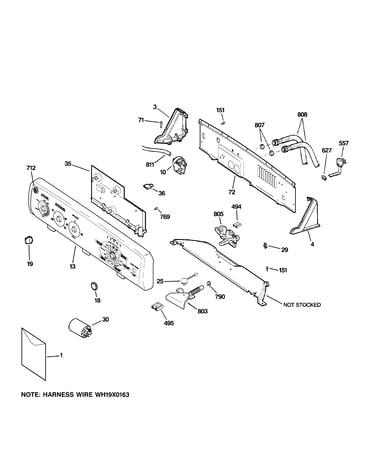

SELECT DIAGRAM
Browse Parts forGHDRE527H0WW Washer
- #325

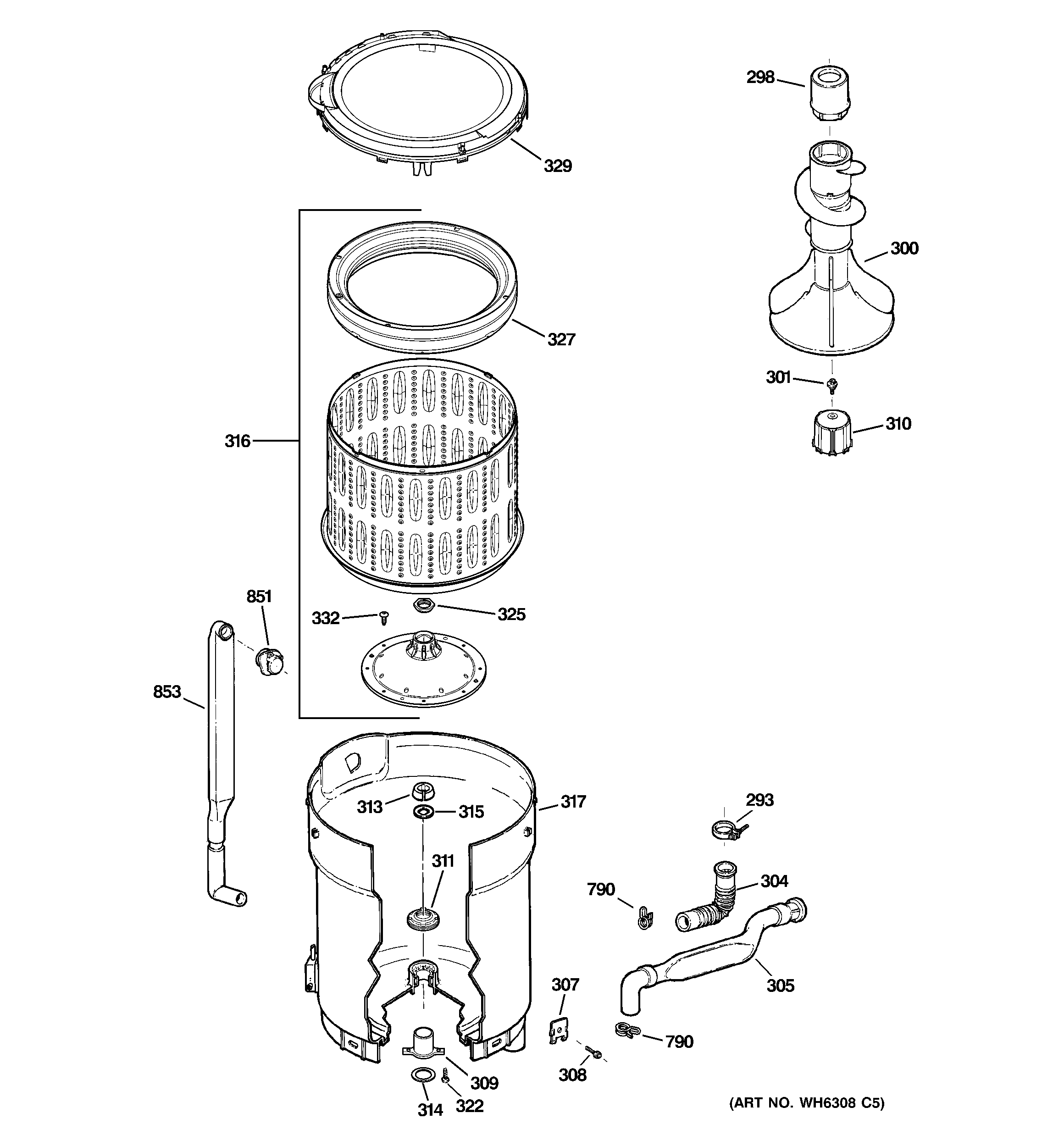

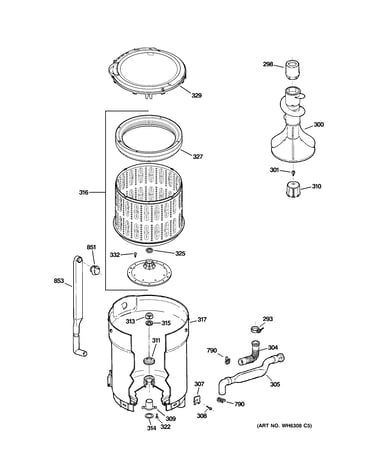

Tub, basket & agitator diagram
Hub nutPart #WH02X1193
Replaced by #WH2X1193
?Manufacturer substitutionThis part replaces WH02X1193. Substitute parts can look different from the original.$14.47 |12% OFF Phone Price : $16.47In Stock - #311
Tub, basket & agitator diagram
Washer tub sealPart #WH02X10032
Replaced by #WH02X10383
?Manufacturer substitutionThis part replaces WH02X10032. Substitute parts can look different from the original.$11.13 |15% OFF Phone Price : $13.13In Stock - #309
Tub, basket & agitator diagram
Tub bearingPart #WH02X1198
Replaced by #WH2X1198
?Manufacturer substitutionThis part replaces WH02X1198. Substitute parts can look different from the original.$31.53 |16% OFF Phone Price : $37.53In Stock - #315
Tub, basket & agitator diagram
Hub washerPart #WH02X1199
Replaced by #WH2X1199
?Manufacturer substitutionThis part replaces WH02X1199. Substitute parts can look different from the original.$7.64 |12% OFF Phone Price : $8.64In Stock - #300
Tub, basket & agitator diagram
Washer agitatorPart #WH43X10034
$54.39 |10% OFF Phone Price : $60.39In Stock - #603

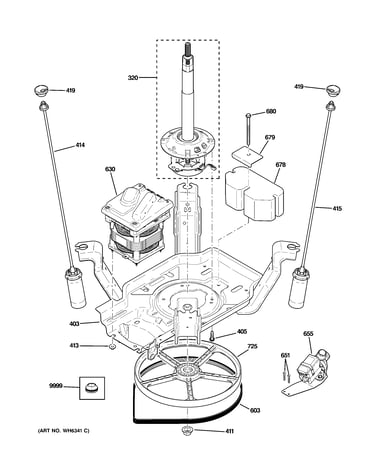

Suspension, pump & drive components diagram
Washer drive beltPart #WH01X10302
$21.84 |22% OFF Phone Price : $27.84In Stock - #310
Tub, basket & agitator diagram
Washer agitator couplerPart #WH43X10032
$25.22 |19% OFF Phone Price : $31.22In Stock - #370

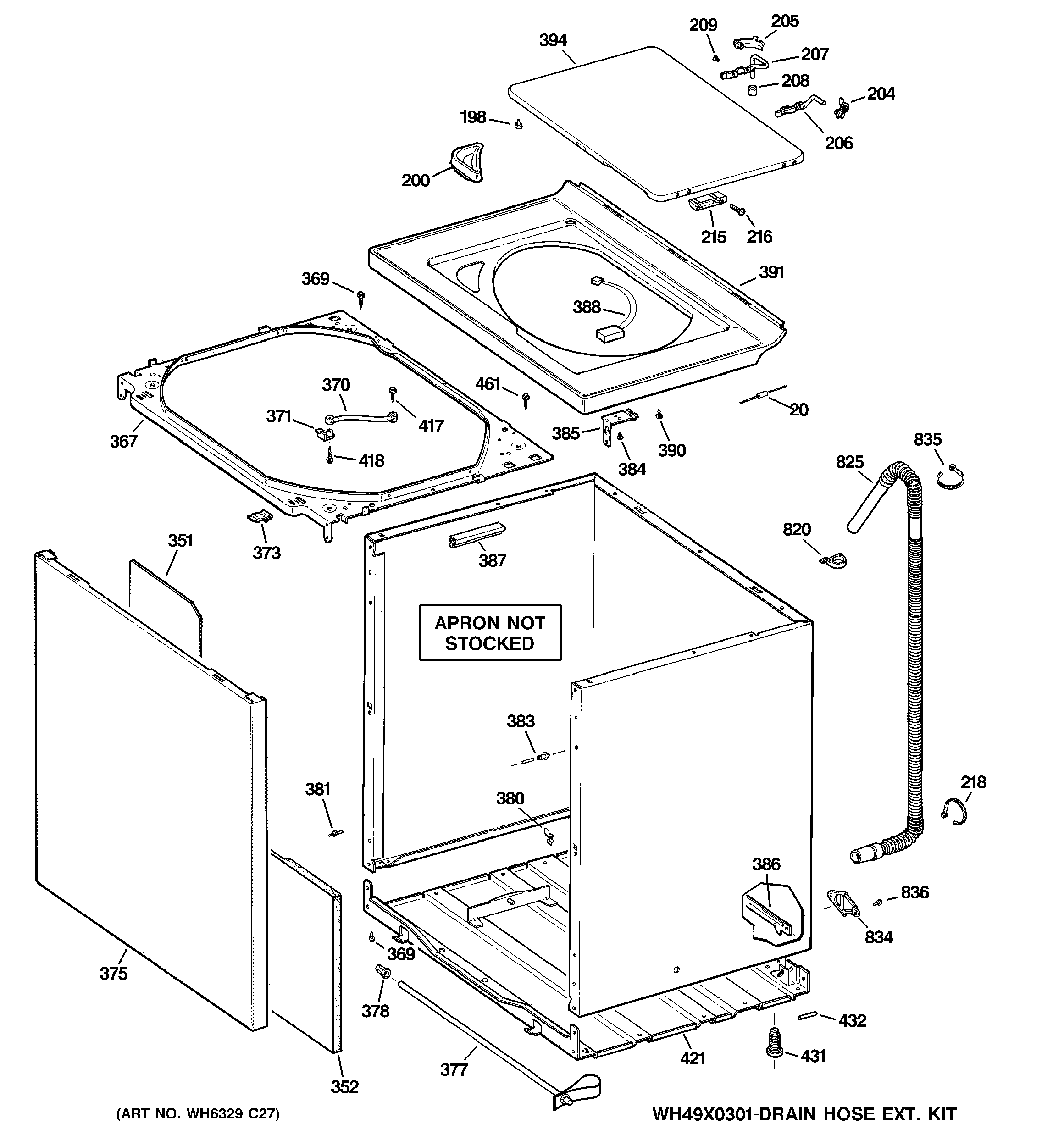

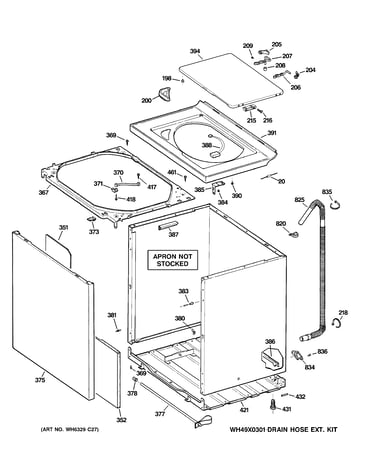

Cabinet, cover & front panel diagram
Strap dampngPart #WH01X10046
Replaced by #WH1X2727
?Manufacturer substitutionThis part replaces WH01X10046. Substitute parts can look different from the original.$12.53 |14% OFF Phone Price : $14.53In Stock - #301
Tub, basket & agitator diagram
Washer screwPart #WH02X10237
This item is not returnable$4.90 |46% OFF Was : $9.08In Stock - #415
Suspension, pump & drive components diagram
Rod springPart #WH16X0545
Replaced by #WH16X10141
?Manufacturer substitutionThis part replaces WH16X0545. Substitute parts can look different from the original.$30.80 |16% OFF Phone Price : $36.80In Stock
