Model # VR9210AT21 Official Magnavox videocassette recorder

Here are the diagrams and repair parts for Official Magnavox VR9210AT21 videocassette recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Cover VKMS2065
#12

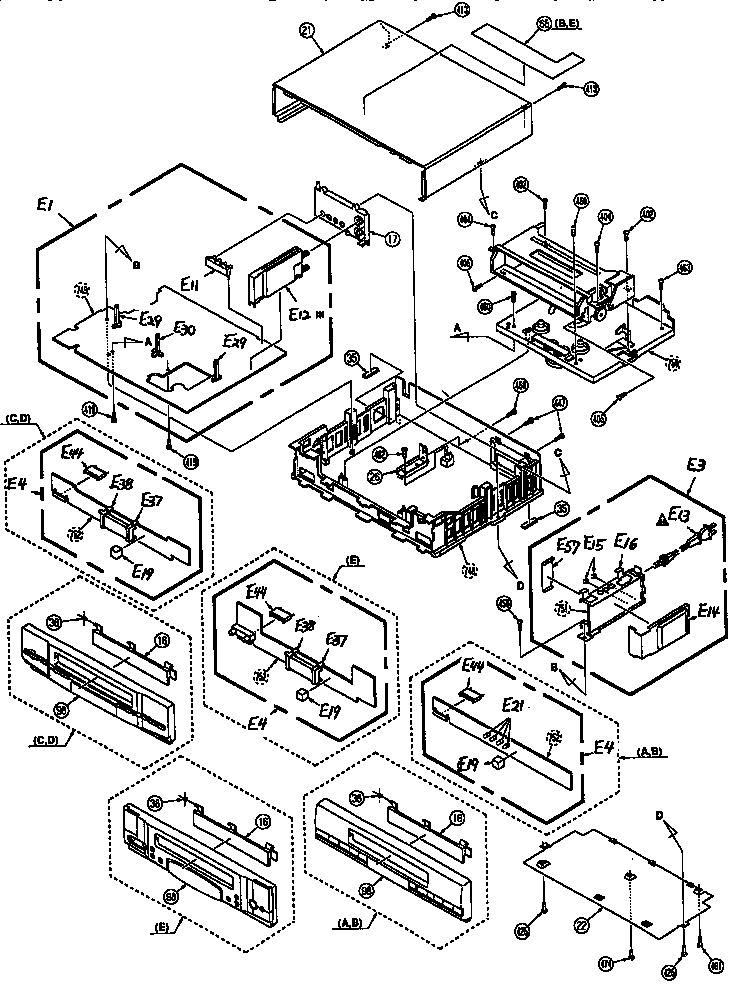

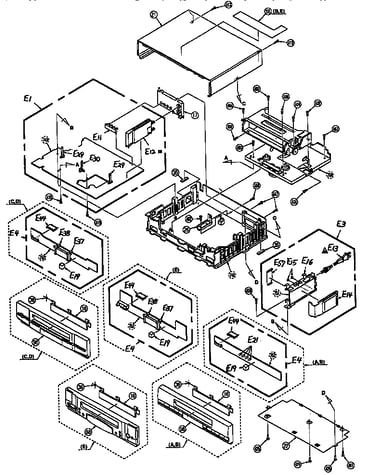

Replacement parts diagram

Cover

Part #VKMS2065

$31.99
In Stock
Pcb Assembly 483521027017
#6

Replacement parts diagram

Pcb assembly

Part #483521027017

$11.77
In Stock
Owner's Manual 5801

#NI

All parts diagram

Owner's manual

Part #5801

$71.99
In Stock
Diode VBS0038

#NI

All parts diagram

Diode

Part #VBS0038

The manufacturer no longer makes this part, and there's no substitute part

Spring VMBS1081
#15

Replacement parts diagram

Spring

Part #VMBS1081

The manufacturer no longer makes this part, and there's no substitute part

Panel VGPS2840
#11

Replacement parts diagram

Panel

Part #VGPS2840

The manufacturer no longer makes this part, and there's no substitute part

Belt VDVS0069

#NI

All parts diagram

Belt

Part #VDVS0069

The manufacturer no longer makes this part, and there's no substitute part

Holder VJSS0164
#5

Replacement parts diagram

Holder

Part #VJSS0164

The manufacturer no longer makes this part, and there's no substitute part

Foot 483546247021
#14

Replacement parts diagram

Foot

Part #483546247021

The manufacturer no longer makes this part, and there's no substitute part

Uh/vh Tunr VEQS0553
#3

Replacement parts diagram

Uh/vh tunr

Part #VEQS0553

The manufacturer no longer makes this part, and there's no substitute part

Parts & More
