Maytag
Bottom-Mount Refrigerator

Model # MB2216PUAW Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MB2216PUAW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

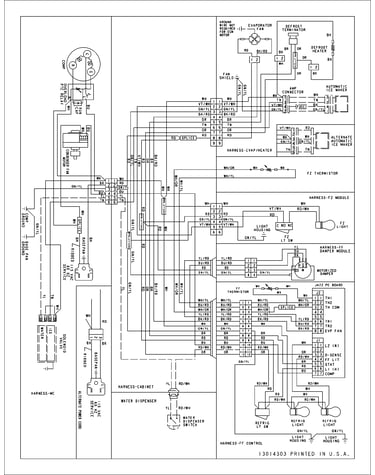

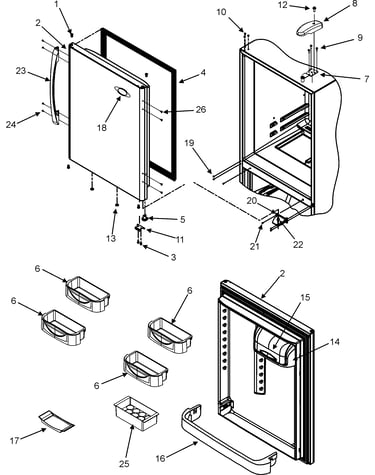

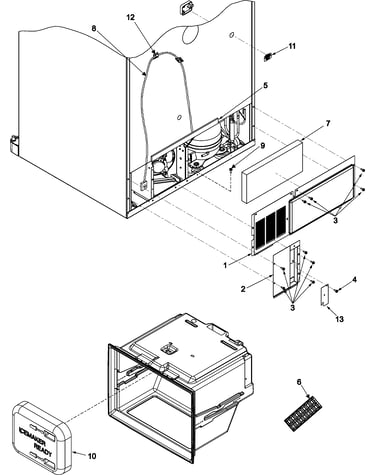

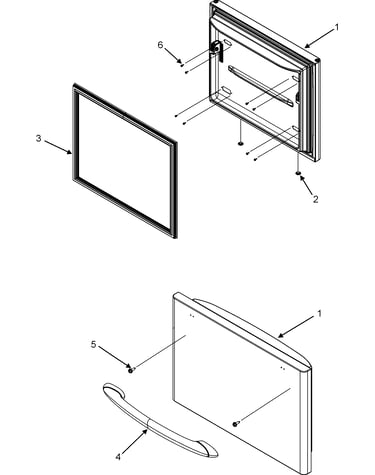

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Refrigerator Light Bulb 67003883
Refrigerator light bulb

Part #67003883

Replaced by #40A15

?
Manufacturer substitution
This part replaces 67003883. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Control Board 67006712
#5

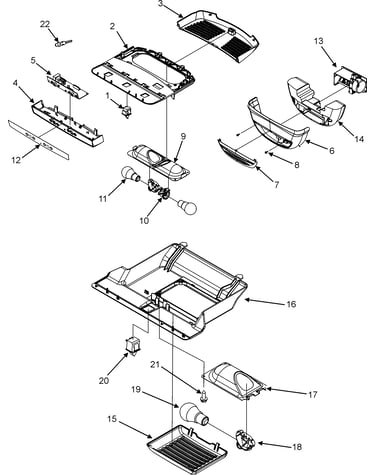

Controls diagram

Refrigerator control board

Part #67006712

Replaced by #WPW10503278

?
Manufacturer substitution
This part replaces 67006712. Substitute parts can look different from the original.
BEST SELLER
$159.52 |
7% OFF Phone Price : $171.52
In Stock
Refrigerator Light Switch C3680310
#1

Controls diagram

Refrigerator light switch

Part #C3680310

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Compressor 12002634
#2

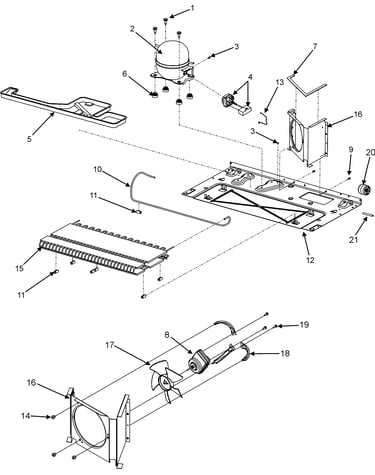

Compressor/cond motor/rear rollers diagram

Refrigerator compressor

Part #12002634

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 12002634. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock
Refrigerator Start Device 67005560
#4

Compressor/cond motor/rear rollers diagram

Refrigerator start device

Part #67005560

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005560. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock

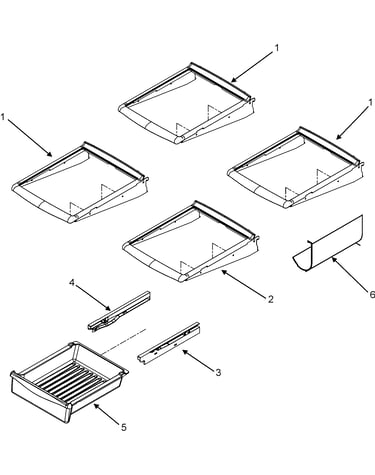

Refrigerator Crisper Drawer Support Rail, Center 67001057
#3

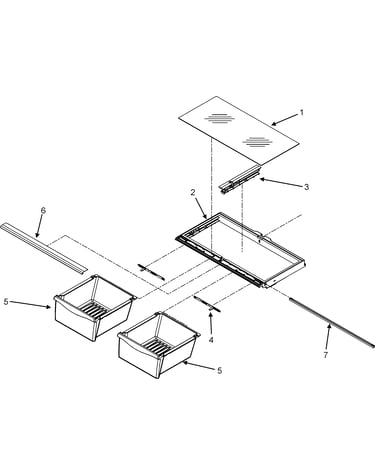

Crisper assembly diagram

Refrigerator crisper drawer support rail, center

Part #67001057

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 67001057. Substitute parts can look different from the original.
BEST SELLER
$47.26 |
11% OFF Phone Price : $53.26
In Stock
Refrigerator Light Switch 67005653
#20

Controls diagram

Refrigerator light switch

Part #67005653

Replaced by #12002646

?
Manufacturer substitution
This part replaces 67005653. Substitute parts can look different from the original.
BEST SELLER
$26.49
In Stock
Evaporator Motor 67003636
#18

Evaporator/evap motor/front rollers diagram

Evaporator motor

Part #67003636

Replaced by #WPW10128551

?
Manufacturer substitution
This part replaces 67003636. Substitute parts can look different from the original.
BEST SELLER
$65.76 |
8% OFF Phone Price : $71.76
In Stock
Drier B2150504
#11

Evaporator/evap motor/front rollers diagram

Drier

Part #B2150504

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150504. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Refrigerator Drawer Slide 67006607
#26

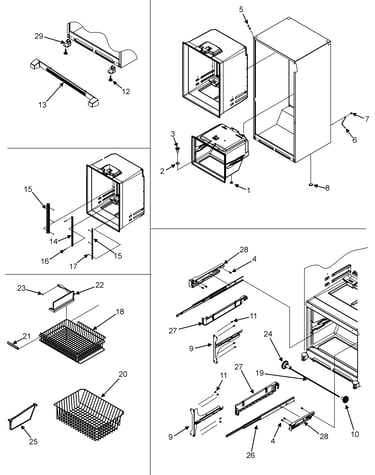

Interior cabinet/frz shelves/toe grille diagram

Refrigerator drawer slide

Part #67006607

Replaced by #WPW10120018

?
Manufacturer substitution
This part replaces 67006607. Substitute parts can look different from the original.
BEST SELLER
$118.53 |
9% OFF Phone Price : $130.53
In Stock
