Skil
Router

Model # 1827 Official Skil router

Here are the diagrams and repair parts for Official Skil 1827 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |

Shaft 1619X04249
#108

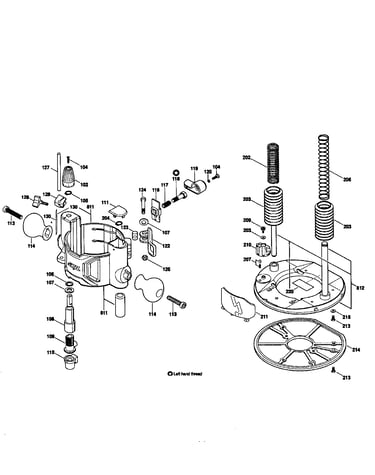

Base assy diagram

Shaft

Part #1619X04249

The manufacturer no longer makes this part, and there's no substitute part

Retain Sna 1619X04252
#105

Base assy diagram

Retain sna

Part #1619X04252

The manufacturer no longer makes this part, and there's no substitute part

Warning La 1619X05375
#220

Base assy diagram

Warning la

Part #1619X05375

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 1619X01014
#106

Base assy diagram

Spring washer

Part #1619X01014

The manufacturer no longer makes this part, and there's no substitute part

Compression 2610916624
#206

Base assy diagram

Compression

Part #2610916624

The manufacturer no longer makes this part, and there's no substitute part

Tolerance 2610916621
#24

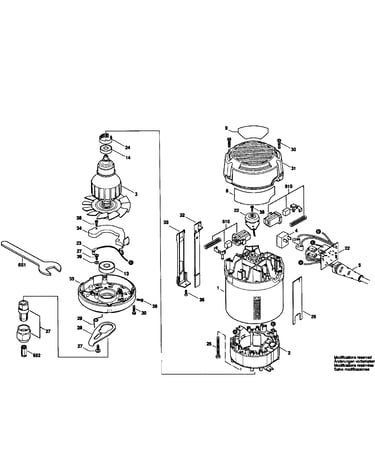

Motor assy diagram

Tolerance

Part #2610916621

The manufacturer no longer makes this part, and there's no substitute part

Plain Washer 1619X05276
Plain washer

Part #1619X05276

The manufacturer no longer makes this part, and there's no substitute part

Screw 1619X04253
#104

Base assy diagram

Screw

Part #1619X04253

The manufacturer no longer makes this part, and there's no substitute part

Insulator 1619X04240
#26

Motor assy diagram

Insulator

Part #1619X04240

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 2610017875
#13

Motor assy diagram

Ball bearing

Part #2610017875

The manufacturer no longer makes this part, and there's no substitute part
