Troybilt
Gas Line Trimmer

Model # TB70SS Official Troybilt trimmer

Here are the diagrams and repair parts for Official Troybilt TB70SS trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Line Trimmer Handle 791-182167
#9

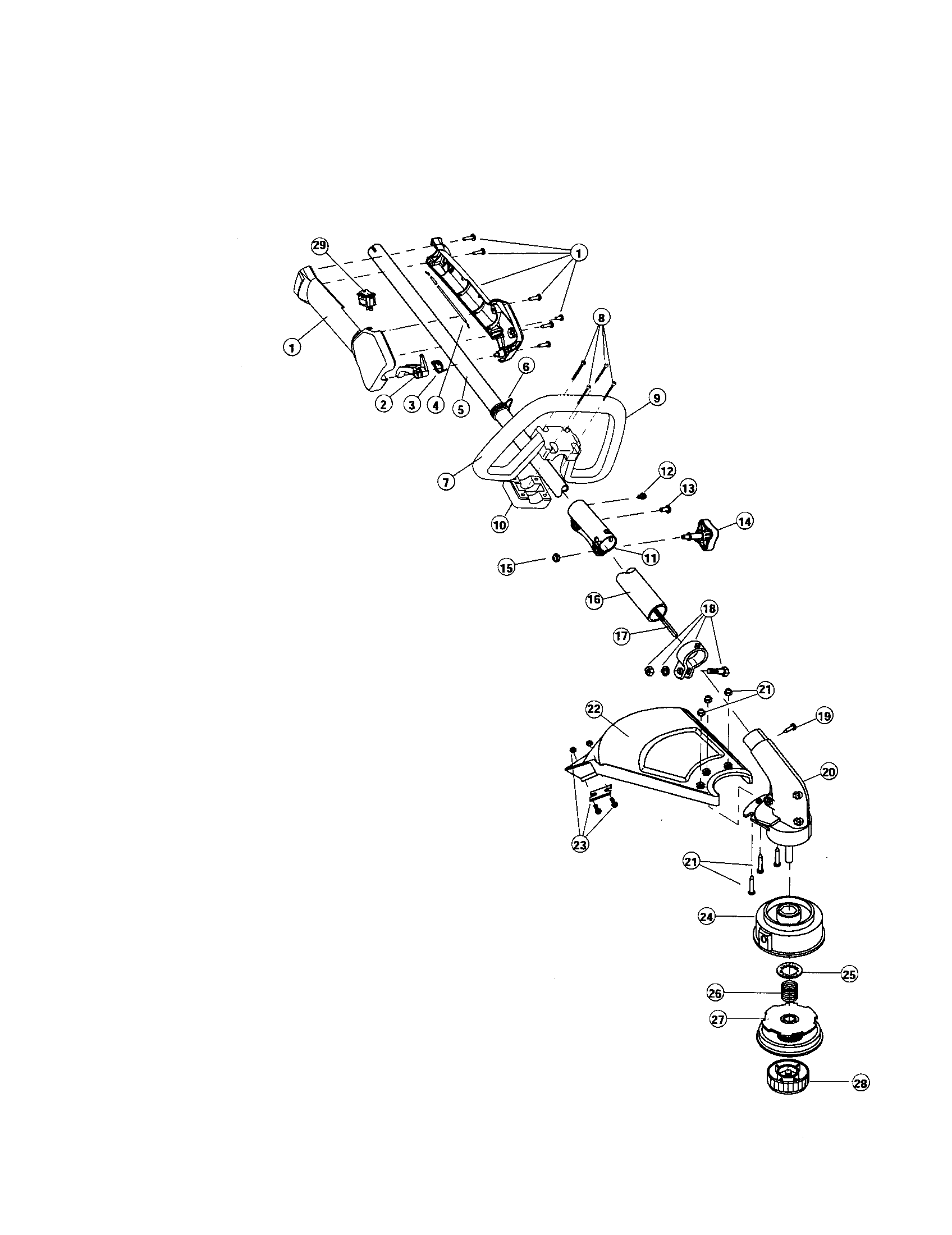

Boom and trimmer diagram

Line trimmer handle

Part #791-182167

$102.80
In Stock
Rope Guide 753-1200
#25

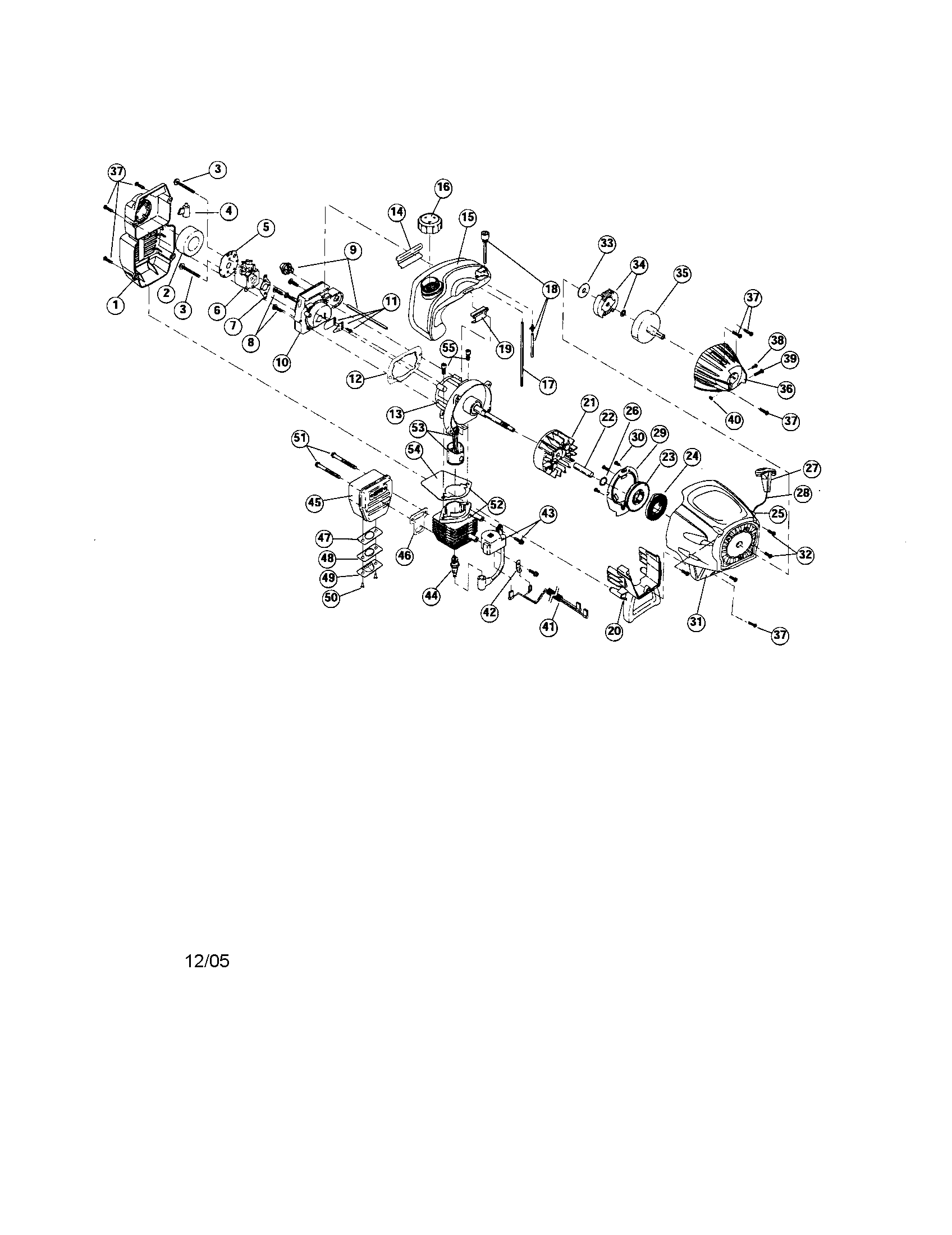

Engine diagram

Rope guide

Part #753-1200

$20.63
In Stock
Gasket 753-04619
#46

Engine diagram

Gasket

Part #753-04619

$4.33
In Stock
Hose 791-683947B
#9

Engine diagram

Hose

Part #791-683947B

Replaced by #791-683974B

?
Manufacturer substitution
This part replaces 791-683947B. Substitute parts can look different from the original.
$30.64 |
16% OFF Phone Price : $36.64
In Stock
Clamp Assembly 791-153597
#18

Boom and trimmer diagram

Clamp assembly

Part #791-153597

The manufacturer no longer makes this part, and there's no substitute part

Ignition Module 753-04336
#43

Engine diagram

Ignition module

Part #753-04336

The manufacturer no longer makes this part, and there's no substitute part

Fuel Line 753-04233
#18

Engine diagram

Fuel line

Part #753-04233

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Knob 791-181981
#14

Boom and trimmer diagram

Adjustment knob

Part #791-181981

The manufacturer no longer makes this part, and there's no substitute part

Screw 753-04315
#50

Engine diagram

Screw

Part #753-04315

The manufacturer no longer makes this part, and there's no substitute part

Nut 8pk 791-181886
#15

Boom and trimmer diagram

Nut 8pk

Part #791-181886

The manufacturer no longer makes this part, and there's no substitute part
