Thermador
Gas Range

Model # PRG366EPG/01 Official Thermador range

Here are the diagrams and repair parts for Official Thermador PRG366EPG-01 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Igniter 492431
#604

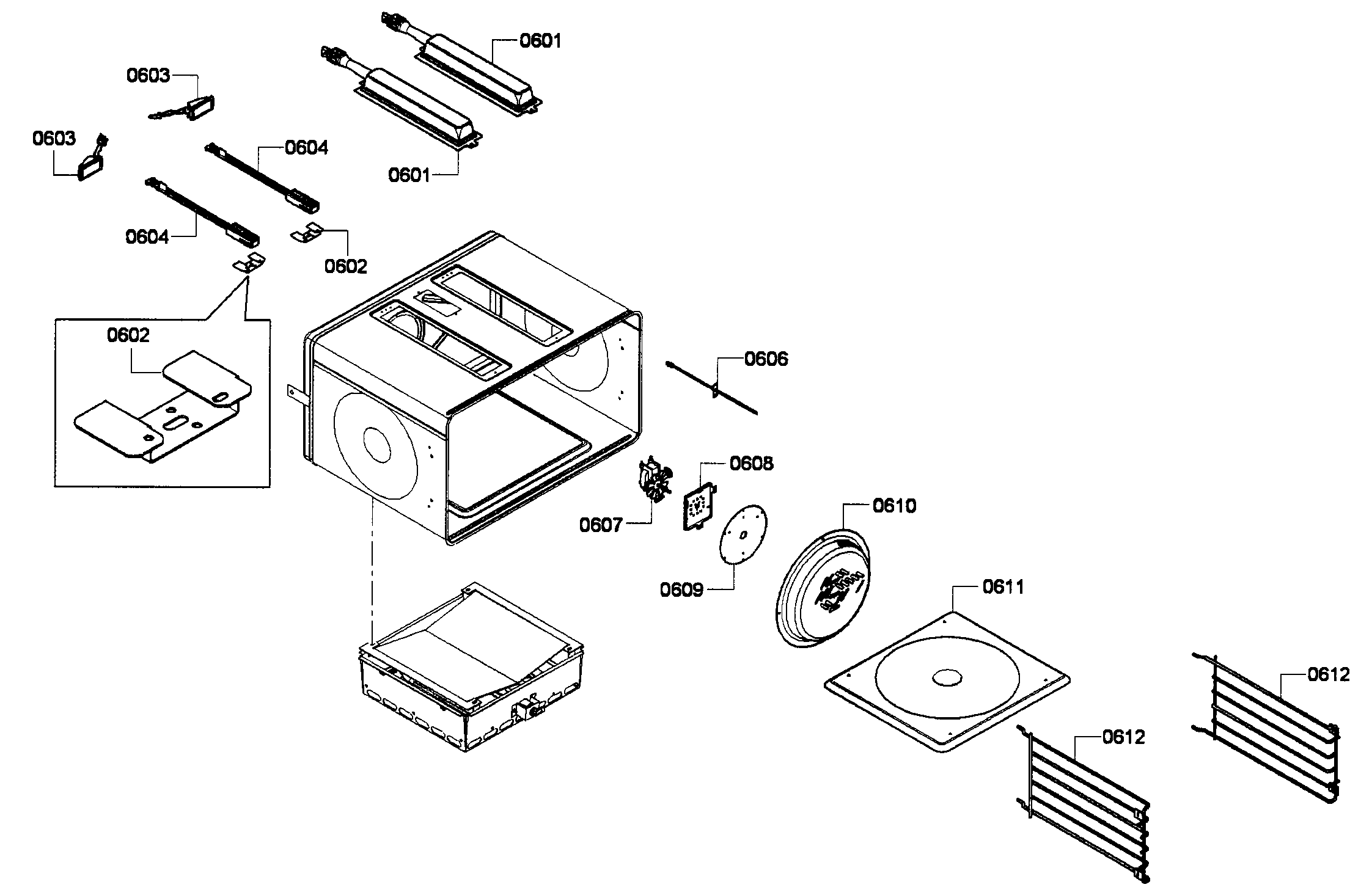

Oven assy diagram

Igniter

Part #492431

Replaced by #00492431

?
Manufacturer substitution
This part replaces 492431. Substitute parts can look different from the original.
$120.69 |
9% OFF Phone Price : $132.69
In Stock
Nut 188978
#308

Burner assy diagram

Nut

Part #188978

Replaced by #00188978

?
Manufacturer substitution
This part replaces 188978. Substitute parts can look different from the original.
$20.59 |
23% OFF Phone Price : $26.59
In Stock
Tube 498909
#420

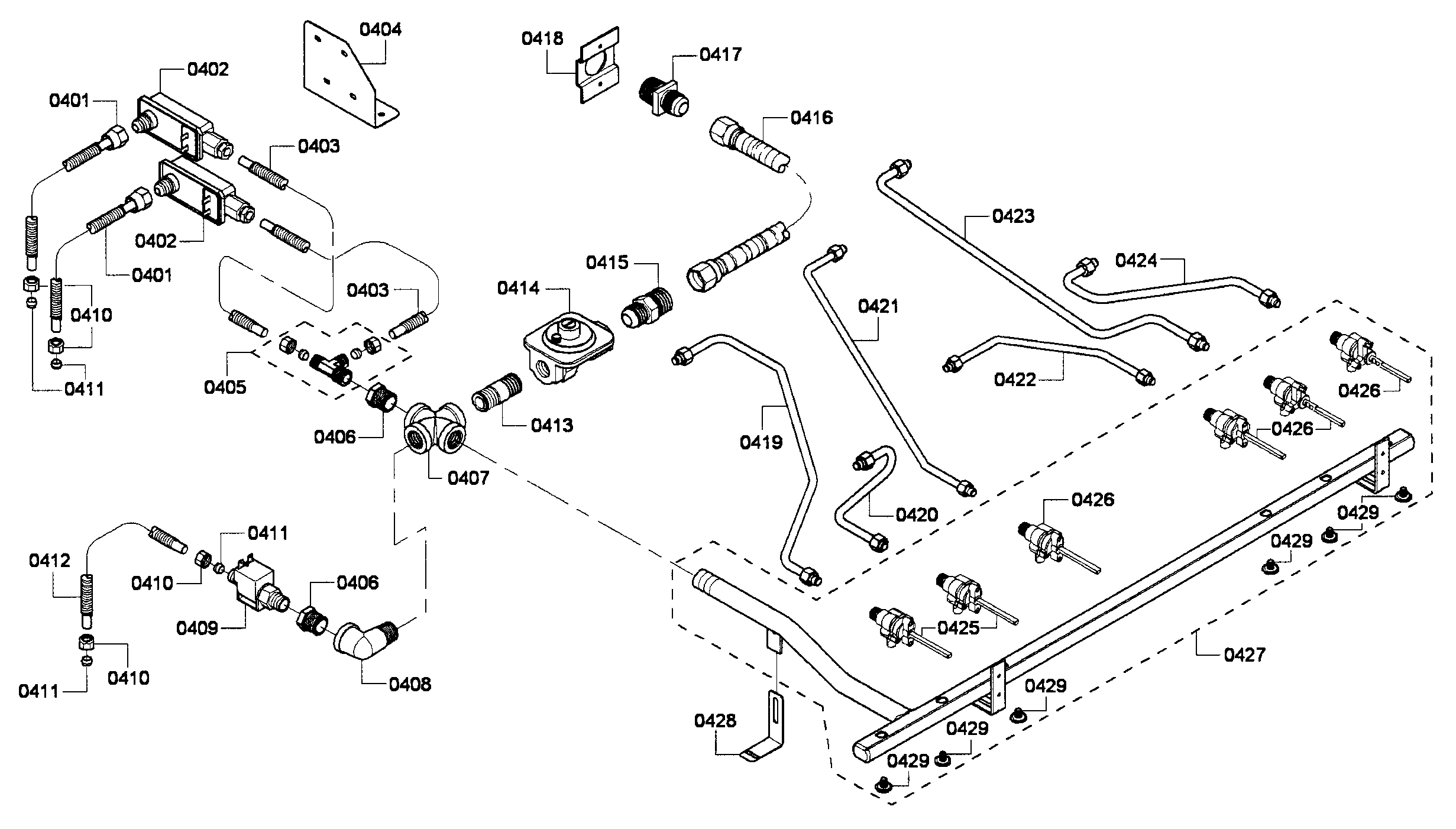

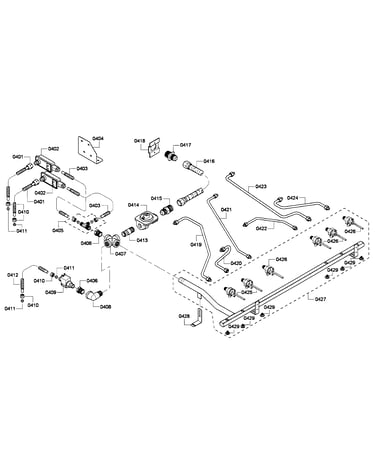

Gas supplay diagram

Tube

Part #498909

Replaced by #00498909

?
Manufacturer substitution
This part replaces 498909. Substitute parts can look different from the original.
$40.62
In Stock
Potentiometer 611346
#205

Control panel diagram

Potentiometer

Part #611346

Replaced by #00629722

?
Manufacturer substitution
This part replaces 611346. Substitute parts can look different from the original.
$50.89 |
11% OFF Phone Price : $56.89
In Stock
Shelf 684435
#1003

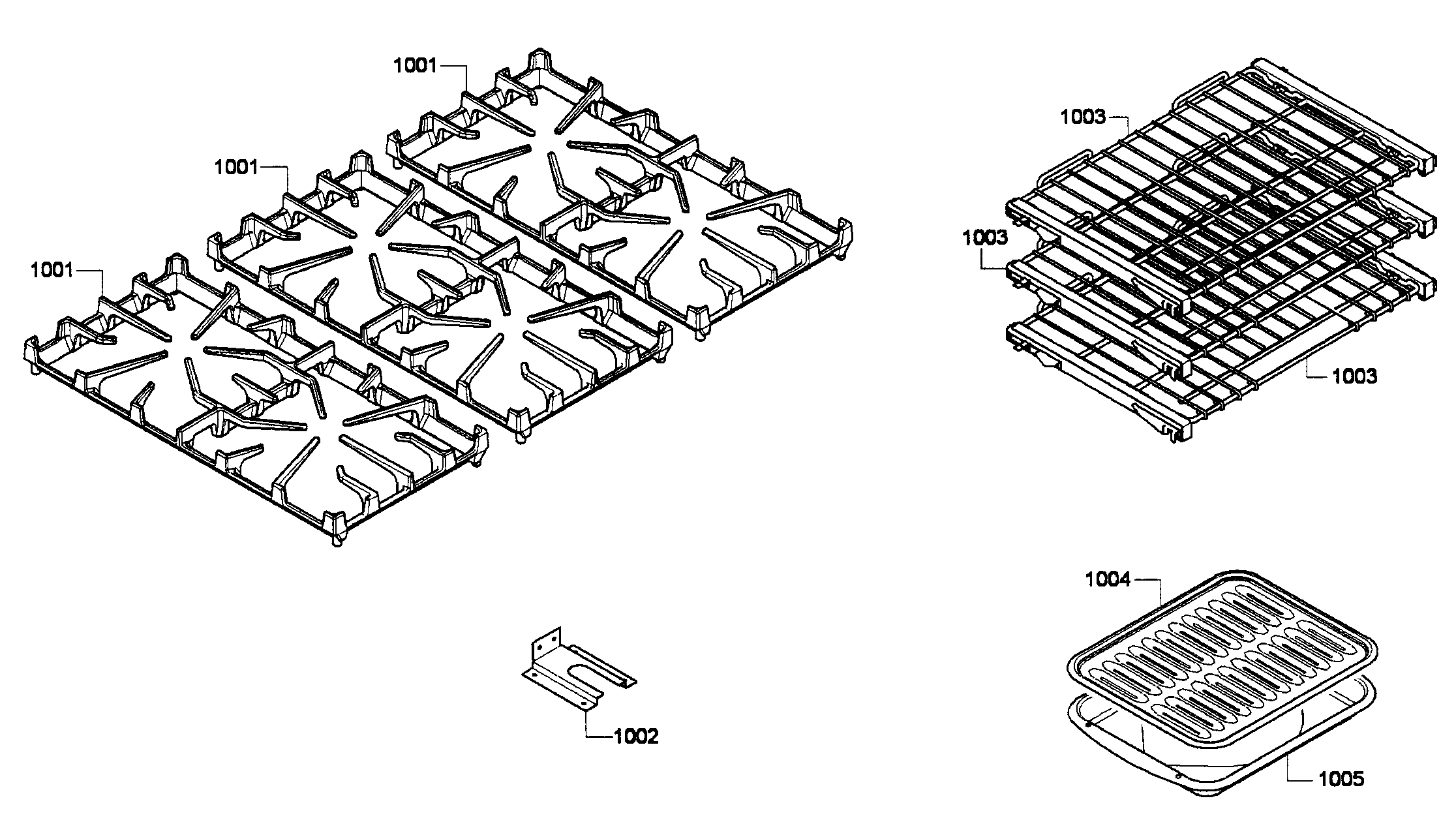

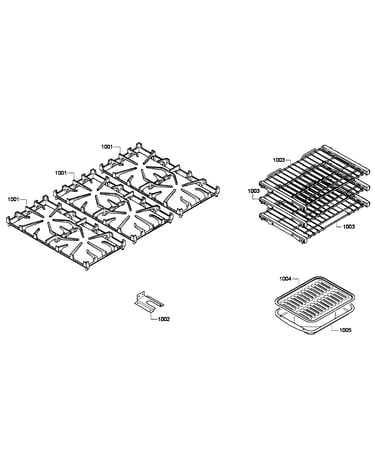

Racks/shelfs diagram

Shelf

Part #684435

Replaced by #00774617

?
Manufacturer substitution
This part replaces 684435. Substitute parts can look different from the original.
$239.15 |
5% OFF Phone Price : $251.15
In Stock
Igniter Plug 603777
#303

Burner assy diagram

Igniter plug

Part #603777

Replaced by #00603777

?
Manufacturer substitution
This part replaces 603777. Substitute parts can look different from the original.
$27.36
In Stock
Connector 415033
#708

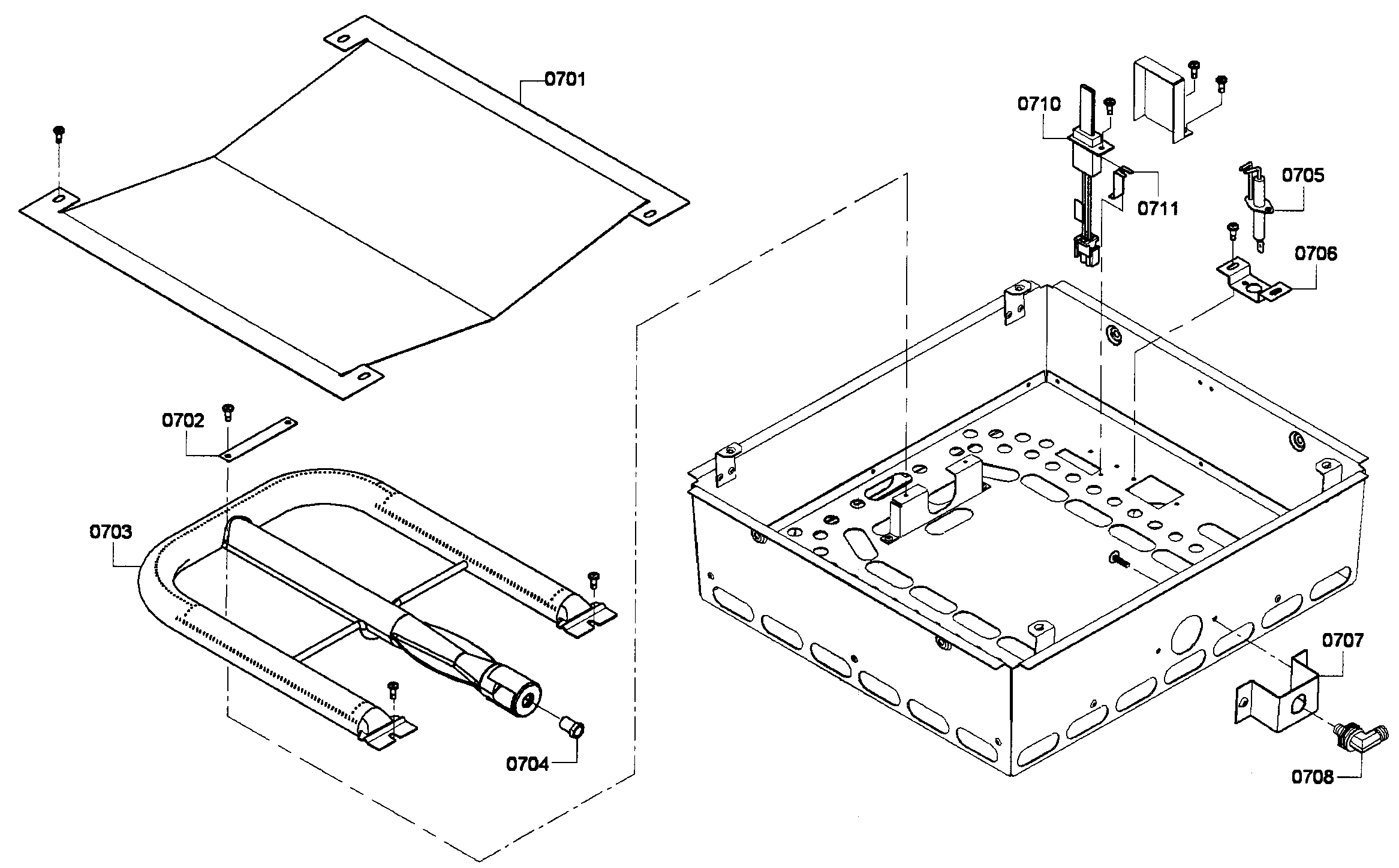

Oven burner diagram

Connector

Part #415033

Replaced by #00415033

?
Manufacturer substitution
This part replaces 415033. Substitute parts can look different from the original.
$67.47
In Stock
Range Grille Grid 143673
#1004

Racks/shelfs diagram

Range grille grid

Part #143673

Replaced by #00449756

?
Manufacturer substitution
This part replaces 143673. Substitute parts can look different from the original.
$57.89
In Stock
Control Unit 617668
#506

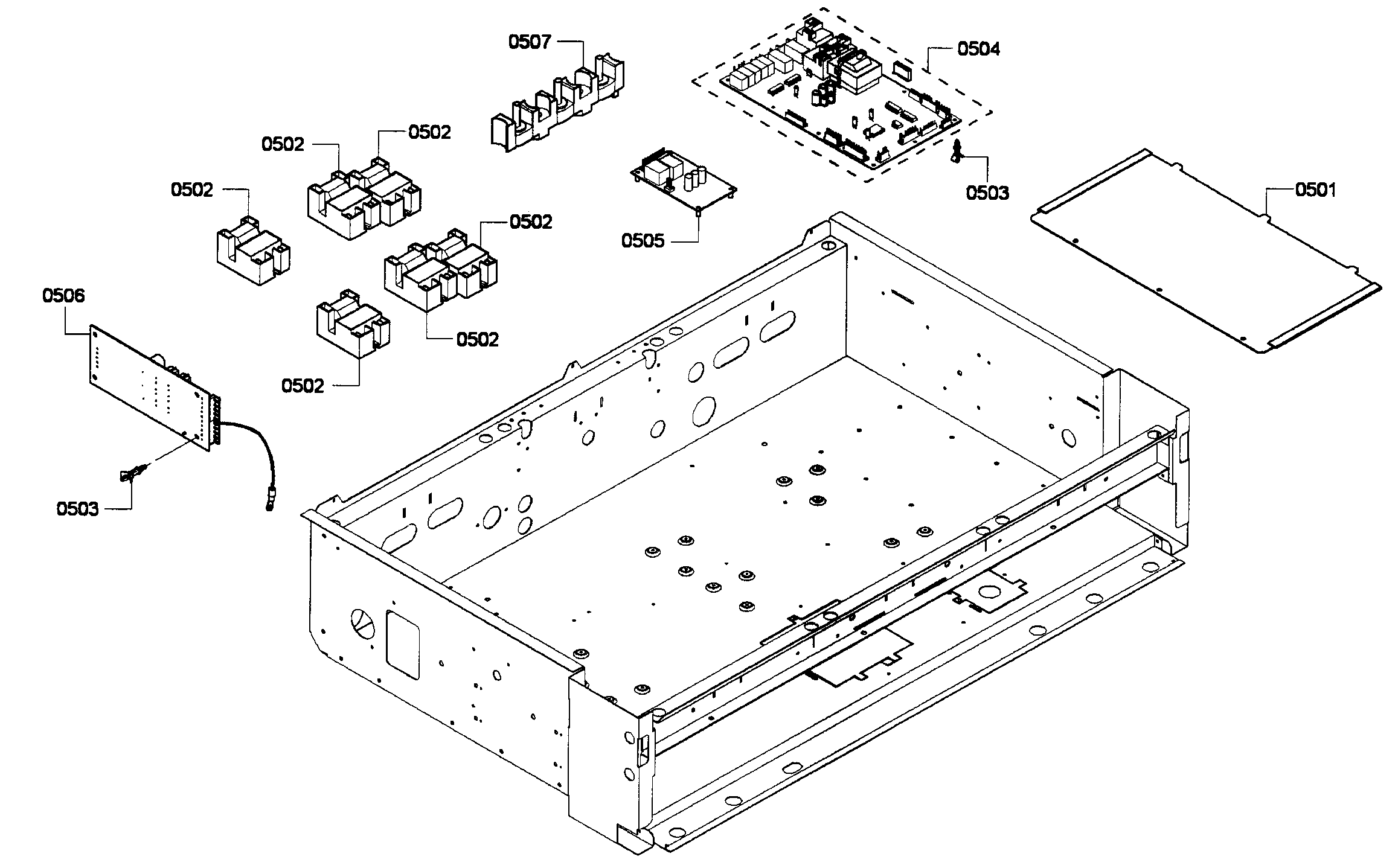

Pcb's assy diagram

Control unit

Part #617668

Replaced by #00619016

?
Manufacturer substitution
This part replaces 617668. Substitute parts can look different from the original.
$192.89 |
6% OFF Phone Price : $204.89
In Stock
Cable Harness 646672
#NI

Pcb's assy diagram

Cable harness

Part #646672

Replaced by #00646672

?
Manufacturer substitution
This part replaces 646672. Substitute parts can look different from the original.
$109.40
In Stock
