Kenmore
Top-Mount Refrigerator

Model # 10673236300 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 10673236300 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

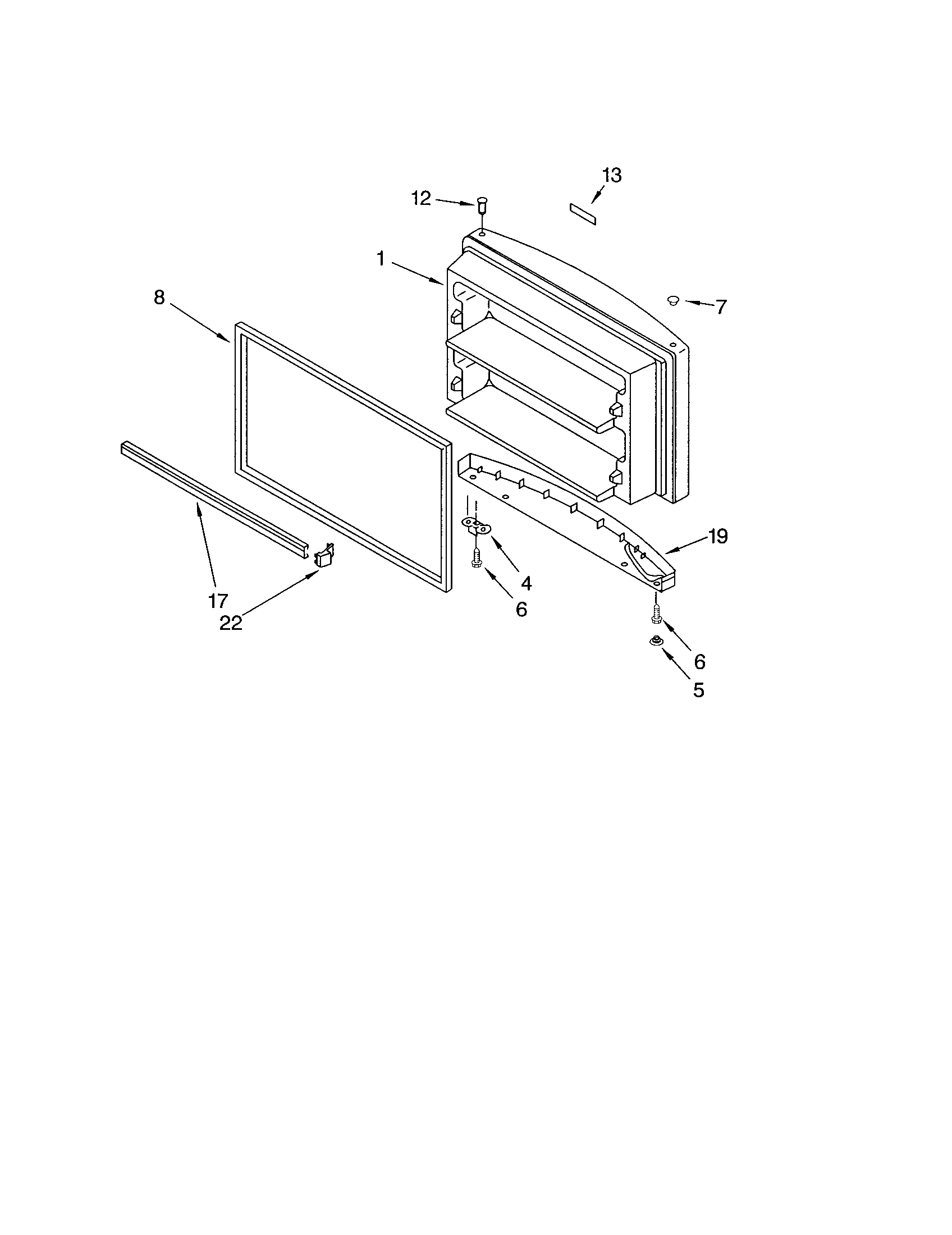

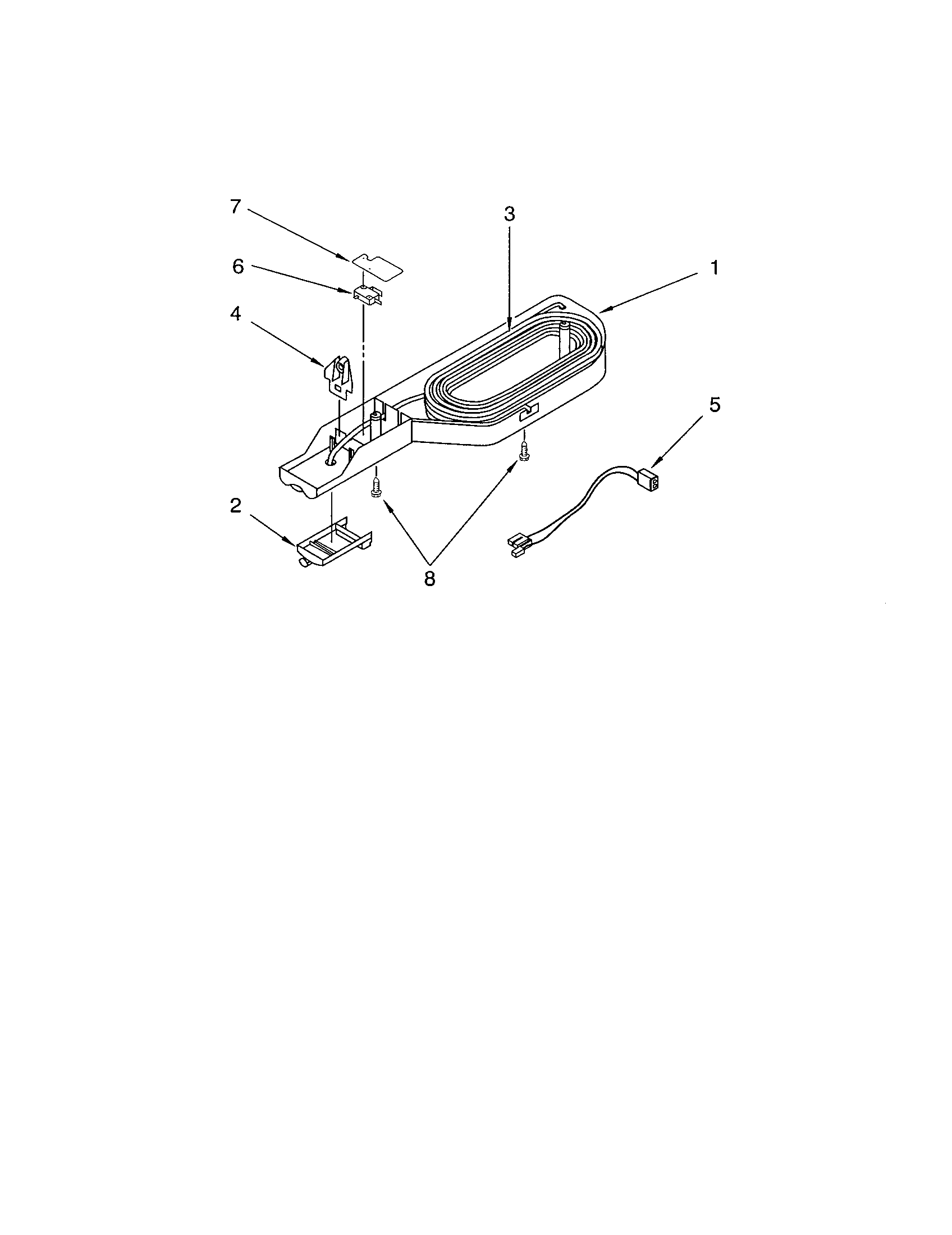

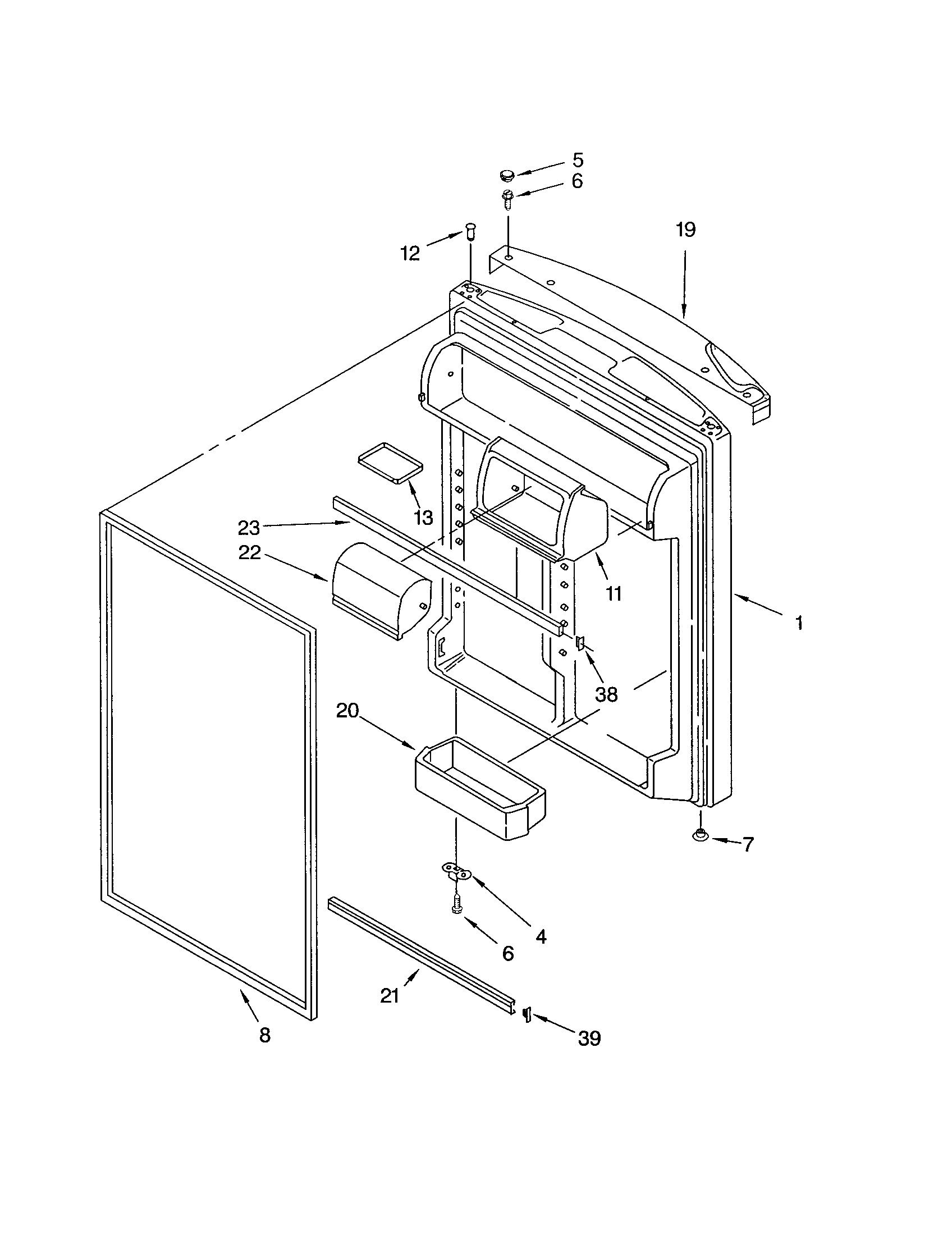

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 277 parts  |
Genuine Kenmore Refrigerator Water Filter 9915
#11

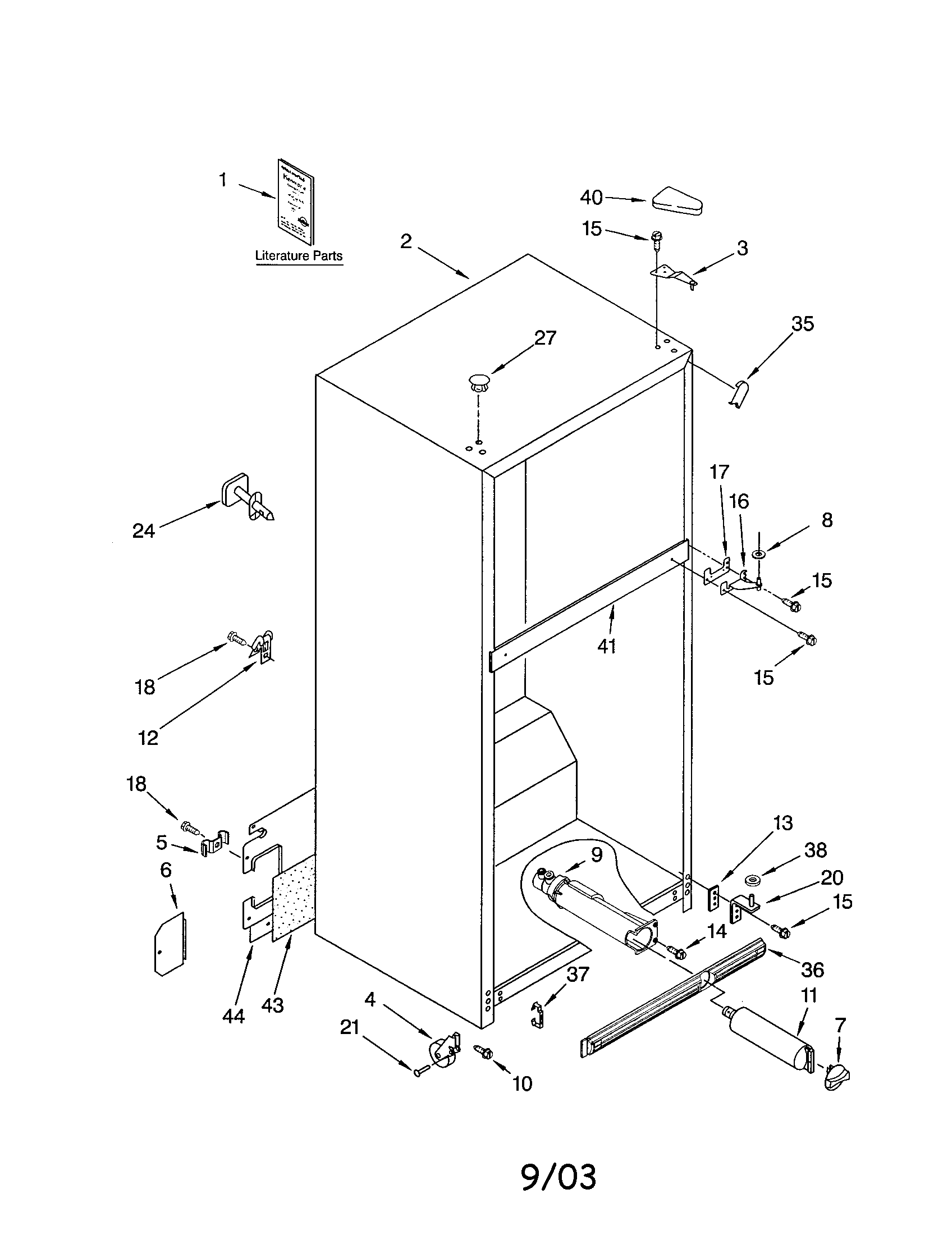

Cabinet diagram

Genuine kenmore refrigerator water filter

Part #9915

Replaced by #EDR6D1

?
Manufacturer substitution
This part replaces 9915. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$49.99
In Stock
Ice Maker Assembly - Refrigerator Ice Maker By Whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, M626687, W10122496, W10190952, W10281545, W10632400) 4317943
#99

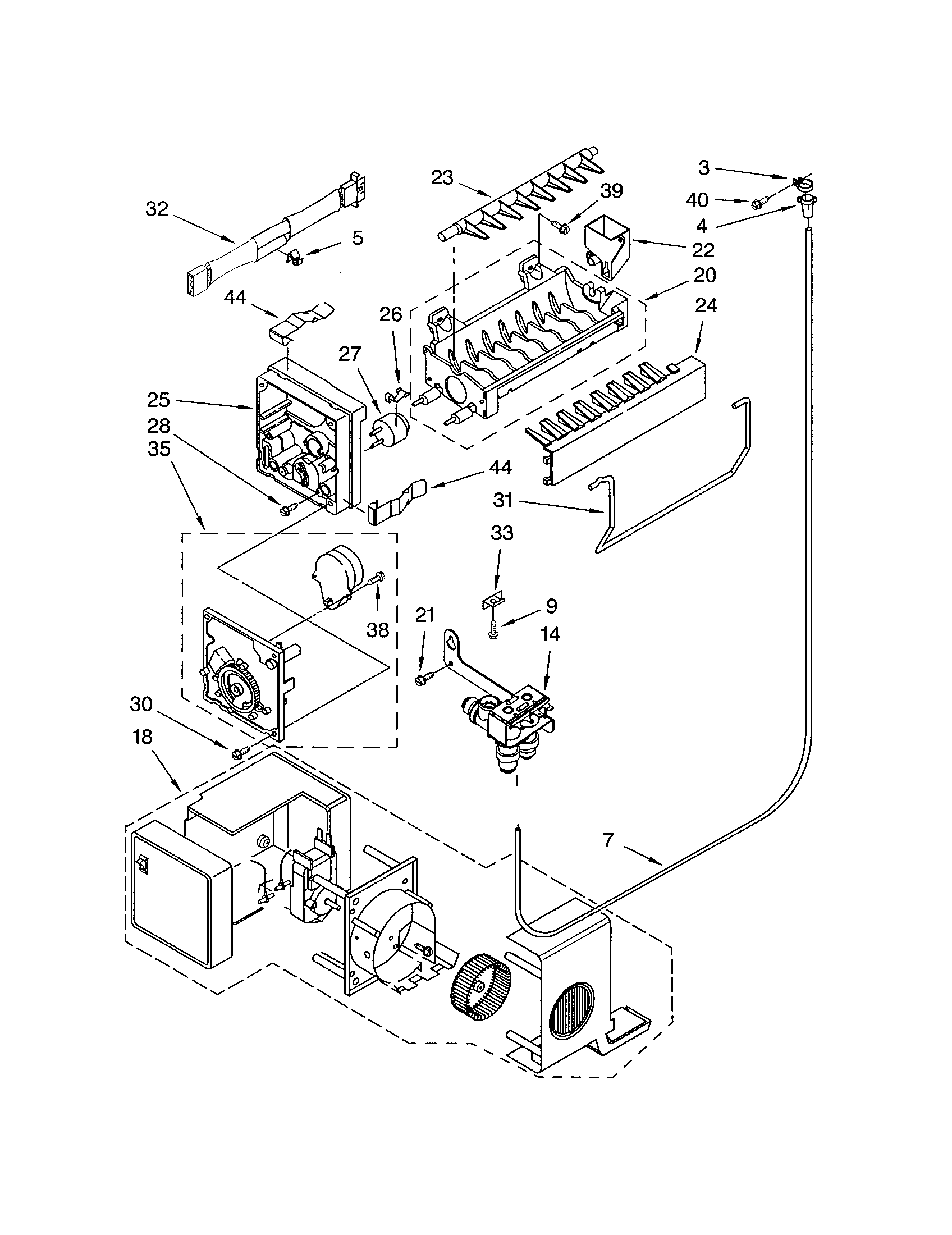

Icemaker diagram

Ice maker assembly - refrigerator ice maker by whirlpool (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943

BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Refrigerator Light Bulb 2255743
#17

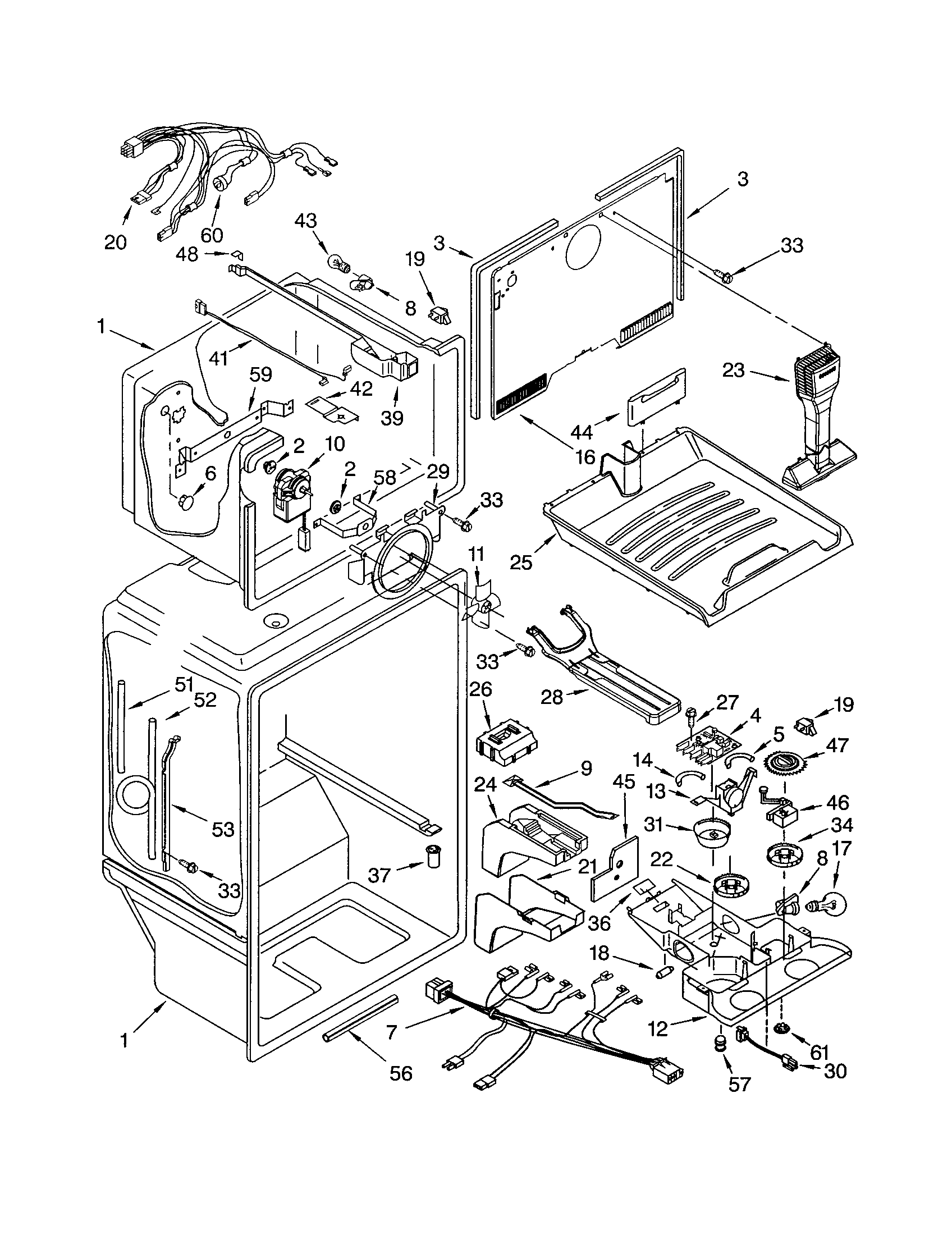

Liner diagram

Refrigerator light bulb

Part #2255743

Replaced by #40A15

?
Manufacturer substitution
This part replaces 2255743. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Light Switch 1118894
#19

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drier-tue 2199167
#29

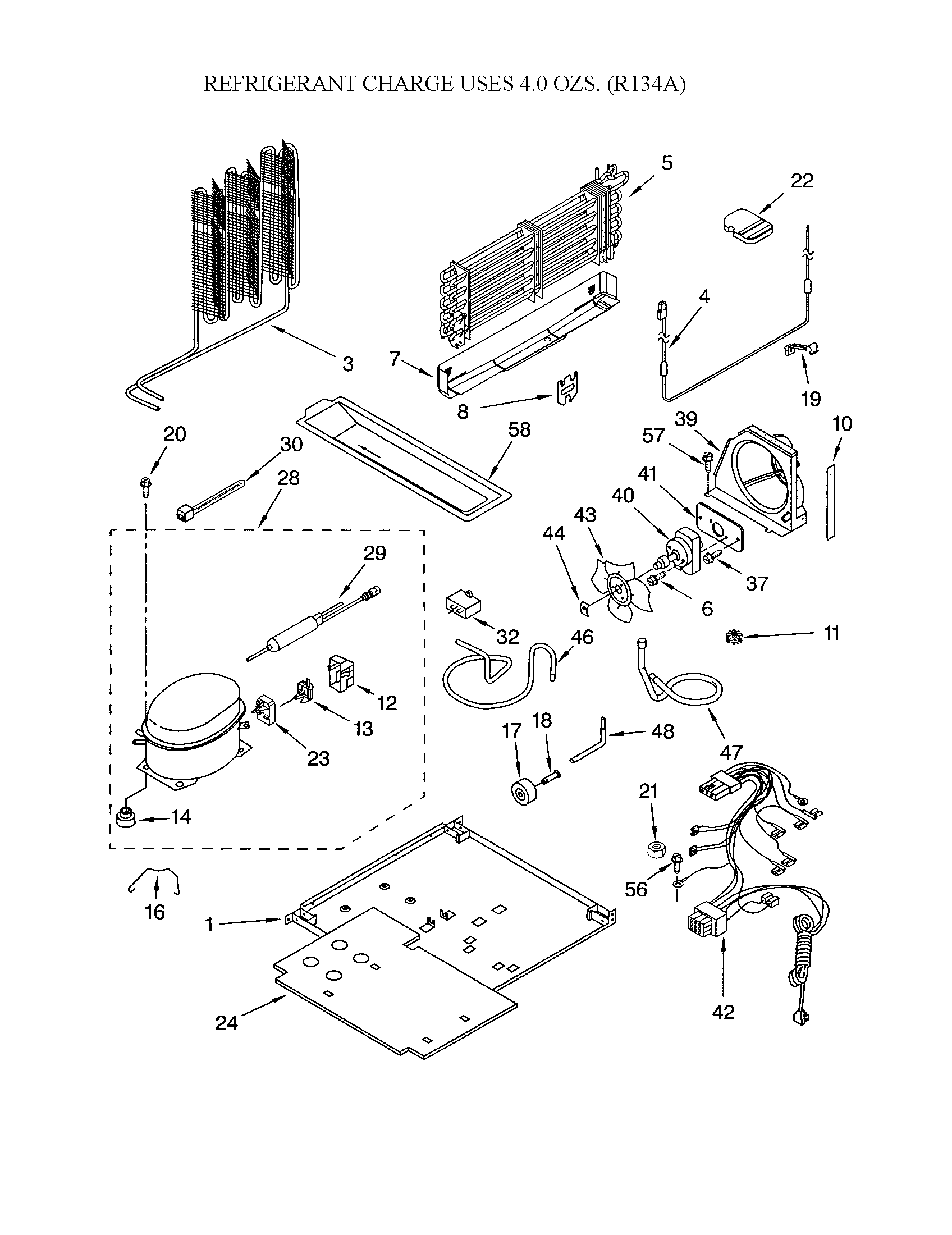

Unit diagram

Drier-tue

Part #2199167

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2199167. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Dryer Tube 4387019
#29A

Unit diagram

Refrigerator dryer tube

Part #4387019

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4387019. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Water Tube 2210514
#7

Icemaker diagram

Refrigerator water tube

Part #2210514

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 2210514. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Filter Tube 2188744
#52

Liner diagram

Filter tube

Part #2188744

Replaced by #8201597

?
Manufacturer substitution
This part replaces 2188744. Substitute parts can look different from the original.
BEST SELLER
$36.48 |
14% OFF Phone Price : $42.48
In Stock
Refrigerator Compressor 2221795
#28

Unit diagram

Refrigerator compressor

Part #2221795

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 2221795. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock
Refrigerator Crisper Pan 2218142
#19

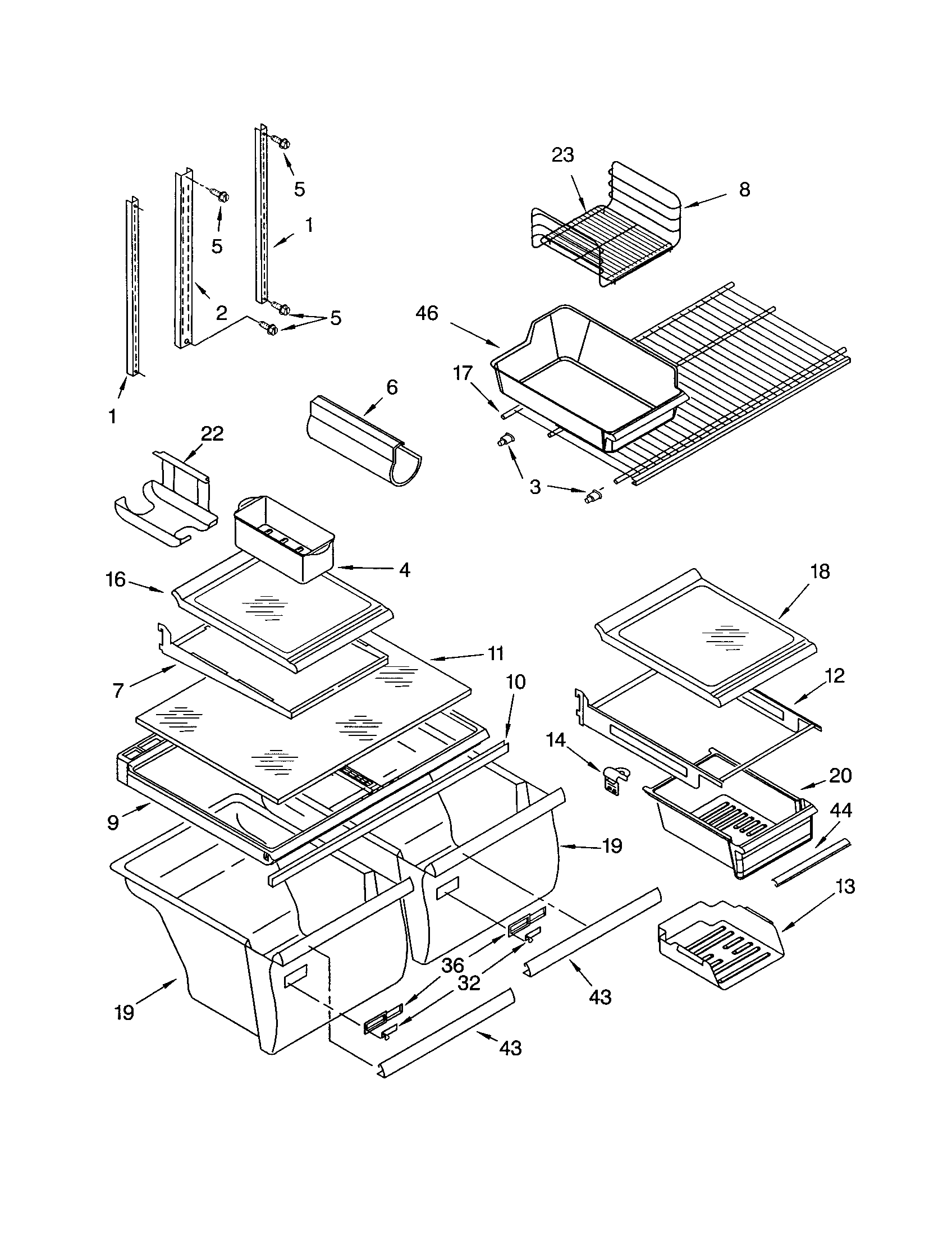

Shelf diagram

Refrigerator crisper pan

Part #2218142

Replaced by #W10854037

?
Manufacturer substitution
This part replaces 2218142. Substitute parts can look different from the original.
BEST SELLER
$79.65 |
7% OFF Phone Price : $85.65
In Stock
