Model # 7222E Official Mantis tiller/cultivator

Here are the diagrams and repair parts for Official Mantis 7222E tiller/cultivator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 179 parts  |
80/118 Washe 90060000005
80/118 washe

Part #90060000005

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Muffler (included In Kit 88900045131) (2) 14551042031
#21

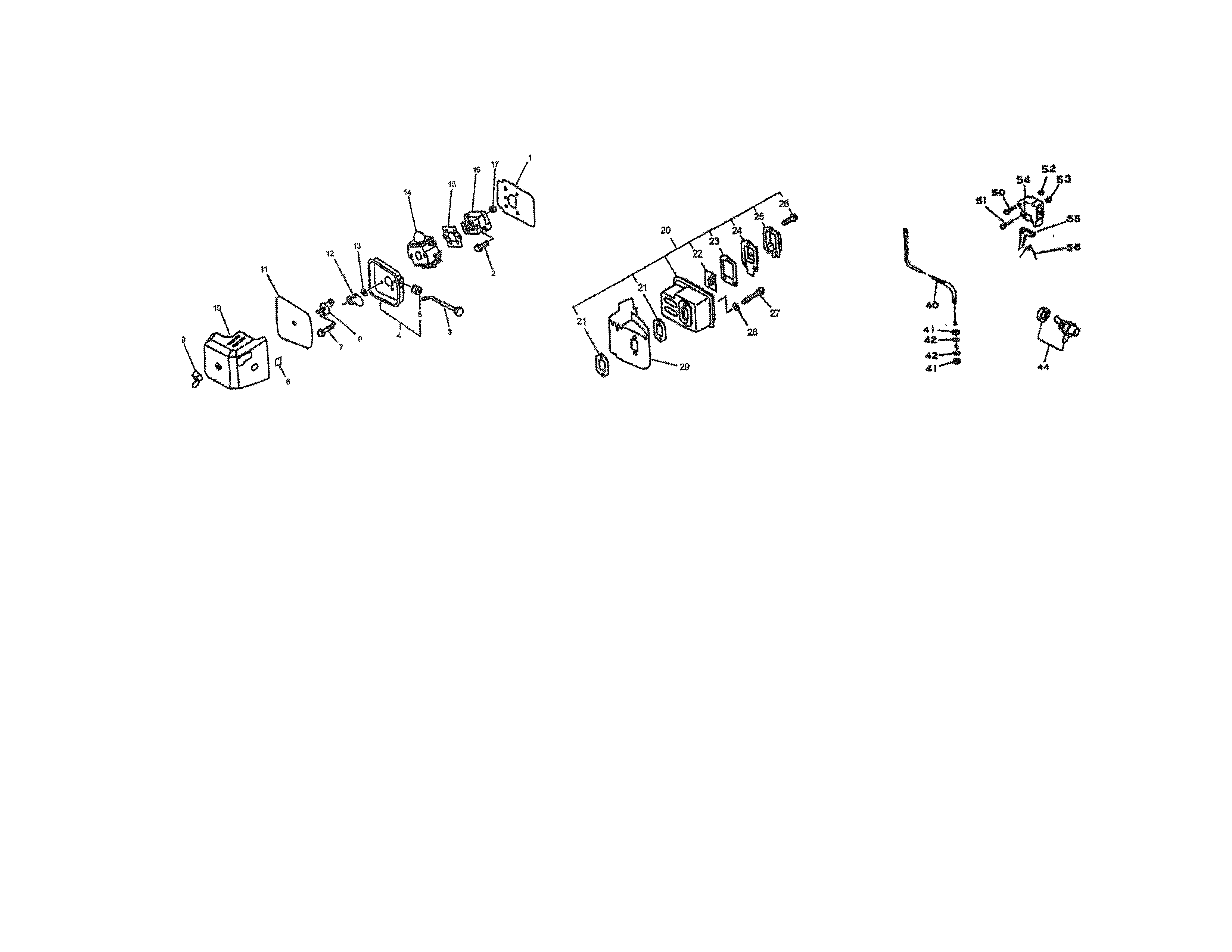

Engine - air cleaner/muffler/throttle diagram

Gasket, muffler (included in kit 88900045131) (2)

Part #14551042031

The manufacturer no longer makes this part, and there's no substitute part

Screw 12531413930
#15

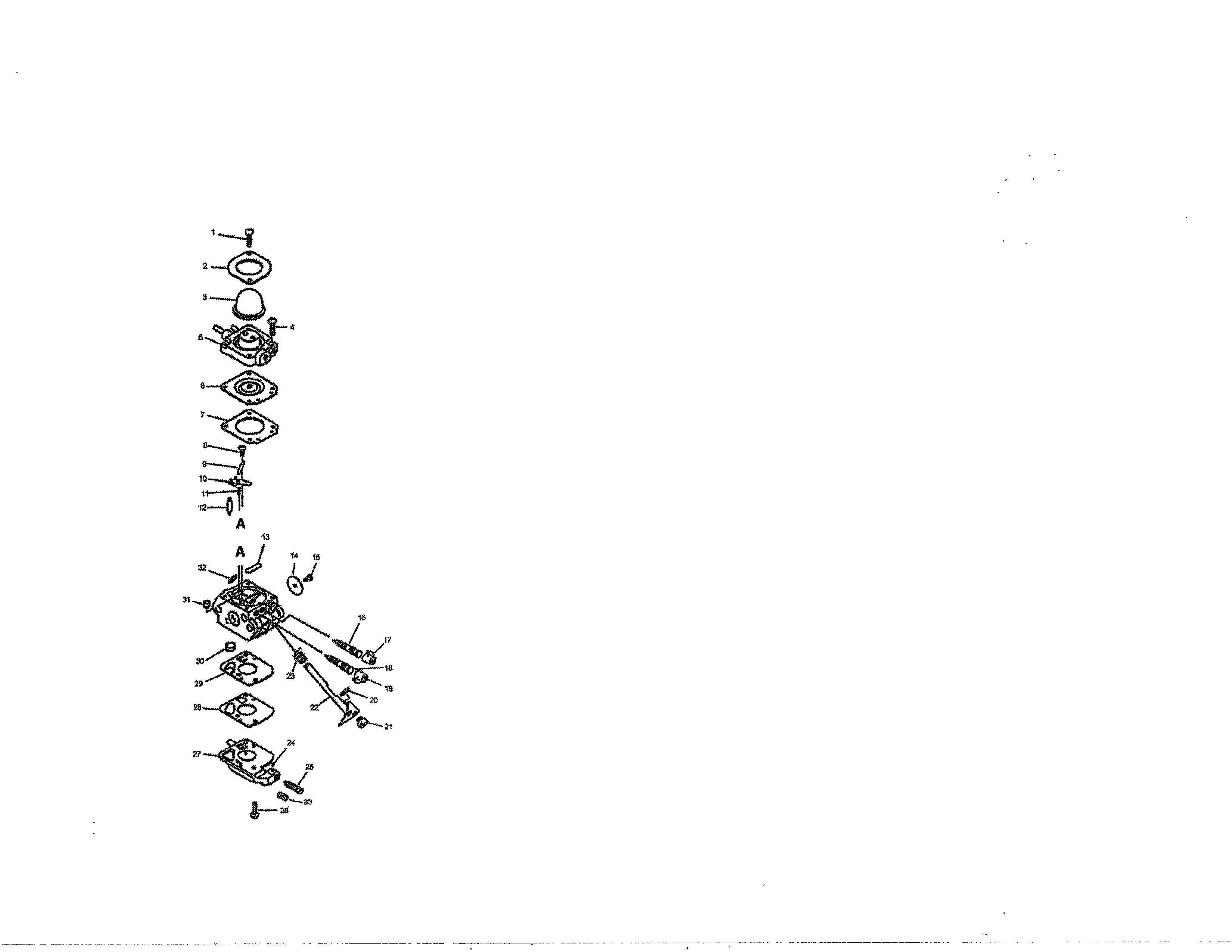

Engine - carburetor diagram

Screw

Part #12531413930

The manufacturer no longer makes this part, and there's no substitute part

Air Cleaner 13041005360
#6

Engine - air cleaner/muffler/throttle diagram

Air cleaner

Part #13041005360

The manufacturer no longer makes this part, and there's no substitute part

Rewind Spring 17722042030
#2

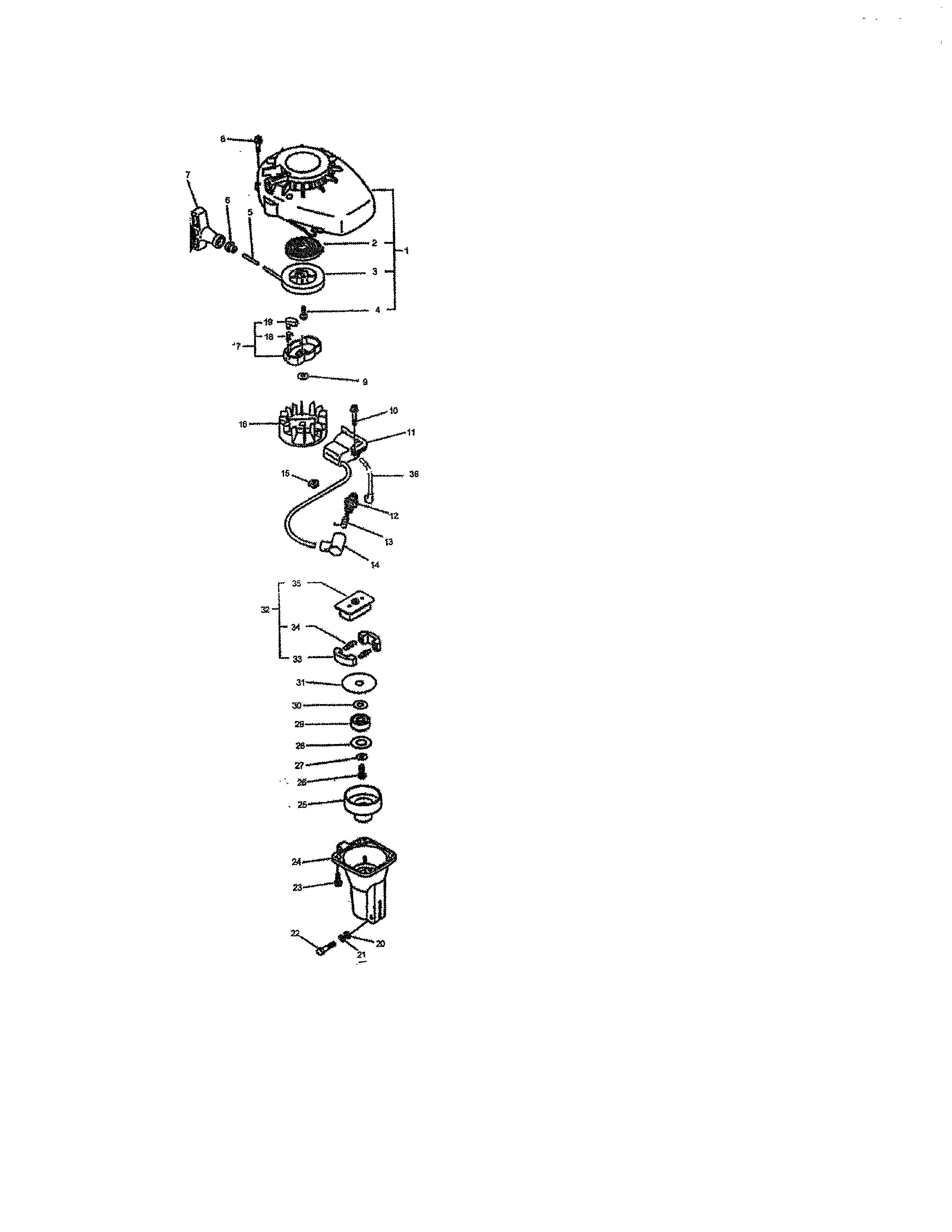

Engine-starter/pawl catcher/clutch diagram

Rewind spring

Part #17722042030

The manufacturer no longer makes this part, and there's no substitute part

Grommet 15611004920
#15

Engine-starter/pawl catcher/clutch diagram

Grommet

Part #15611004920

The manufacturer no longer makes this part, and there's no substitute part

Starter Grip 17728811120
#7

Engine-starter/pawl catcher/clutch diagram

Starter grip

Part #17728811120

The manufacturer no longer makes this part, and there's no substitute part

Housing Cover 437A
#32

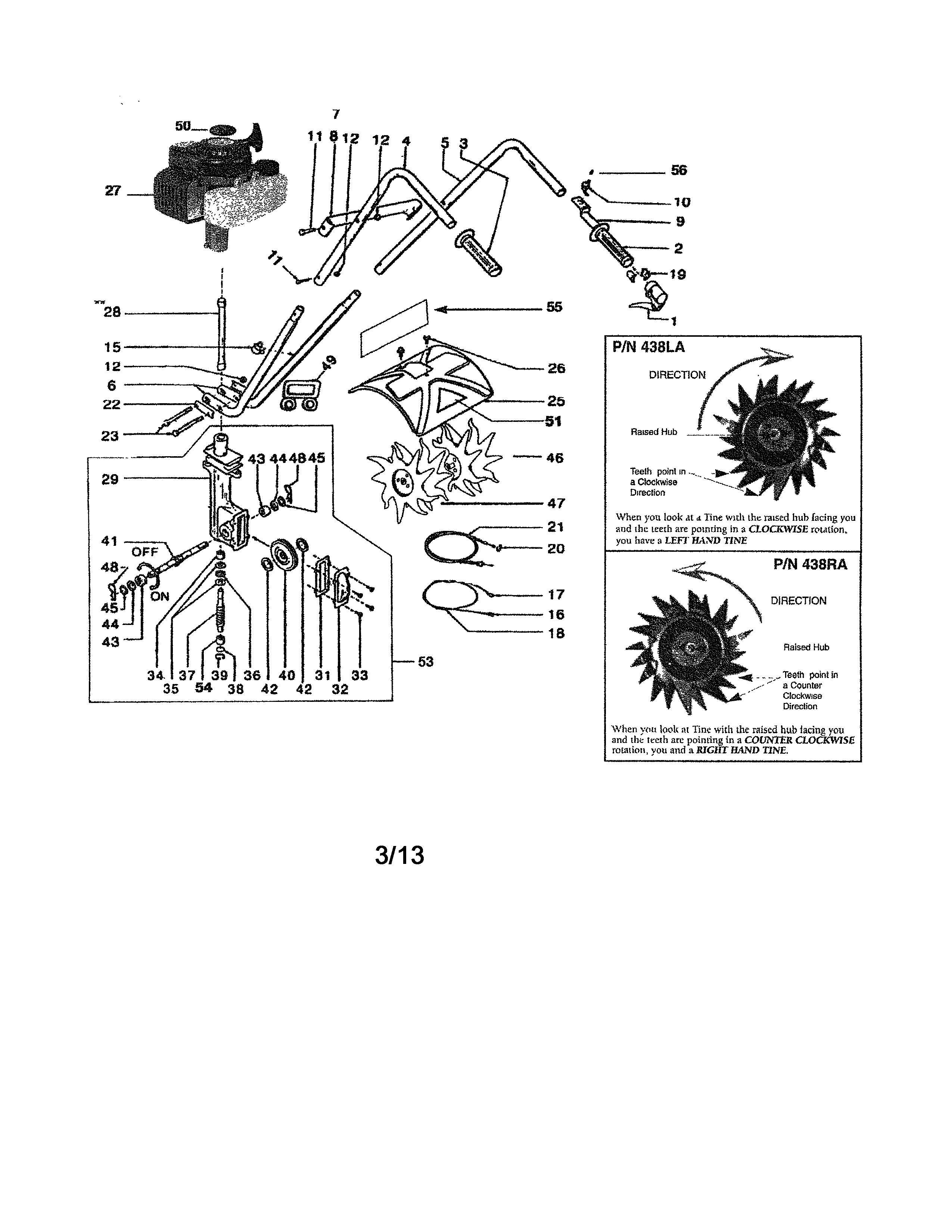

Mantis tiller diagram

Housing cover

Part #437A

The manufacturer no longer makes this part, and there's no substitute part

Fuel Strainer 13120507320
#28

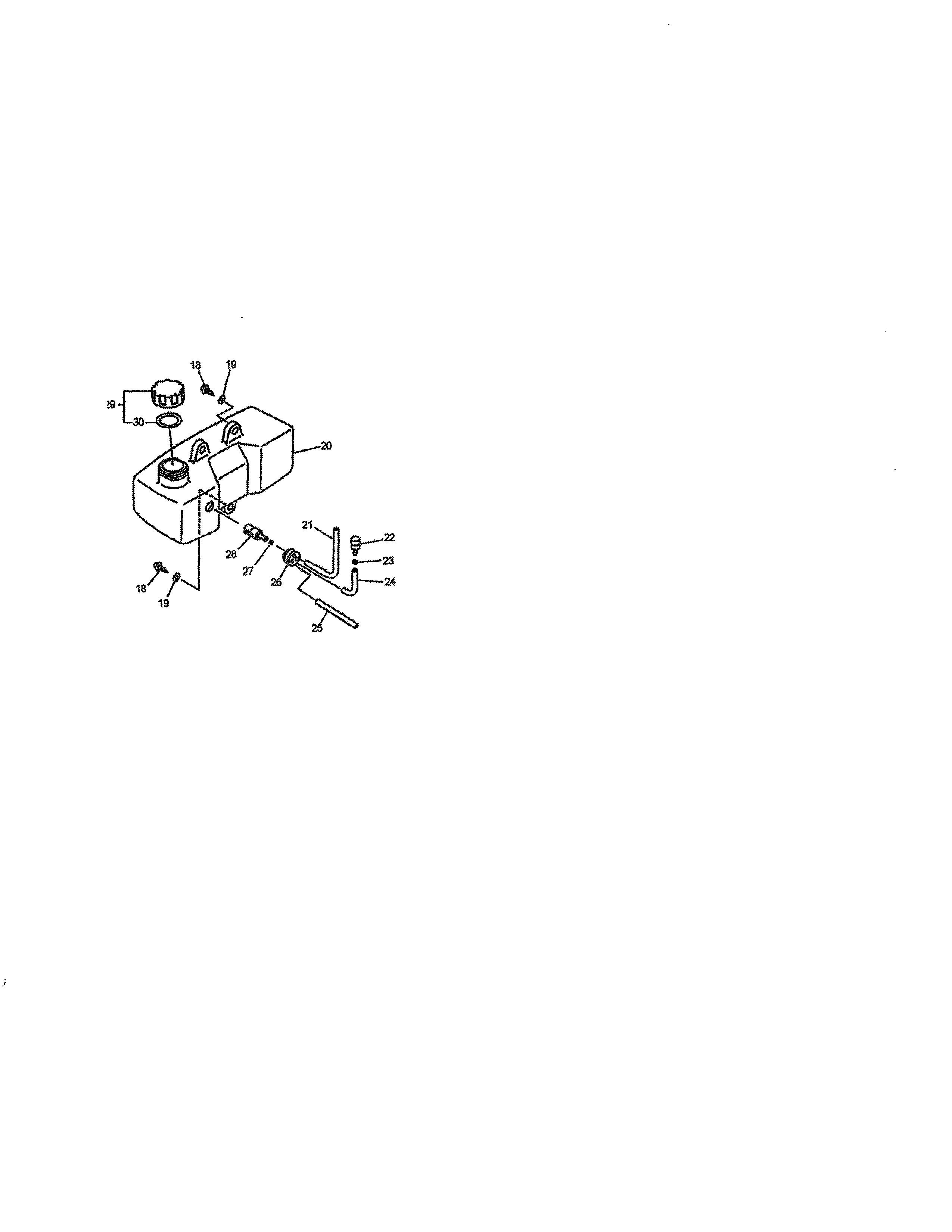

Engine - fuel tank diagram

Fuel strainer

Part #13120507320

The manufacturer no longer makes this part, and there's no substitute part

Bolt 90016205028
#6

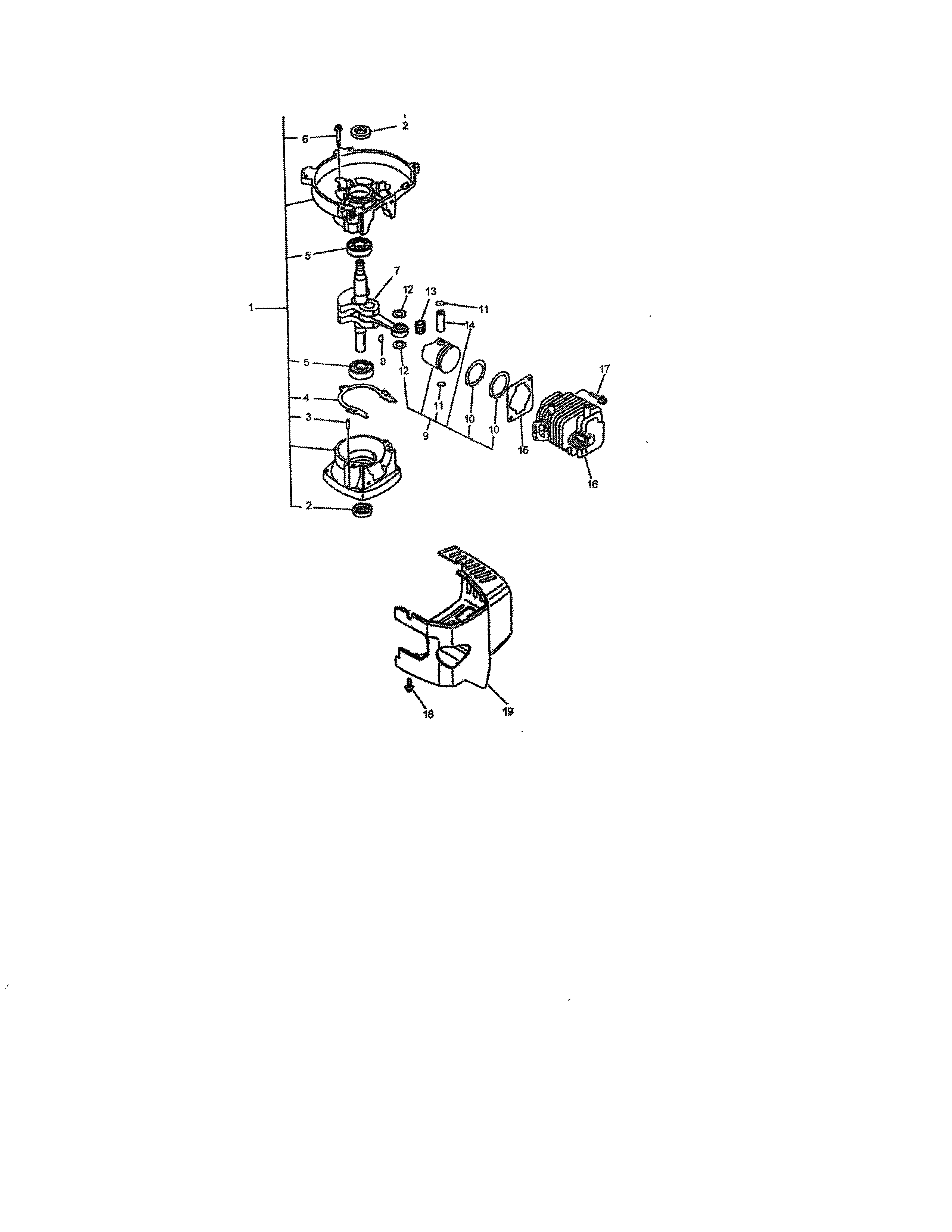

Engine - block diagram

Bolt

Part #90016205028

The manufacturer no longer makes this part, and there's no substitute part
