Electric Cooktop

Model # AKH35HR-P1119904S Official Amana electric cooktop

Here are the diagrams and repair parts for Official Amana AKH35HR-P1119904S electric cooktop, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forAKH35HR-P1119904S Cooktops

  • Quick Star D8598805
    #5

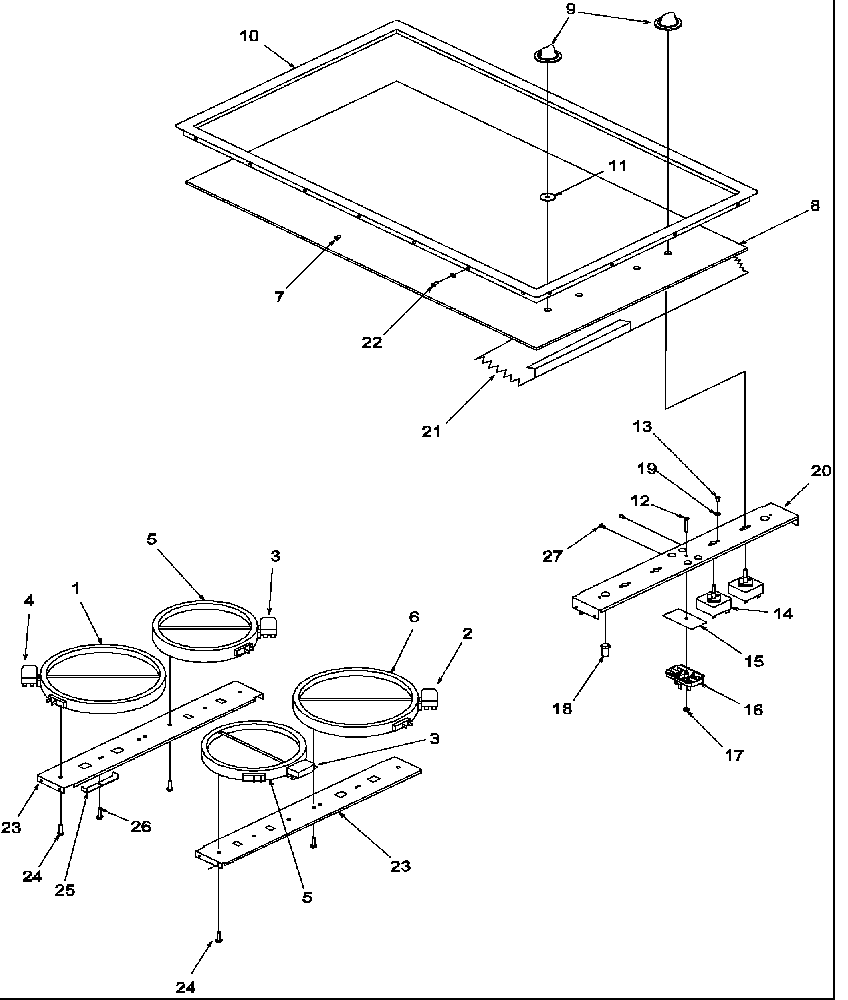

    Cooktop assembly diagram

    Quick star

    Part #D8598805

    The manufacturer no longer makes this part, and there's no substitute part

  • Nut M0282005
    #2

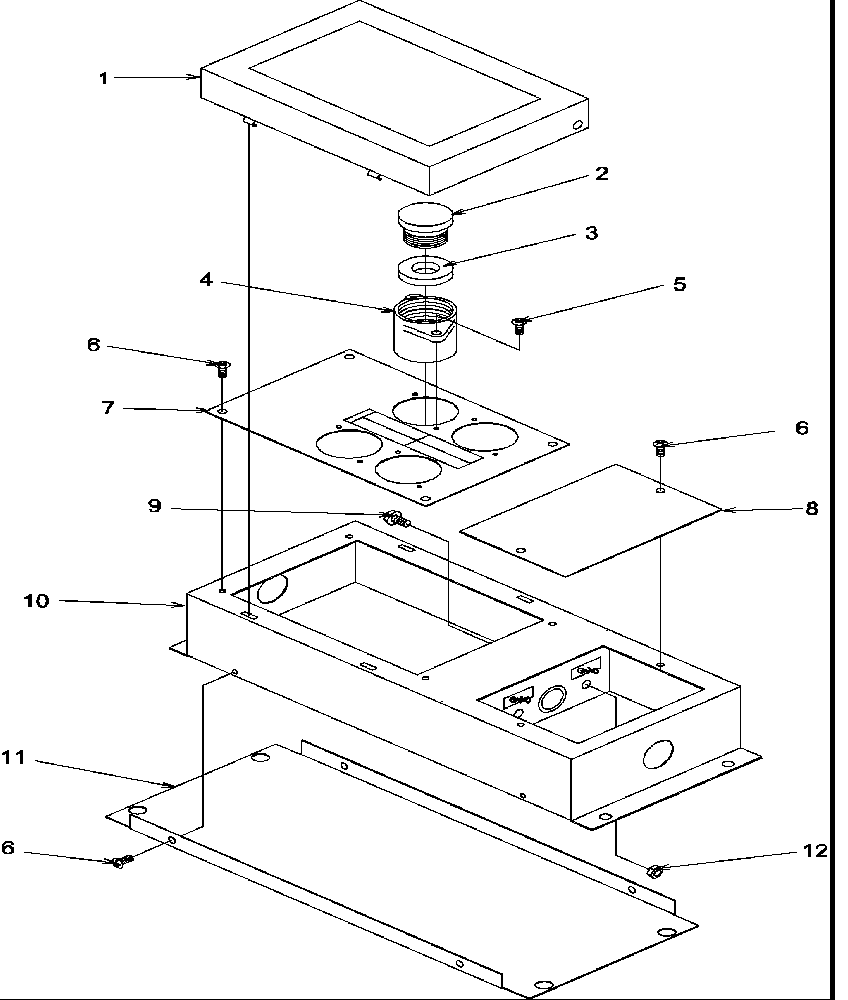

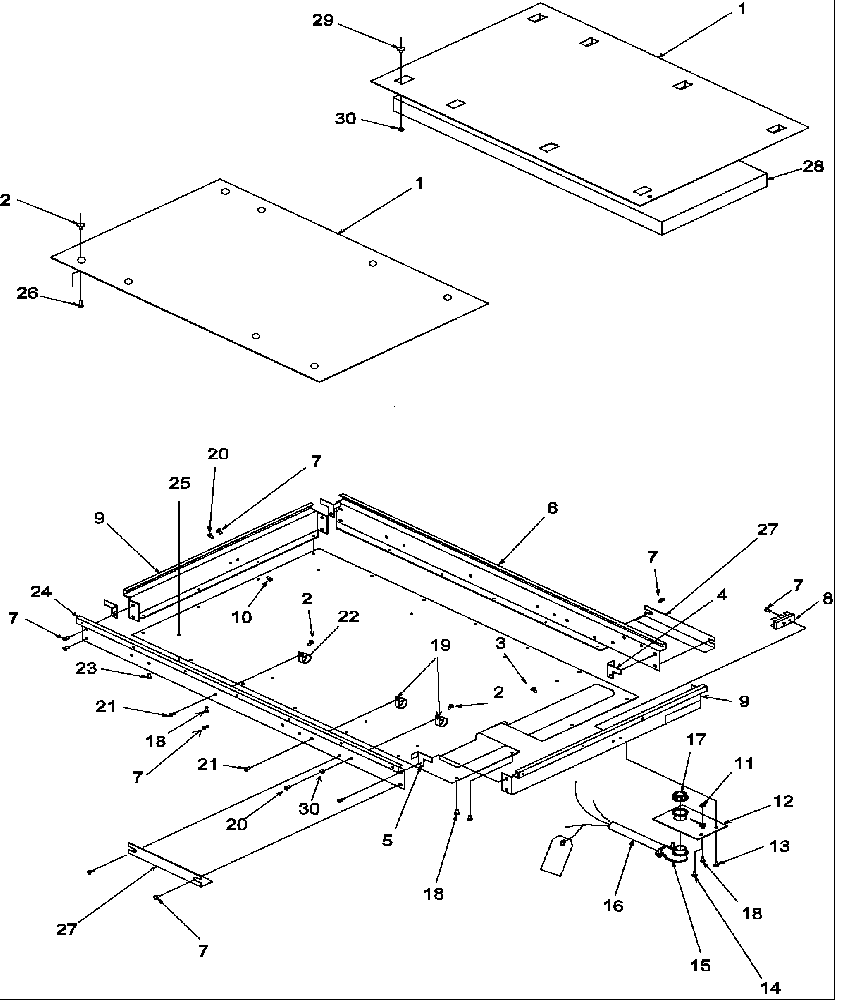

    Heater box assembly diagram

    Nut

    Part #M0282005

    This item is not returnable
    In Stock
  • Control Knob D8598001
    #9

    Cooktop assembly diagram

    Control knob

    Part #D8598001

    The manufacturer no longer makes this part, and there's no substitute part

  • Control Knob 10262301
    #9

    Cooktop assembly diagram

    Control knob

    Part #10262301

    Replaced by #WPD8598001

    ?
    Manufacturer substitution
    This part replaces 10262301. Substitute parts can look different from the original.
    $35.80
    14% OFF Phone Price : $41.80
    In Stock
  • Surface Control 10027901
    #14

    Cooktop assembly diagram

    Surface control

    Part #10027901

    Replaced by #W11122012

    ?
    Manufacturer substitution
    This part replaces 10027901. Substitute parts can look different from the original.
    $105.71
    10% OFF Phone Price : $117.71
    In Stock
  • Limiter D8587602
    #2

    Cooktop assembly diagram

    Limiter

    Part #D8587602

    Replaced by #W10823710

    ?
    Manufacturer substitution
    This part replaces D8587602. Substitute parts can look different from the original.
    $151.00
    7% OFF Phone Price : $163.00
    In Stock
  • Screw M0216703
    #18

    Heater box assembly diagram

    Screw

    Part #M0216703

    Replaced by #WP3388228

    ?
    Manufacturer substitution
    This part replaces M0216703. Substitute parts can look different from the original.
    This item is not returnable
    $4.33
    19% OFF Phone Price : $5.33
    In Stock
  • Screw M0234422
    #20

    Heater box assembly diagram

    Screw

    Part #M0234422

    Replaced by #WP488234

    ?
    Manufacturer substitution
    This part replaces M0234422. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
  • Screw M0234029
    #7

    Heater box assembly diagram

    Screw

    Part #M0234029

    Replaced by #WPW10068250

    ?
    Manufacturer substitution
    This part replaces M0234029. Substitute parts can look different from the original.
    This item is not returnable
    $5.19
    16% OFF Phone Price : $6.19
    In Stock
  • Burner D8598806
    #6

    Cooktop assembly diagram

    Burner

    Part #D8598806

    Replaced by #W10823710

    ?
    Manufacturer substitution
    This part replaces D8598806. Substitute parts can look different from the original.
    $151.00
    7% OFF Phone Price : $163.00
    In Stock
