GE
Washer

Model # WSSH300G3WW Official GE washer

Here are the diagrams and repair parts for Official GE WSSH300G3WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Inlet Hose WH41X10099
#201

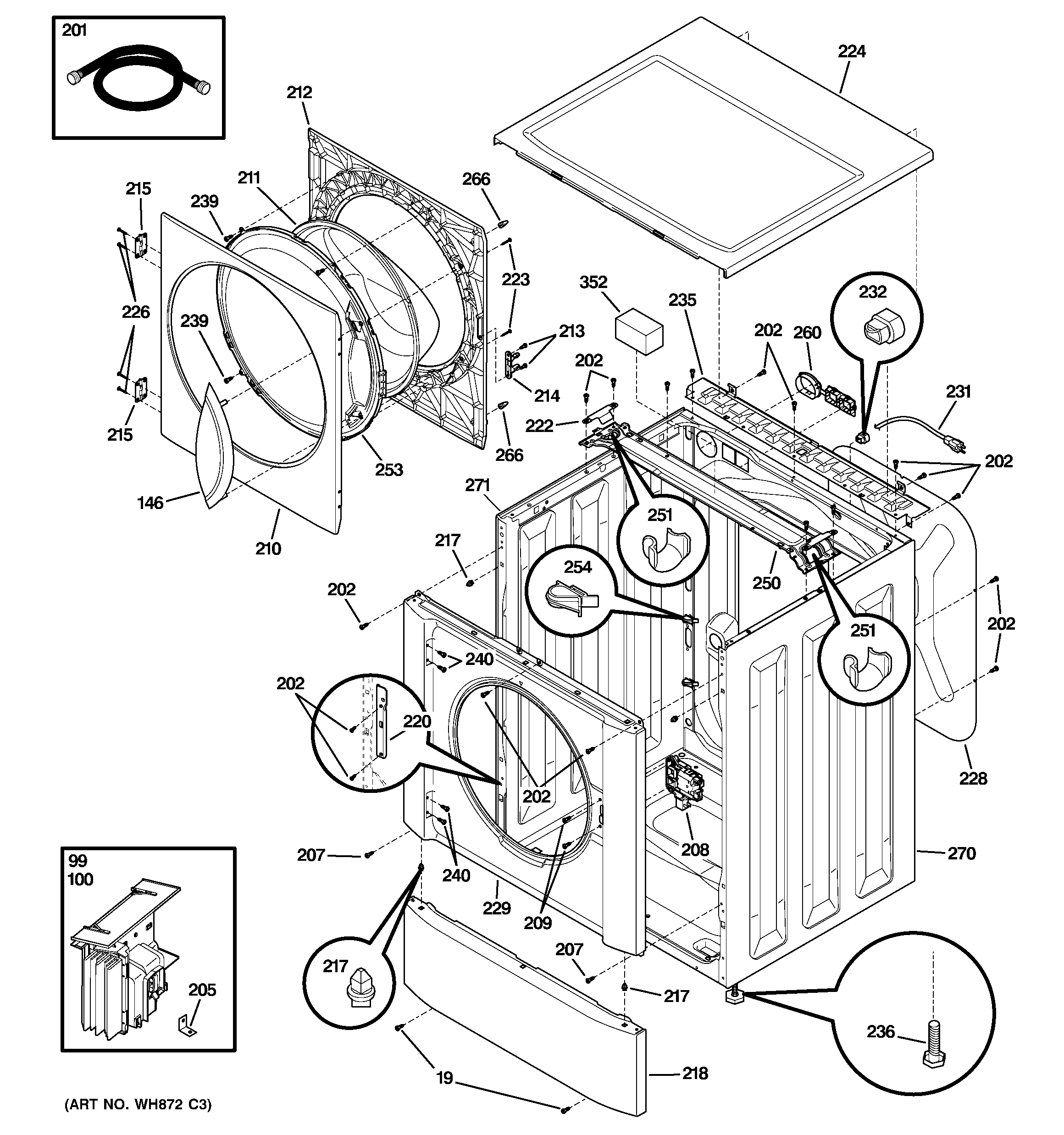

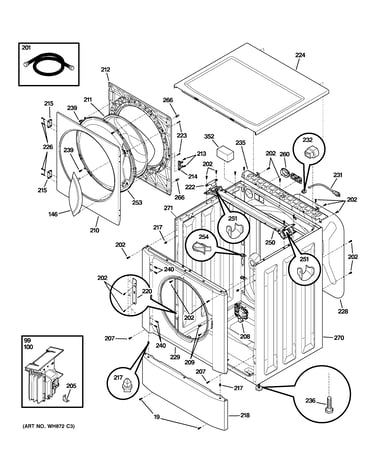

Cabinet, door & top diagram

Inlet hose

Part #WH41X10099

Replaced by #WH41X10207

?
Manufacturer substitution
This part replaces WH41X10099. Substitute parts can look different from the original.
This item is not returnable
$22.73 |
21% OFF Phone Price : $28.73
In Stock
Door Lock WH10X10007
#208

Cabinet, door & top diagram

Door lock

Part #WH10X10007

Replaced by #WH10X27534

?
Manufacturer substitution
This part replaces WH10X10007. Substitute parts can look different from the original.
$329.99 |
$12.00 OFF Phone Price : $341.99
In Stock
Push Button WH01X10330
#14

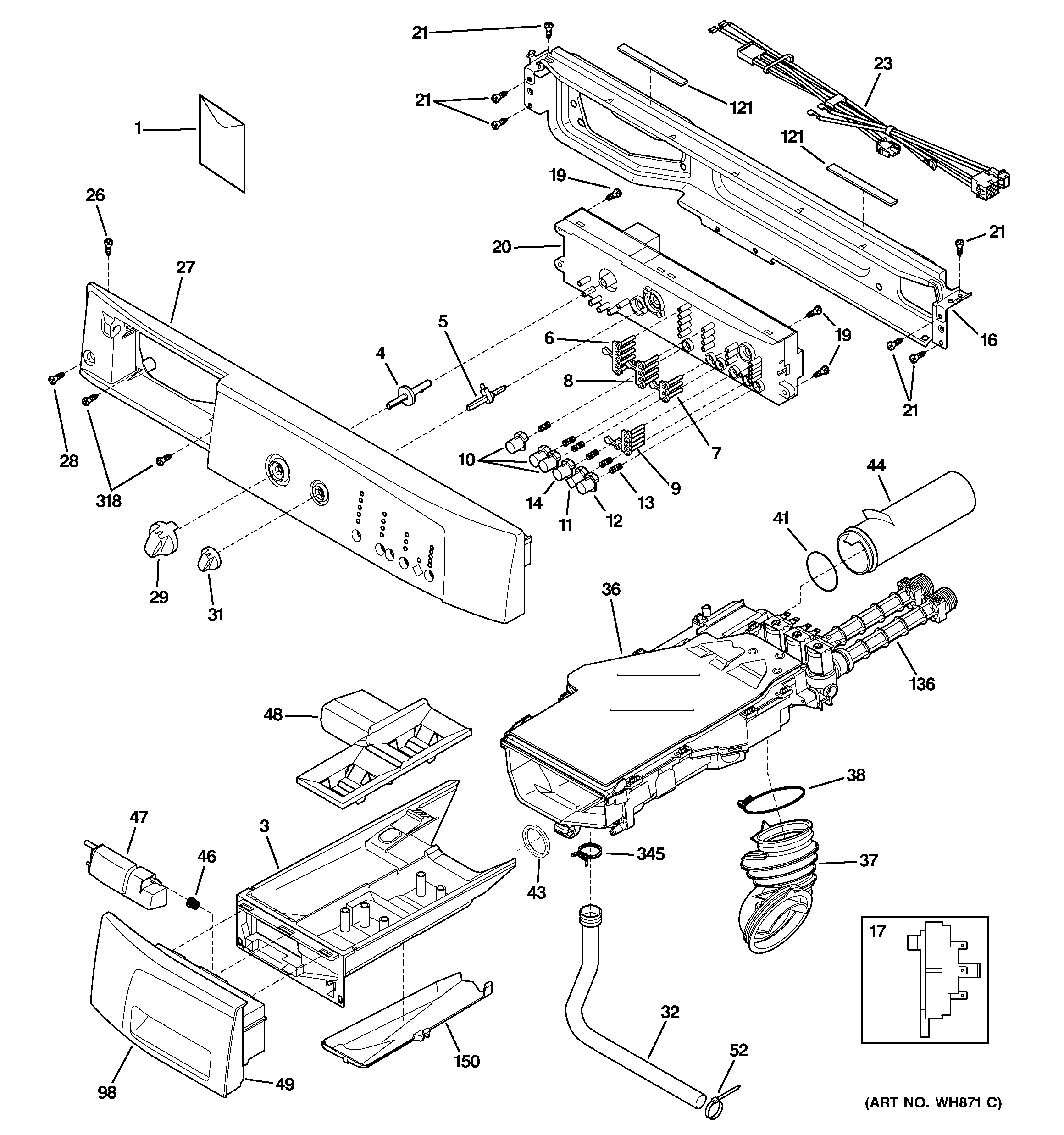

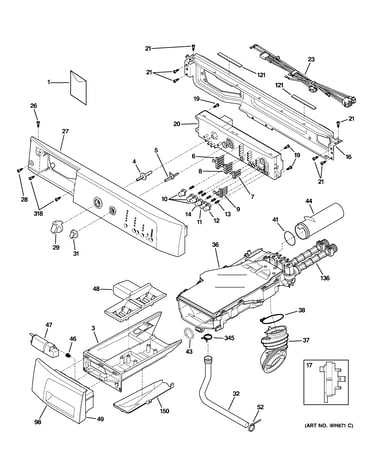

Controls & dispenser diagram

Push button

Part #WH01X10330

$15.99
In Stock
Dampener,vib WH01X10325
#352

Cabinet, door & top diagram

Dampener,vib

Part #WH01X10325

$11.38
In Stock
Washer Electronic Control Board WH42X10787
#20

Controls & dispenser diagram

Washer electronic control board

Part #WH42X10787

$404.30 |
$12.00 OFF Phone Price : $416.30
In Stock
Ge Rear Shell WH45X10094
#322

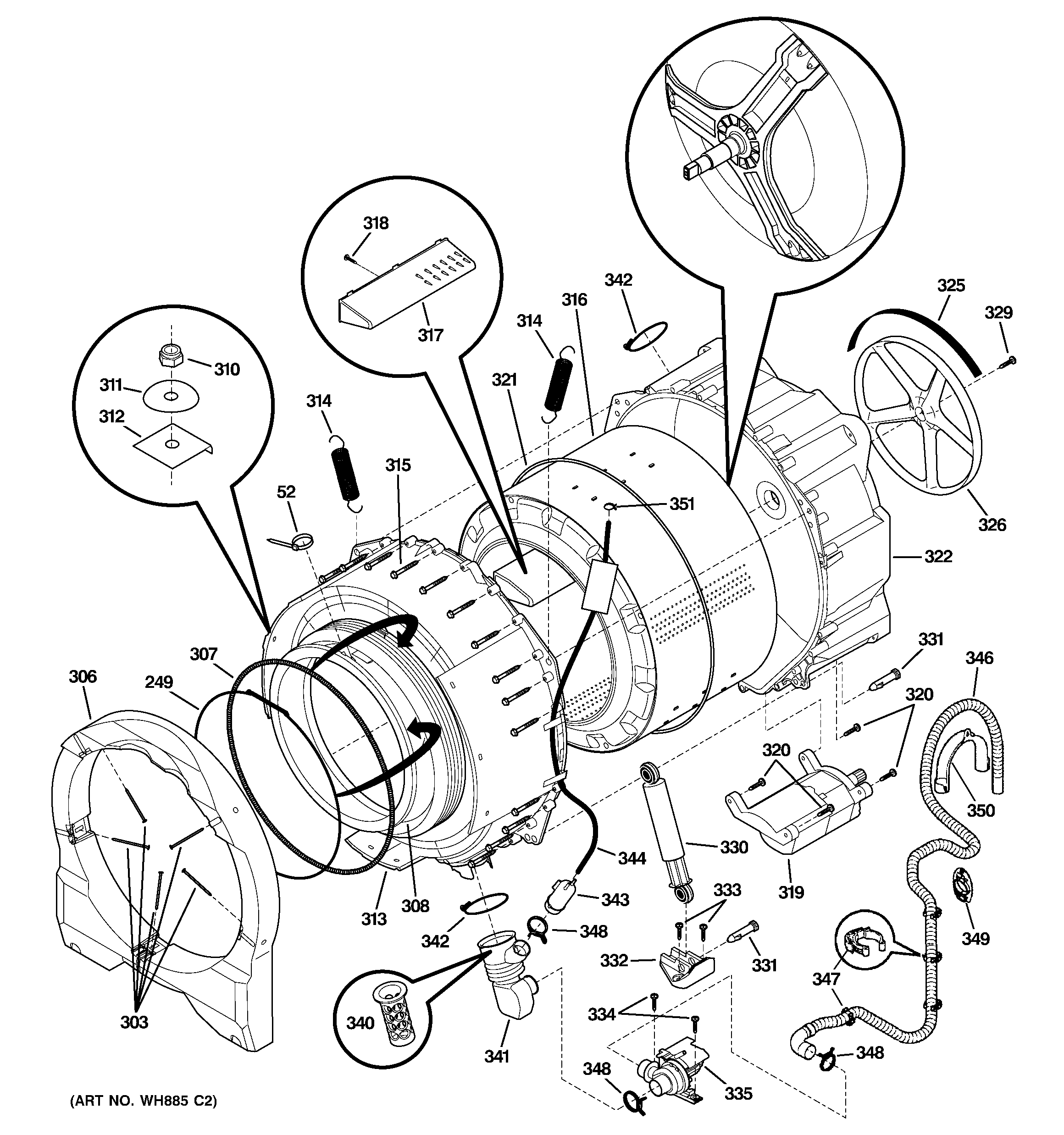

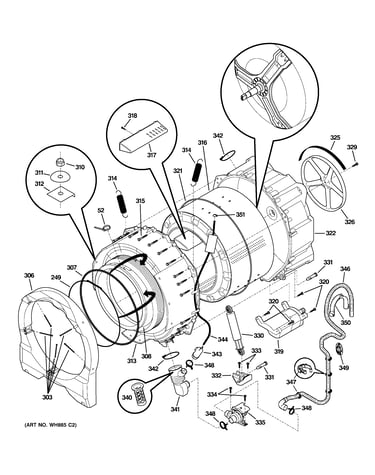

Tub & motor diagram

Ge rear shell

Part #WH45X10094

This item is not returnable
$352.18
In Stock
Washer Electronic Control Board WH20X10038
#100

Cabinet, door & top diagram

Washer electronic control board

Part #WH20X10038

$209.27
In Stock
Cable Tie, 5 WH02X10239
Cable tie, 5

Part #WH02X10239

Replaced by #WR02X11607

?
Manufacturer substitution
This part replaces WH02X10239. Substitute parts can look different from the original.
$7.83 |
11% OFF Phone Price : $8.83
In Stock
Dispenser Trim WH41X10152
#98

Controls & dispenser diagram

Dispenser trim

Part #WH41X10152

The manufacturer no longer makes this part, and there's no substitute part

Washer Screw, #10-16 X 3/4-in WH02X10010
#213

Cabinet, door & top diagram

Washer screw, #10-16 x 3/4-in

Part #WH02X10010

The manufacturer no longer makes this part, and there's no substitute part
