Model # LA5380XPW1 Official Whirlpool washer
Here are the diagrams and repair parts for Official Whirlpool LA5380XPW1 washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

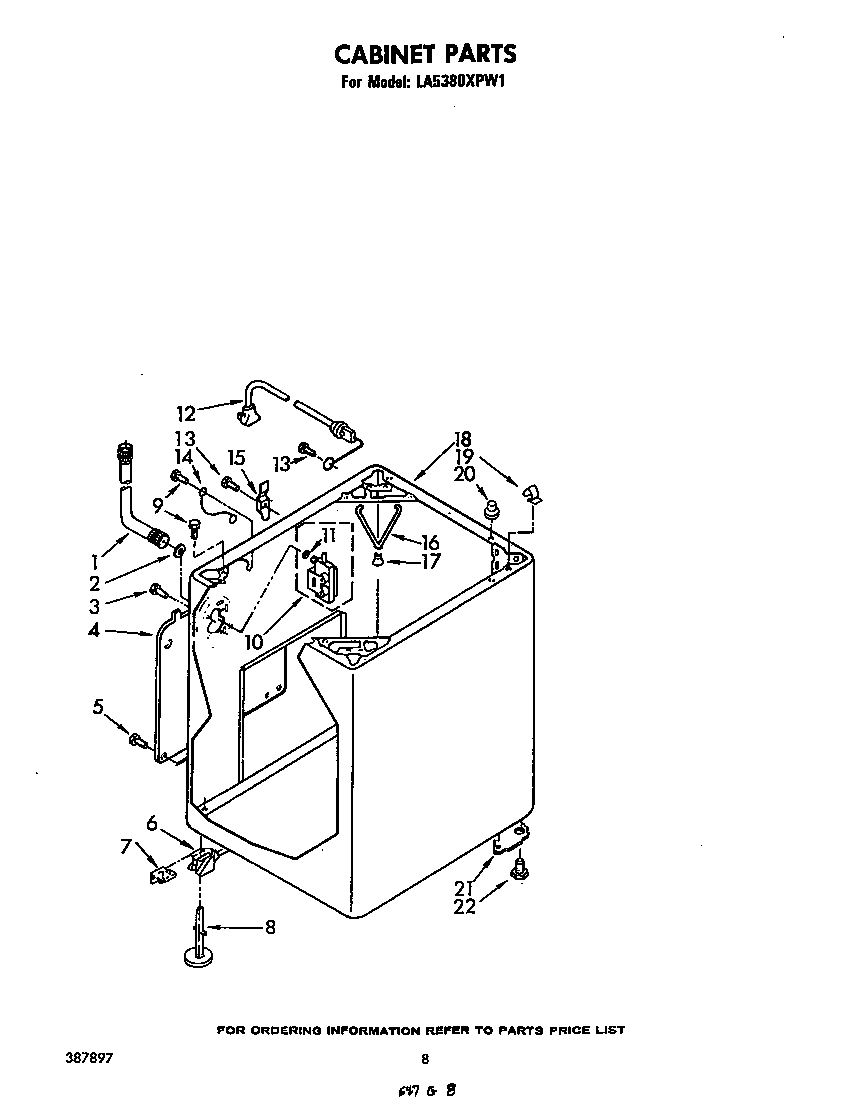

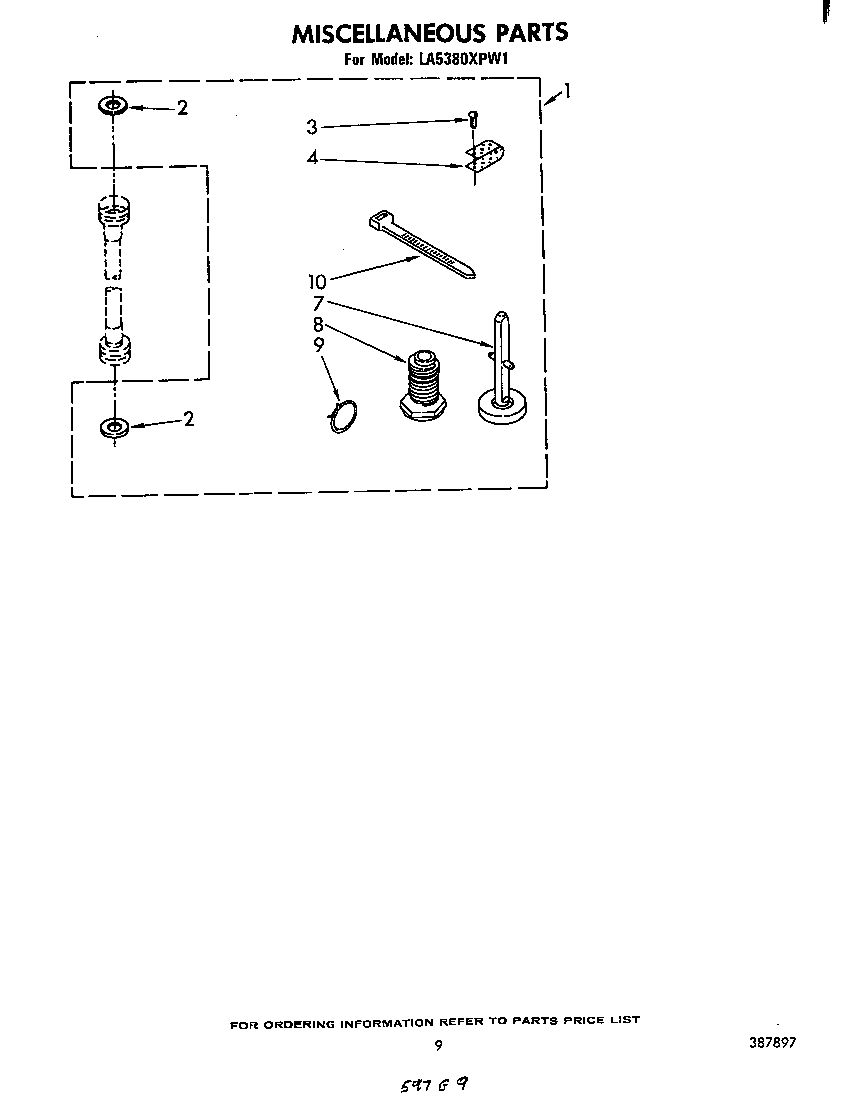

SELECT DIAGRAM
Browse Parts forLA5380XPW1 Washer
- #27

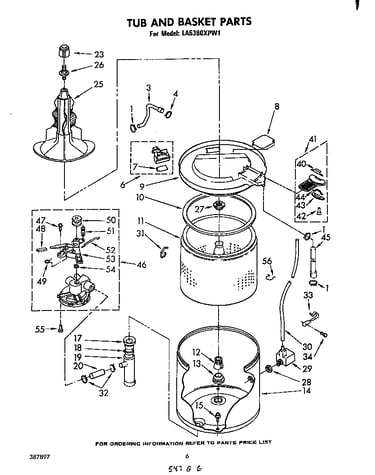

Tub and basket diagram
Washer spanner nutPart #21366
Replaced by #WP21366
?Manufacturer substitutionThis part replaces 21366. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock - #13
Tub and basket diagram
GasketPart #96690
Replaced by #W10814296
?Manufacturer substitutionThis part replaces 96690. Substitute parts can look different from the original.This item is not returnable$3.69 |21% OFF Phone Price : $4.69In Stock - #89

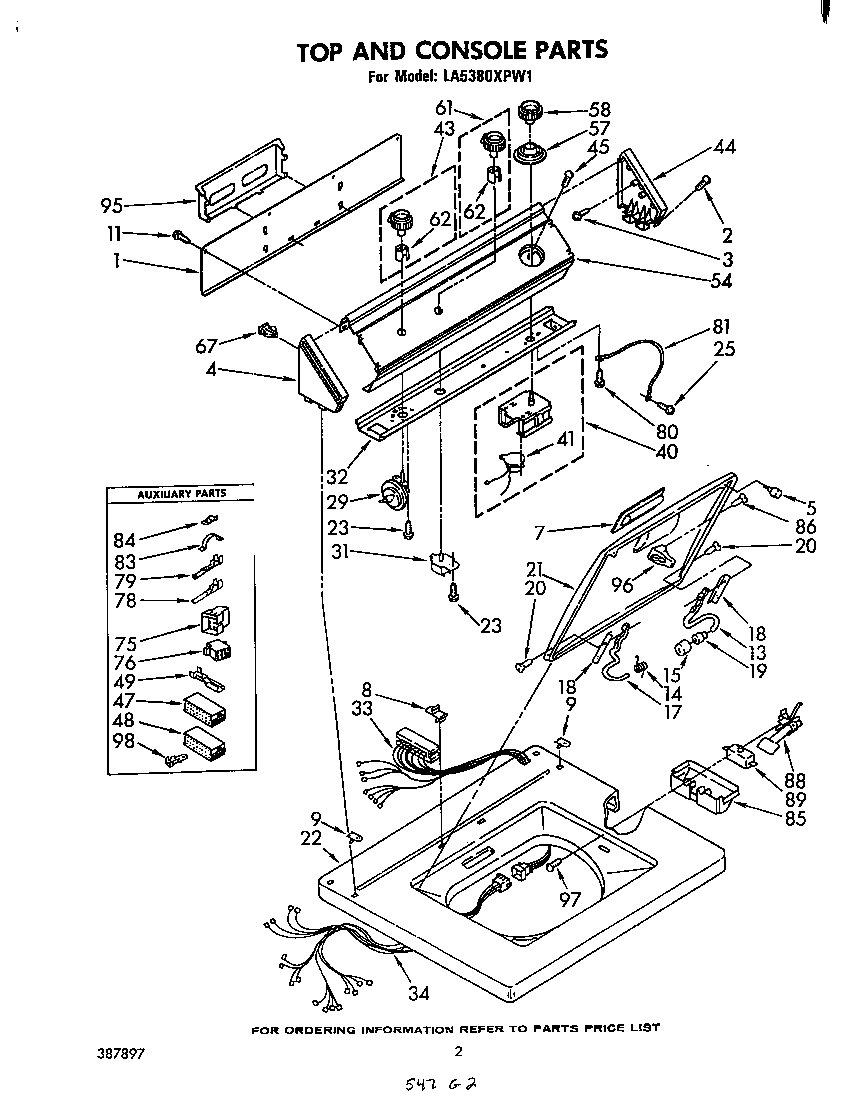

Top and console diagram
SwitchPart #660308
Replaced by #W10820036
?Manufacturer substitutionThis part replaces 660308. Substitute parts can look different from the original.$21.44 |22% OFF Phone Price : $27.44In Stock - #30
Tub and basket diagram
HosePart #353402
Replaced by #WP353244
?Manufacturer substitutionThis part replaces 353402. Substitute parts can look different from the original.$43.64 |12% OFF Phone Price : $49.64In Stock - #1
Tub and basket diagram
Hose clampPart #272846
Replaced by #WP596669
?Manufacturer substitutionThis part replaces 272846. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #4
Tub and basket diagram
ClampPart #272847
Replaced by #WP596669
?Manufacturer substitutionThis part replaces 272847. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #28

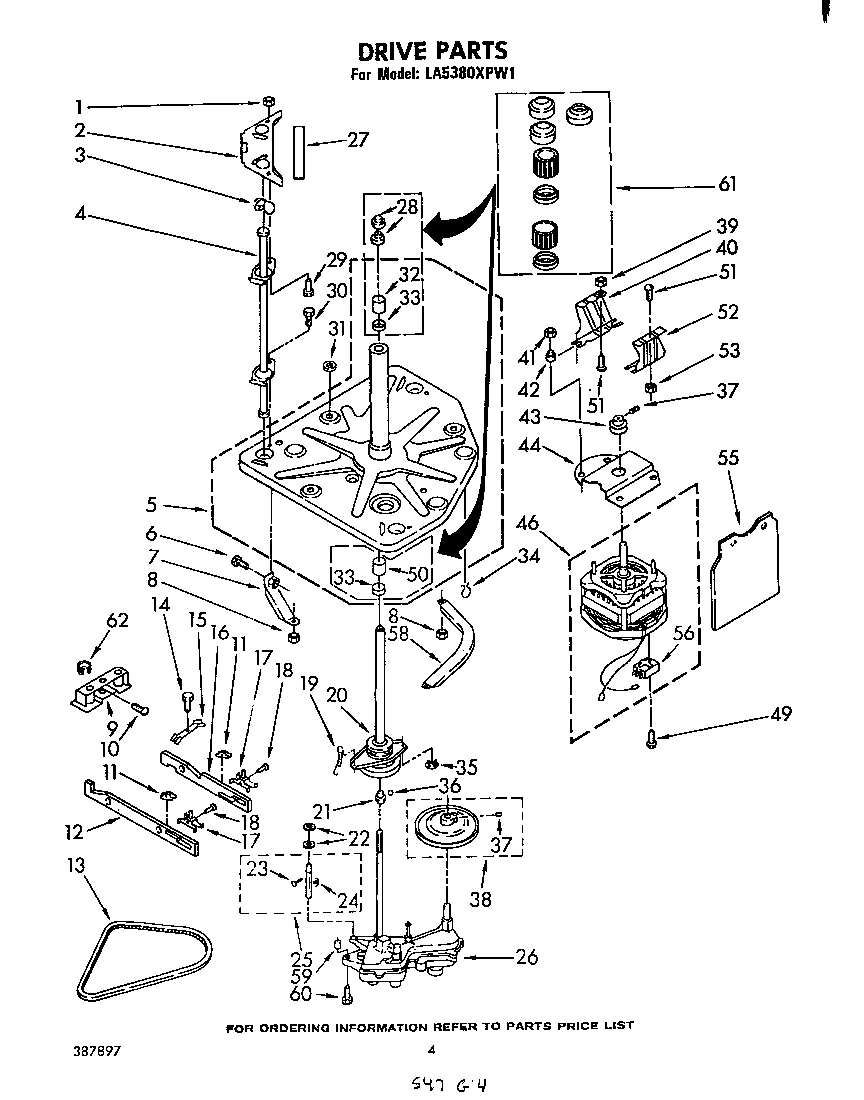

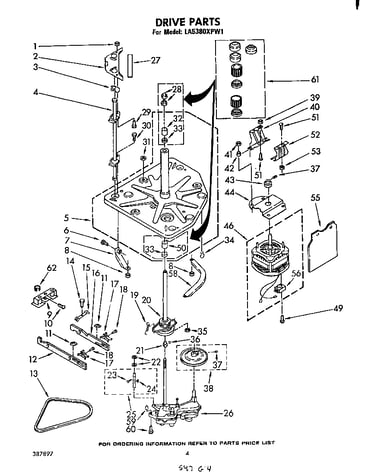

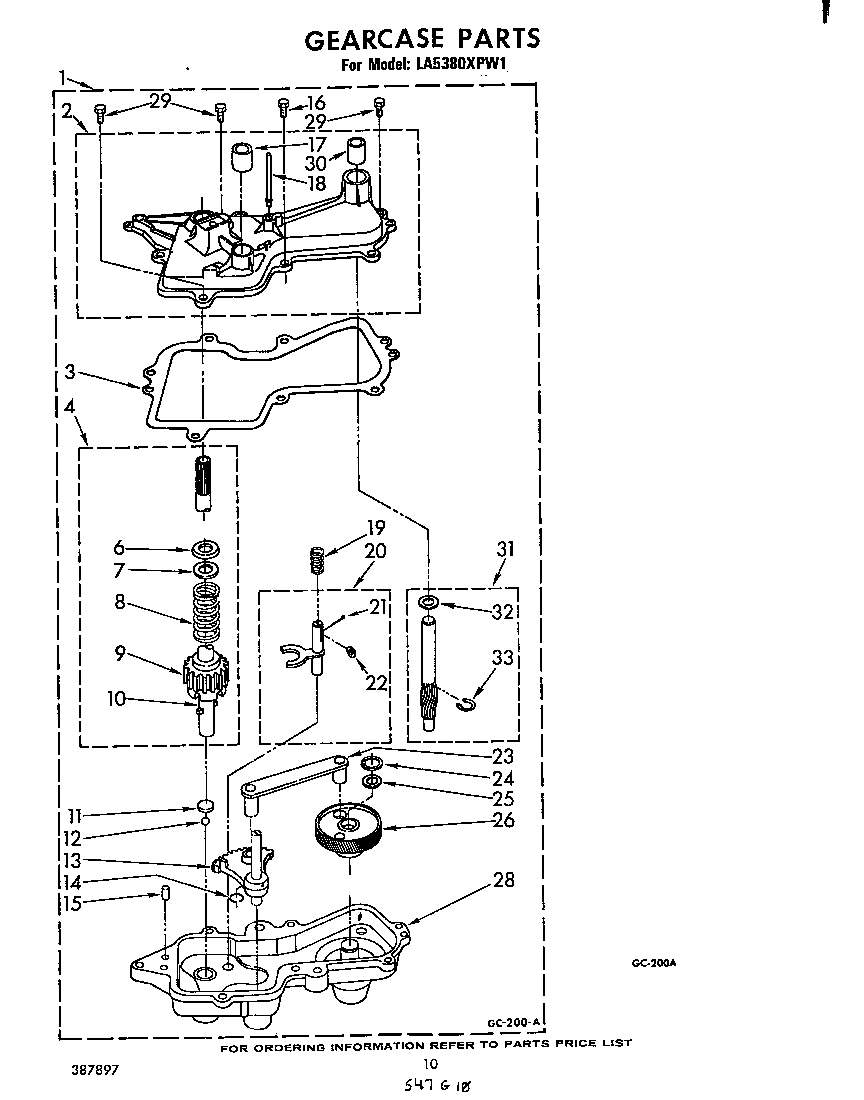

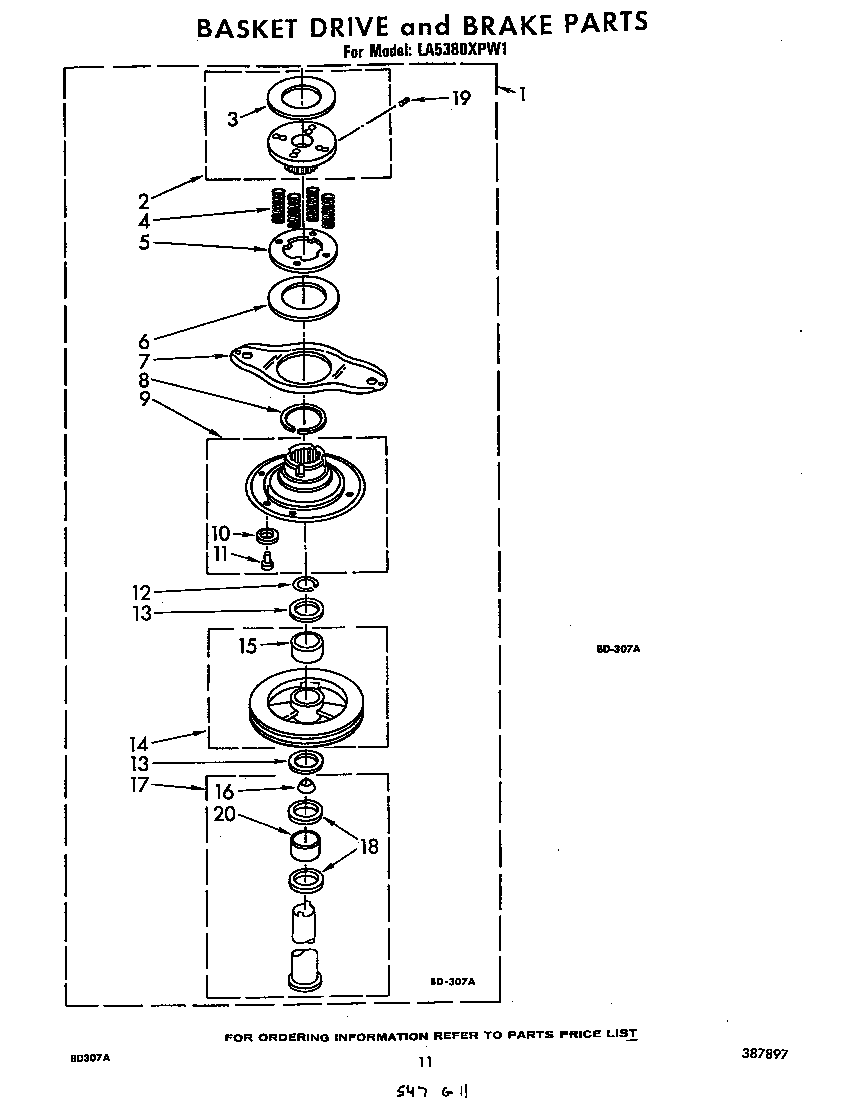

Drive diagram
Seal, center postPart #356934
Replaced by #WP8577376
?Manufacturer substitutionThis part replaces 356934. Substitute parts can look different from the original.$6.77 |28% OFF Was : $9.40In Stock - #20
Top and console diagram
ScrewPart #18724
Replaced by #WPW10119828
?Manufacturer substitutionThis part replaces 18724. Substitute parts can look different from the original.This item is not returnable$3.58 |22% OFF Phone Price : $4.58In Stock - #2

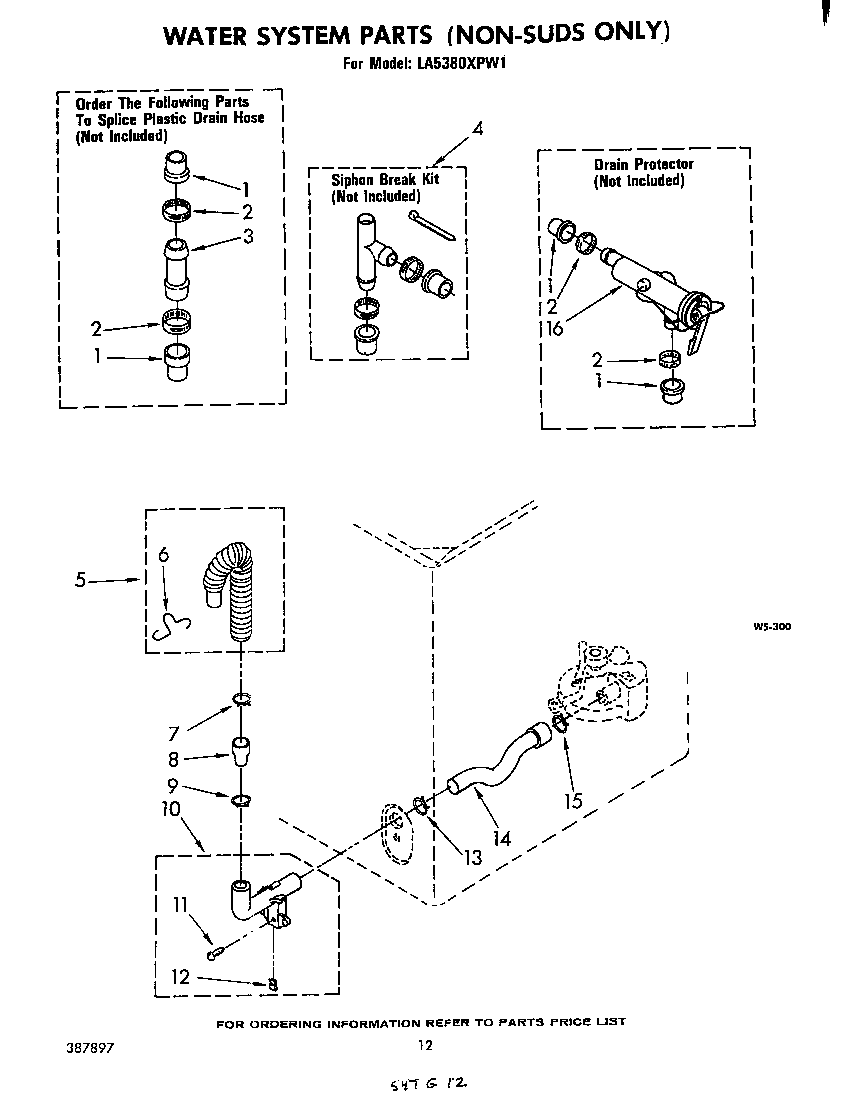

Water system diagram
ClampPart #65349
Replaced by #WP285655
?Manufacturer substitutionThis part replaces 65349. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock - Hose clamp
Part #272858
Replaced by #WP285655
?Manufacturer substitutionThis part replaces 272858. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock
