Model # UXI0600DYS Official Whirlpool inline blower

Here are the diagrams and repair parts for Official Whirlpool UXI0600DYS inline blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Range Hood Blower Assembly W10294006
#2A

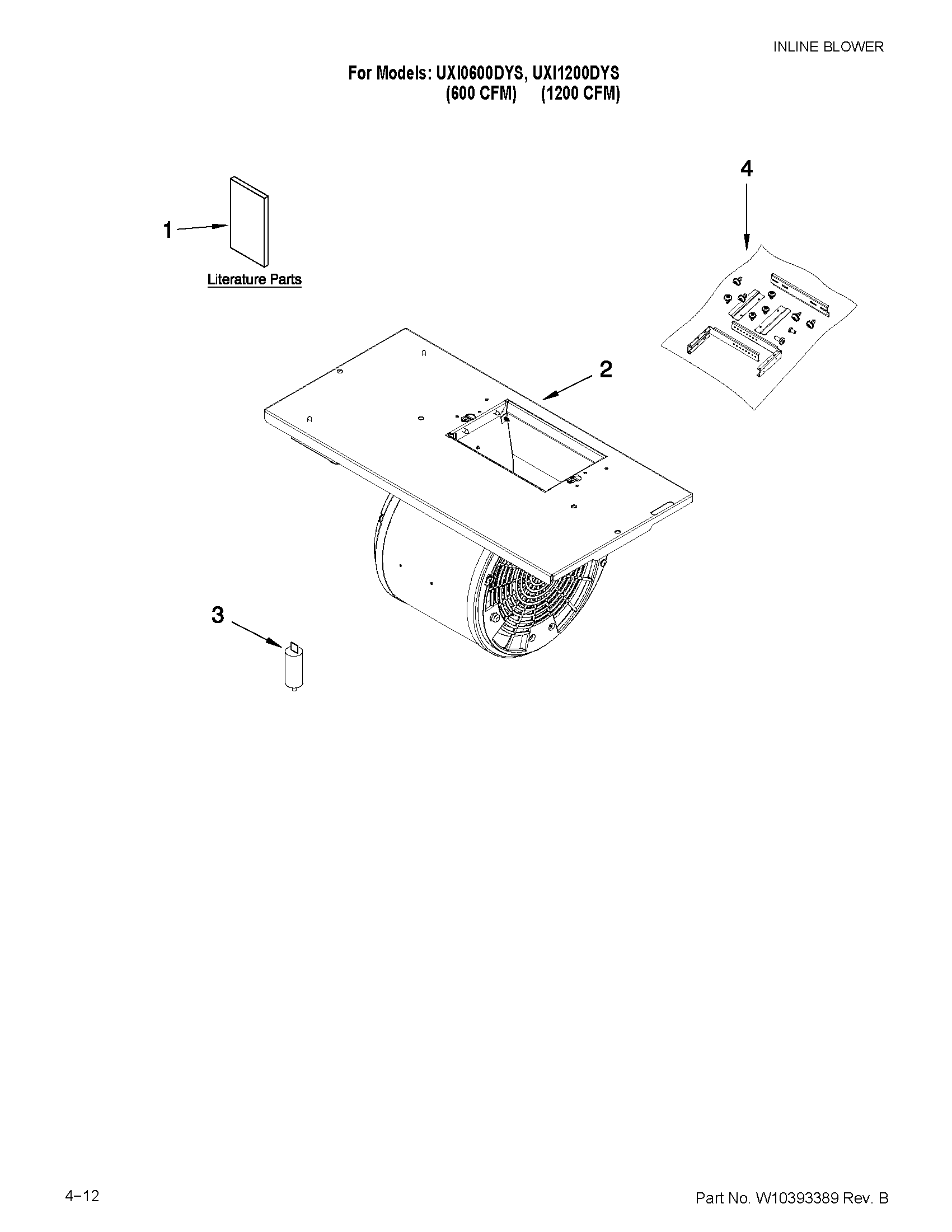

Blower motor diagram

Range hood blower assembly

Part #W10294006

Replaced by #WPW10294006

?
Manufacturer substitution
This part replaces W10294006. Substitute parts can look different from the original.
$328.19 |
$12.00 OFF Phone Price : $340.19
In Stock
Range Hood Blower Motor Capacitor 8186677
#3

Blower motor diagram

Range hood blower motor capacitor

Part #8186677

$109.48
In Stock
Range Hood Blower Assembly W10294026
#2C

Blower motor diagram

Range hood blower assembly

Part #W10294026

Replaced by #WPW10294026

?
Manufacturer substitution
This part replaces W10294026. Substitute parts can look different from the original.
$391.04 |
$12.00 OFF Phone Price : $403.04
In Stock
Blower Motor Systems (600 Cfm In-line) UXI0600DYS
#2

Blower motor diagram

Blower motor systems (600 cfm in-line)

Part #UXI0600DYS

The manufacturer no longer makes this part, and there's no substitute part

Blower Motor Systems (1200 Cfm In-line) UXI1200DYS
#2B

Blower motor diagram

Blower motor systems (1200 cfm in-line)

Part #UXI1200DYS

The manufacturer no longer makes this part, and there's no substitute part

Hardware W10509542
#4

Blower motor diagram

Hardware

Part #W10509542

The manufacturer no longer makes this part, and there's no substitute part

Range Owner's Manual W10331013
#1

Blower motor diagram

Range owner's manual

Part #W10331013

The manufacturer no longer makes this part, and there's no substitute part
