Kelvinator
Upright Freezer

Model # KFU21M3AW1 Official Kelvinator upright freezer - 5995243374

Here are the diagrams and repair parts for Official Kelvinator KFU21M3AW1 upright freezer - 5995243374, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Filter 5308000027
#30

System and electrical parts diagram

Filter

Part #5308000027

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 5308000027. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key 5308037402
#47

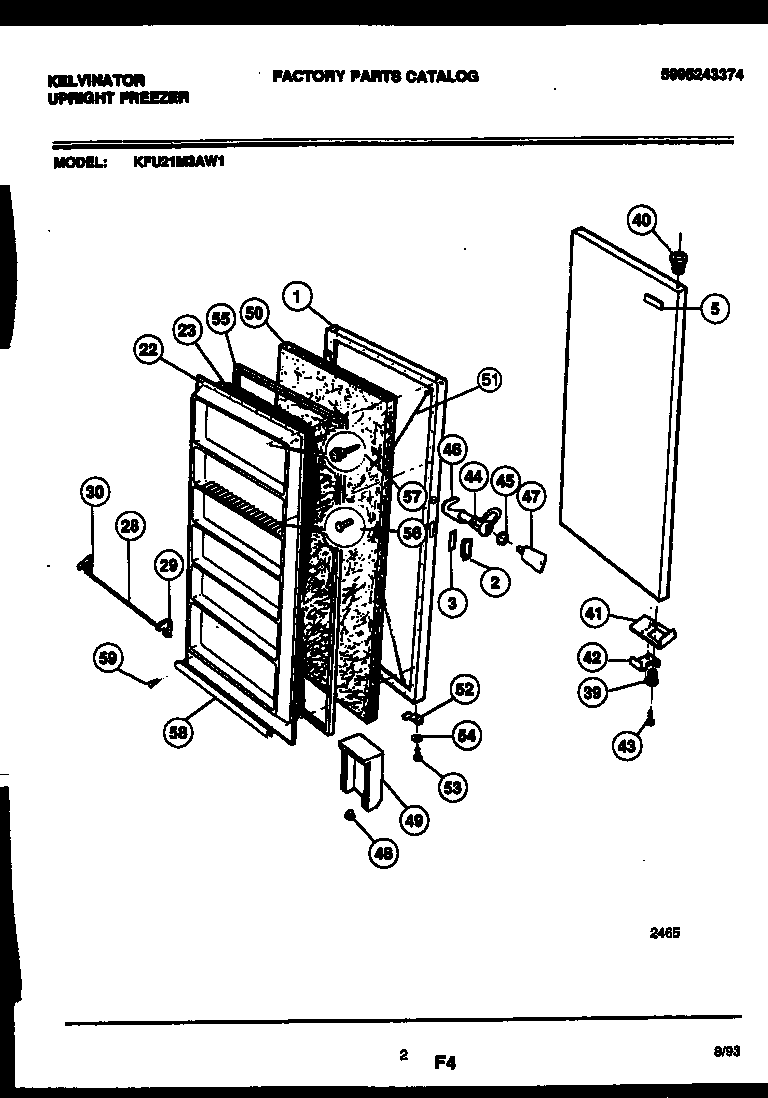

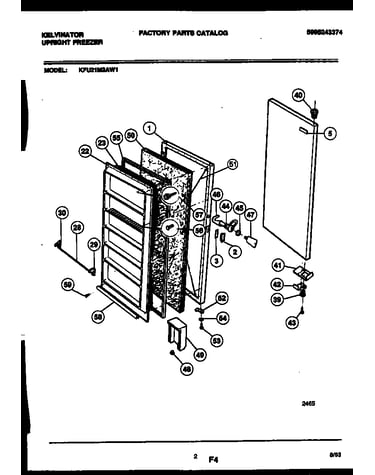

Door parts diagram

Key

Part #5308037402

Replaced by #297147700

?
Manufacturer substitution
This part replaces 5308037402. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Capacitor 216236200
#86

System and electrical parts diagram

Capacitor

Part #216236200

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 216236200. Substitute parts can look different from the original.
BEST SELLER
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Freezer Condenser Coil (replaces 000300847, 000900204, 08000459, 08037427, 08950154, 118630, 75300083897, 83339, 83727, 83897, 8950154, F000300847, F000900204, F112069, F118630, F83339, F83727, F83897) 5300083897
#34

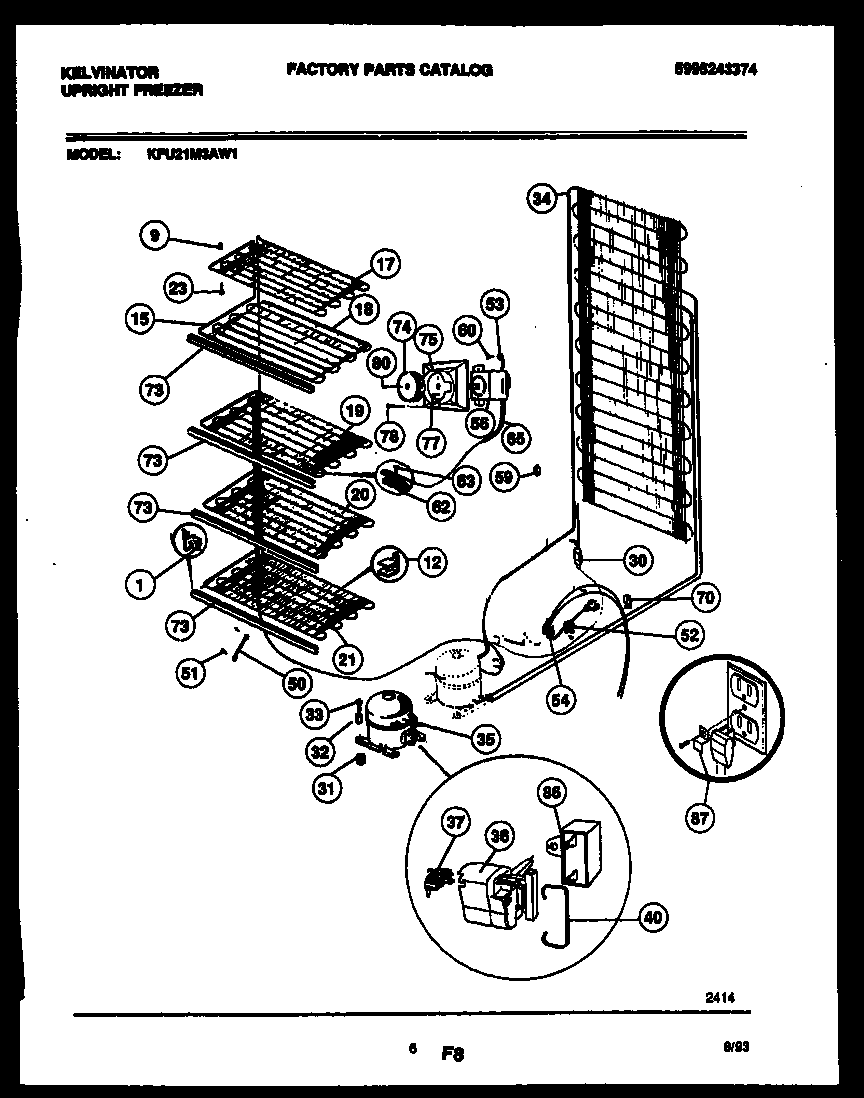

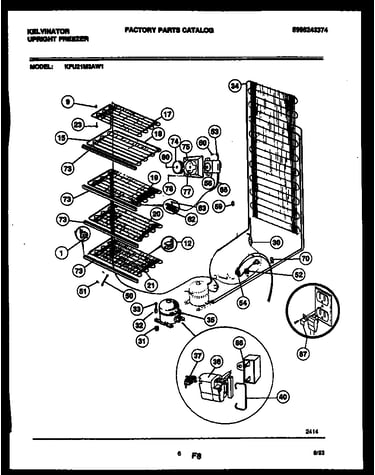

System and electrical parts diagram

Freezer condenser coil (replaces 000300847, 000900204, 08000459, 08037427, 08950154, 118630, 75300083897, 83339, 83727, 83897, 8950154, f000300847, f000900204, f112069, f118630, f83339, f83727, f83897)

Part #5300083897

This item is not returnable
$417.18 |
$12.00 OFF Phone Price : $429.18
In Stock
Hose 5308037944
#13

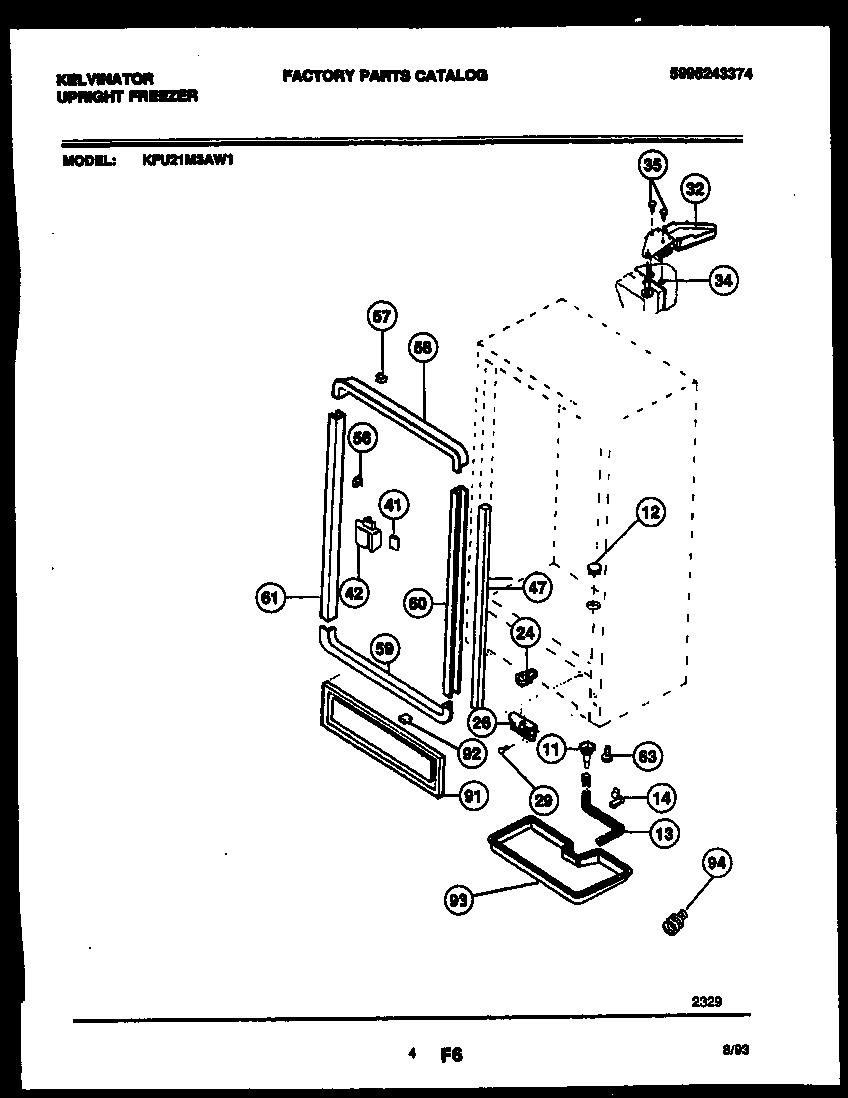

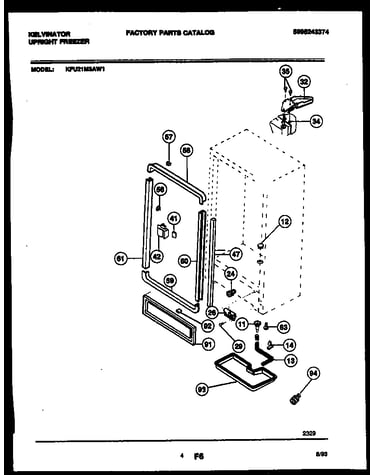

Cabinet parts diagram

Hose

Part #5308037944

Replaced by #5304512272

?
Manufacturer substitution
This part replaces 5308037944. Substitute parts can look different from the original.
This item is not returnable
$16.29 |
11% OFF Phone Price : $18.29
In Stock
Shelf 216097900
#73

System and electrical parts diagram

Shelf

Part #216097900

Replaced by #5304509723

?
Manufacturer substitution
This part replaces 216097900. Substitute parts can look different from the original.
This item is not returnable
$25.18 |
19% OFF Phone Price : $31.18
In Stock
Sleeve 5308037932
#65

System and electrical parts diagram

Sleeve

Part #5308037932

Replaced by #5303916855

?
Manufacturer substitution
This part replaces 5308037932. Substitute parts can look different from the original.
$47.89 |
11% OFF Phone Price : $53.89
In Stock
Freezer Breather Valve 5309950074
#48

Door parts diagram

Freezer breather valve

Part #5309950074

This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Refrigerator Evaporator Cover Screw 08037851
#51

System and electrical parts diagram

Refrigerator evaporator cover screw

Part #08037851

This item is not returnable
$3.51
In Stock
Grommet 5308002681
#31

System and electrical parts diagram

Grommet

Part #5308002681

Replaced by #216498900

?
Manufacturer substitution
This part replaces 5308002681. Substitute parts can look different from the original.
This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
