Model # KBSN708MPS00 Official KitchenAid refrigerator, all

Here are the diagrams and repair parts for Official KitchenAid KBSN708MPS00 refrigerator, all, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

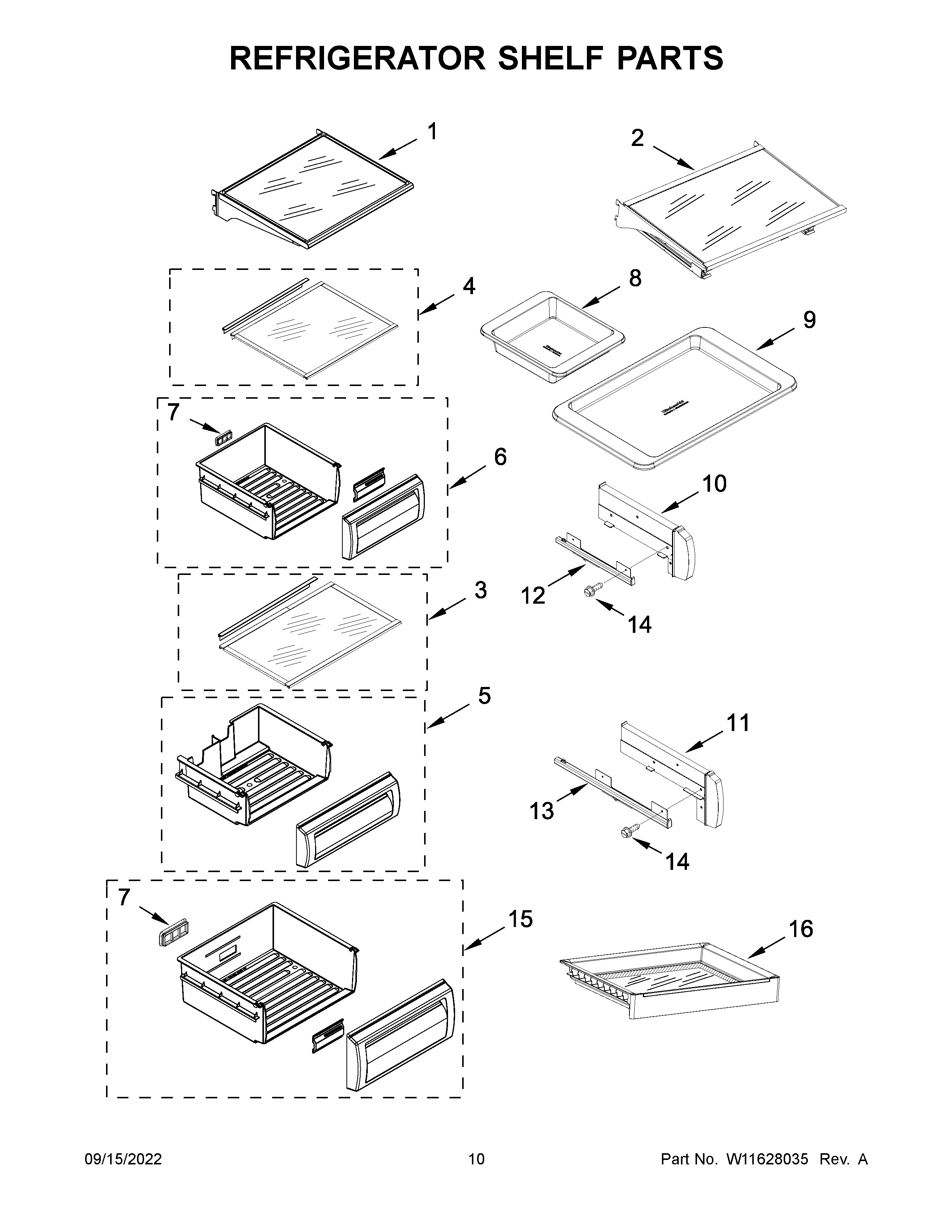

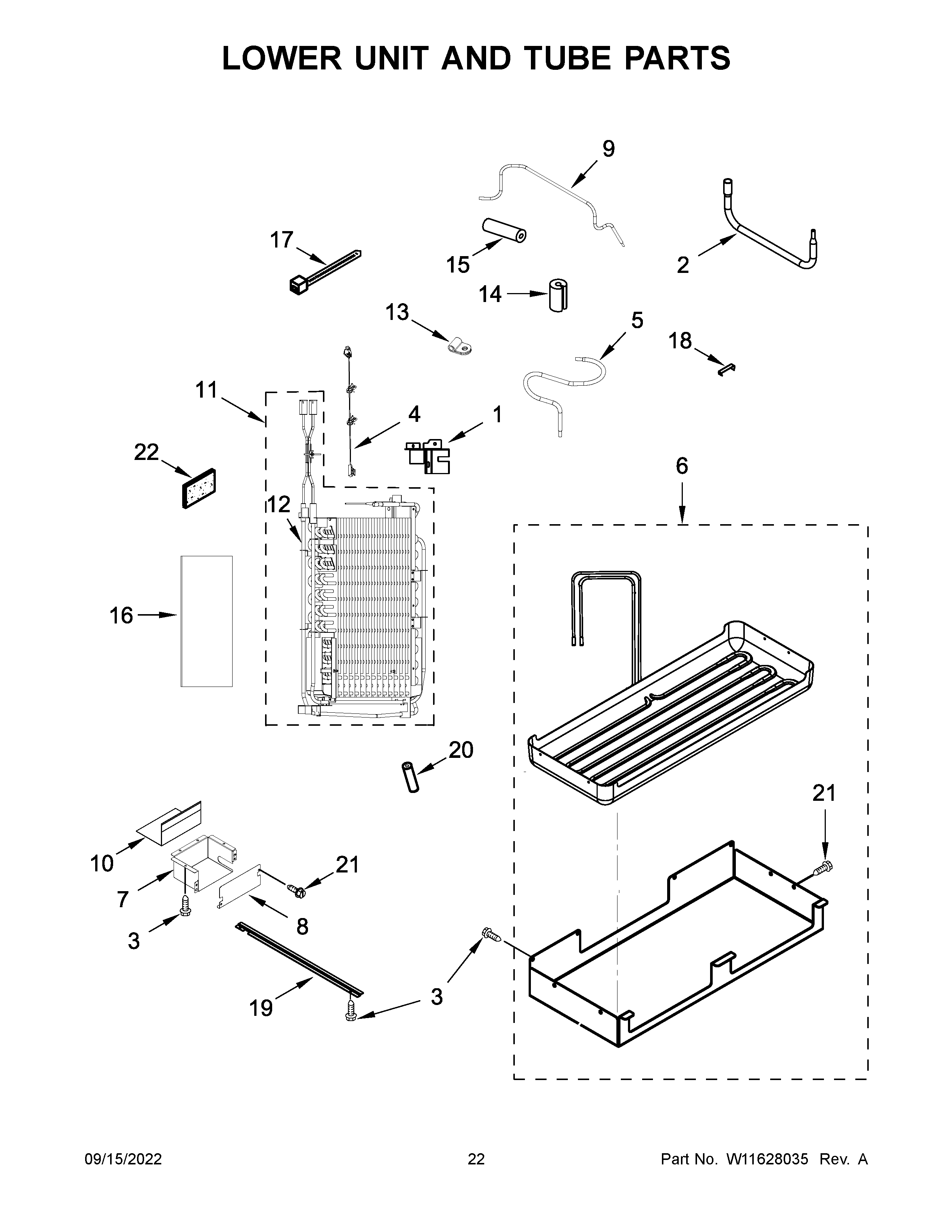

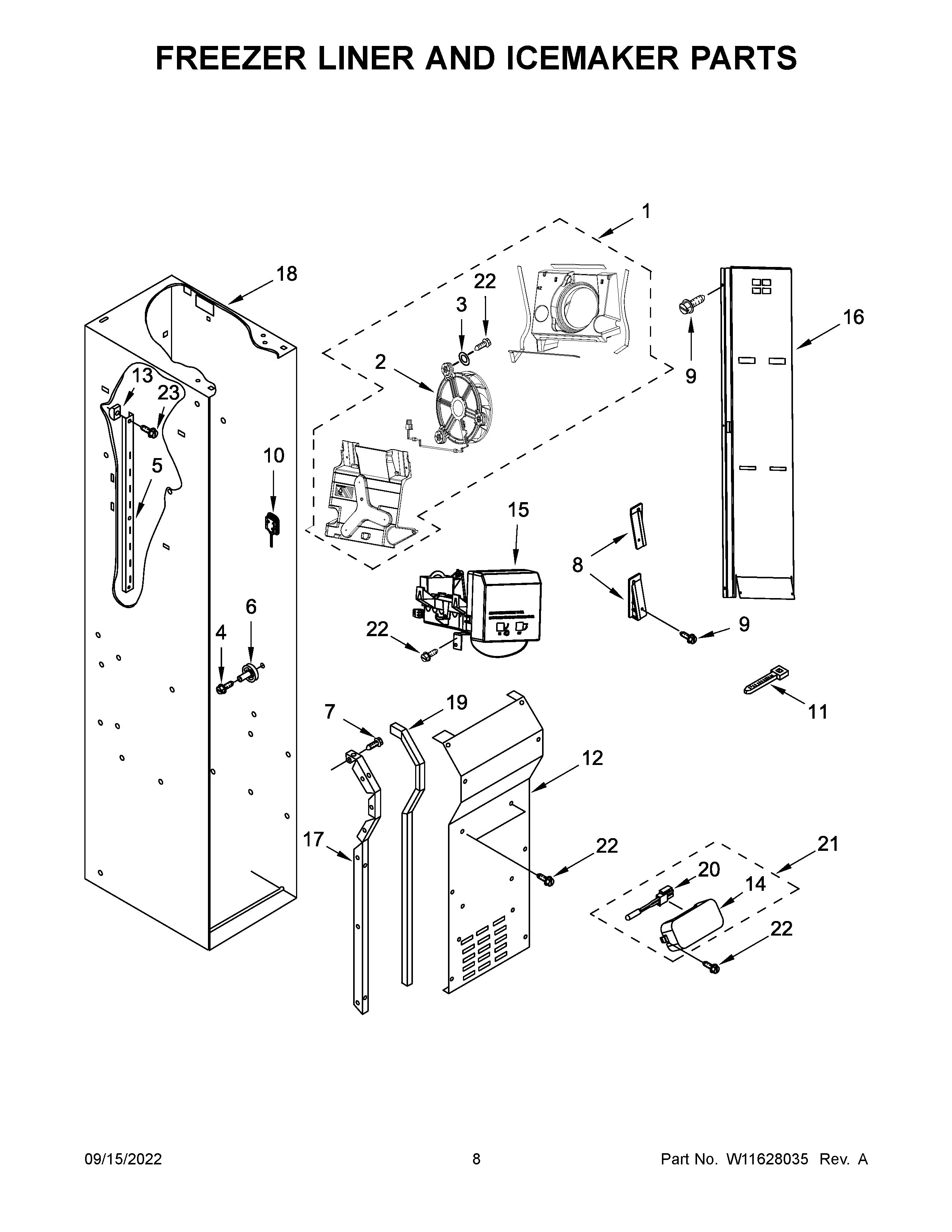

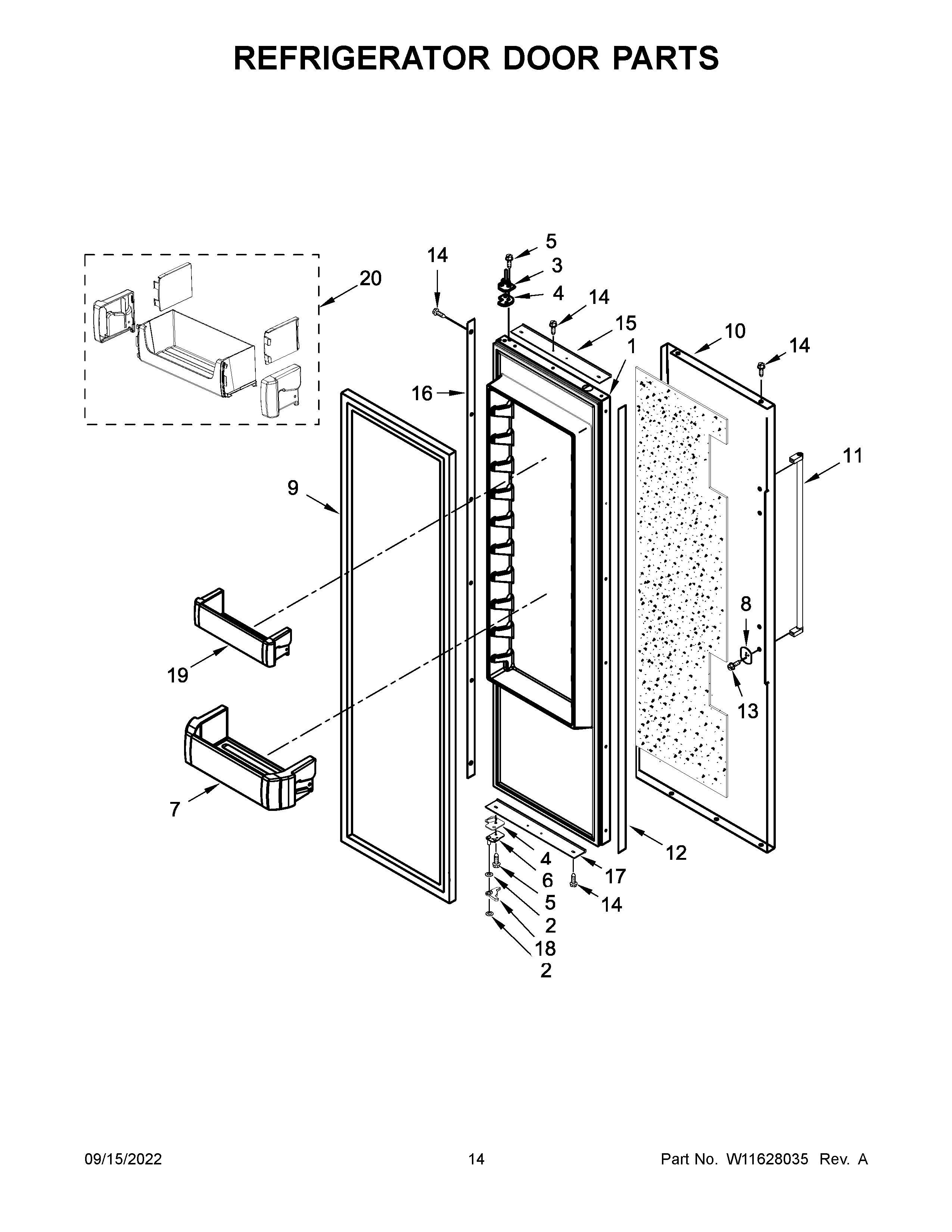

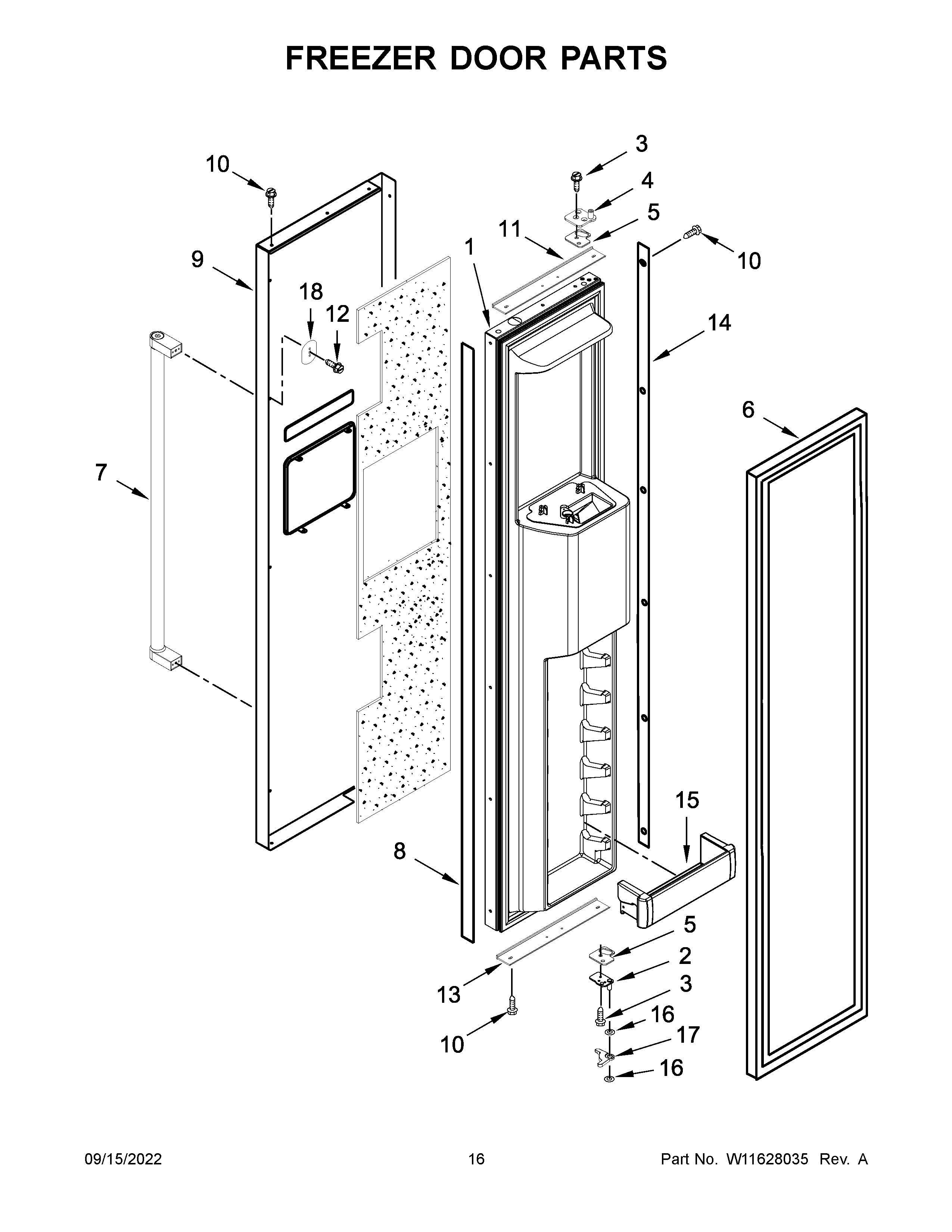

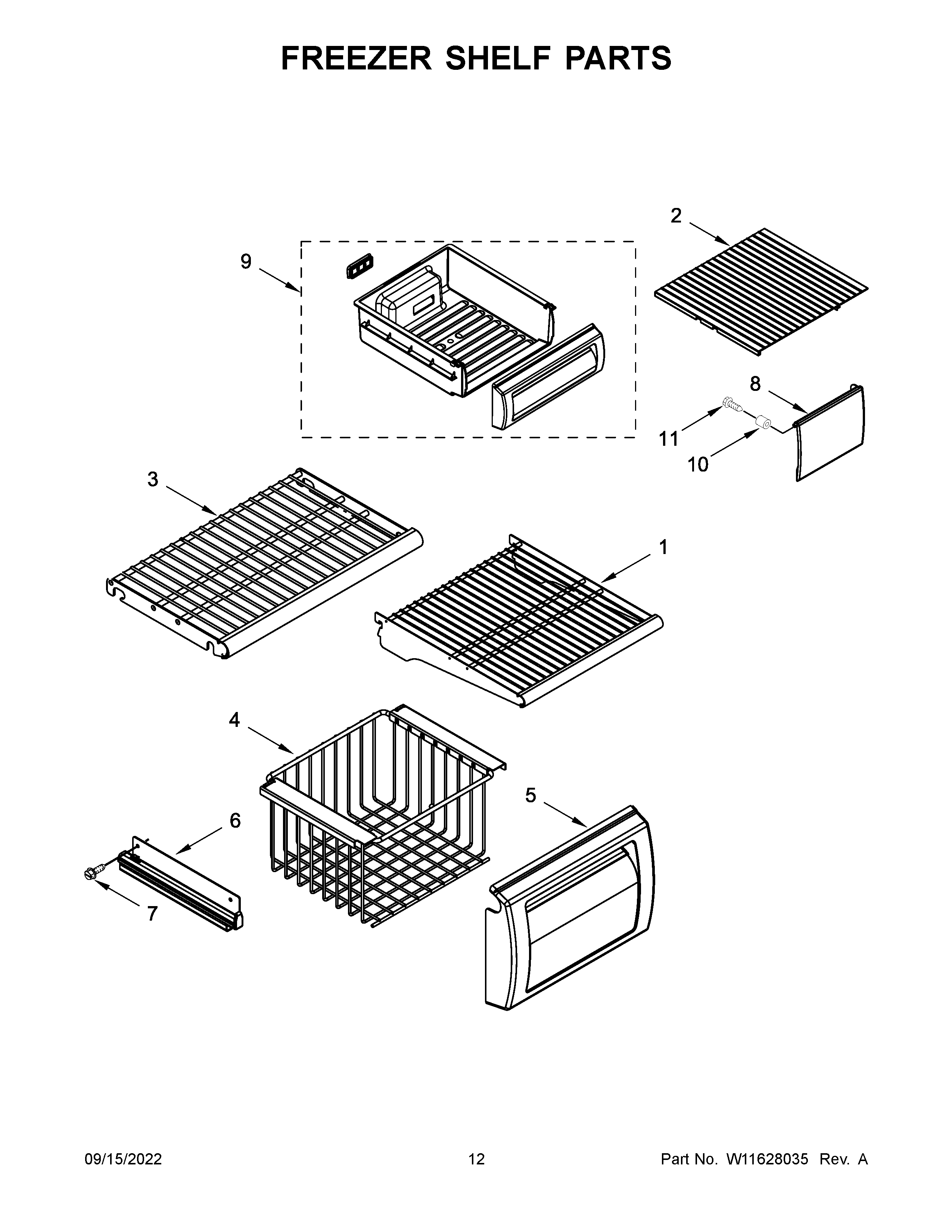

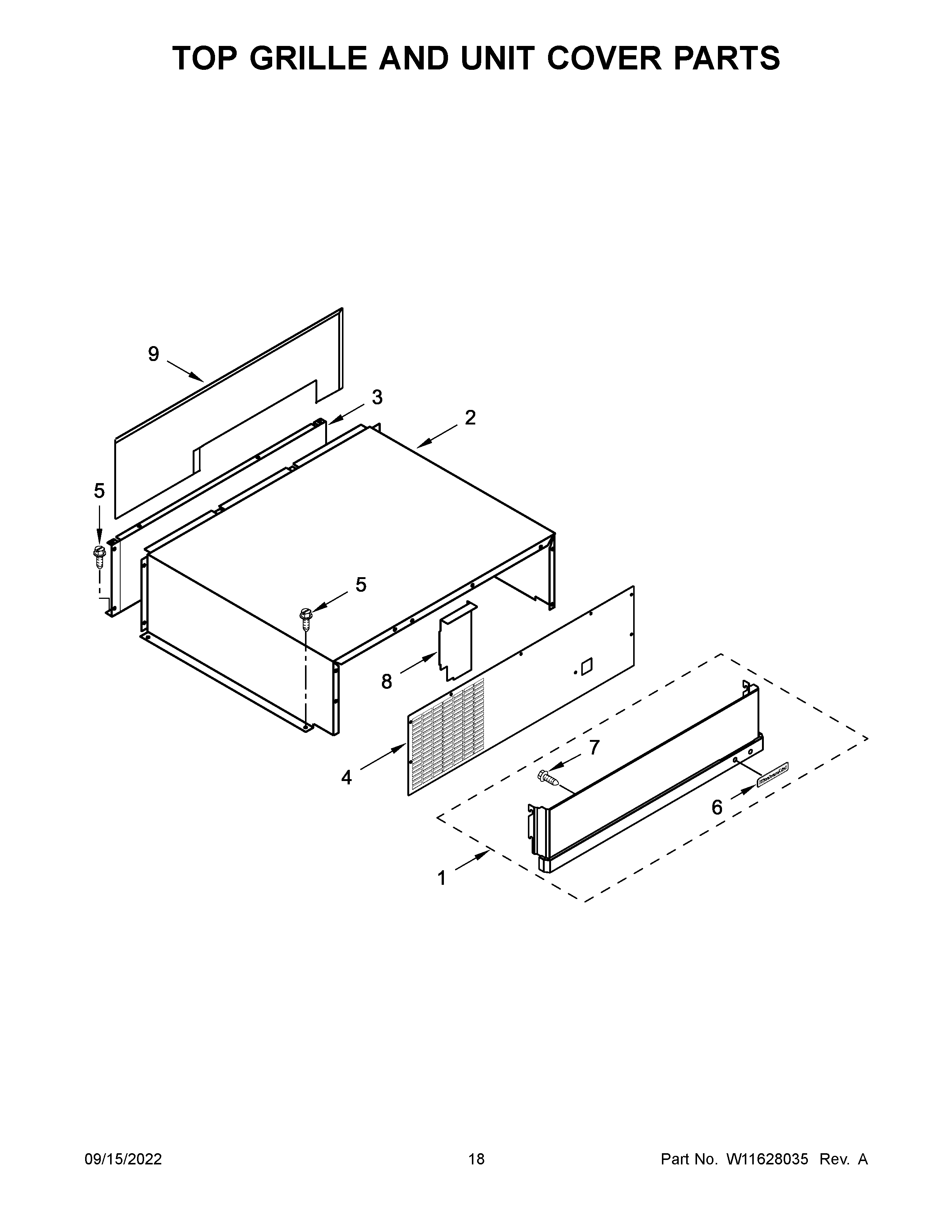

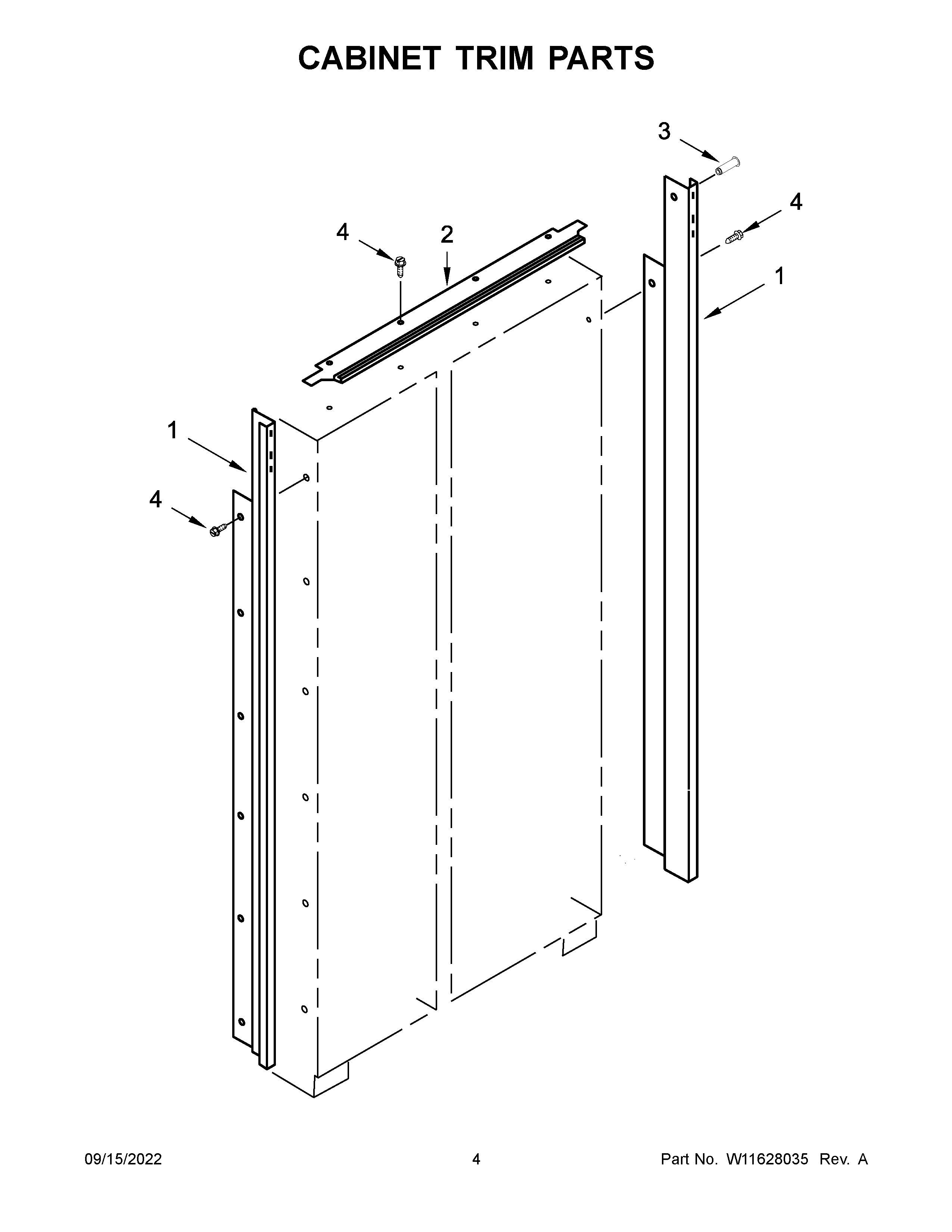

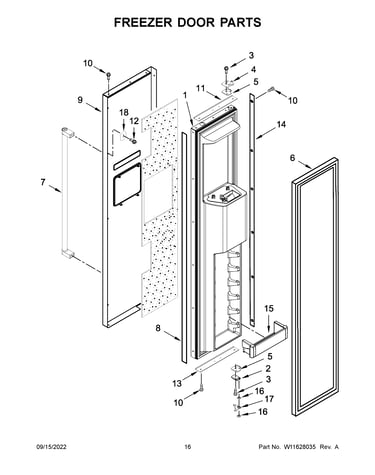

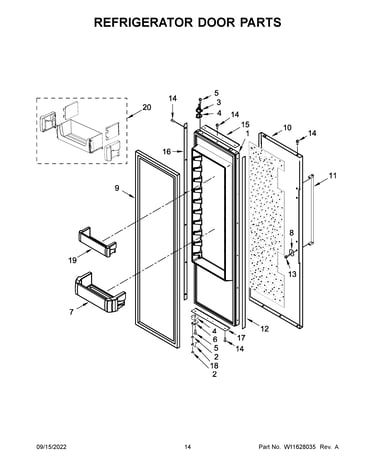

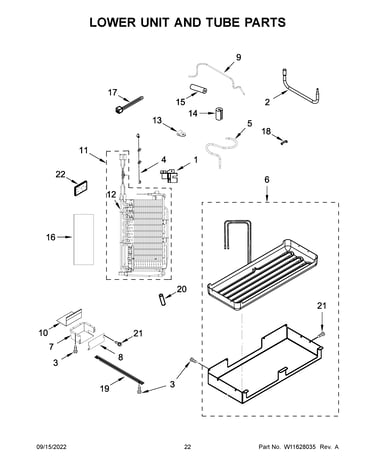

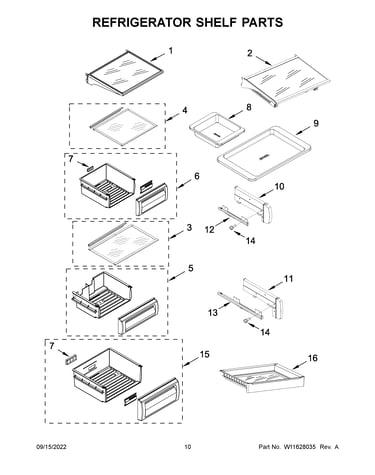

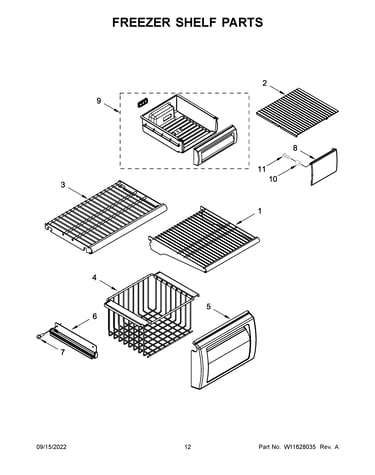

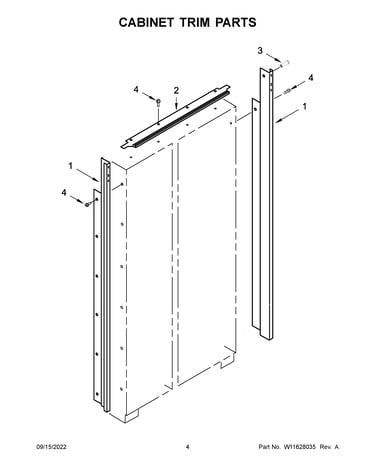

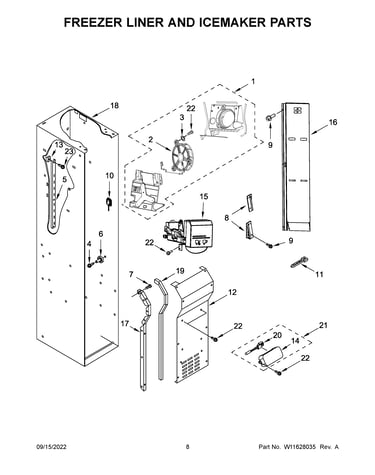

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 261 parts  |
Refrigerator Filter W10121146
#12

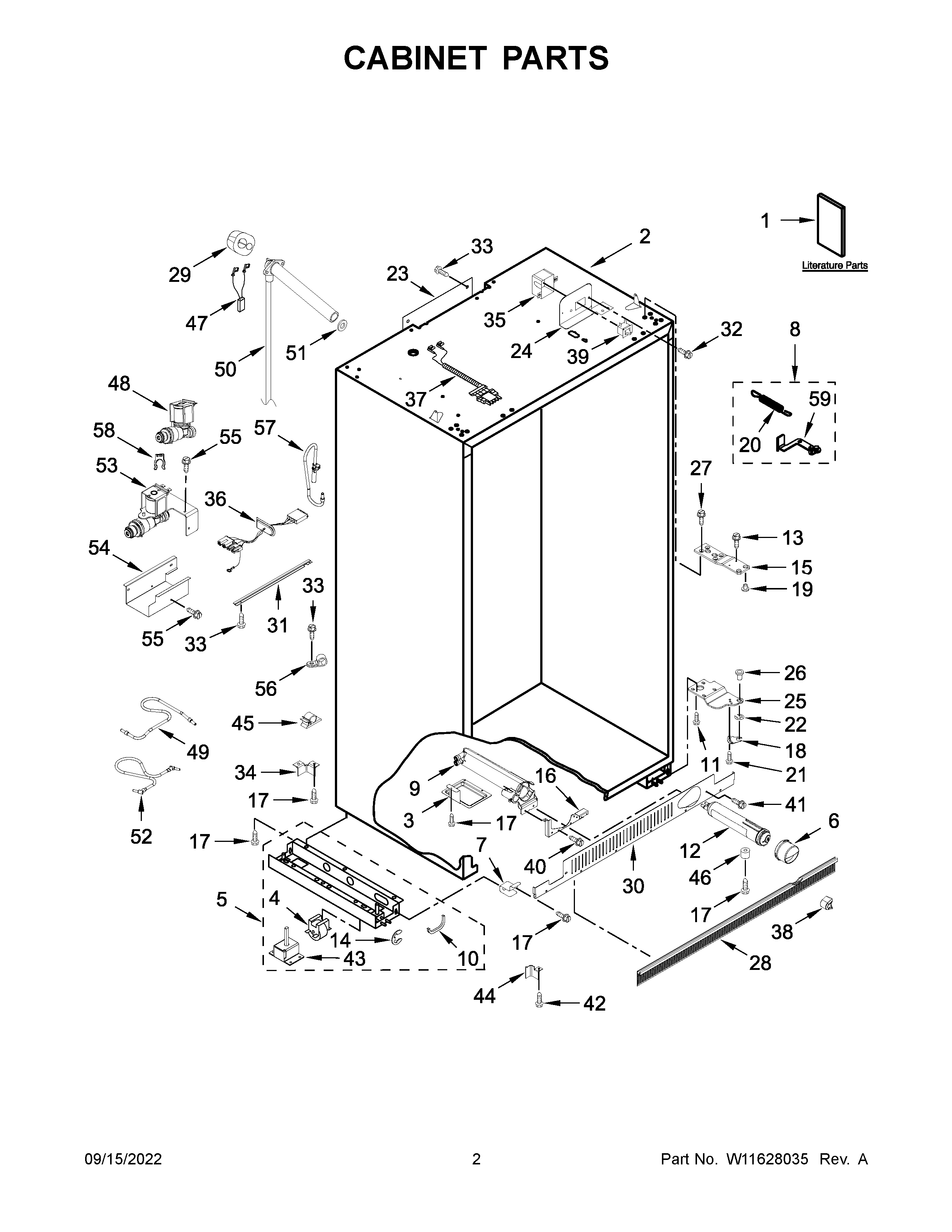

Cabinet parts diagram

Refrigerator filter

Part #W10121146

Replaced by #EDR3RXD1

?
Manufacturer substitution
This part replaces W10121146. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Air Filter W10315189
#14

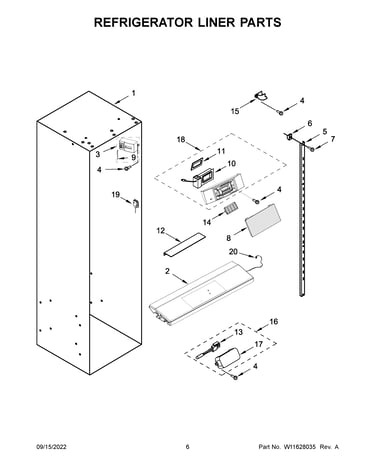

Refrigerator liner parts diagram

Refrigerator air filter

Part #W10315189

Replaced by #W10311524

?
Manufacturer substitution
This part replaces W10315189. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$16.74 |
11% OFF Phone Price : $18.74
In Stock
Switch- Rock W10847848
#39

Cabinet parts diagram

Switch- rock

Part #W10847848

Replaced by #W11396033

?
Manufacturer substitution
This part replaces W10847848. Substitute parts can look different from the original.
BEST SELLER
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Drier Tube W10805035
#21

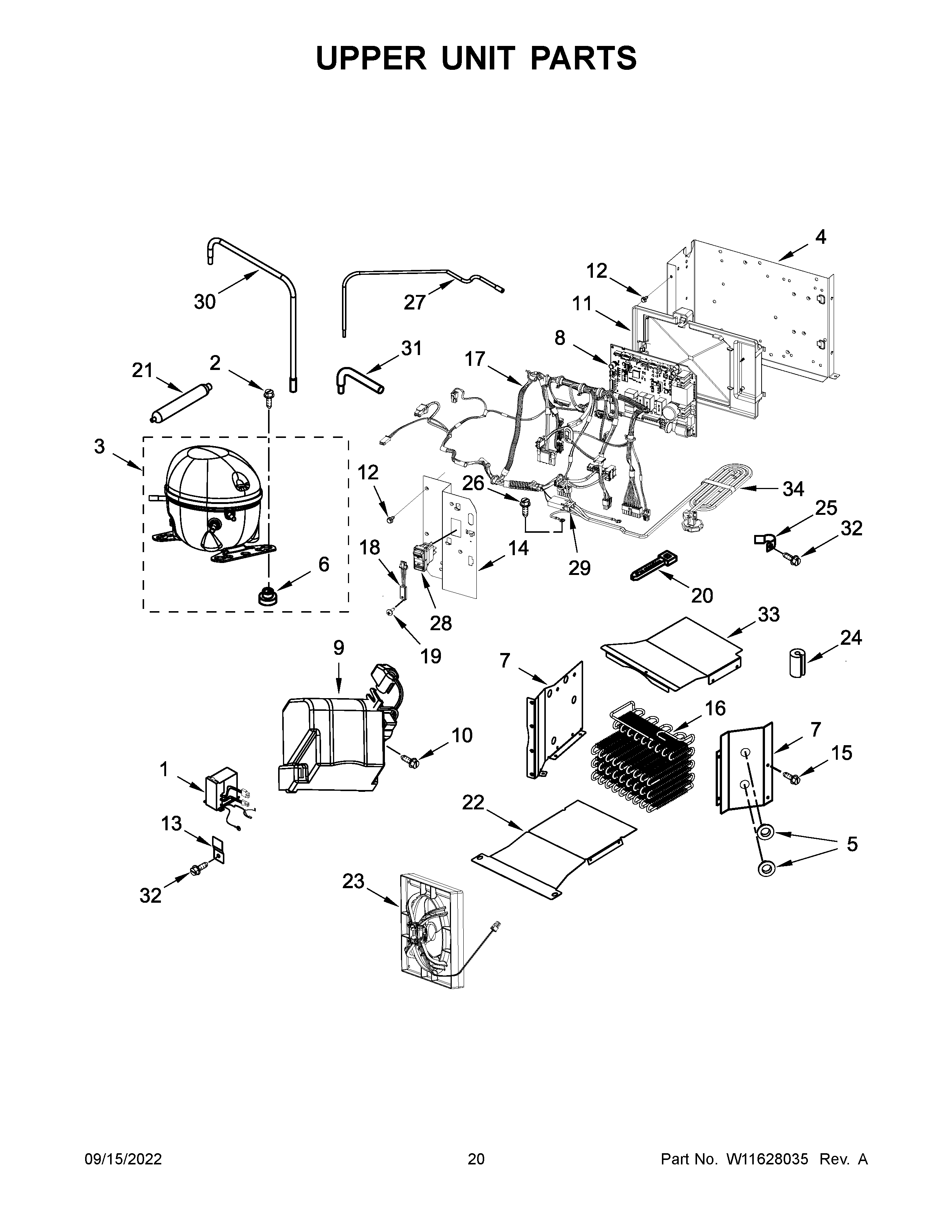

Upper unit parts diagram

Drier tube

Part #W10805035

Replaced by #W11109499

?
Manufacturer substitution
This part replaces W10805035. Substitute parts can look different from the original.
BEST SELLER
$24.38 |
20% OFF Phone Price : $30.38
In Stock
Refrigerator Water Filter Housing W10121140
#9

Cabinet parts diagram

Refrigerator water filter housing

Part #W10121140

Replaced by #WPW10121140

?
Manufacturer substitution
This part replaces W10121140. Substitute parts can look different from the original.
BEST SELLER
$98.42 |
11% OFF Phone Price : $110.42
In Stock
Refrigerator Touch-up Paint (white) 72017
#NI

Optional parts diagram

Refrigerator touch-up paint (white)

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Screw 487539
Screw

Part #487539

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487539. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Temperature Sensor 2188820
Refrigerator temperature sensor

Part #2188820

Replaced by #WP2188820

?
Manufacturer substitution
This part replaces 2188820. Substitute parts can look different from the original.
BEST SELLER
$33.56 |
15% OFF Phone Price : $39.56
In Stock
Appliance Silicone Lubricant 542638
#NI

Optional parts diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Touch Up Kit 72032
#NI

Optional parts diagram

Touch up kit

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
