KitchenAid
Gas Cooktop

Model # KGCP467JTL2 Official KitchenAid cooktop

Here are the diagrams and repair parts for Official KitchenAid KGCP467JTL2 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Spark Module 8522423
#29

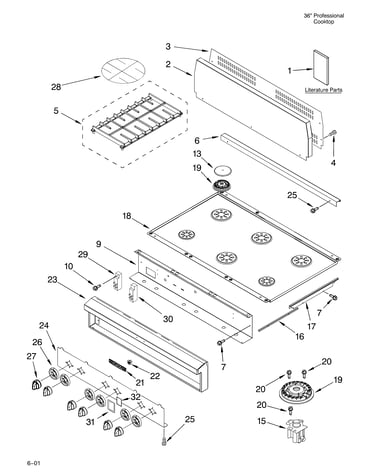

Cooktop, burner/grate/literature diagram

Spark module

Part #8522423

Replaced by #WPW10110491

?
Manufacturer substitution
This part replaces 8522423. Substitute parts can look different from the original.
$89.53 |
6% OFF Phone Price : $95.53
In Stock
Gasket Switch 3191387
#10A

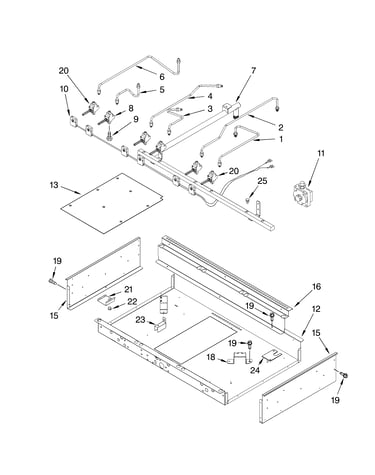

Burner box, gas valves, and switches diagram

Gasket switch

Part #3191387

Replaced by #WP3188425

?
Manufacturer substitution
This part replaces 3191387. Substitute parts can look different from the original.
$32.89 |
15% OFF Phone Price : $38.89
In Stock
Range Screw 3177991
Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Knob 4454970
#27

Cooktop, burner/grate/literature diagram

Knob

Part #4454970

Replaced by #WPW10078400

?
Manufacturer substitution
This part replaces 4454970. Substitute parts can look different from the original.
This item is not returnable
$4.78
In Stock
Range Screw 3400843
#10

Cooktop, burner/grate/literature diagram

Range screw

Part #3400843

Replaced by #WP12990527

?
Manufacturer substitution
This part replaces 3400843. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Range Screw 3368921
#20

Cooktop, burner/grate/literature diagram

Range screw

Part #3368921

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
This item is not returnable
$6.23 |
14% OFF Phone Price : $7.23
In Stock
Power Cord 3192231
#NI

Burner box, gas valves, and switches diagram

Power cord

Part #3192231

Replaced by #W10392007

?
Manufacturer substitution
This part replaces 3192231. Substitute parts can look different from the original.
$42.98
In Stock
Burner Head 8273216
#19A

Cooktop, burner/grate/literature diagram

Burner head

Part #8273216

Replaced by #WP4455979

?
Manufacturer substitution
This part replaces 8273216. Substitute parts can look different from the original.
$38.89 |
13% OFF Phone Price : $44.89
In Stock
Nut 2004333
#22

Cooktop, burner/grate/literature diagram

Nut

Part #2004333

Replaced by #WP2004333

?
Manufacturer substitution
This part replaces 2004333. Substitute parts can look different from the original.
This item is not returnable
$6.18
In Stock
Regulator 4455157
#11

Burner box, gas valves, and switches diagram

Regulator

Part #4455157

Replaced by #WP9759091

?
Manufacturer substitution
This part replaces 4455157. Substitute parts can look different from the original.
$135.59 |
8% OFF Phone Price : $147.59
In Stock
