Model # 143599022 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143599022 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |

Gasket 27110
#20

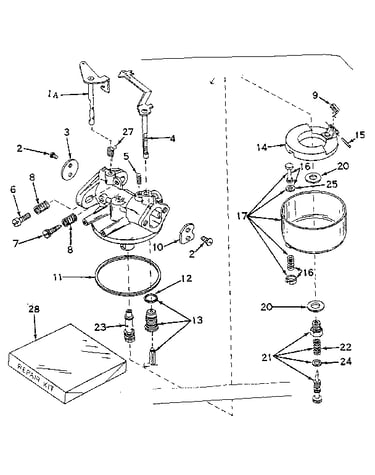

Carburetor diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Screw 30564
#32

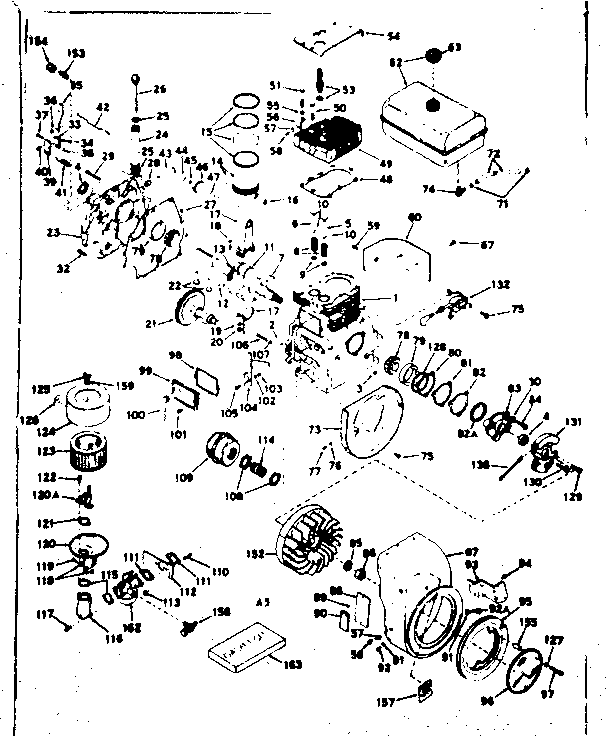

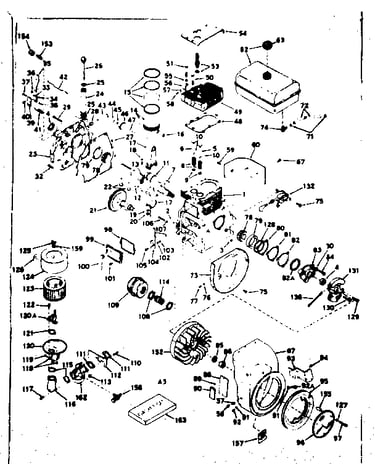

Basic engine diagram

Screw

Part #30564

The manufacturer no longer makes this part, and there's no substitute part

Start Pulley 31980
#95

Basic engine diagram

Start pulley

Part #31980

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 27105
#14

Carburetor diagram

/carb float

Part #27105

The manufacturer no longer makes this part, and there's no substitute part

Inlet Needle 32255A
#13

Carburetor diagram

Inlet needle

Part #32255A

The manufacturer no longer makes this part, and there's no substitute part

Clip 27793
#57

Basic engine diagram

Clip

Part #27793

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 31919
#16

Basic engine diagram

Retaining ring

Part #31919

The manufacturer no longer makes this part, and there's no substitute part

/gskt Flange 31956
#27

Basic engine diagram

/gskt flange

Part #31956

The manufacturer no longer makes this part, and there's no substitute part

Roll Bearing 31932
#78

Basic engine diagram

Roll bearing

Part #31932

The manufacturer no longer makes this part, and there's no substitute part

Bolt 32077
#18

Basic engine diagram

Bolt

Part #32077

The manufacturer no longer makes this part, and there's no substitute part
