Model # 917251884 Official Craftsman 38" tiller attachment

Here are the diagrams and repair parts for Official Craftsman 917251884 38" tiller attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

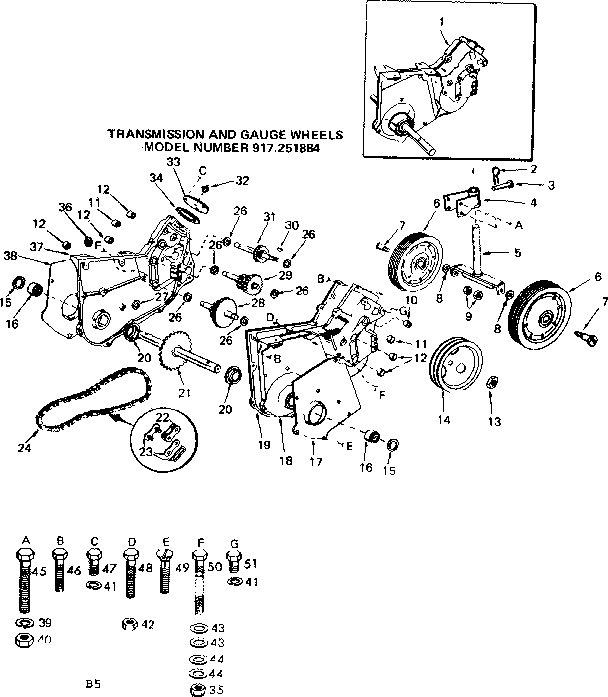

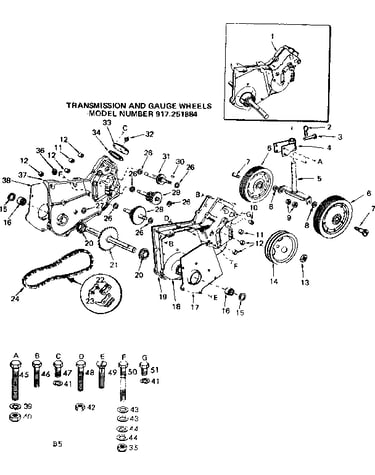

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Spring Retainer 3146R
#38

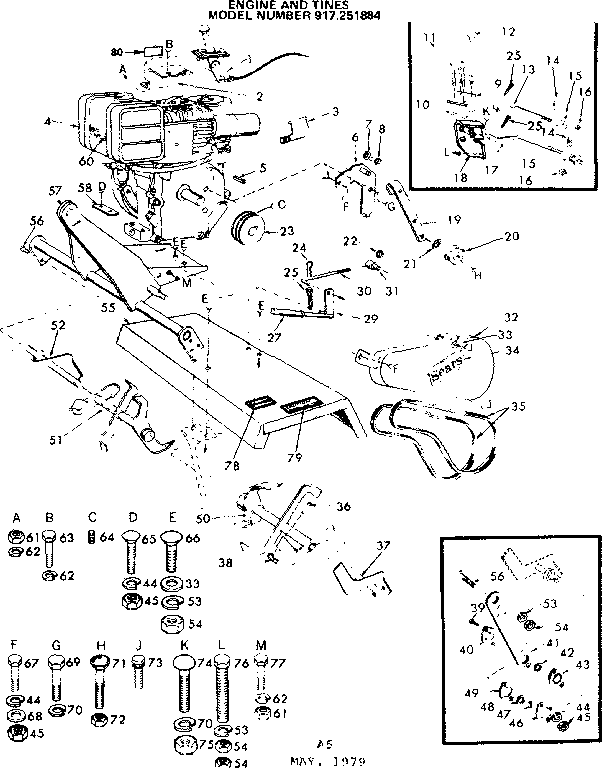

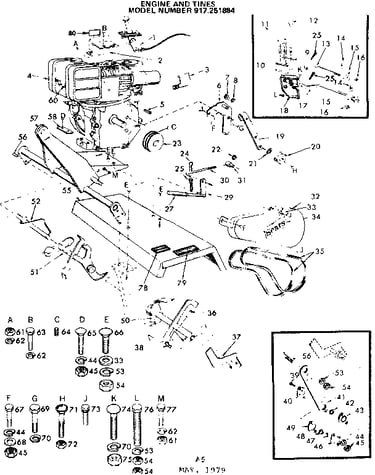

Engine and tines diagram

Spring retainer

Part #3146R

Replaced by #532003146

?
Manufacturer substitution
This part replaces 3146R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Thrust Bearing 1370H
Thrust bearing

Part #1370H

Replaced by #532001370

?
Manufacturer substitution
This part replaces 1370H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Hitch Pin, 2-pack 4939M
Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Retainer 4497H
#24

Engine and tines diagram

Retainer

Part #4497H

Replaced by #532004497

?
Manufacturer substitution
This part replaces 4497H. Substitute parts can look different from the original.
This item is not returnable
$6.30
In Stock
Bolt 69P
#71

Engine and tines diagram

Bolt

Part #69P

Replaced by #STD533717

?
Manufacturer substitution
This part replaces 69P. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Needle Bearing 6677H
Needle bearing

Part #6677H

Replaced by #532004895

?
Manufacturer substitution
This part replaces 6677H. Substitute parts can look different from the original.
This item is not returnable
$13.31 |
13% OFF Phone Price : $15.31
In Stock
Bolt 3288P
#76

Engine and tines diagram

Bolt

Part #3288P

Replaced by #874930632

?
Manufacturer substitution
This part replaces 3288P. Substitute parts can look different from the original.
$10.26
In Stock
Tractor Accessories Tiller Clevis Pin (replaces 138078, 326j, 326j500, 43023, 502498, 506028, 506538, 511606, 518015, 5297h, 532004929, 6202j, 711-0599, L-5042, L-5069, L-5078) 4929H
Tractor accessories tiller clevis pin (replaces 138078, 326j, 326j500, 43023, 502498, 506028, 506538, 511606, 518015, 5297h, 532004929, 6202j, 711-0599, l-5042, l-5069, l-5078)

Part #4929H

Replaced by #532004929

?
Manufacturer substitution
This part replaces 4929H. Substitute parts can look different from the original.
$10.26
In Stock
Needle Brg 4895H
Needle brg

Part #4895H

Replaced by #532004895

?
Manufacturer substitution
This part replaces 4895H. Substitute parts can look different from the original.
This item is not returnable
$13.31 |
13% OFF Phone Price : $15.31
In Stock
Bearing Seal 3136R
Bearing seal

Part #3136R

Replaced by #532005020

?
Manufacturer substitution
This part replaces 3136R. Substitute parts can look different from the original.
This item is not returnable
$19.98 |
9% OFF Phone Price : $21.98
In Stock
