Model # B26FT80SNS/03 Official Bosch refrigerator

Here are the diagrams and repair parts for Official Bosch B26FT80SNS-03 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

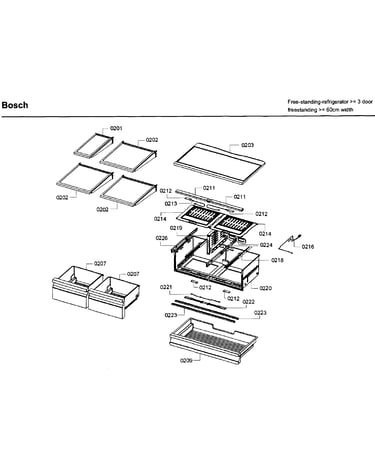

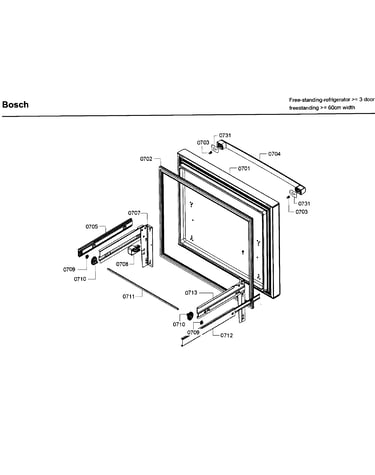

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Refrigerator Water Inlet Valve (replaces 649626) 00649626
#910

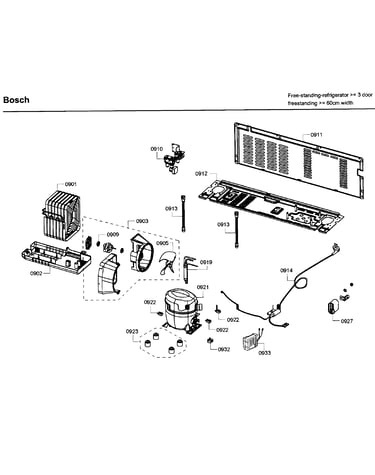

Compressor diagram

Refrigerator water inlet valve (replaces 649626)

Part #00649626

BEST SELLER
$123.13 |
9% OFF Phone Price : $135.13
In Stock
Refrigerator Defrost Sensor (replaces 618543) 00618543
#318

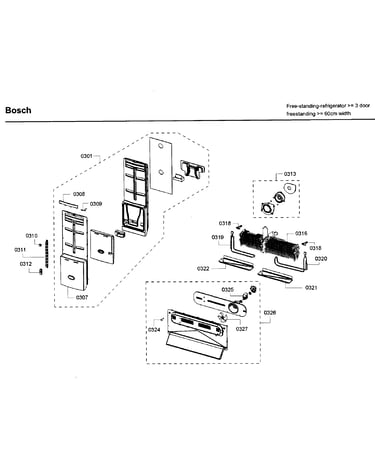

Evap asy diagram

Refrigerator defrost sensor (replaces 618543)

Part #00618543

BEST SELLER
$31.58
In Stock
Refrigerator Door Bin 00677090
#607

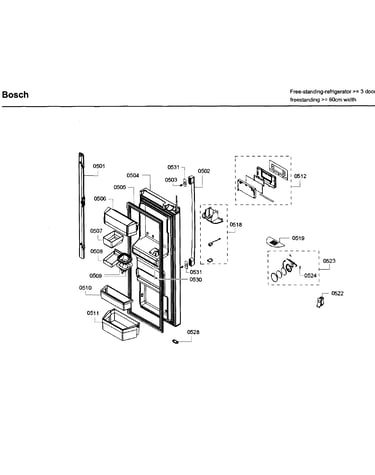

Door asy diagram

Refrigerator door bin

Part #00677090

$52.99 |
10% OFF Phone Price : $58.99
Back Order
Refrigerator Electronic Control Board 12010276
#113

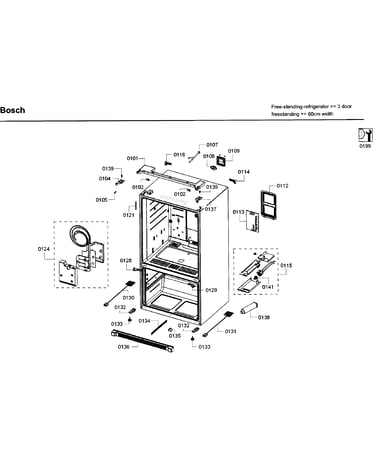

Cabinet diagram

Refrigerator electronic control board

Part #12010276

$194.49 |
6% OFF Phone Price : $206.49
In Stock
Refrigerator Ice Maker (replaces 658257) 00658257
#409

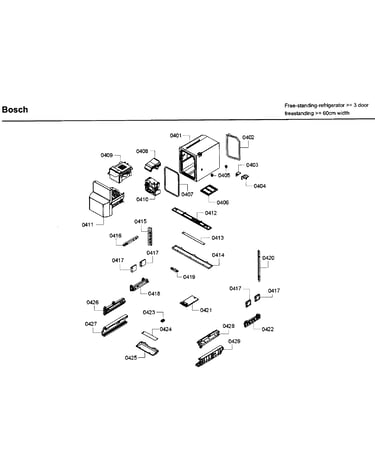

Icemaker diagram

Refrigerator ice maker (replaces 658257)

Part #00658257

$251.39 |
5% OFF Phone Price : $263.39
In Stock
Refrigerator Evaporator Cover Assembly (replaces 678777) 00678777
#301

Evap asy diagram

Refrigerator evaporator cover assembly (replaces 678777)

Part #00678777

$166.37 |
7% OFF Phone Price : $178.37
In Stock
Refrigerator Door Handle 00688822
Refrigerator door handle

Part #00688822

$146.66
In Stock
Refrigerator Evaporator Fan Motor (replaces 618893) 00618893
#325

Evap asy diagram

Refrigerator evaporator fan motor (replaces 618893)

Part #00618893

$70.69 |
8% OFF Phone Price : $76.69
In Stock
Refrigerator Ice Container Assembly 00677502
#411

Icemaker diagram

Refrigerator ice container assembly

Part #00677502

$242.11 |
5% OFF Phone Price : $254.11
In Stock
Refrigerator Defrost Heater 00677517
#320

Evap asy diagram

Refrigerator defrost heater

Part #00677517

$92.39 |
6% OFF Phone Price : $98.39
In Stock
