GE
Side-By-Side Refrigerator

Model # MSG22GAVAWH Official GE refrigerator

Here are the diagrams and repair parts for Official GE MSG22GAVAWH refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

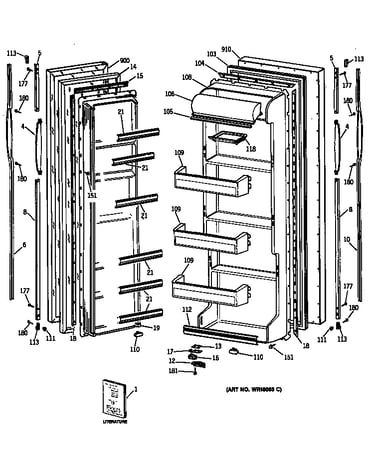

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 215 parts  |
Refrigerator Filter Dryer WR86X96
#740

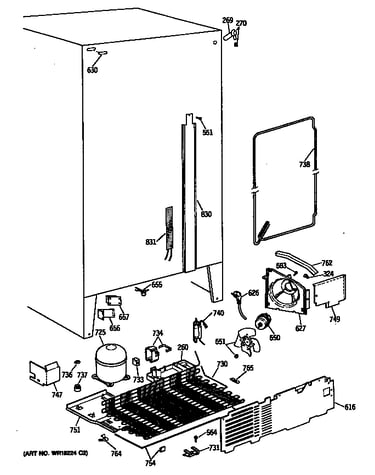

Unit diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces Wr50x0122, Wr50x10014, Wr50x128) WR50X122
#240

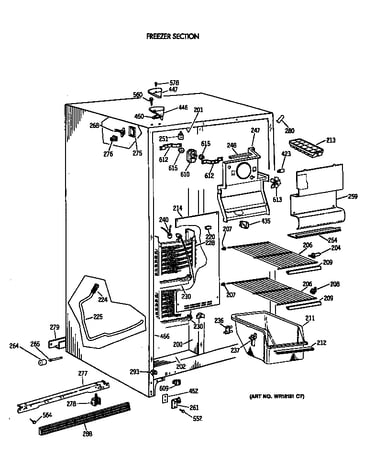

Freezer sectiojn diagram

Refrigerator defrost bi-metal thermostat (replaces wr50x0122, wr50x10014, wr50x128)

Part #WR50X122

BEST SELLER
$37.61 |
14% OFF Phone Price : $43.61
In Stock
Refrigerator Ice Maker Fill Tube Seal WR2X8474
#270B

Unit diagram

Refrigerator ice maker fill tube seal

Part #WR2X8474

$10.24 |
16% OFF Phone Price : $12.24
In Stock
Refrigerator Evaporator Fan Blade (replaces Swr2x3198, Swr60x114, Wr2x3198, Wr60x0114, Wr60x107, Wr60x113, Wr60x247, Wr60x55, Wr60x80) WR60X114
Refrigerator evaporator fan blade (replaces swr2x3198, swr60x114, wr2x3198, wr60x0114, wr60x107, wr60x113, wr60x247, wr60x55, wr60x80)

Part #WR60X114

This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Fan Blade WR2X3198
#613A

Freezer sectiojn diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Crisper Drawer Slide Rail, Left (replaces Wr72x0207, Wr72x156, Wr72x182, Wr72x203, Wr72x231, Wr72x86) WR72X207
#479B

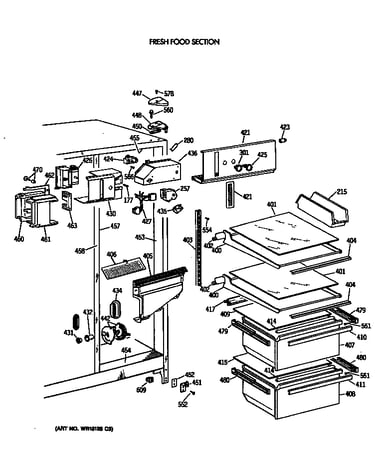

Fresh food section diagram

Refrigerator crisper drawer slide rail, left (replaces wr72x0207, wr72x156, wr72x182, wr72x203, wr72x231, wr72x86)

Part #WR72X207

$35.25 |
15% OFF Phone Price : $41.25
In Stock
Lo-side Kit WR85X282
#228

Freezer sectiojn diagram

Lo-side kit

Part #WR85X282

Replaced by #WR87X28949

?
Manufacturer substitution
This part replaces WR85X282. Substitute parts can look different from the original.
$340.63
In Stock
Refrigerator Screw, 2-pack WR1X1466

#NI

All parts diagram

Refrigerator screw, 2-pack

Part #WR1X1466

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WR1X1466. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock
Refrigerator Ice Cube Tray WR30X311
#213

Freezer sectiojn diagram

Refrigerator ice cube tray

Part #WR30X311

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Insulation Housing WD1X1459

#NI

All parts diagram

Insulation housing

Part #WD1X1459

$7.69 |
12% OFF Phone Price : $8.69
In Stock
