Model # UKI2500AXX Official Maytag ice maker kit

Here are the diagrams and repair parts for Official Maytag UKI2500AXX ice maker kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Refrigerator Ice Maker Module 95109-1
#10

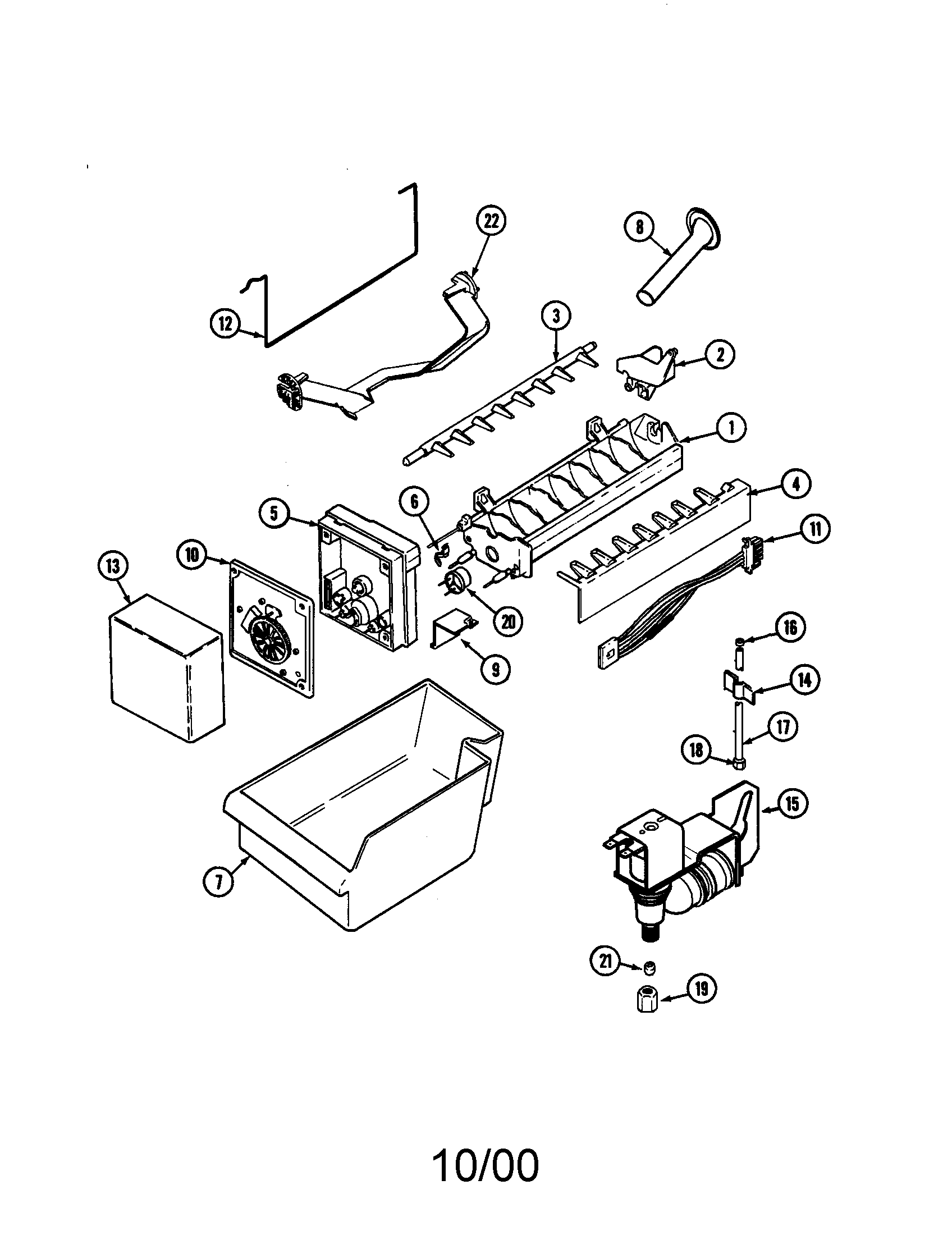

Ice maker kit diagram

Refrigerator ice maker module

Part #95109-1

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Mold And Heater 95098-1
#1

Ice maker kit diagram

Refrigerator mold and heater

Part #95098-1

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces 95098-1. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Screw 95106-1
#5A

Ice maker kit diagram

Refrigerator screw

Part #95106-1

Replaced by #WP681249

?
Manufacturer substitution
This part replaces 95106-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Support Module 95103-1
#5

Ice maker kit diagram

Support module

Part #95103-1

Replaced by #WP2195914

?
Manufacturer substitution
This part replaces 95103-1. Substitute parts can look different from the original.
$40.73 |
13% OFF Phone Price : $46.73
In Stock
Refrigerator Water Tube Fitting 69583-1
#18

Ice maker kit diagram

Refrigerator water tube fitting

Part #69583-1

Replaced by #WP627018

?
Manufacturer substitution
This part replaces 69583-1. Substitute parts can look different from the original.
This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Refrigerator Tubing 67579-26
#17

Ice maker kit diagram

Refrigerator tubing

Part #67579-26

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces 67579-26. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Refrigerator Screw 95108-1
#9A

Ice maker kit diagram

Refrigerator screw

Part #95108-1

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 95108-1. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Stripper, Ic 95102-1
#4

Ice maker kit diagram

Stripper, ic

Part #95102-1

Replaced by #WP2182124

?
Manufacturer substitution
This part replaces 95102-1. Substitute parts can look different from the original.
$30.59 |
16% OFF Phone Price : $36.59
In Stock
Refrigerator Screw 61002819
#15A

Ice maker kit diagram

Refrigerator screw

Part #61002819

Replaced by #WP8281227

?
Manufacturer substitution
This part replaces 61002819. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Refrigerator Thermostat 95092-1
#20

Ice maker kit diagram

Refrigerator thermostat

Part #95092-1

Replaced by #WP627985

?
Manufacturer substitution
This part replaces 95092-1. Substitute parts can look different from the original.
$47.98 |
11% OFF Phone Price : $53.98
In Stock
