Bosch
Upright Freezer

Model # B18IF800SP/02 Official Bosch upright freezer

Here are the diagrams and repair parts for Official Bosch B18IF800SP-02 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
Freezer Water Filter 00740560
#411

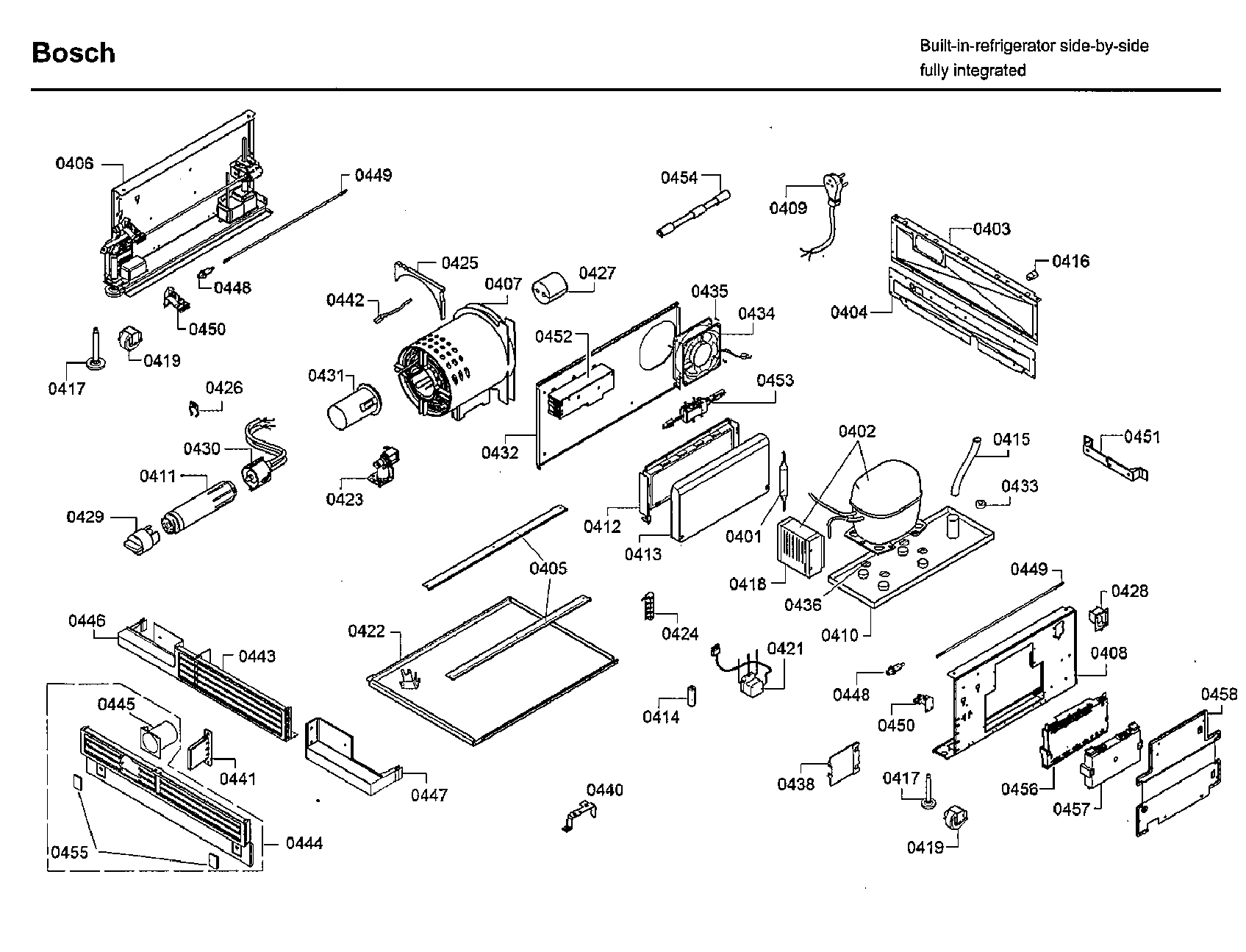

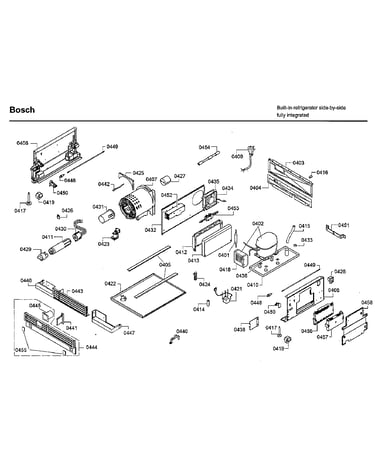

Compressor diagram

Freezer water filter

Part #00740560

Replaced by #00644845

?
Manufacturer substitution
This part replaces 00740560. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$61.39
In Stock
Refrigerator Defrost Sensor 00617203
#130

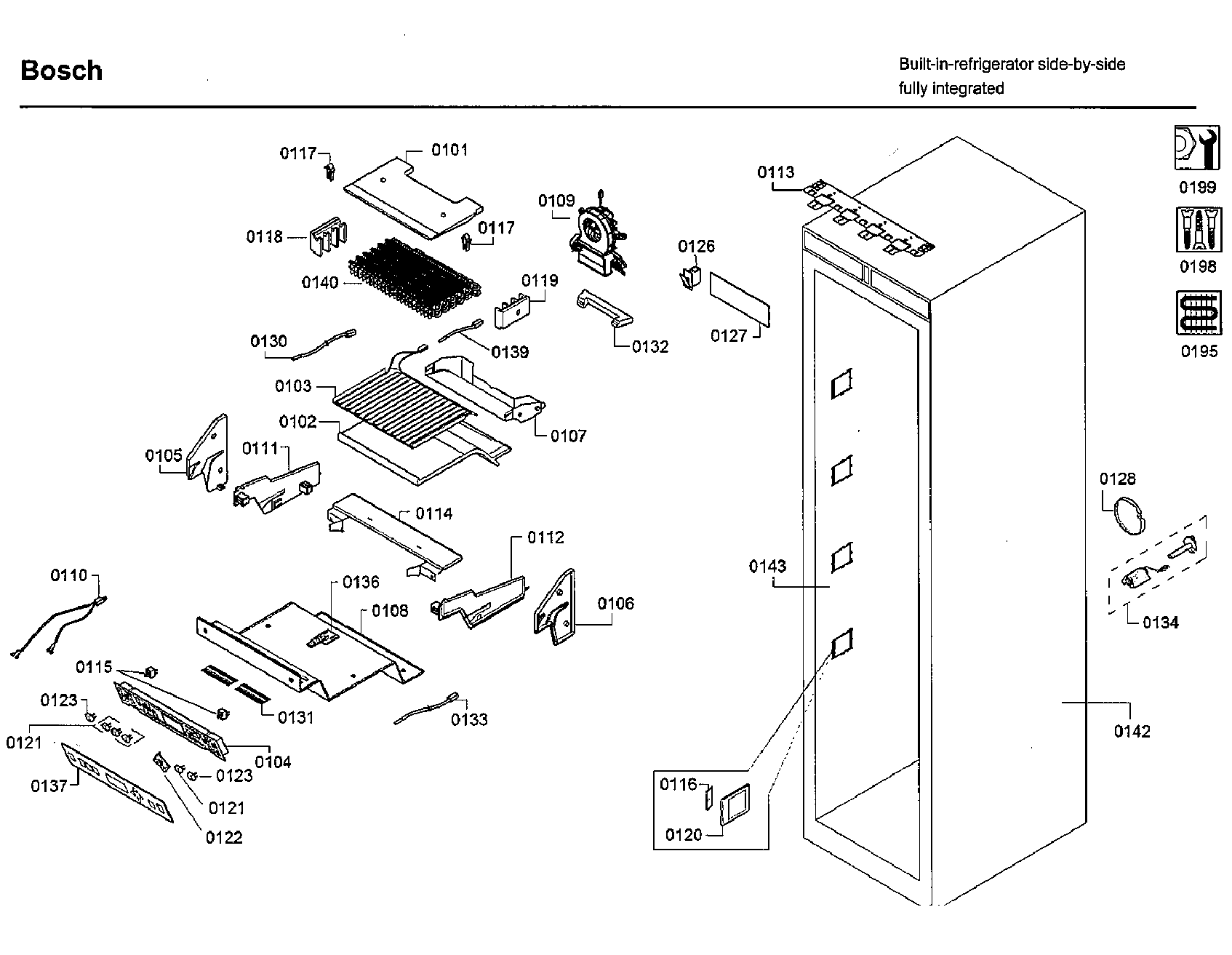

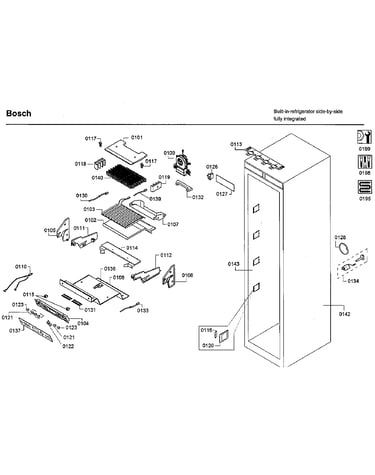

Freezer diagram

Refrigerator defrost sensor

Part #00617203

This item is not returnable
$23.59 |
20% OFF Phone Price : $29.59
In Stock
Cve Module 00499853
#413

Compressor diagram

Cve module

Part #00499853

$50.89 |
11% OFF Phone Price : $56.89
In Stock
Freezer Control Panel On/off Switch 00168427
#115

Freezer diagram

Freezer control panel on/off switch

Part #00168427

$22.34
In Stock
Thermador Profile 00668414
#502

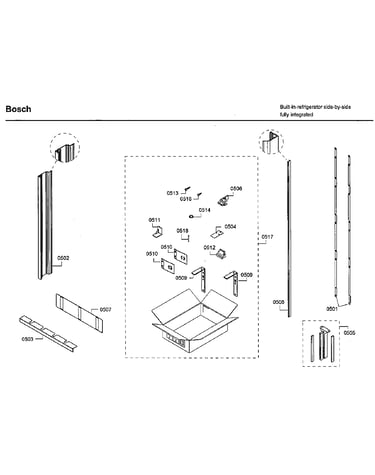

Mounting diagram

Thermador profile

Part #00668414

$36.27
In Stock
Fixture 00605604
#217

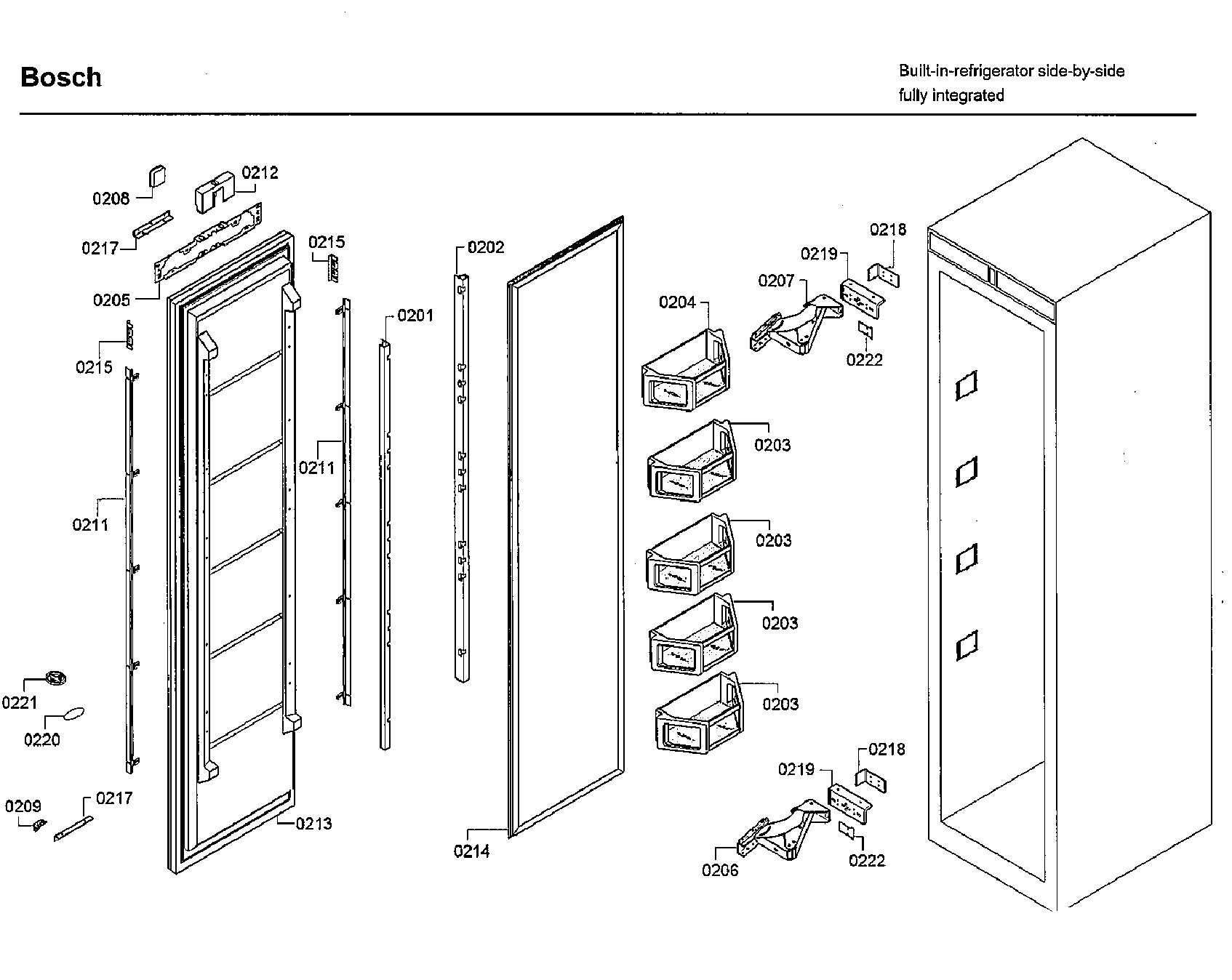

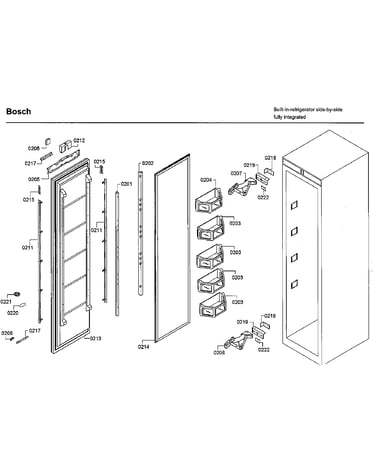

Door diagram

Fixture

Part #00605604

$12.71
In Stock
Thermador Housing 00607364
#431

Compressor diagram

Thermador housing

Part #00607364

This item is not returnable
$5.26
In Stock
Stripe 00246644
#508

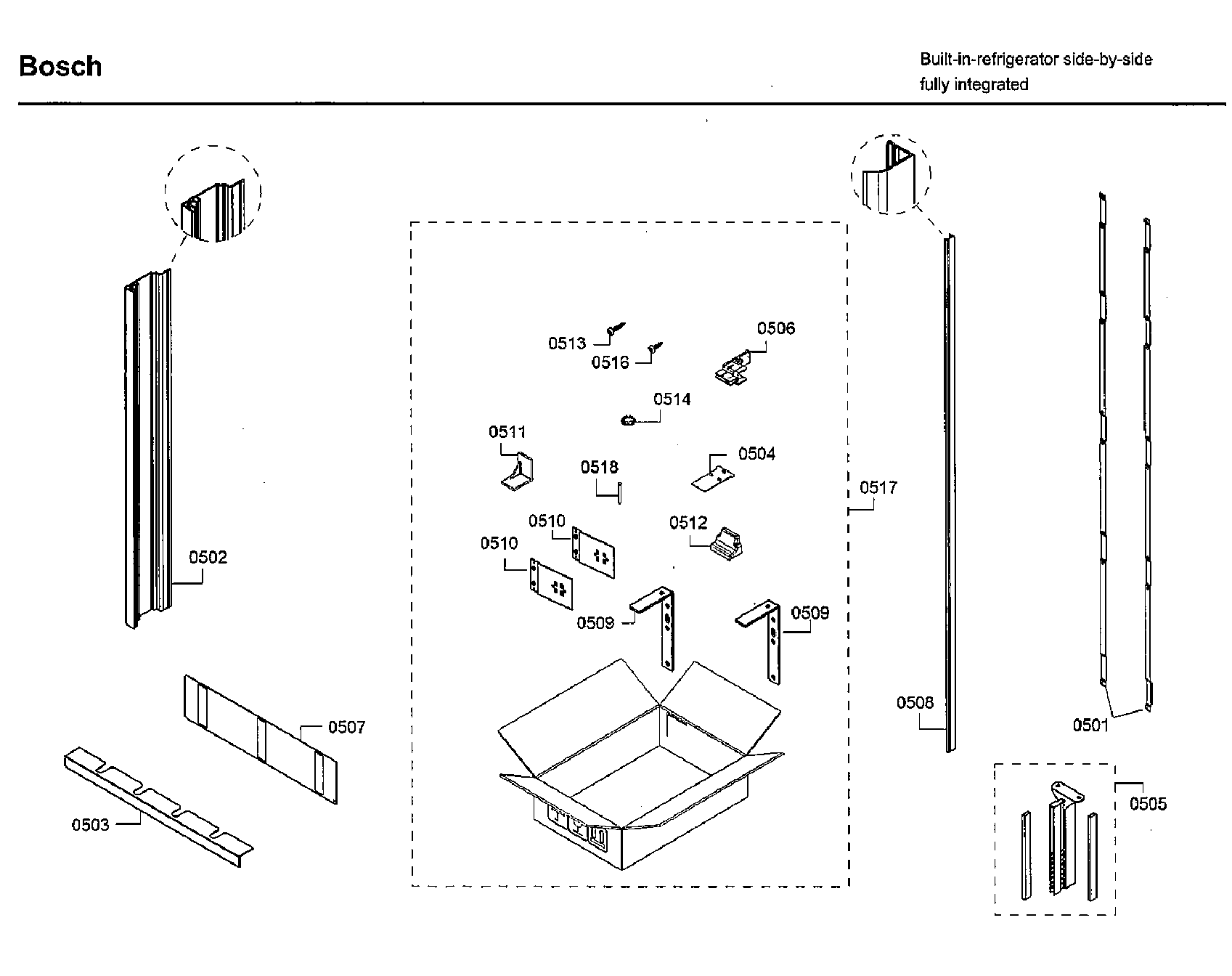

Mounting diagram

Stripe

Part #00246644

$97.42 |
11% OFF Phone Price : $109.42
In Stock
Cvr Hinge 00628239
Cvr hinge

Part #00628239

This item is not returnable
$7.14
In Stock
Cover 00641518
#308

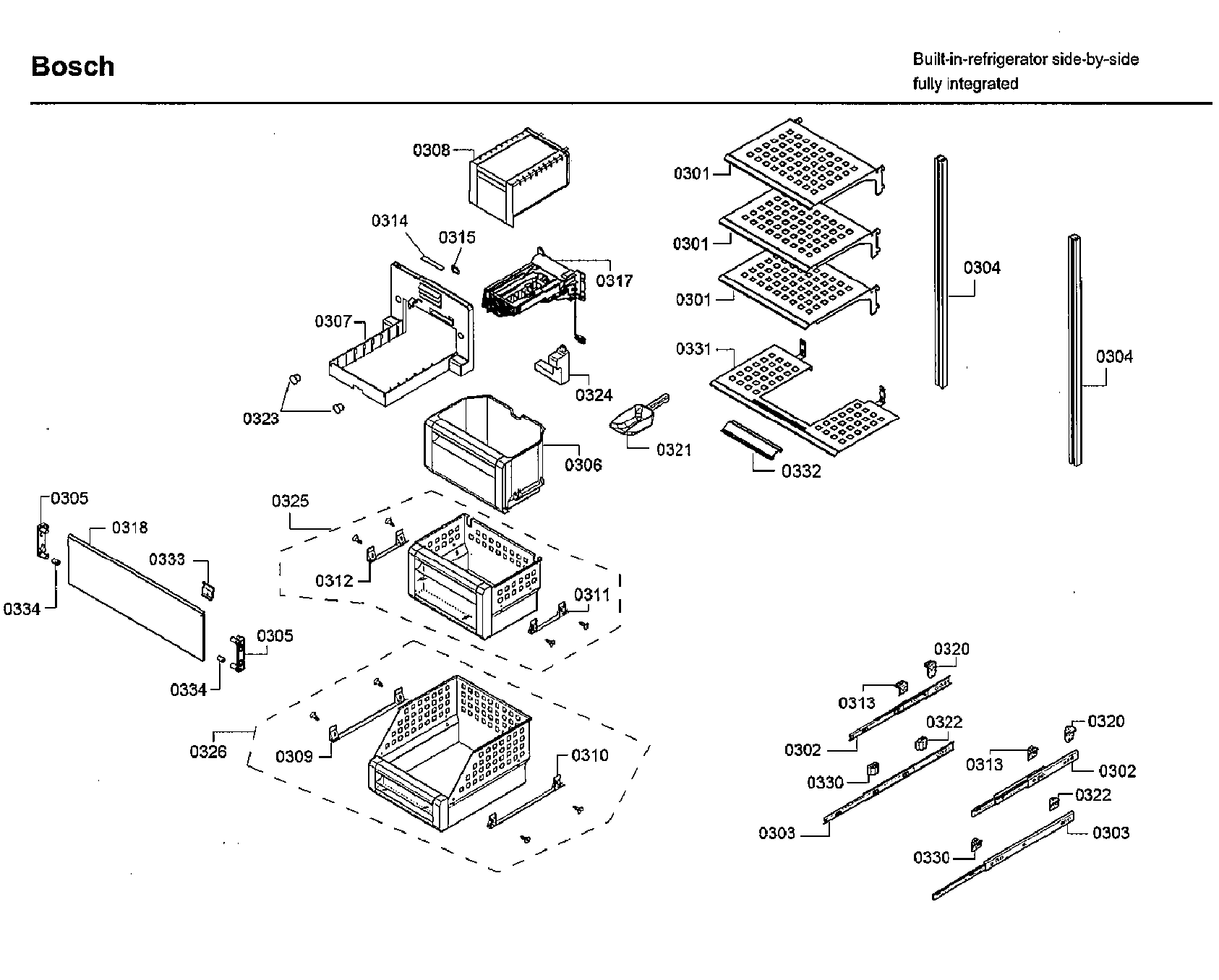

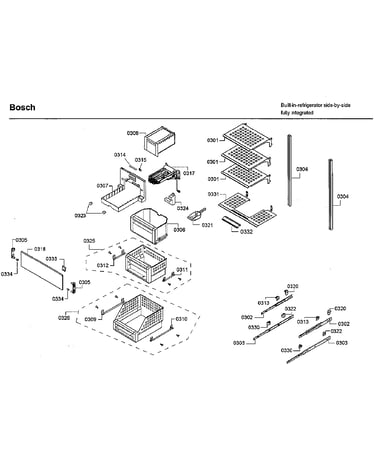

Shelfs diagram

Cover

Part #00641518

$102.44
In Stock
