Model # 4KMVWC300BW0 Official Maytag washer

Here are the diagrams and repair parts for Official Maytag 4KMVWC300BW0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

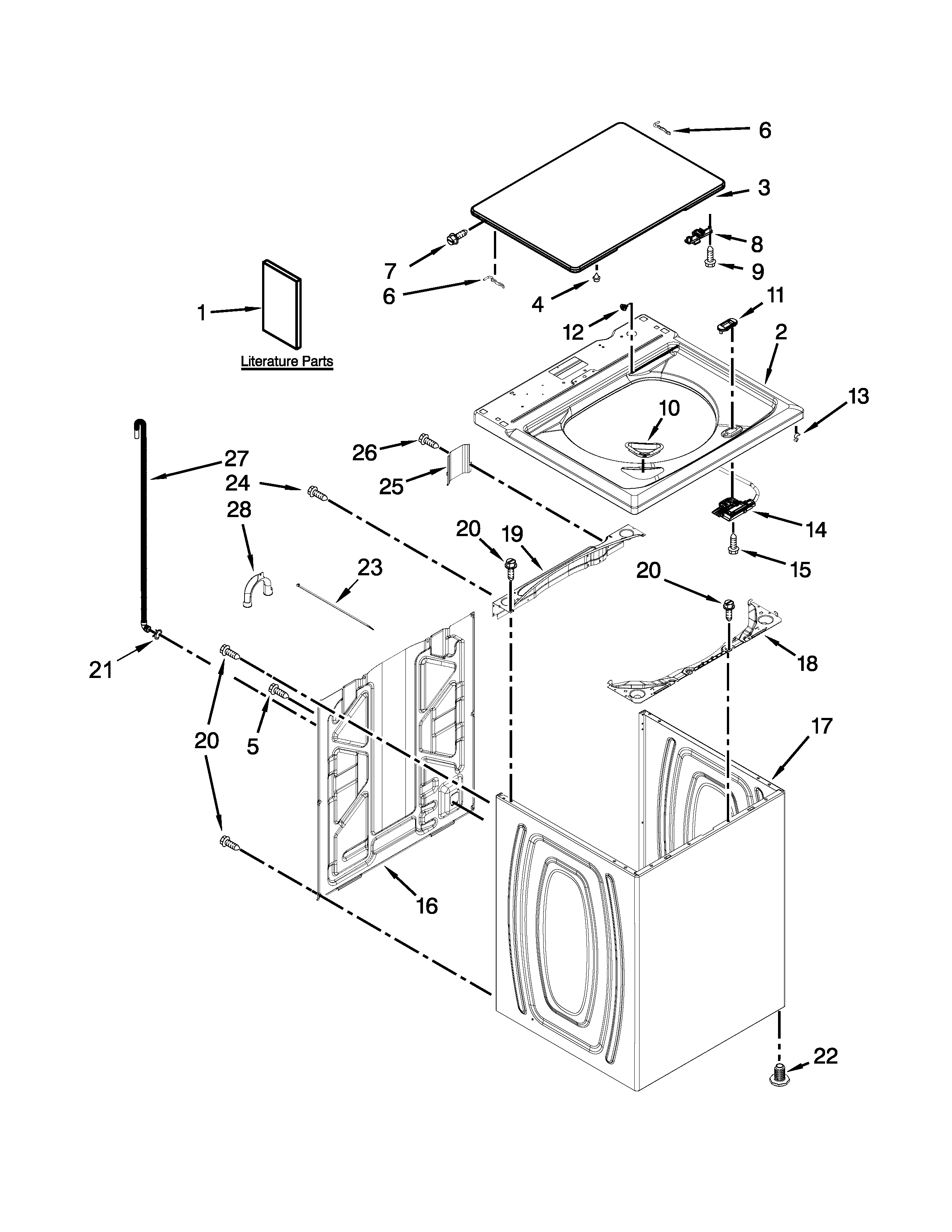

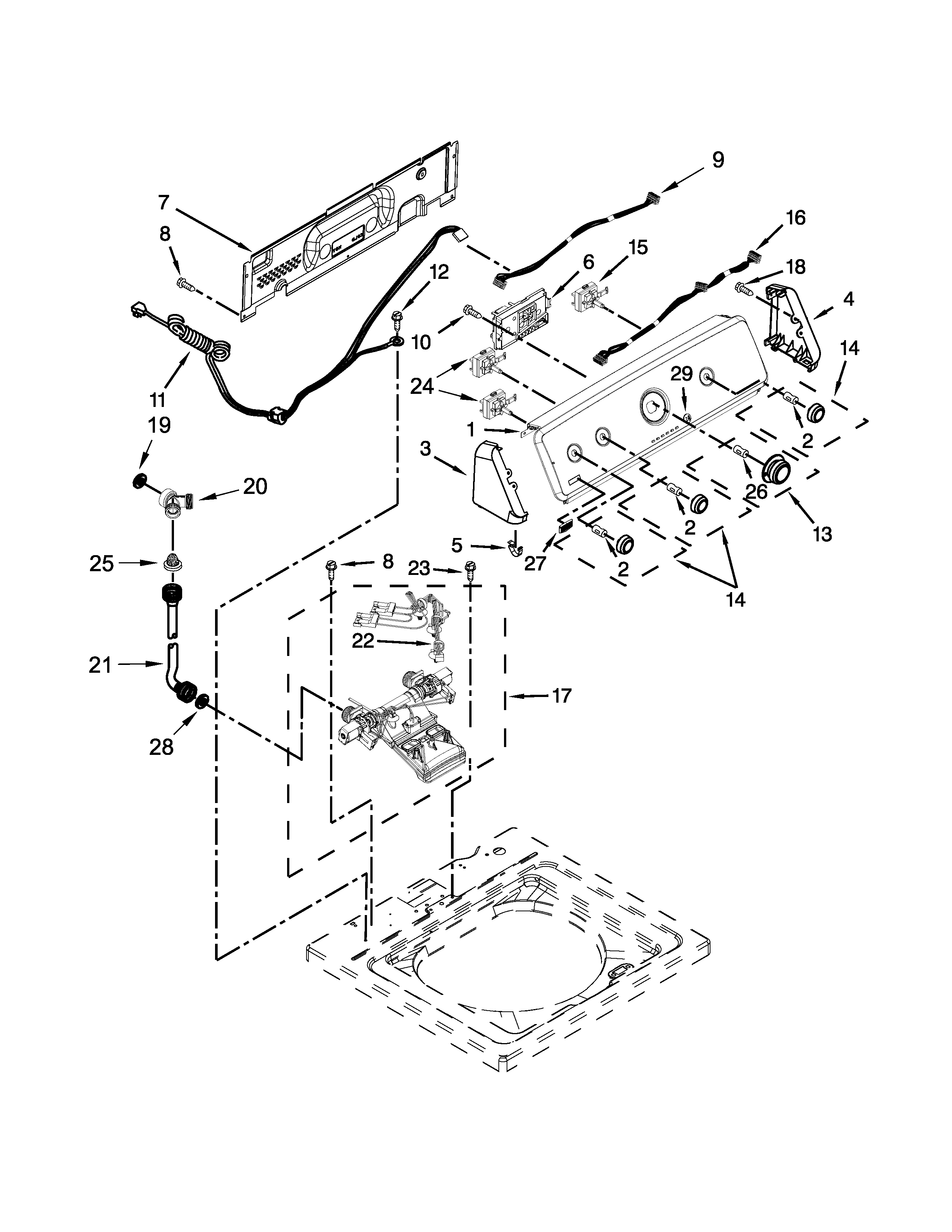

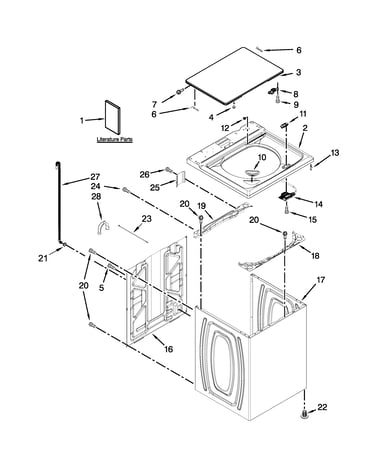

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Washer Drive Pulley W10536113
#13

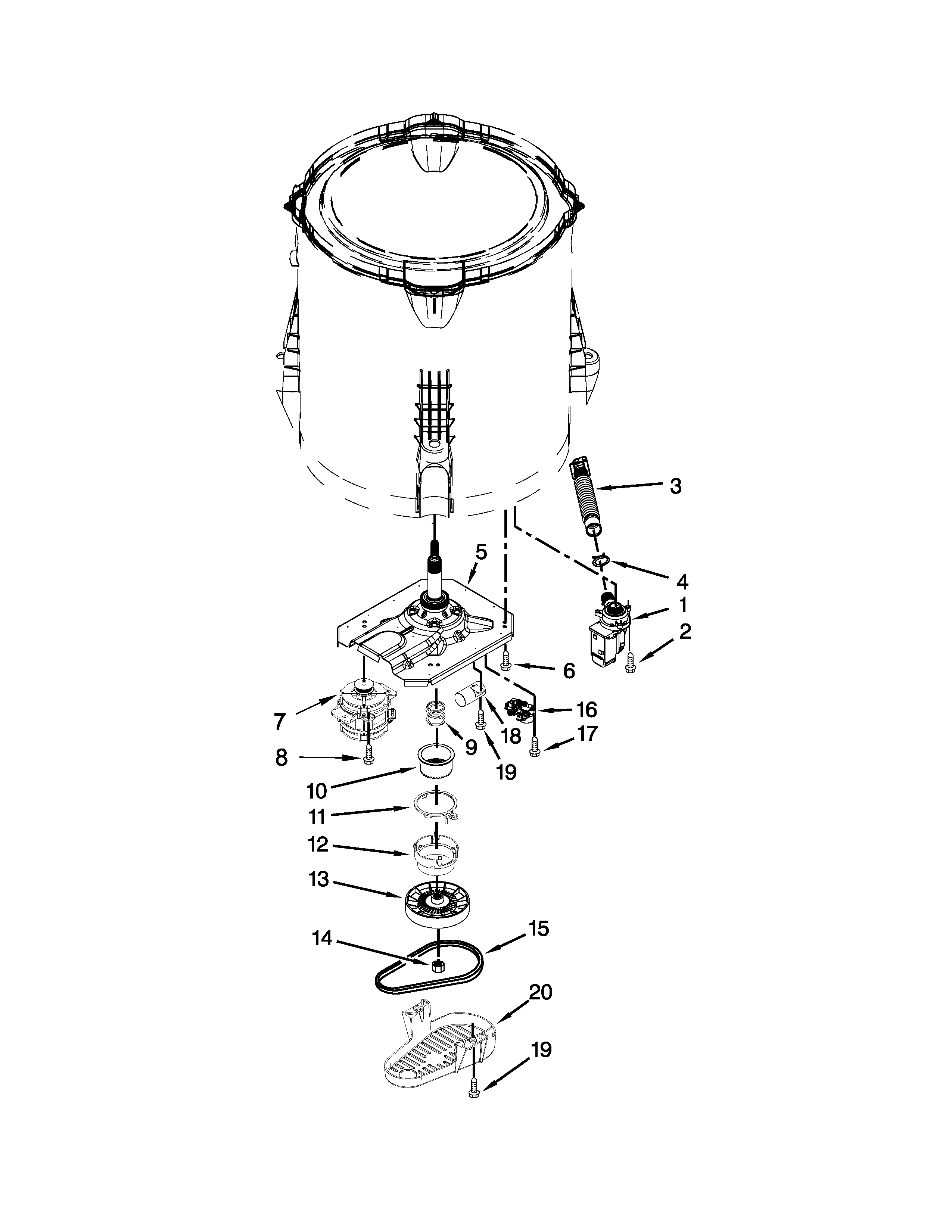

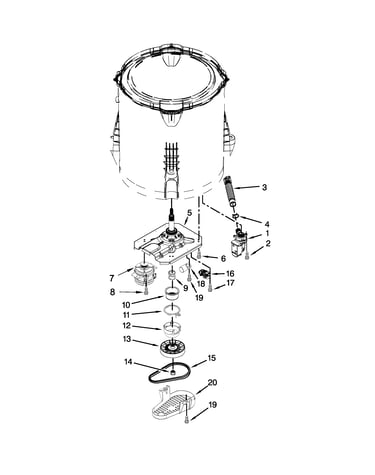

Gearcase, motor and pump parts diagram

Washer drive pulley

Part #W10536113

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10536113. Substitute parts can look different from the original.
BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Cam W10006353
#11

Gearcase, motor and pump parts diagram

Cam

Part #W10006353

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10006353. Substitute parts can look different from the original.
BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Washer Drive Pulley And Splutch Assembly W10006352
#10

Gearcase, motor and pump parts diagram

Washer drive pulley and splutch assembly

Part #W10006352

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10006352. Substitute parts can look different from the original.
BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Cam W10006354
#12

Gearcase, motor and pump parts diagram

Cam

Part #W10006354

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10006354. Substitute parts can look different from the original.
BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Spring W10326374
#9

Gearcase, motor and pump parts diagram

Spring

Part #W10326374

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10326374. Substitute parts can look different from the original.
BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Agitator Dog 3366877
#8

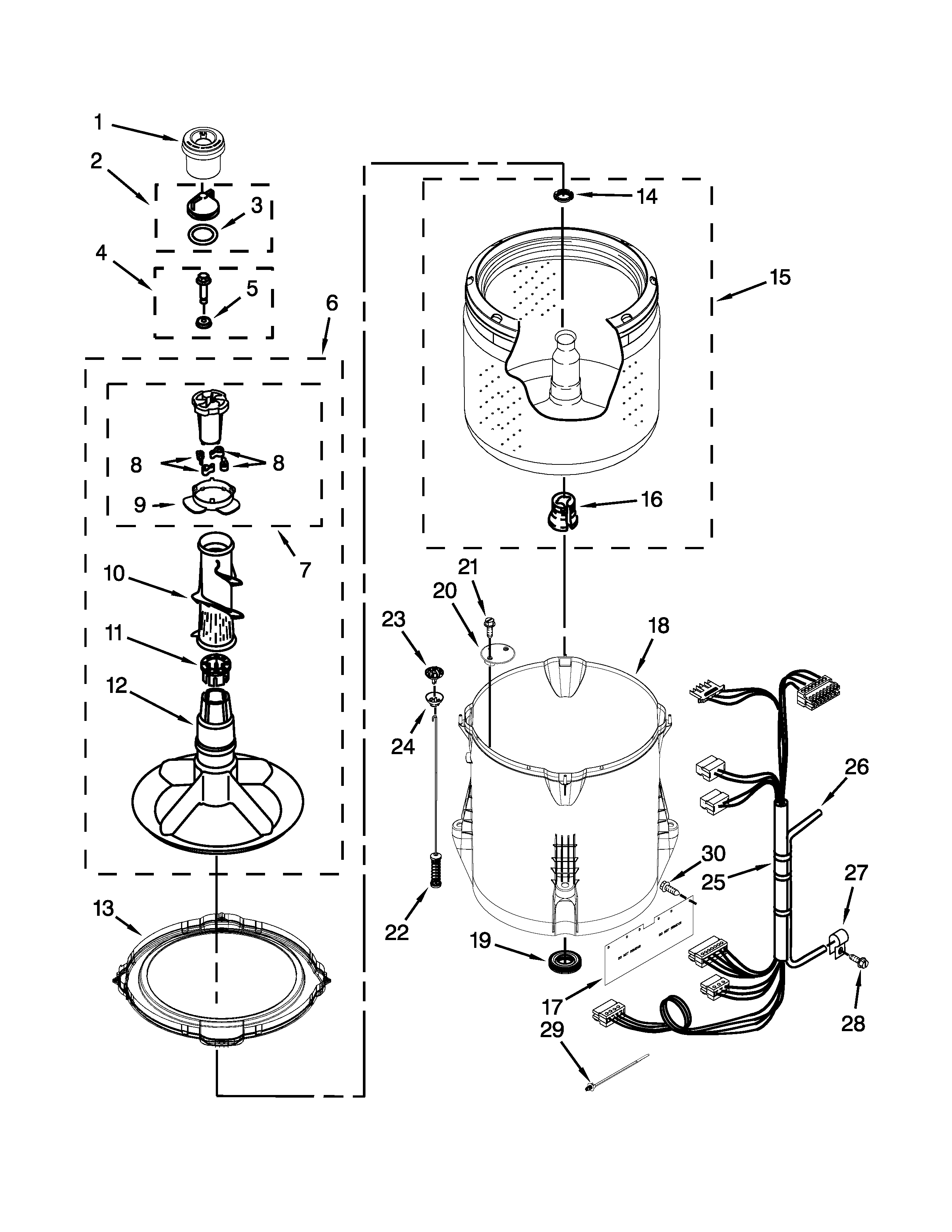

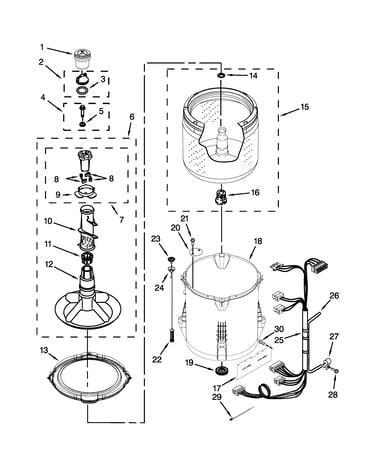

Basket and tub parts diagram

Agitator dog

Part #3366877

Replaced by #80040

?
Manufacturer substitution
This part replaces 3366877. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Washer Drive Belt W10006384
#15

Gearcase, motor and pump parts diagram

Washer drive belt

Part #W10006384

Replaced by #WPW10006384

?
Manufacturer substitution
This part replaces W10006384. Substitute parts can look different from the original.
BEST SELLER
$25.38 |
19% OFF Phone Price : $31.38
In Stock
Suspension W10257088
#22

Basket and tub parts diagram

Suspension

Part #W10257088

Replaced by #W10780048

?
Manufacturer substitution
This part replaces W10257088. Substitute parts can look different from the original.
BEST SELLER
$62.83 |
9% OFF Phone Price : $68.83
In Stock
Washer Drive Block 389140
#16

Basket and tub parts diagram

Washer drive block

Part #389140

Replaced by #WP389140

?
Manufacturer substitution
This part replaces 389140. Substitute parts can look different from the original.
BEST SELLER
$23.94 |
20% OFF Phone Price : $29.94
In Stock
Washer Spanner Nut 21366
#14

Basket and tub parts diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
