Model # 867816232 Official Kenmore air conditioner condensing unit

Here are the diagrams and repair parts for Official Kenmore 867816232 air conditioner condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Motor 1/4 Hp 87510
#44

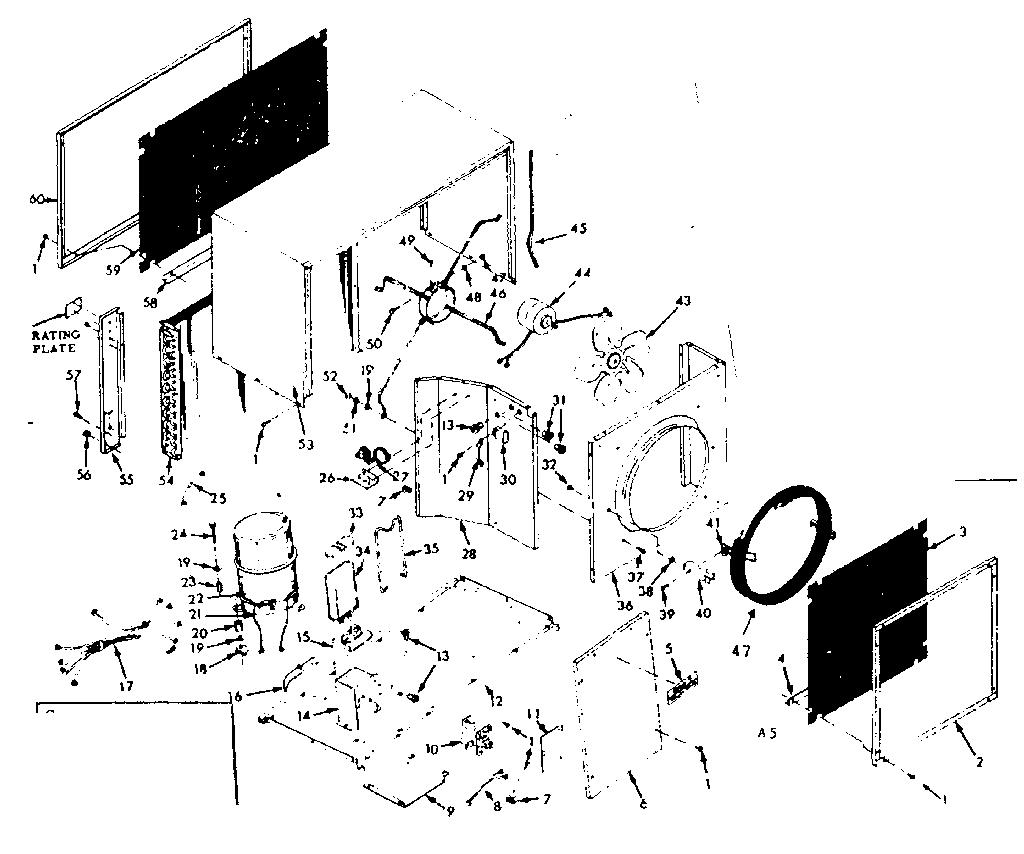

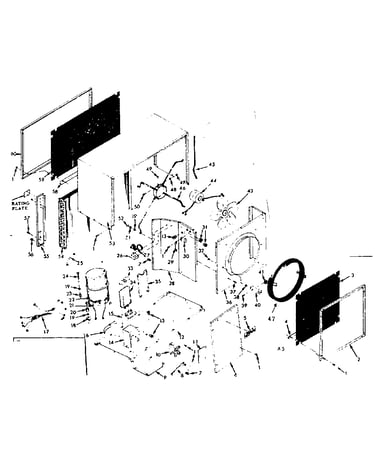

Condensing unit diagram

Motor 1/4 hp

Part #87510

Replaced by #45461

?
Manufacturer substitution
This part replaces 87510. Substitute parts can look different from the original.
BEST SELLER
$207.04
In Stock
Fan Blade 89165
#43

Condensing unit diagram

Fan blade

Part #89165

Replaced by #1080764

?
Manufacturer substitution
This part replaces 89165. Substitute parts can look different from the original.
$80.17
In Stock
Fan Capacitor 85130
#30

Condensing unit diagram

Fan capacitor

Part #85130

Replaced by #12005

?
Manufacturer substitution
This part replaces 85130. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Contactor 85070
#10

Condensing unit diagram

Contactor

Part #85070

Replaced by #90-244

?
Manufacturer substitution
This part replaces 85070. Substitute parts can look different from the original.
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Start Kit 87416

#NI

All parts diagram

Start kit

Part #87416

The manufacturer no longer makes this part, and there's no substitute part

Guarantee F642-5864

#NI

All parts diagram

Guarantee

Part #F642-5864

The manufacturer no longer makes this part, and there's no substitute part

Compressor YRB4-0300-PFB-210
#22

Condensing unit diagram

Compressor

Part #YRB4-0300-PFB-210

The manufacturer no longer makes this part, and there's no substitute part

Screw 85790
#1

Condensing unit diagram

Screw

Part #85790

The manufacturer no longer makes this part, and there's no substitute part

Screw 128301
#39

Condensing unit diagram

Screw

Part #128301

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 86730
#5

Condensing unit diagram

Nameplate

Part #86730

The manufacturer no longer makes this part, and there's no substitute part
