Model # TPS24BICEBS Official GE refrigerator - c series
Here are the diagrams and repair parts for Official GE TPS24BICEBS refrigerator - c series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

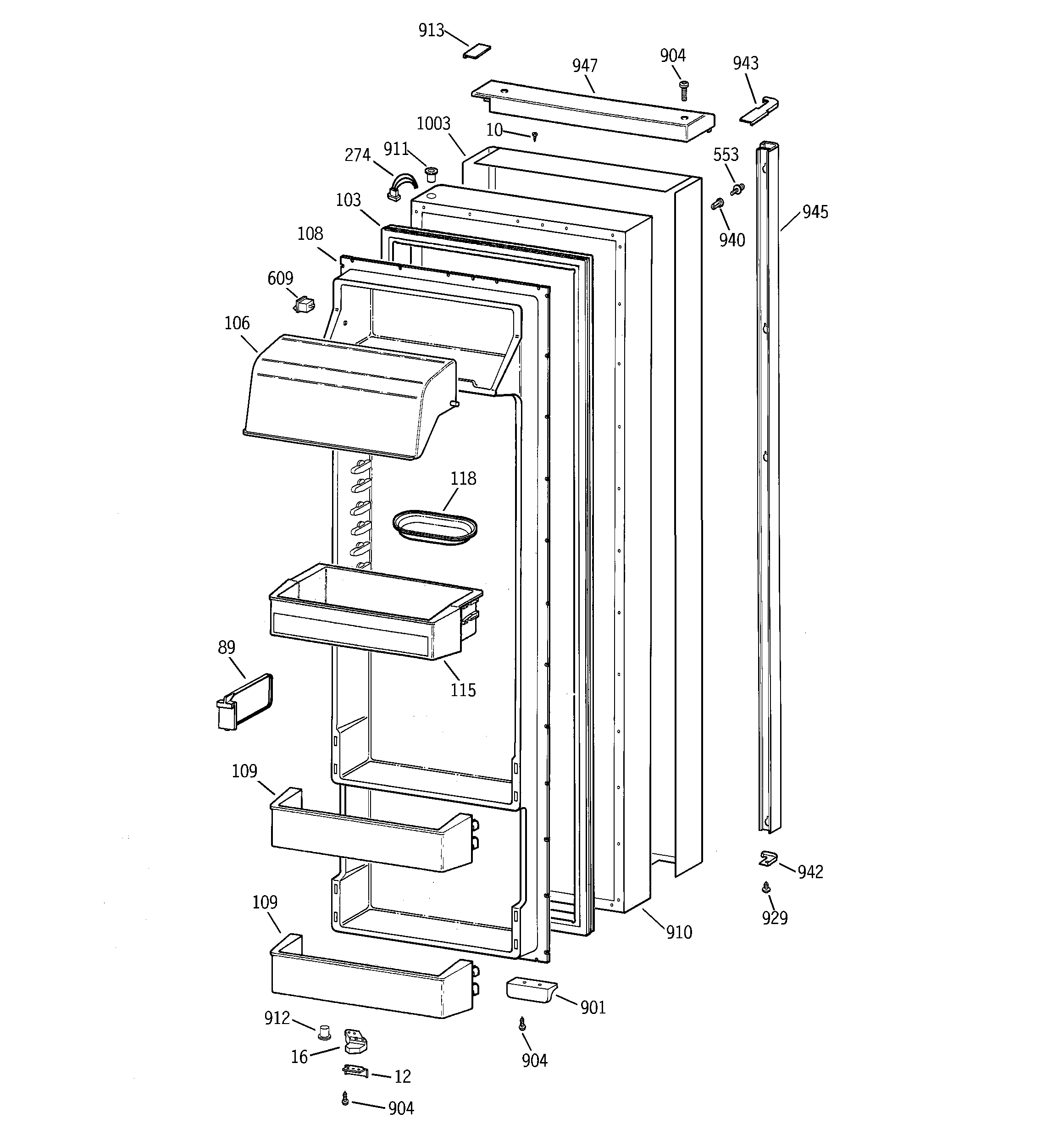

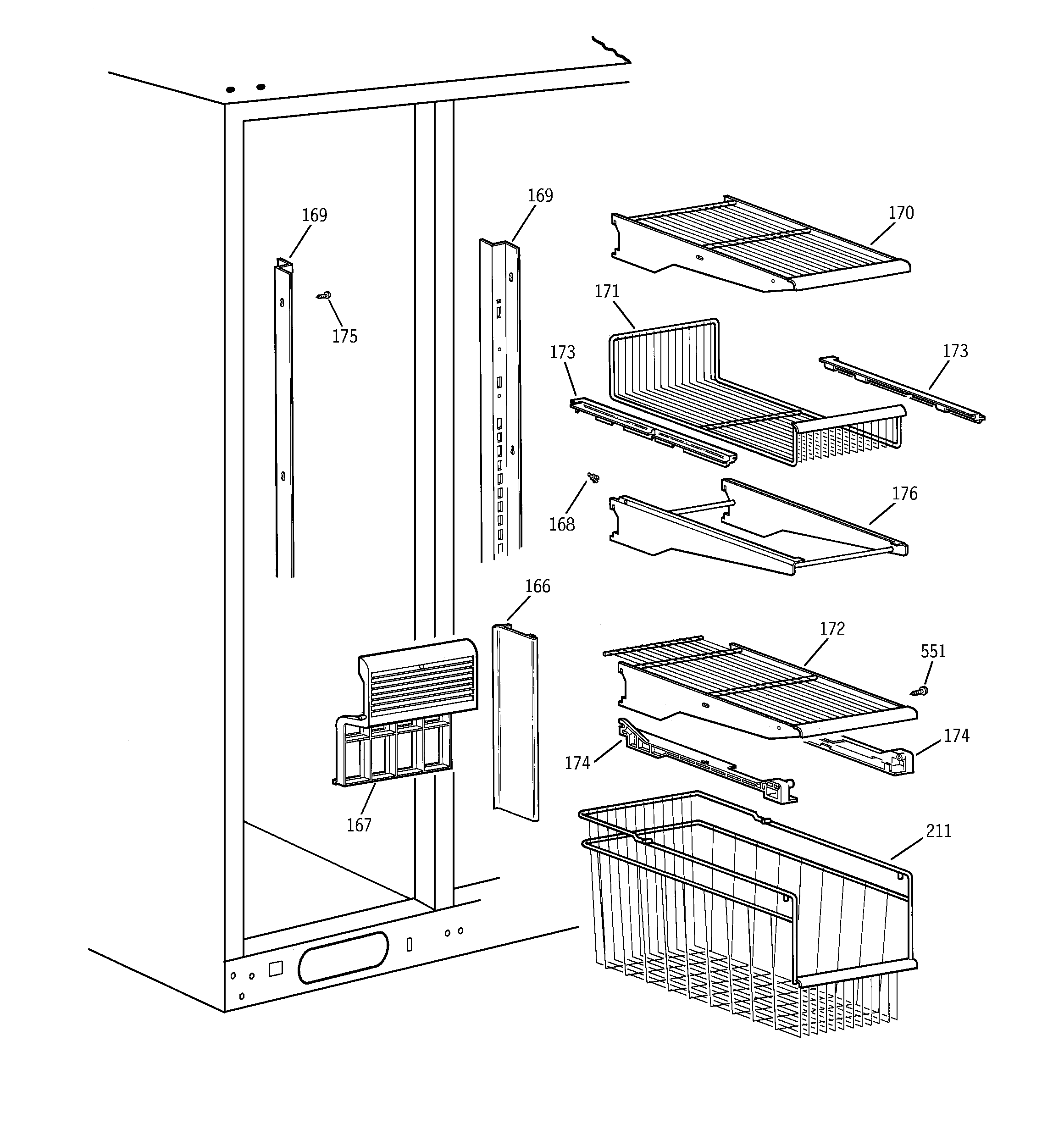

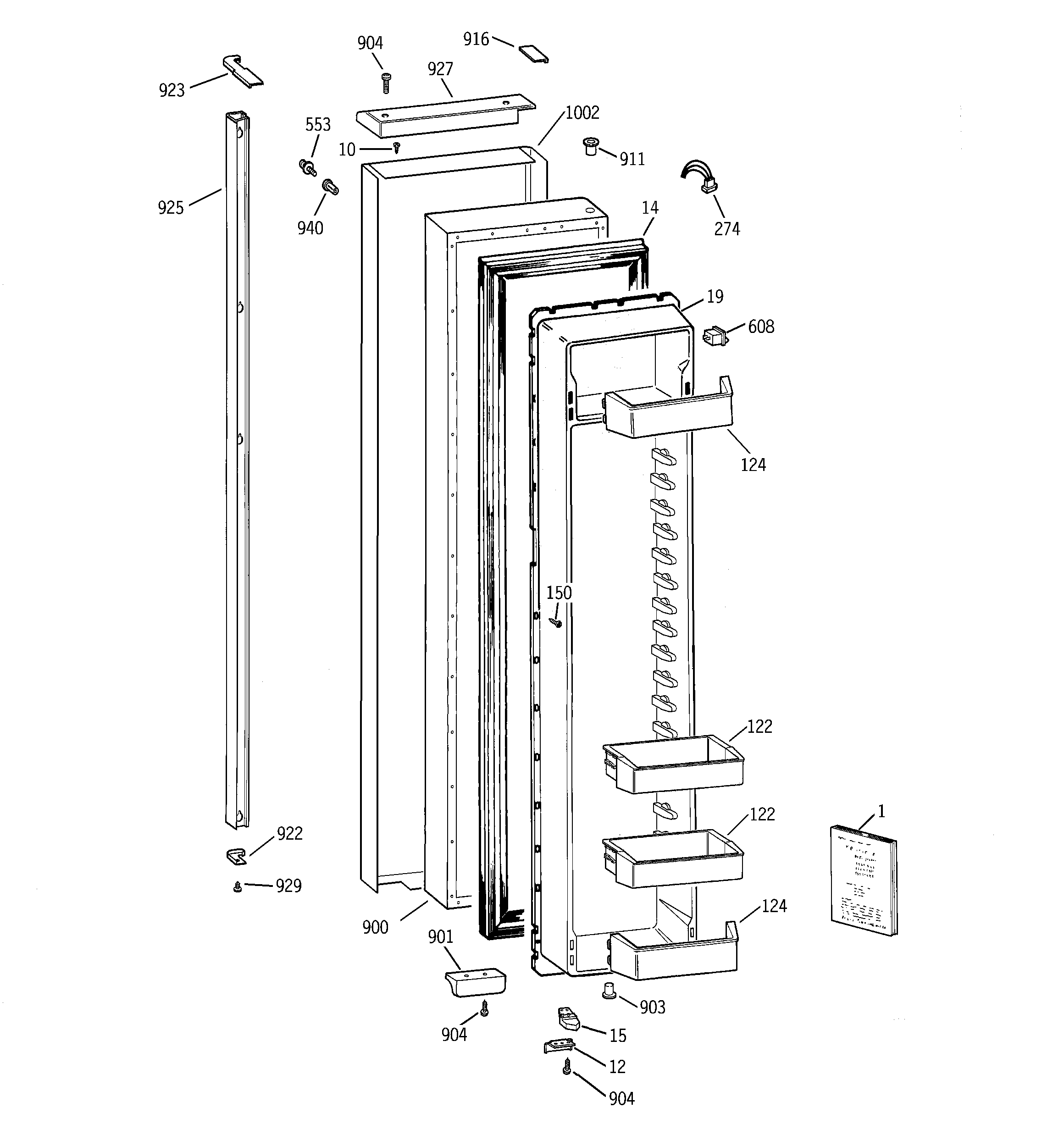

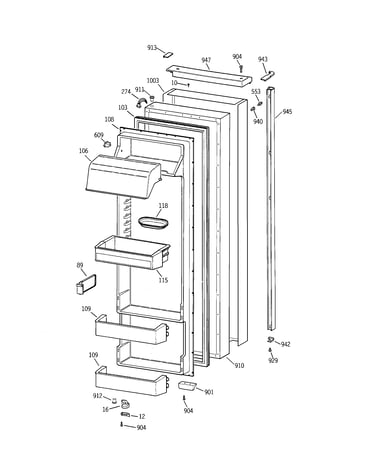

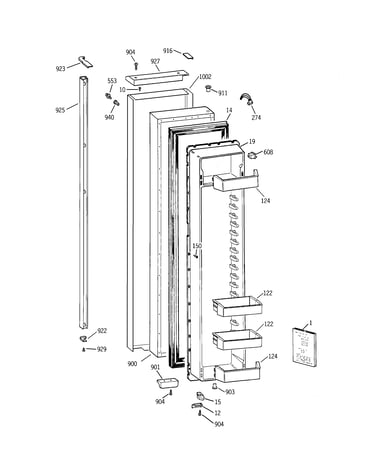

SELECT DIAGRAM
Browse Parts forTPS24BICEBS Refrigerators
- #740

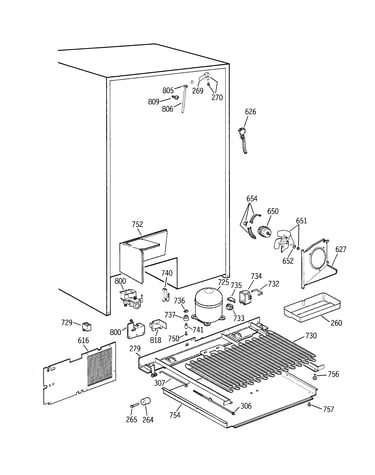

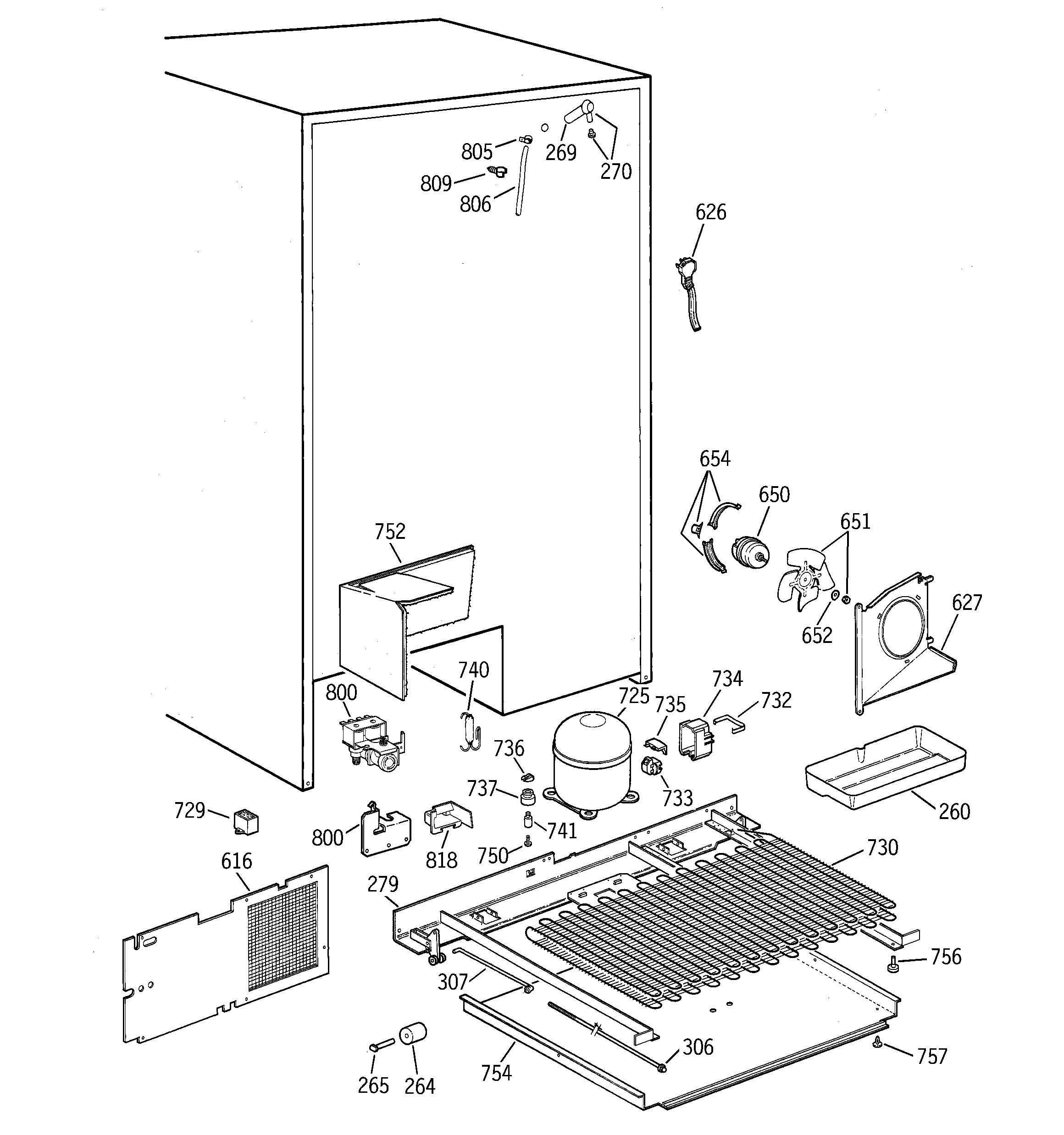

Unit parts diagram
Dryer filterPart #WR86X0096
Replaced by #WR86X25269
?Manufacturer substitutionThis part replaces WR86X0096. Substitute parts can look different from the original.$74.11 |7% OFF Phone Price : $80.11In Stock - 40a15/22
Part #STD372402
Replaced by #40A15
?Manufacturer substitutionThis part replaces STD372402. Substitute parts can look different from the original.$13.61 |13% OFF Phone Price : $15.61In Stock - #240

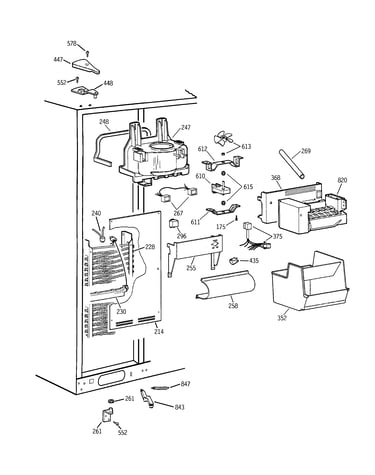

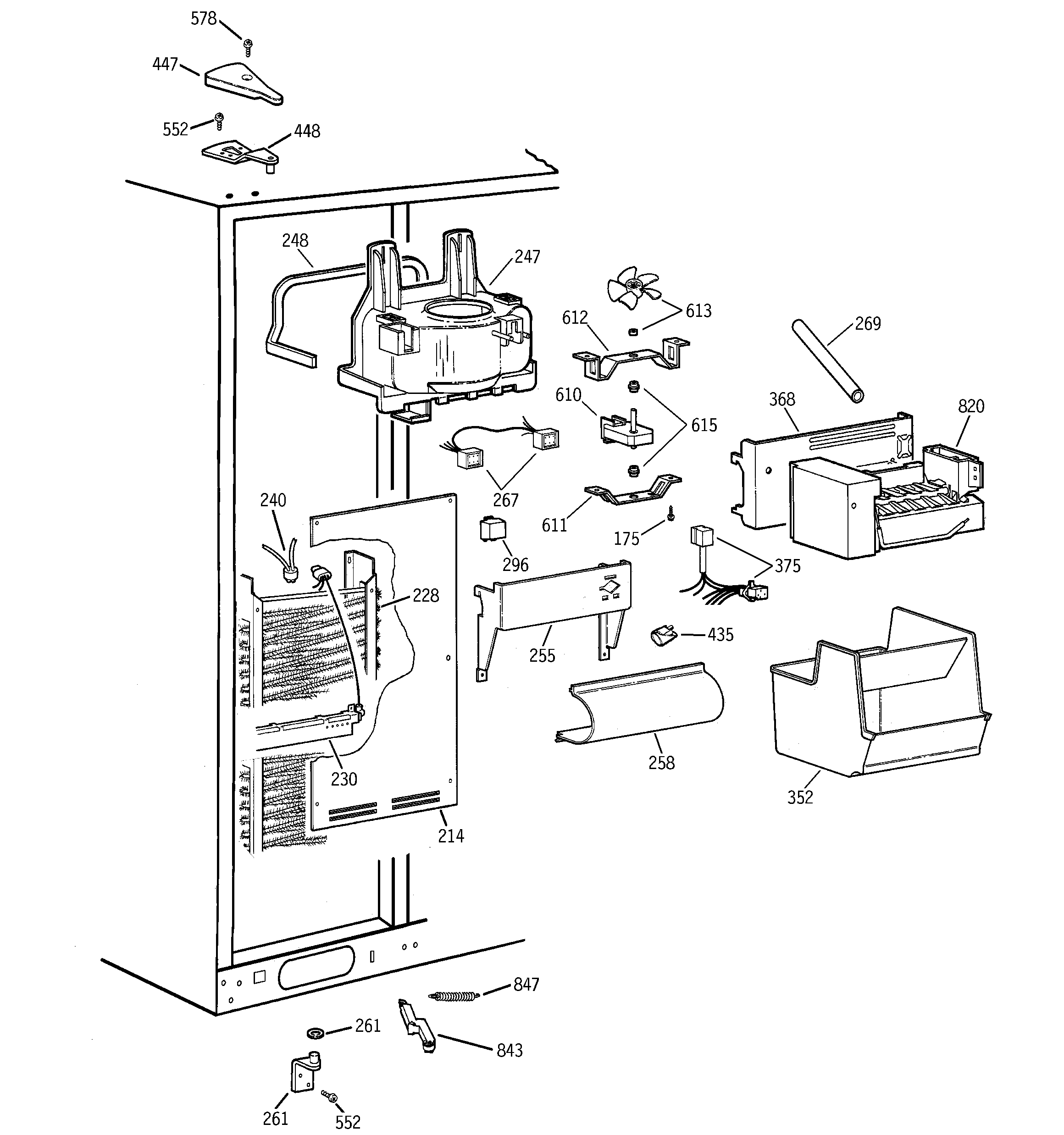

Freezer section diagram
ThermostatPart #WR50X10014
Replaced by #WR50X122
?Manufacturer substitutionThis part replaces WR50X10014. Substitute parts can look different from the original.$48.87 |11% OFF Phone Price : $54.87In Stock - #257

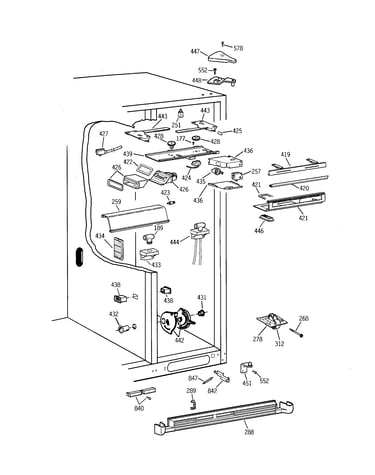

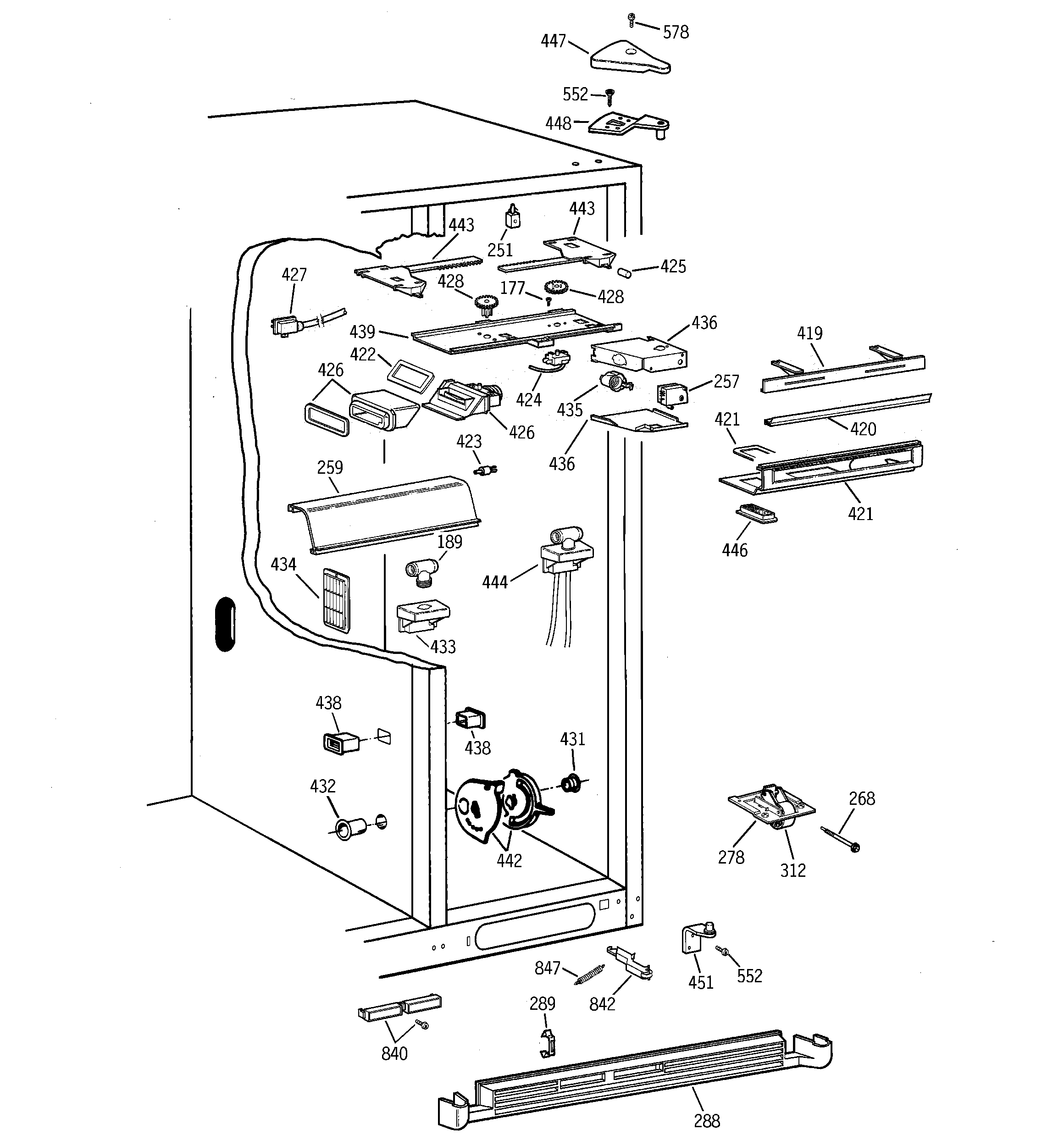

Fresh food section diagram
Refrigerator defrost controlPart #WR09X0489
Replaced by #WR9X489
?Manufacturer substitutionThis part replaces WR09X0489. Substitute parts can look different from the original.$46.36 |11% OFF Phone Price : $52.36In Stock - #725
Unit parts diagram
Hi side asmPart #WR87X0464
Replaced by #WR87X10226
?Manufacturer substitutionThis part replaces WR87X0464. Substitute parts can look different from the original.$512.74 |$12.00 OFF Phone Price : $524.74In Stock - #650
Unit parts diagram
Condenser motorPart #WR60X10010
Replaced by #WR60X187
?Manufacturer substitutionThis part replaces WR60X10010. Substitute parts can look different from the original.$223.40 |5% OFF Phone Price : $235.40In Stock - #230
Freezer section diagram
Refrigerator defrost heaterPart #WR51X10029
$81.26 |7% OFF Phone Price : $87.26In Stock - #479

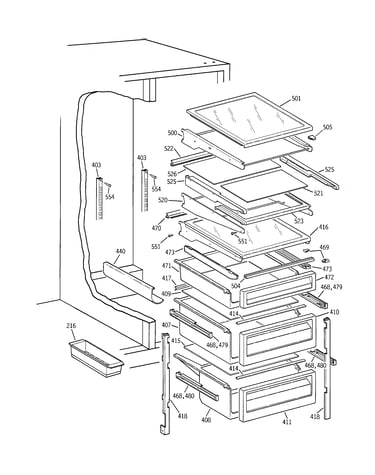

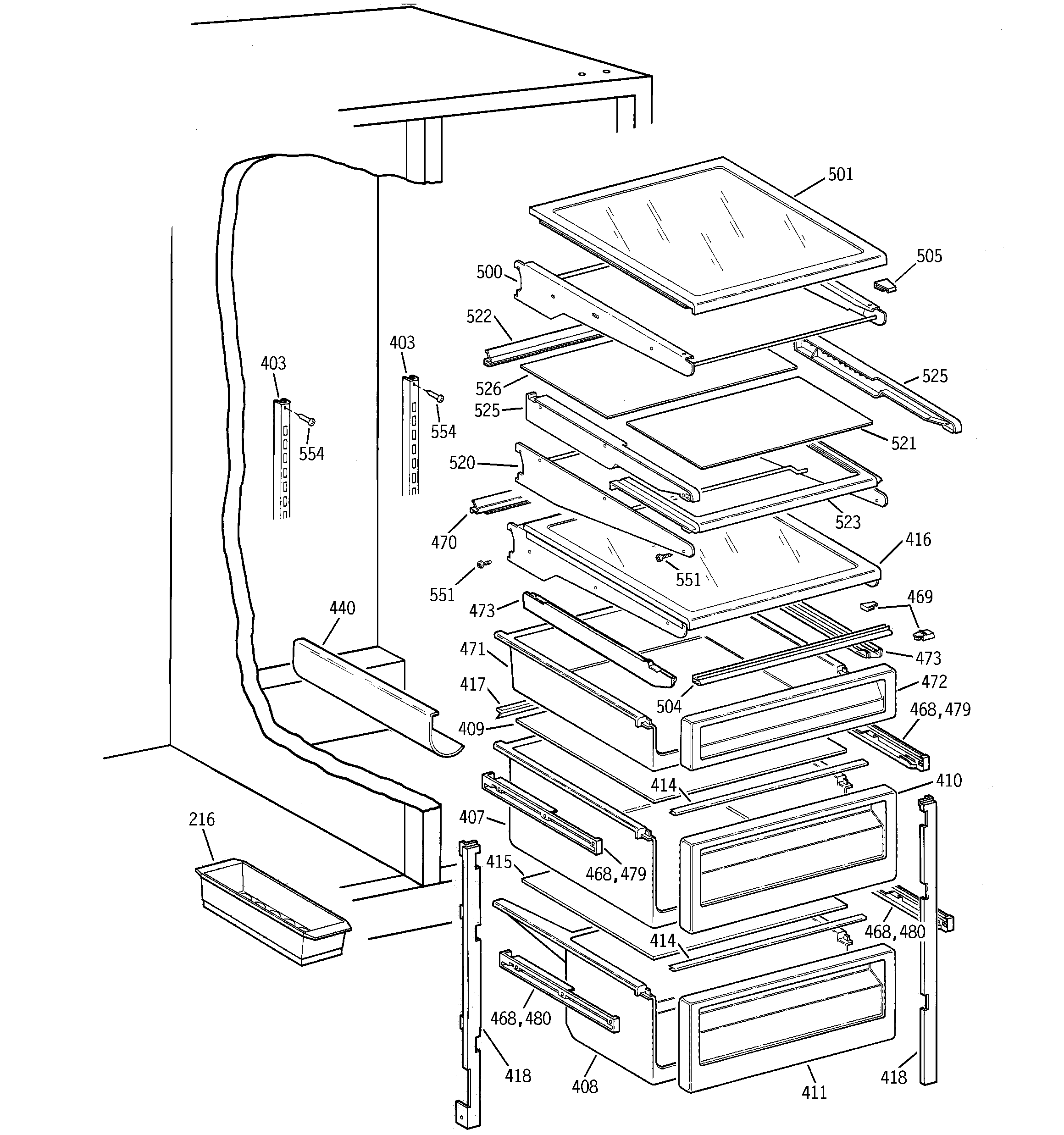

Fresh food shelves diagram
Refrigerator slide assembly, leftPart #WR72X0239
Replaced by #WR72X239
?Manufacturer substitutionThis part replaces WR72X0239. Substitute parts can look different from the original.$37.21 |14% OFF Phone Price : $43.21In Stock - #613

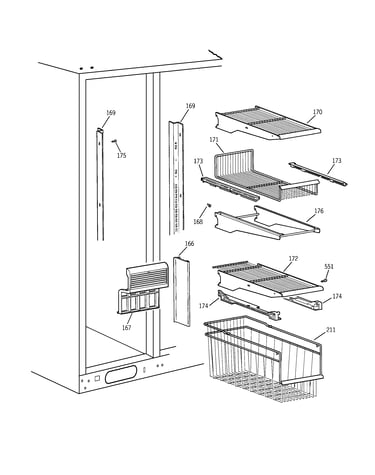

Freezer section diagram
Ring/fan bldPart #WR02X3198
Replaced by #WR60X114
?Manufacturer substitutionThis part replaces WR02X3198. Substitute parts can look different from the original.This item is not returnable$20.69 |22% OFF Phone Price : $26.69In Stock - #626
Unit parts diagram
Cord pwr asmPart #WR23X0420
Replaced by #WR23X10300
?Manufacturer substitutionThis part replaces WR23X0420. Substitute parts can look different from the original.$24.93 |19% OFF Phone Price : $30.93In Stock
