Model # 875199100 Official Craftsman wrench

Here are the diagrams and repair parts for Official Craftsman 875199100 wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Deflector 8700598
#6

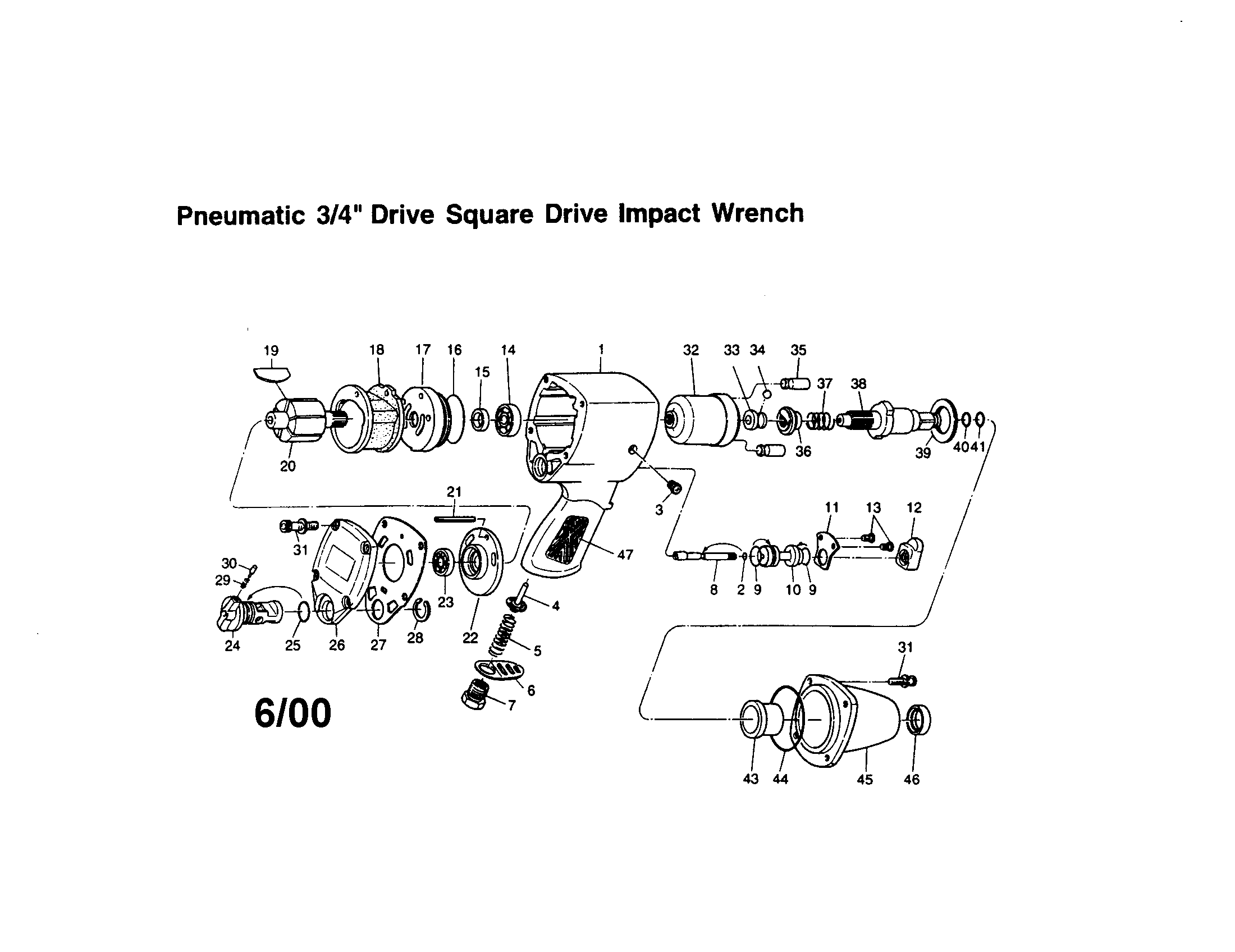

Motor housing and motor diagram

Deflector

Part #8700598

The manufacturer no longer makes this part, and there's no substitute part

O-ring 8700201
#25

Motor housing and motor diagram

O-ring

Part #8700201

The manufacturer no longer makes this part, and there's no substitute part

Hammer Cam 8574033
#36

Motor housing and motor diagram

Hammer cam

Part #8574033

The manufacturer no longer makes this part, and there's no substitute part

Spacer 8700621
#39

Motor housing and motor diagram

Spacer

Part #8700621

The manufacturer no longer makes this part, and there's no substitute part

Cylinder 8700607
#18

Motor housing and motor diagram

Cylinder

Part #8700607

The manufacturer no longer makes this part, and there's no substitute part

Screw 8700615
#31

Motor housing and motor diagram

Screw

Part #8700615

The manufacturer no longer makes this part, and there's no substitute part

Spring 8700312
#29

Motor housing and motor diagram

Spring

Part #8700312

The manufacturer no longer makes this part, and there's no substitute part

Trigger 8700603
#12

Motor housing and motor diagram

Trigger

Part #8700603

The manufacturer no longer makes this part, and there's no substitute part

O-ring 8700605
#16

Motor housing and motor diagram

O-ring

Part #8700605

The manufacturer no longer makes this part, and there's no substitute part

Anvil 8700619
#38

Motor housing and motor diagram

Anvil

Part #8700619

The manufacturer no longer makes this part, and there's no substitute part
