GE
Room Air Conditioner

Model # AHL24DSH1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AHL24DSH1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Room Air Conditioner Condenser Fan WJ73X20130
#8

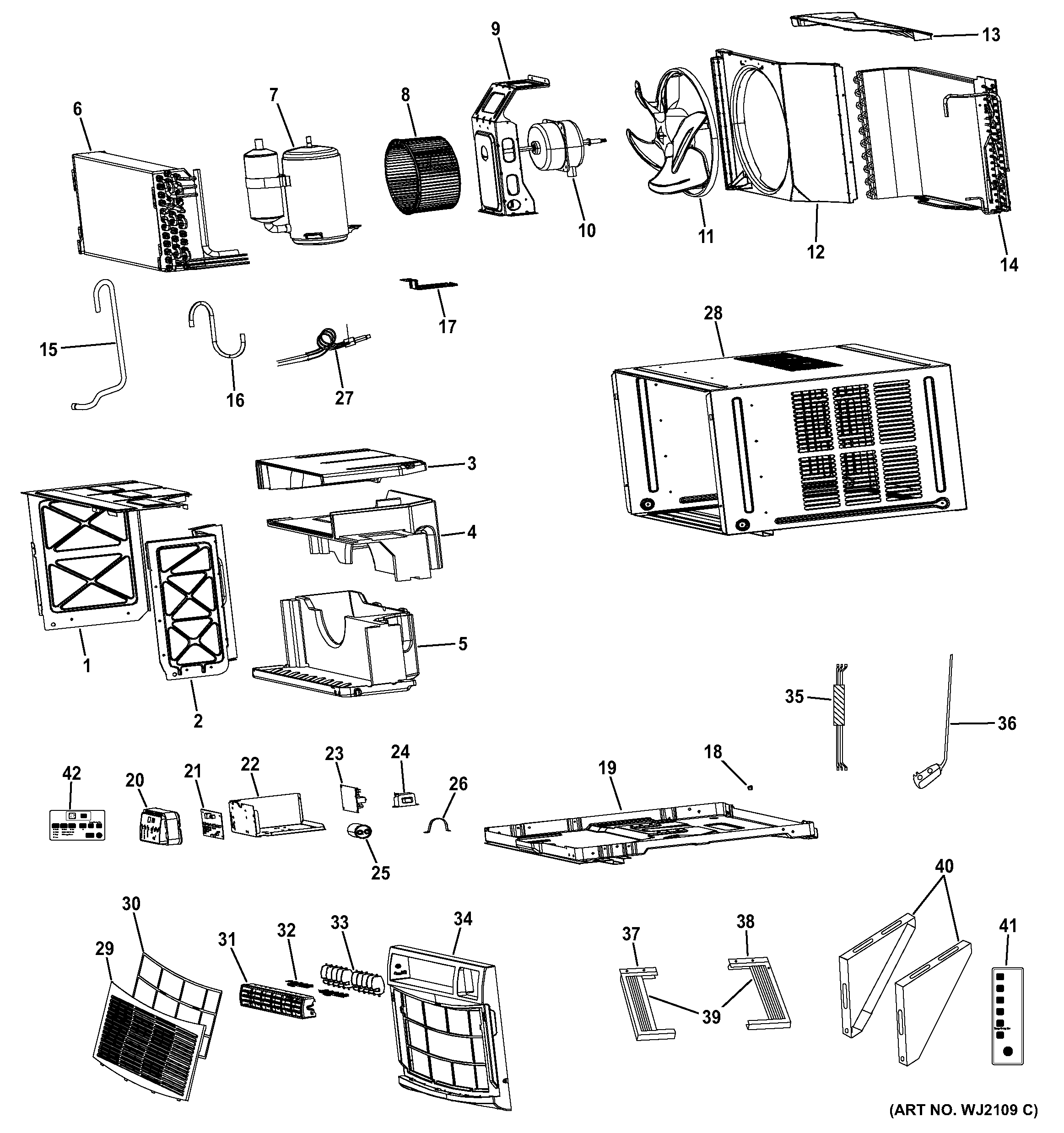

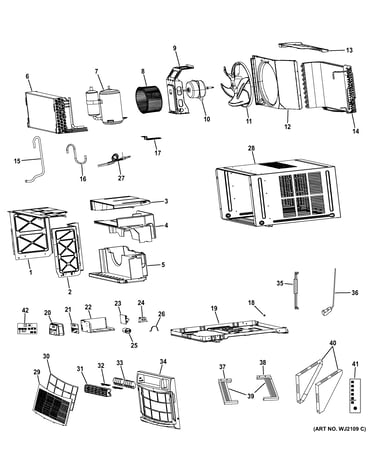

Room air conditioner diagram

Room air conditioner condenser fan

Part #WJ73X20130

$56.57 |
10% OFF Phone Price : $62.57
In Stock
Capacitor WJ20X20134
#25

Room air conditioner diagram

Capacitor

Part #WJ20X20134

$89.47 |
6% OFF Phone Price : $95.47
In Stock
Room Air Conditioner Power Cord WJ35X10178
#36

Room air conditioner diagram

Room air conditioner power cord

Part #WJ35X10178

$144.33 |
8% OFF Phone Price : $156.33
In Stock
Plug WJ05X20122
#18

Room air conditioner diagram

Plug

Part #WJ05X20122

$8.93 |
10% OFF Phone Price : $9.93
In Stock
Condenser Assembly WJ87X20138
#14

Room air conditioner diagram

Condenser assembly

Part #WJ87X20138

$202.67
In Stock
Scroll WJ05X20150
#4

Room air conditioner diagram

Scroll

Part #WJ05X20150

$52.96
In Stock
Rear Partiti WJ76X20155
#12

Room air conditioner diagram

Rear partiti

Part #WJ76X20155

$62.98
In Stock
Transmission WJ05X20161
#32

Room air conditioner diagram

Transmission

Part #WJ05X20161

This item is not returnable
$5.00
In Stock
Top Scroll C WJ76X20160
#3

Room air conditioner diagram

Top scroll c

Part #WJ76X20160

$28.70
In Stock
Shutter WJ05X20157
#33

Room air conditioner diagram

Shutter

Part #WJ05X20157

This item is not returnable
$5.00
In Stock
