Model # HBN5650UC/10 Official Bosch electric built-in oven

Here are the diagrams and repair parts for Official Bosch HBN5650UC-10 electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

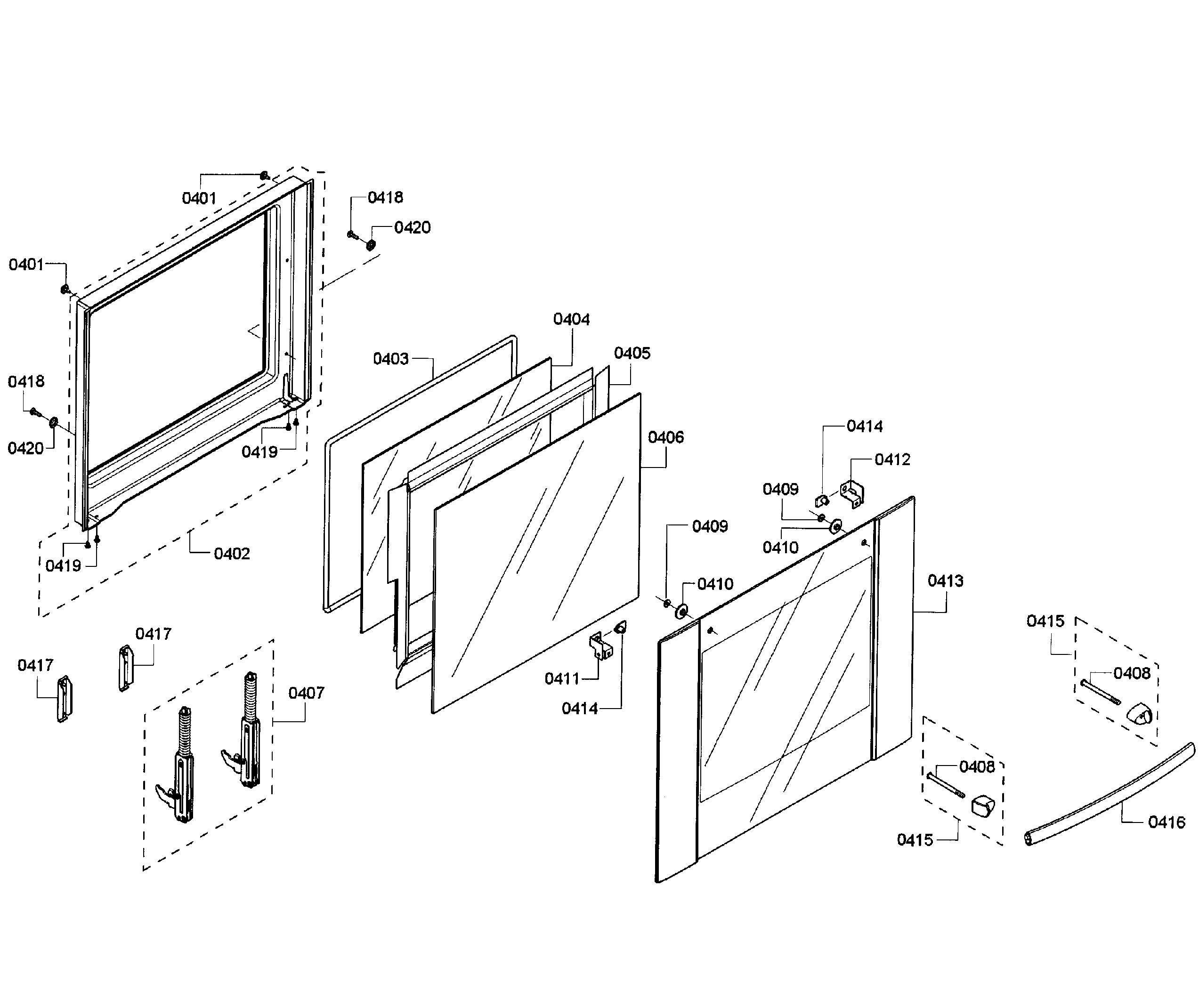

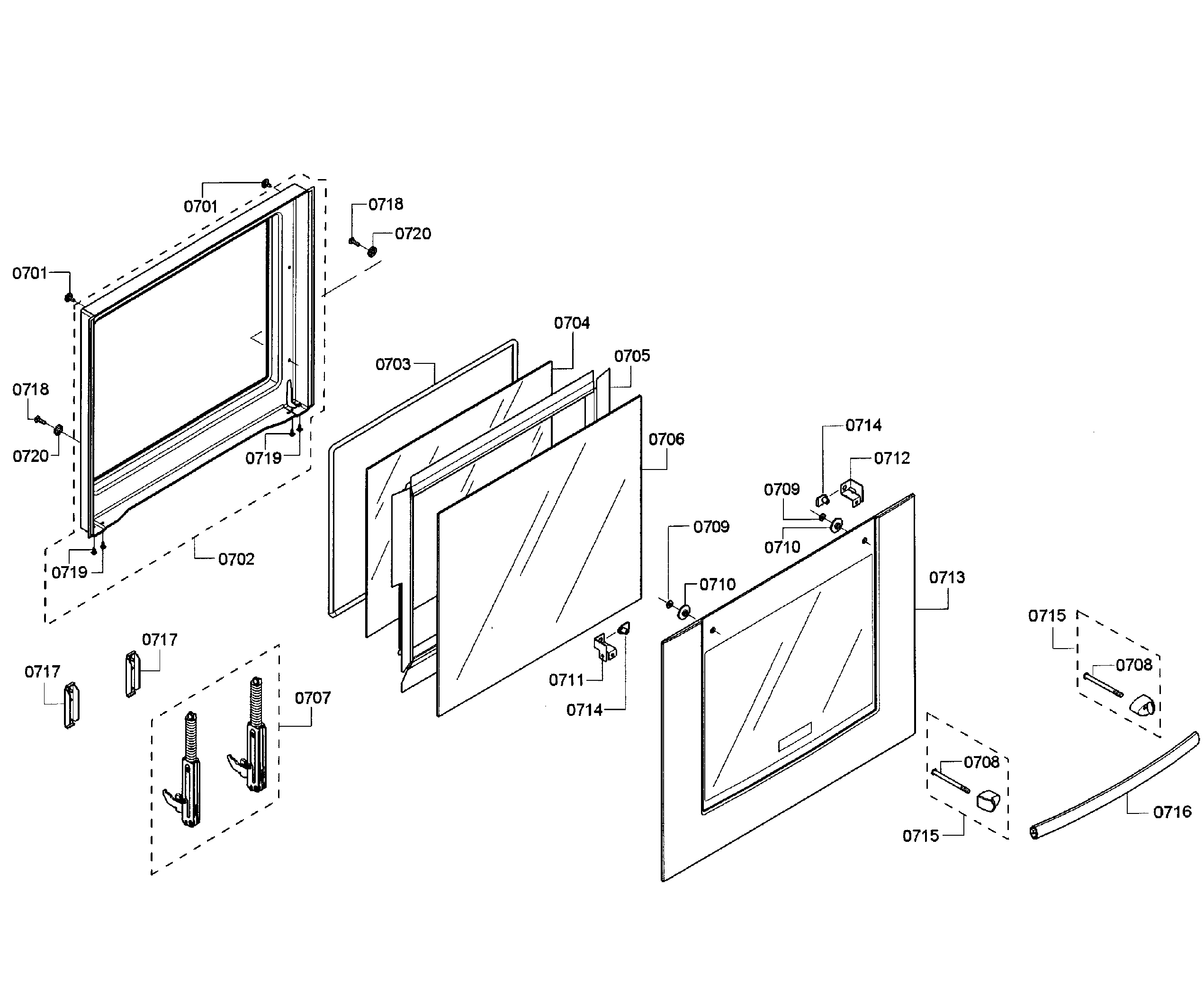

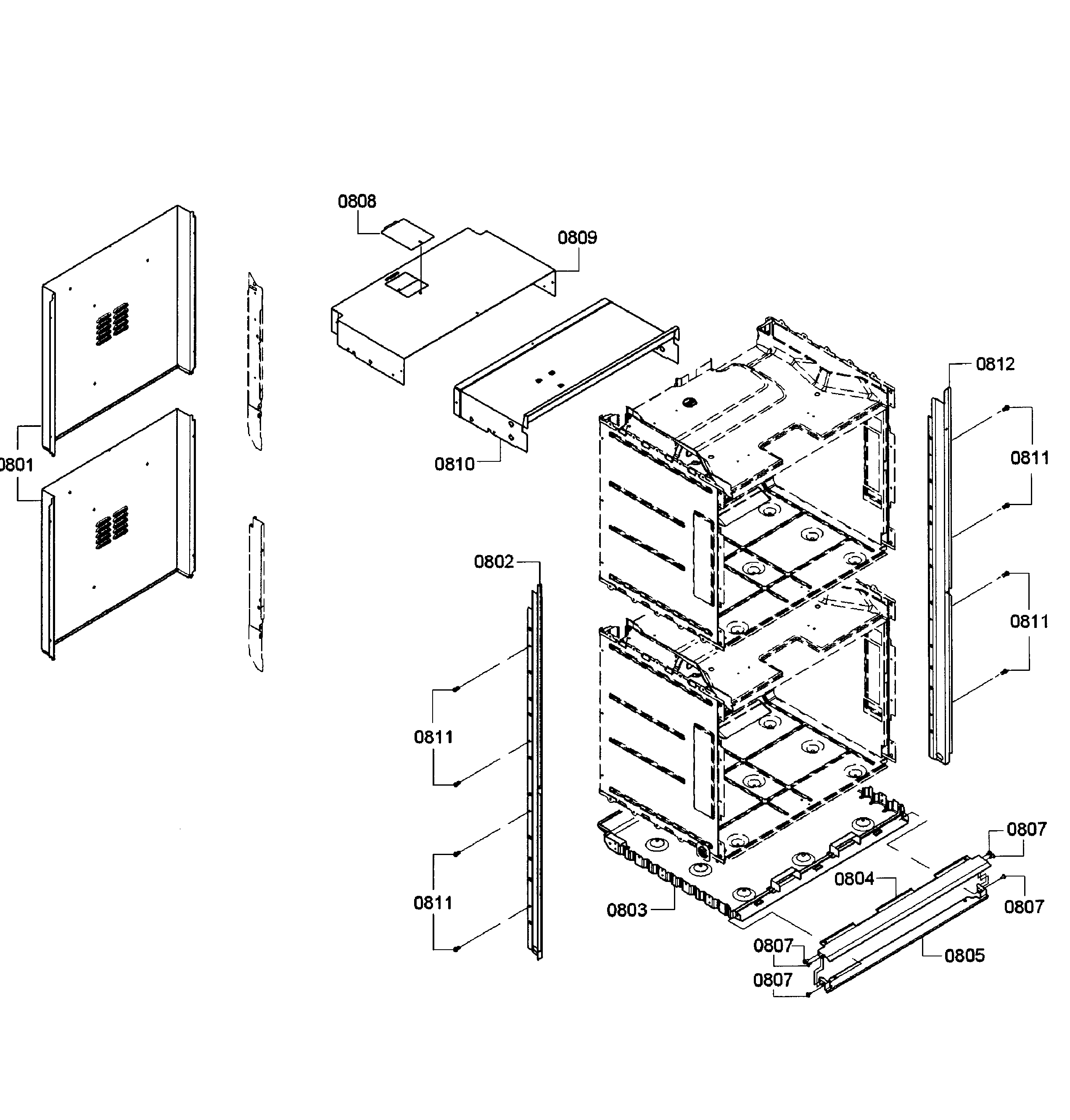

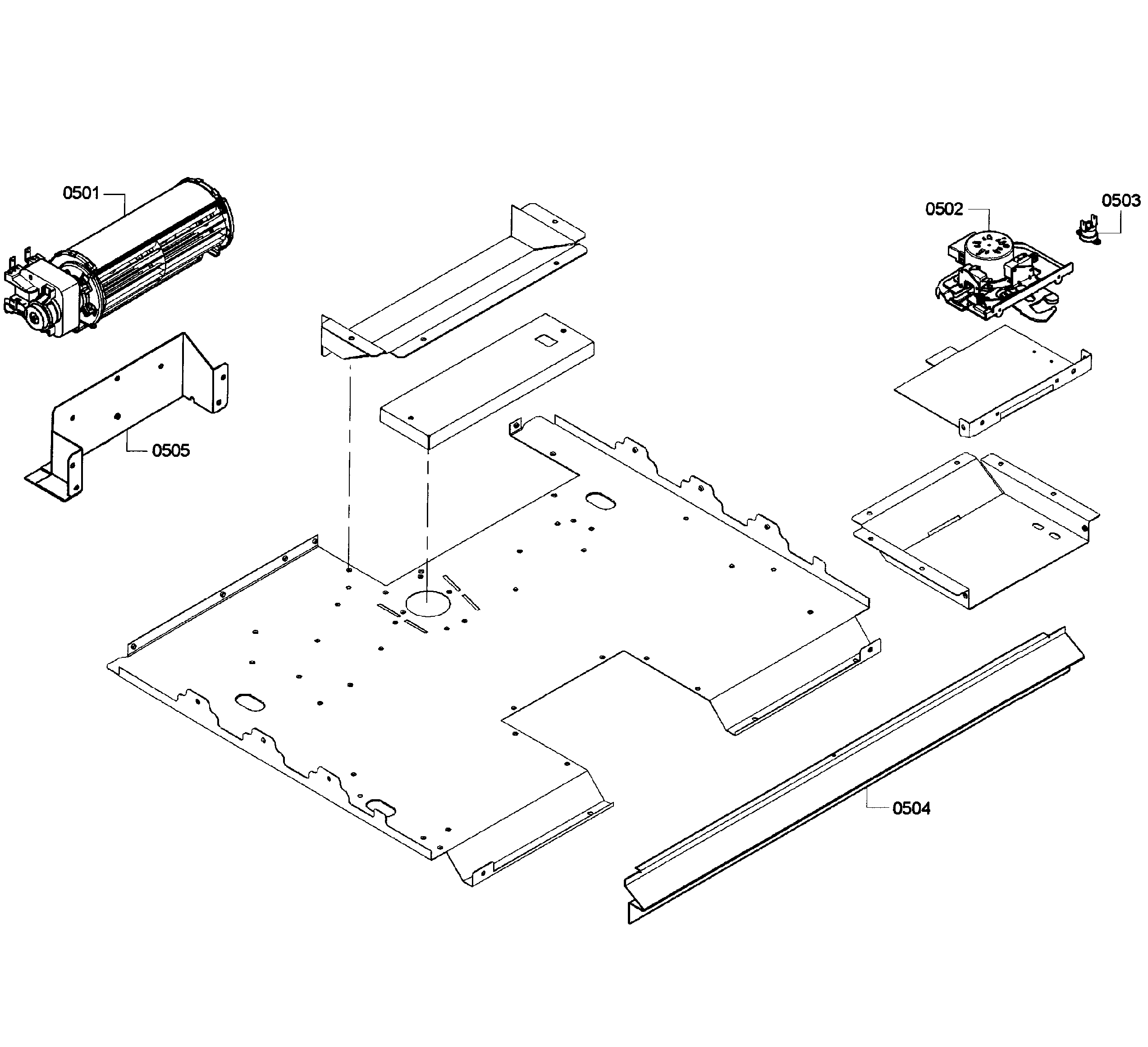

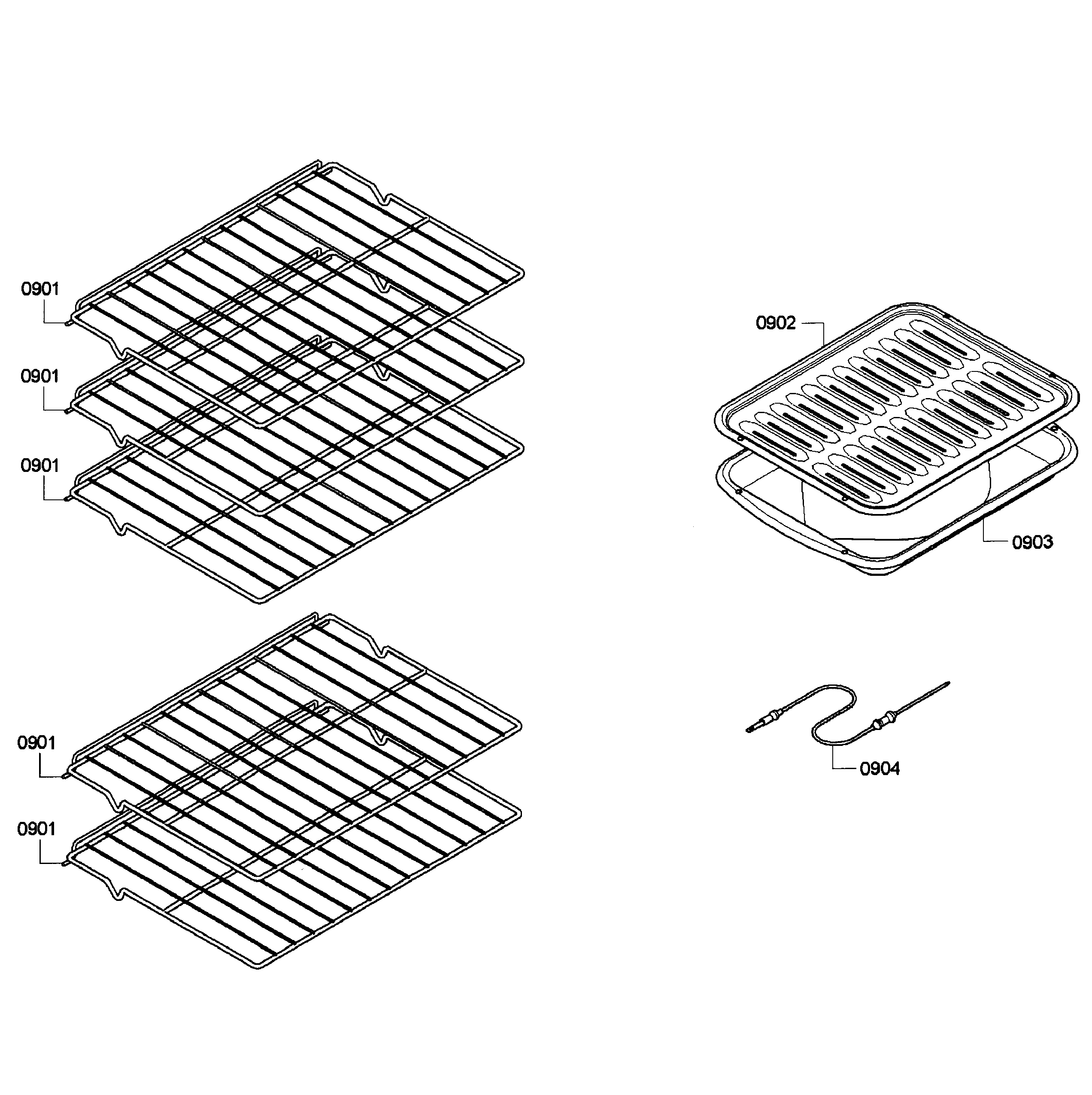

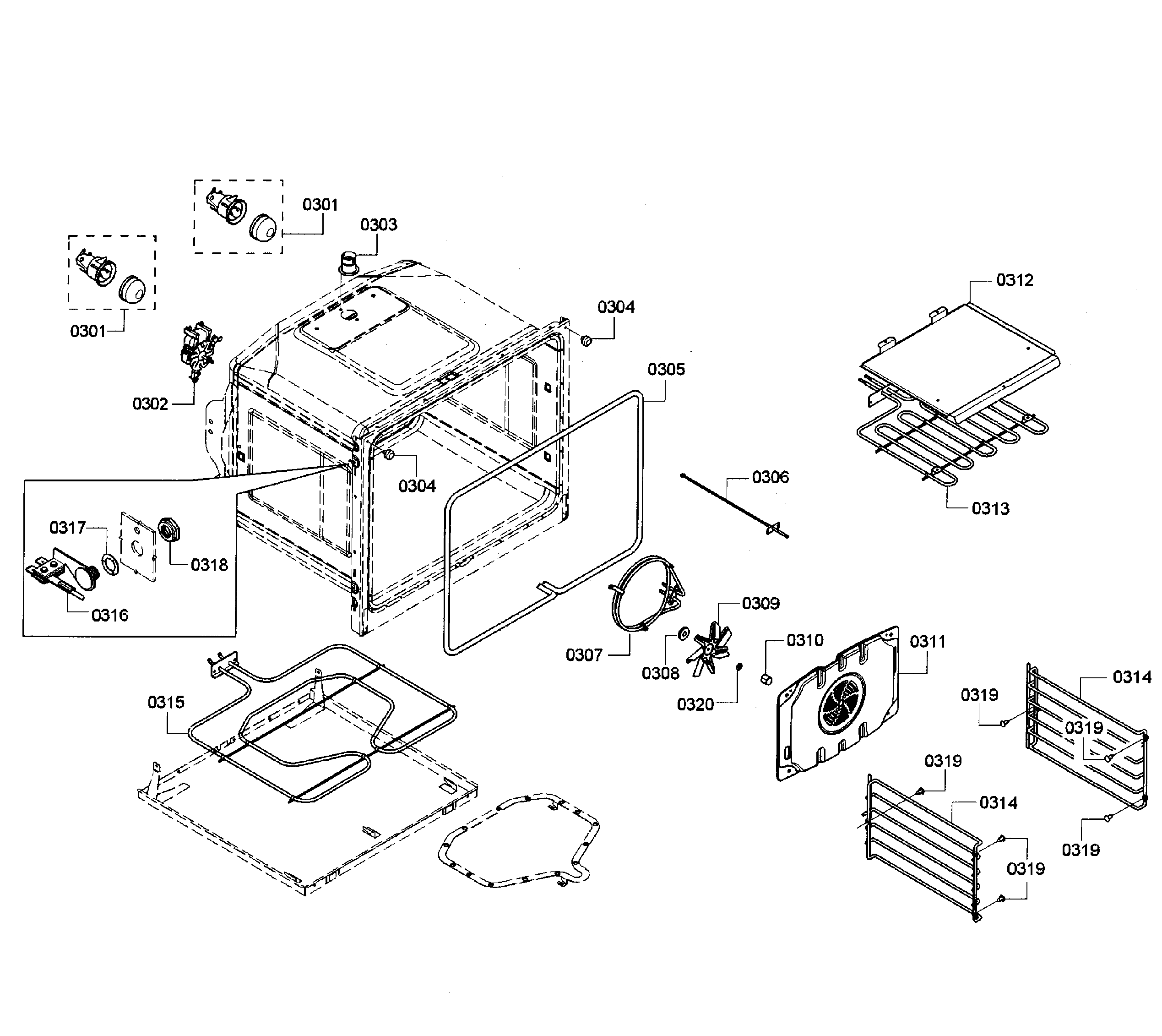

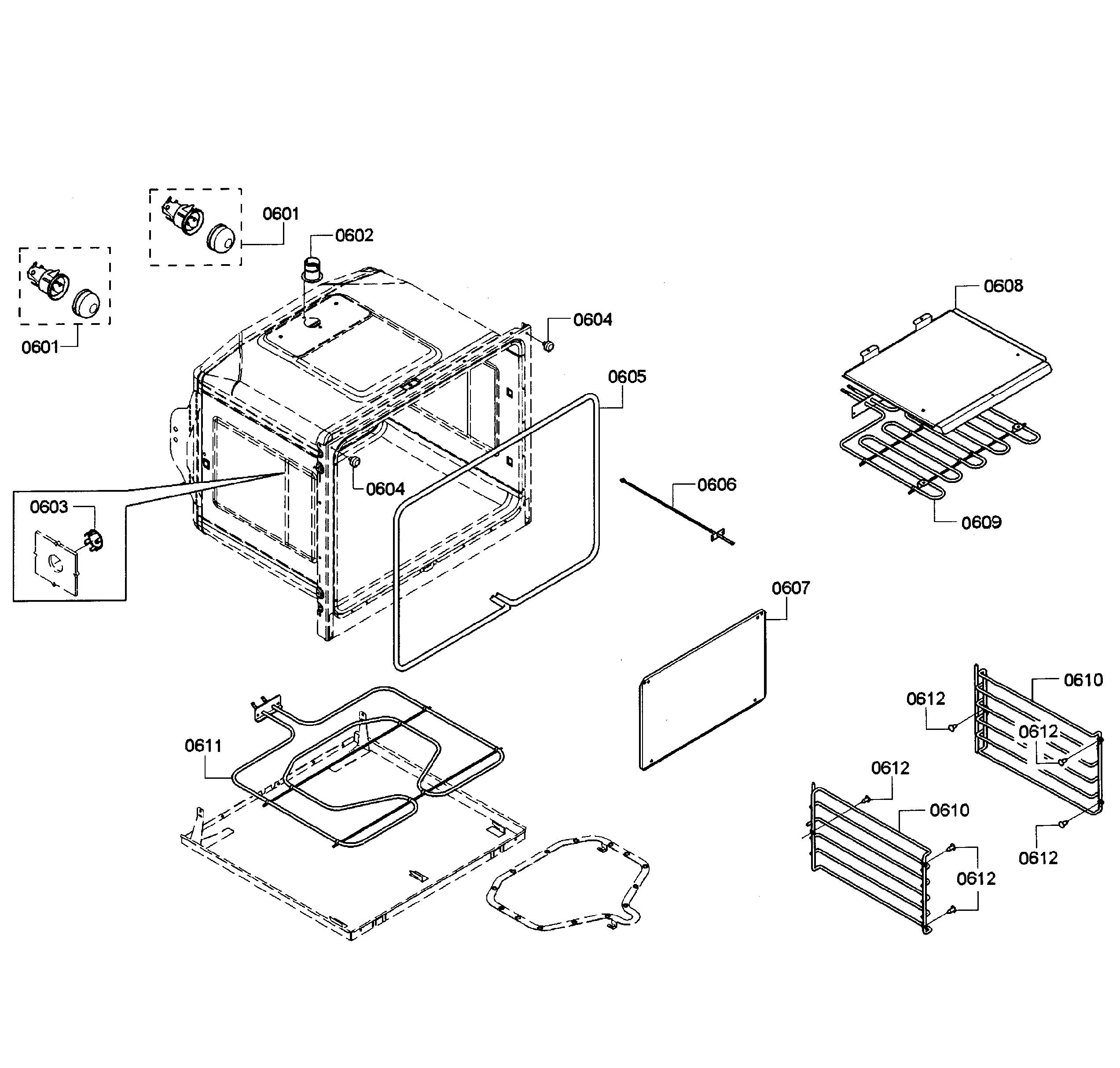

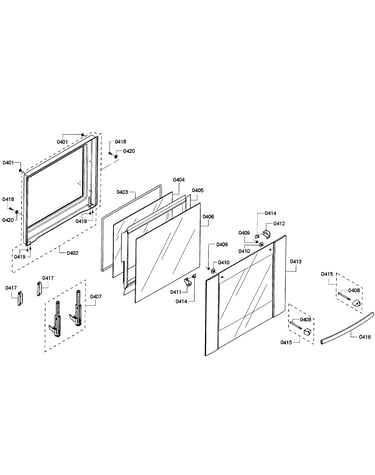

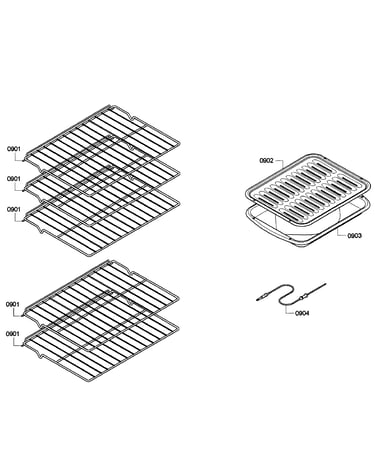

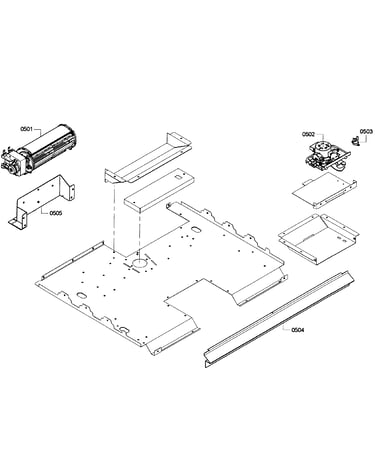

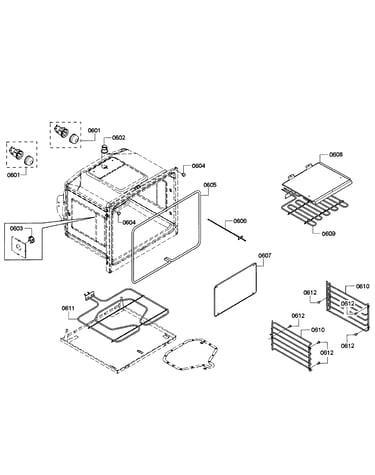

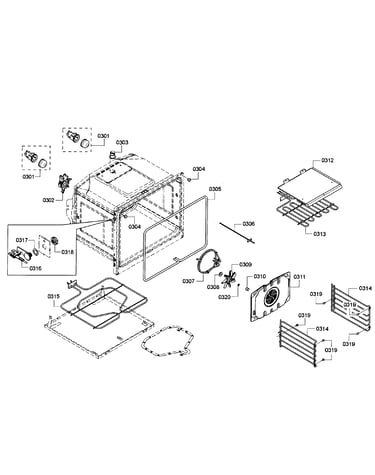

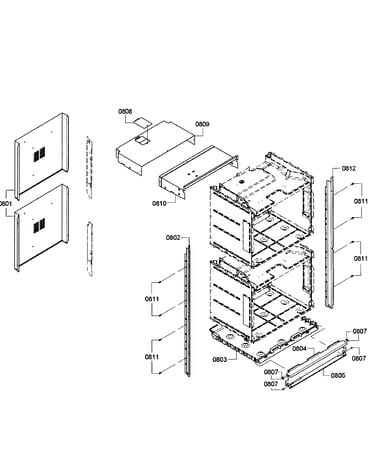

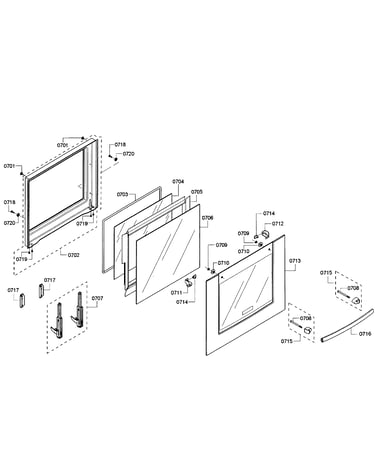

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Control Module 659615
#201

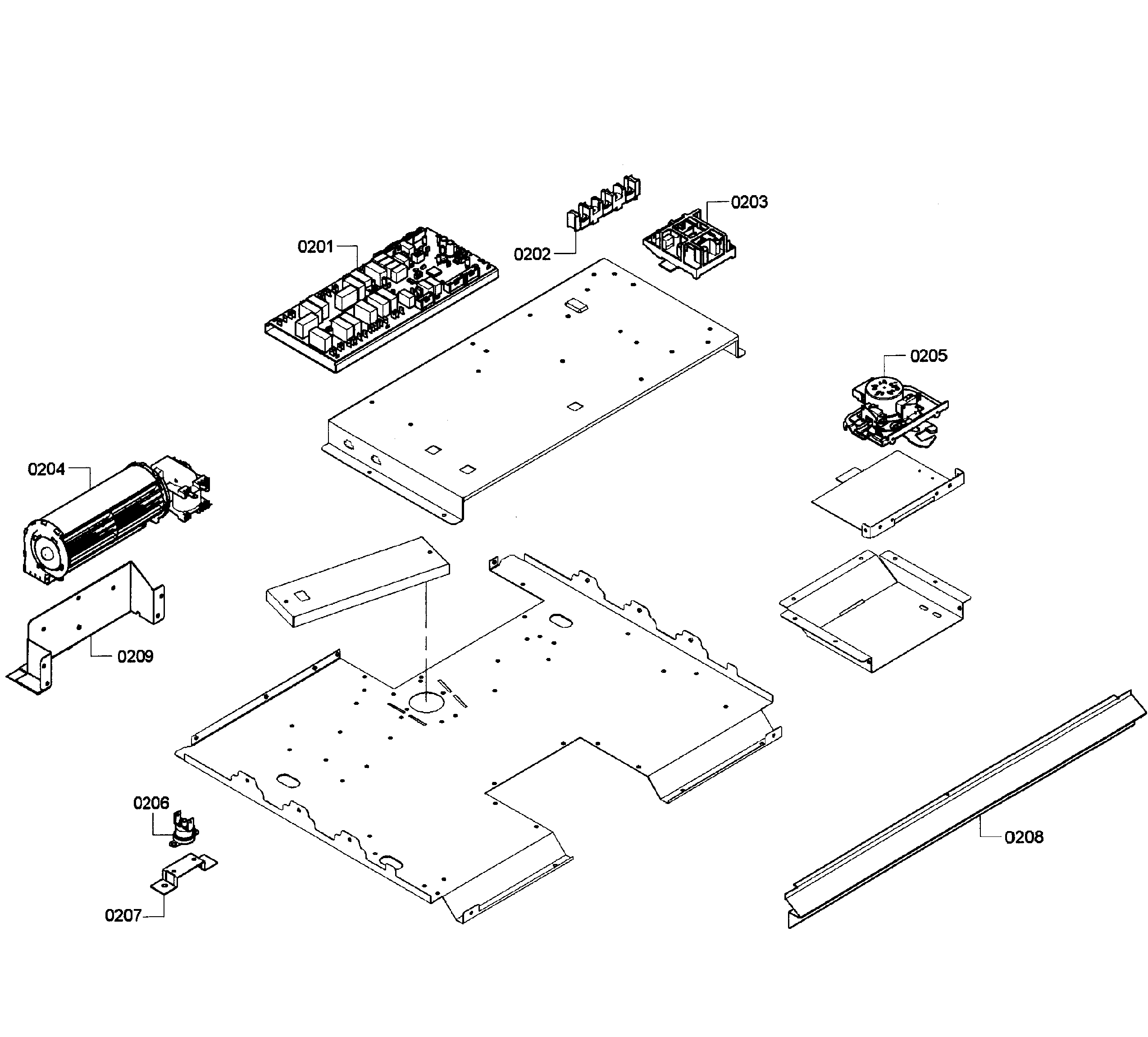

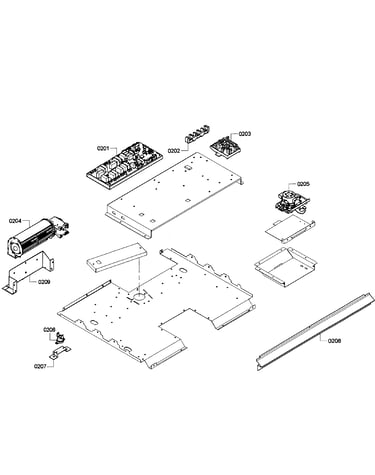

Pcb's assy diagram

Control module

Part #659615

Replaced by #12022213

?
Manufacturer substitution
This part replaces 659615. Substitute parts can look different from the original.
$371.47 |
$12.00 OFF Phone Price : $383.47
In Stock
Power Supply 663802
#203

Pcb's assy diagram

Power supply

Part #663802

Replaced by #00663802

?
Manufacturer substitution
This part replaces 663802. Substitute parts can look different from the original.
$128.19 |
9% OFF Phone Price : $140.19
In Stock
Interface 686560
#101

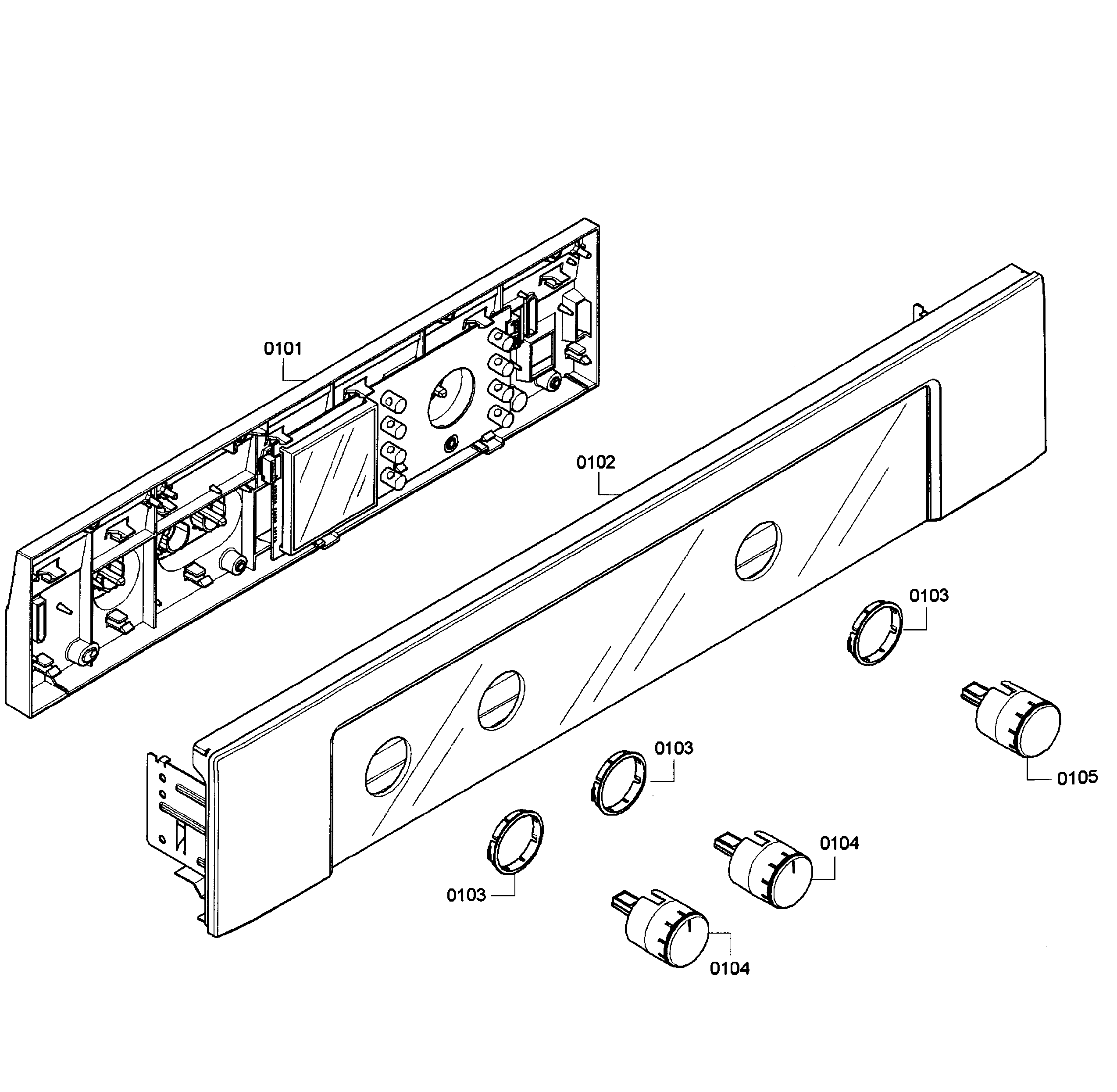

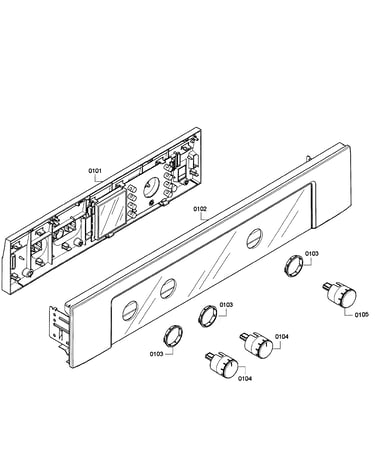

Control panel diagram

Interface

Part #686560

Replaced by #00686560

?
Manufacturer substitution
This part replaces 686560. Substitute parts can look different from the original.
$640.13 |
$12.00 OFF Phone Price : $652.13
In Stock
Temperature Limit 612548
Temperature limit

Part #612548

Replaced by #00617877

?
Manufacturer substitution
This part replaces 612548. Substitute parts can look different from the original.
$29.36
In Stock
Oven Latch 751505
Oven latch

Part #751505

Replaced by #00751505

?
Manufacturer substitution
This part replaces 751505. Substitute parts can look different from the original.
$144.49 |
8% OFF Phone Price : $156.49
In Stock
Wall Oven Selector Switch Knob 609121
#105

Control panel diagram

Wall oven selector switch knob

Part #609121

Replaced by #00609121

?
Manufacturer substitution
This part replaces 609121. Substitute parts can look different from the original.
$47.99 |
11% OFF Phone Price : $53.99
In Stock
Ring 423808
#103

Control panel diagram

Ring

Part #423808

Replaced by #00423808

?
Manufacturer substitution
This part replaces 423808. Substitute parts can look different from the original.
This item is not returnable
$20.34
In Stock
Fan 665045
#204

Pcb's assy diagram

Fan

Part #665045

Replaced by #00665045

?
Manufacturer substitution
This part replaces 665045. Substitute parts can look different from the original.
$187.14
In Stock
Wall Oven Wire Harness 663925
#NI

Control panel diagram

Wall oven wire harness

Part #663925

Replaced by #00663925

?
Manufacturer substitution
This part replaces 663925. Substitute parts can look different from the original.
$26.29
In Stock
Trim Plate 680904
Trim plate

Part #680904

Replaced by #00680904

?
Manufacturer substitution
This part replaces 680904. Substitute parts can look different from the original.
$214.01 |
5% OFF Phone Price : $226.01
In Stock
