Hotpoint
Top-Mount Refrigerator

Model # CTA15CJCRWH Official Hotpoint refrigerator

Here are the diagrams and repair parts for Official Hotpoint CTA15CJCRWH refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Terminal Socket WR2X7270
#435

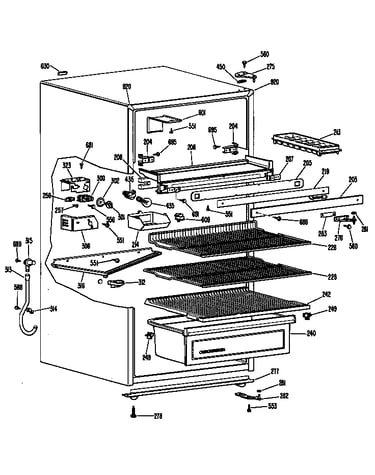

Chassis diagram

Terminal socket

Part #WR2X7270

Replaced by #WR2X9391

?
Manufacturer substitution
This part replaces WR2X7270. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Refrigerator Ice Tray WR30X196
#213

Chassis diagram

Refrigerator ice tray

Part #WR30X196

Replaced by #WR30X311

?
Manufacturer substitution
This part replaces WR30X196. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Shelf Wire WR71X1700
#226

Chassis diagram

Refrigerator shelf wire

Part #WR71X1700

$32.99
In Stock
Liner Top Ff WR17X2211
#608

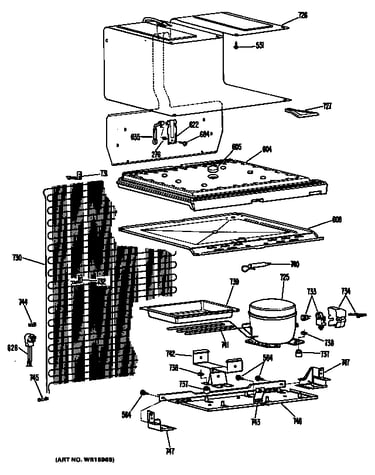

Unit diagram

Liner top ff

Part #WR17X2211

$32.49
In Stock
Spacer Tr WR2X7284
#13

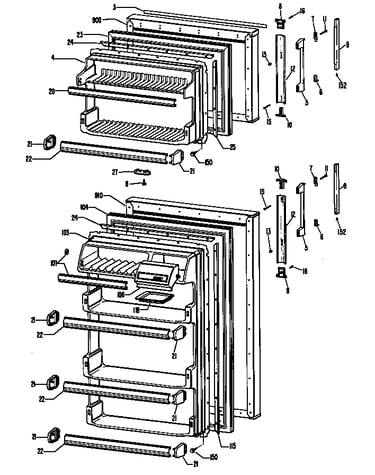

Doors diagram

Spacer tr

Part #WR2X7284

This item is not returnable
$2.29
In Stock
Refrigerator Cabinet Sealer Plug WR2X4097
#630

Chassis diagram

Refrigerator cabinet sealer plug

Part #WR2X4097

$17.96 |
10% OFF Phone Price : $19.96
In Stock
Glide WR2X4978
#278

Chassis diagram

Glide

Part #WR2X4978

$38.44
In Stock
Refrigerator Screw WR1X1697
#681

Chassis diagram

Refrigerator screw

Part #WR1X1697

Replaced by #WE02X10011

?
Manufacturer substitution
This part replaces WR1X1697. Substitute parts can look different from the original.
$23.71
In Stock
Light Switch WR23X193
#609

Chassis diagram

Light switch

Part #WR23X193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X193. Substitute parts can look different from the original.
$8.11
In Stock
Power Cord WR23X108
#626B

Unit diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
