Hotpoint
Top-Mount Refrigerator

Model # CTF16EAB Official Hotpoint refrigerator

Here are the diagrams and repair parts for Official Hotpoint CTF16EAB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 237 parts  |
Grommet Tube WR17X1335
#80A

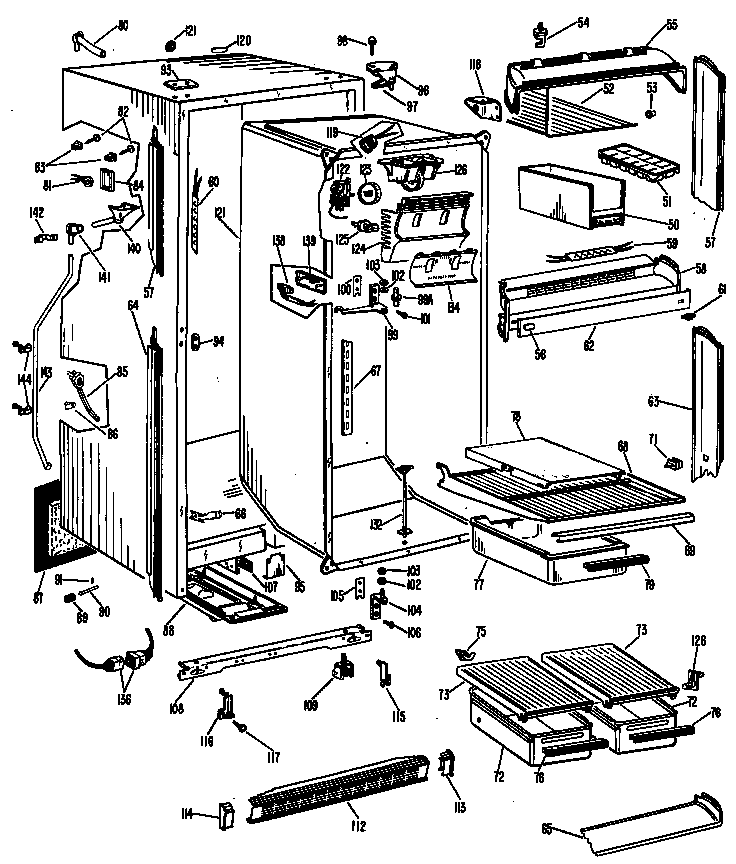

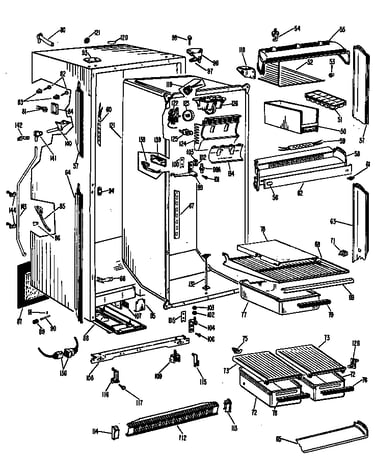

Cabinet diagram

Grommet tube

Part #WR17X1335

Replaced by #WR2X8474

?
Manufacturer substitution
This part replaces WR17X1335. Substitute parts can look different from the original.
$10.24 |
16% OFF Phone Price : $12.24
In Stock
Refrigerator Evaporator Fan Blade (replaces Swr2x3198, Swr60x114, Wr2x3198, Wr60x0114, Wr60x107, Wr60x113, Wr60x247, Wr60x55, Wr60x80) WR60X114
Refrigerator evaporator fan blade (replaces swr2x3198, swr60x114, wr2x3198, wr60x0114, wr60x107, wr60x113, wr60x247, wr60x55, wr60x80)

Part #WR60X114

This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Fan Blade WR2X3198
#210B

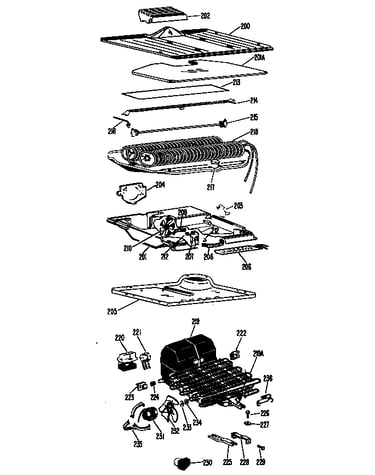

Unit diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Water Tubing Clip WR1X5278
#86

Cabinet diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Ice Tray WR30X5101
#51

Cabinet diagram

Refrigerator ice tray

Part #WR30X5101

Replaced by #WR30X311

?
Manufacturer substitution
This part replaces WR30X5101. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Fan Motor WR60X115
#231

Unit diagram

Refrigerator fan motor

Part #WR60X115

Replaced by #WR60X177

?
Manufacturer substitution
This part replaces WR60X115. Substitute parts can look different from the original.
$159.18 |
7% OFF Phone Price : $171.18
In Stock
Hi Side Kit WR87X50
#219

Unit diagram

Hi side kit

Part #WR87X50

Replaced by #WR87X10082

?
Manufacturer substitution
This part replaces WR87X50. Substitute parts can look different from the original.
$663.46 |
$12.00 OFF Phone Price : $675.46
In Stock
Freezer Liner Button Plug WR2X3139
#121A

Cabinet diagram

Freezer liner button plug

Part #WR2X3139

This item is not returnable
$5.00
In Stock
Refrigerator Cabinet Sealer Plug WR2X4097
#120

Cabinet diagram

Refrigerator cabinet sealer plug

Part #WR2X4097

$17.96 |
10% OFF Phone Price : $19.96
In Stock
Refrigerator Roller WR2X3594
#89

Cabinet diagram

Refrigerator roller

Part #WR2X3594

This item is not returnable
$21.62 |
22% OFF Phone Price : $27.62
In Stock
