Model # XCAE2765FQ0 Official Whirlpool commercial laundry

Here are the diagrams and repair parts for Official Whirlpool XCAE2765FQ0 commercial laundry, as well as links to manuals and error code tables, if available.

By Schematic
By Part

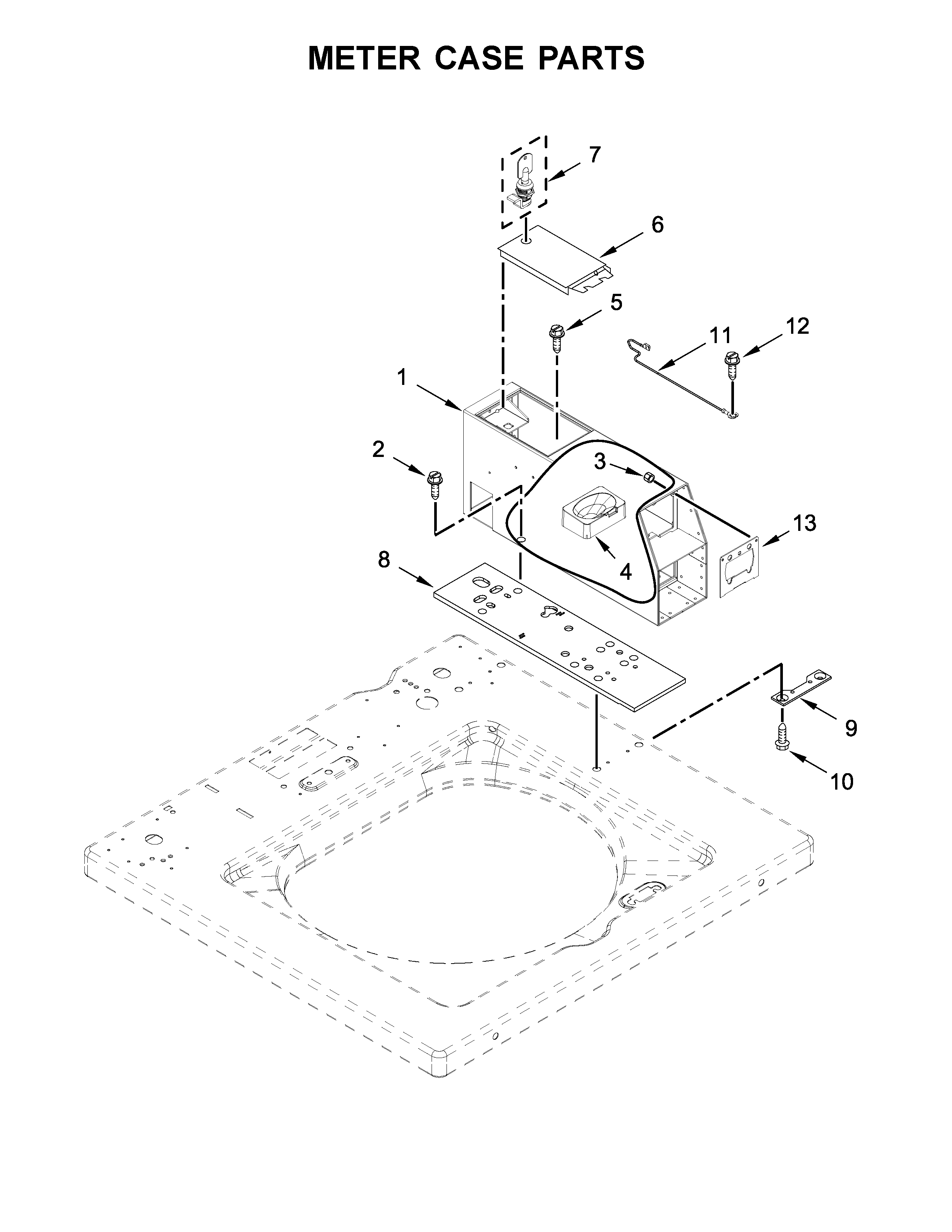

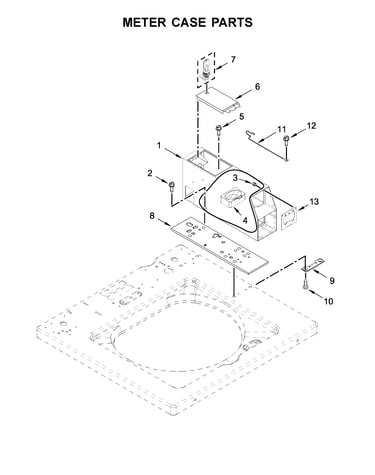

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forXCAE2765FQ0 Commercial Laundry

  • Affresh Washer Cleaner, 3-pack W10135699
    #NI

    Optional parts (not included) diagram

    Affresh washer cleaner, 3-pack

    Part #W10135699

    BEST SELLER

    Get free shipping with Automatic Reorder

    $11.56
    15% OFF Phone Price : $13.56
    In Stock
  • Washer Drain Hose W10221546
    #27

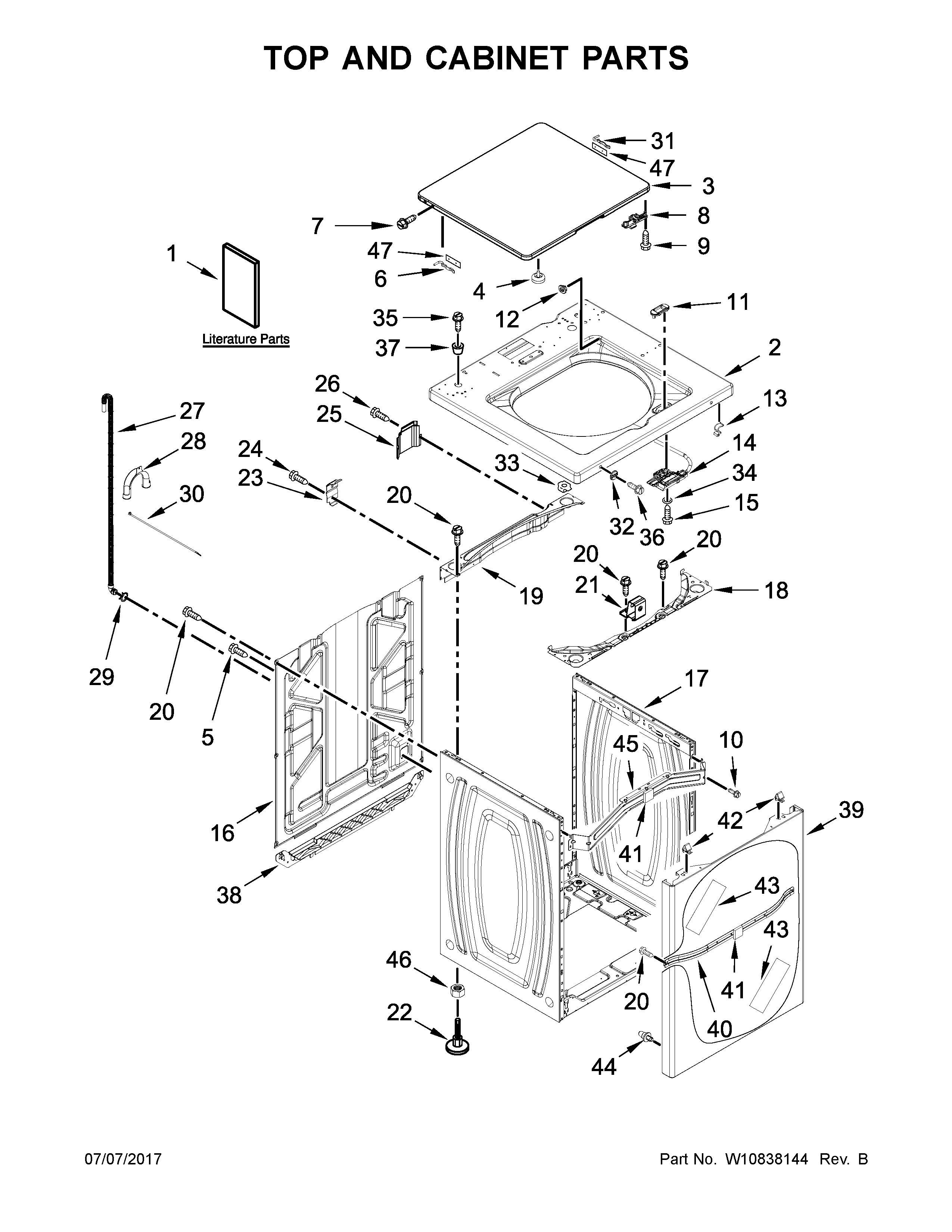

    Top and cabinet parts diagram

    Washer drain hose

    Part #W10221546

    Replaced by #W11244231

    ?
    Manufacturer substitution
    This part replaces W10221546. Substitute parts can look different from the original.
    BEST SELLER
    $16.76
    11% OFF Phone Price : $18.76
    In Stock
  • Hose W10531633
    #17

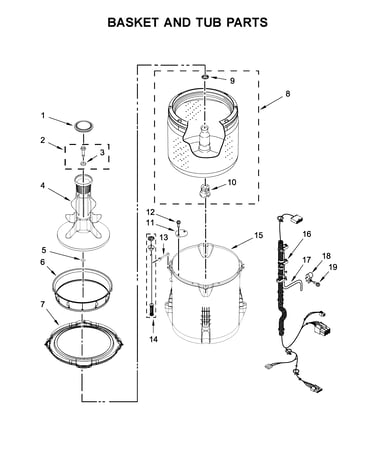

    Basket and tub parts diagram

    Hose

    Part #W10531633

    Replaced by #WP353244

    ?
    Manufacturer substitution
    This part replaces W10531633. Substitute parts can look different from the original.
    BEST SELLER
    $43.64
    12% OFF Phone Price : $49.64
    In Stock
  • Screw W10119872
    #7

    Top and cabinet parts diagram

    Screw

    Part #W10119872

    Replaced by #WPW10119828

    ?
    Manufacturer substitution
    This part replaces W10119872. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $3.58
    22% OFF Phone Price : $4.58
    In Stock
  • Washer Door Strike W10240513
    #8

    Top and cabinet parts diagram

    Washer door strike

    Part #W10240513

    Replaced by #WPW10240513

    ?
    Manufacturer substitution
    This part replaces W10240513. Substitute parts can look different from the original.
    BEST SELLER
    $26.34
    19% OFF Phone Price : $32.34
    In Stock
  • Outer Tub W10238320
    #15

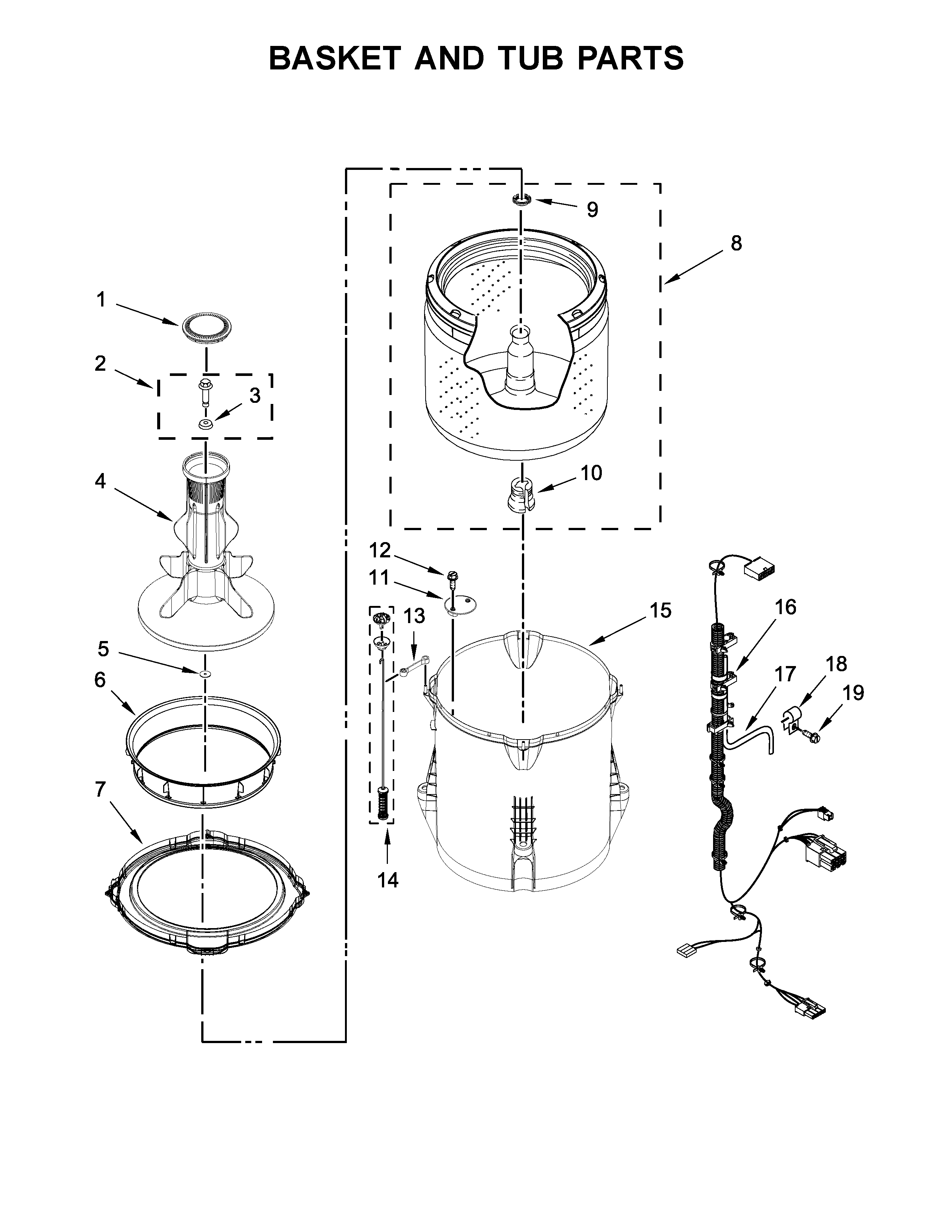

    Basket and tub parts diagram

    Outer tub

    Part #W10238320

    Replaced by #W10371566

    ?
    Manufacturer substitution
    This part replaces W10238320. Substitute parts can look different from the original.
    BEST SELLER
    $150.24
    7% OFF Phone Price : $162.24
    In Stock
  • Clamp 8317496
    #4

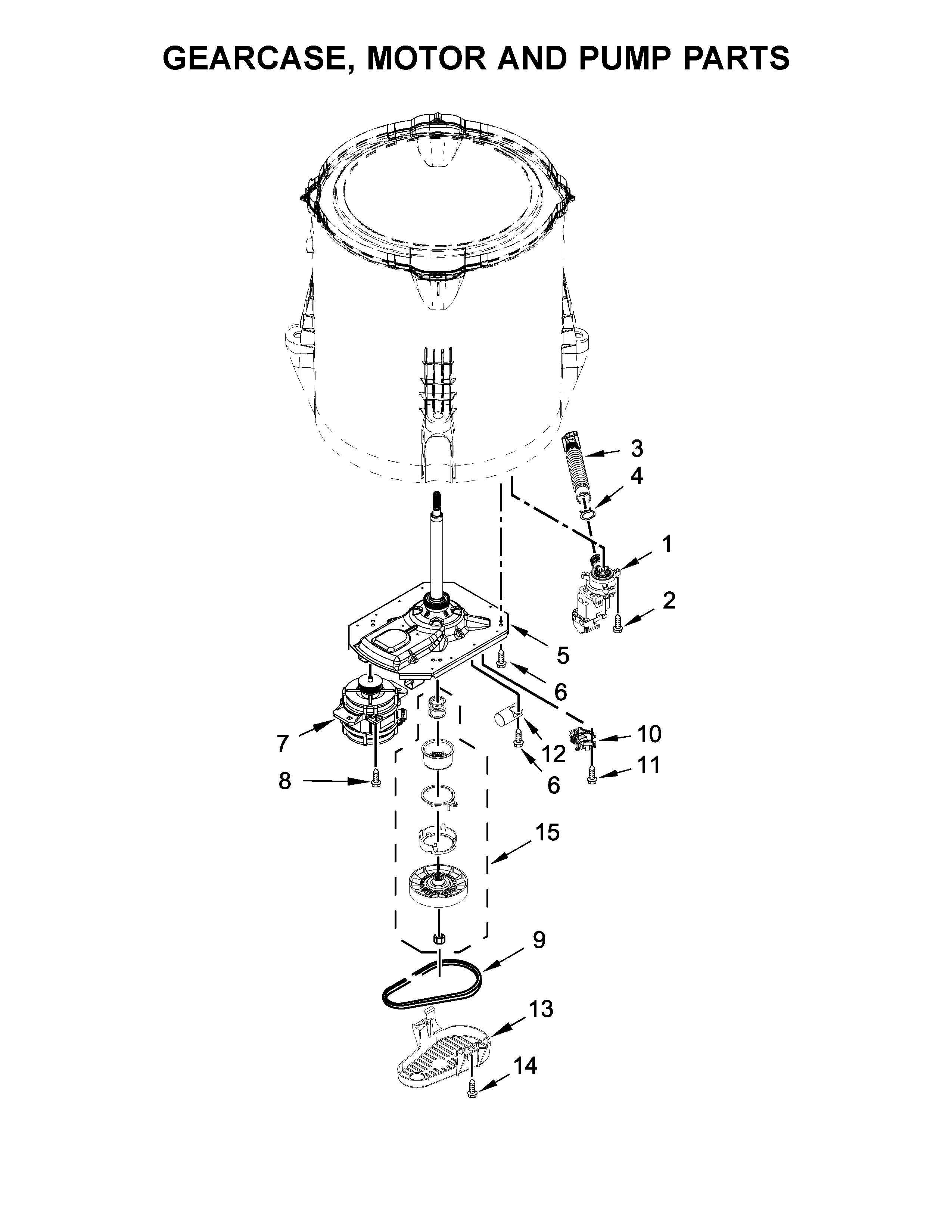

    Gearcase, motor and pump parts diagram

    Clamp

    Part #8317496

    Replaced by #WP285655

    ?
    Manufacturer substitution
    This part replaces 8317496. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $6.36
    14% OFF Phone Price : $7.36
    In Stock
  • Tap Screw 90767
    #6

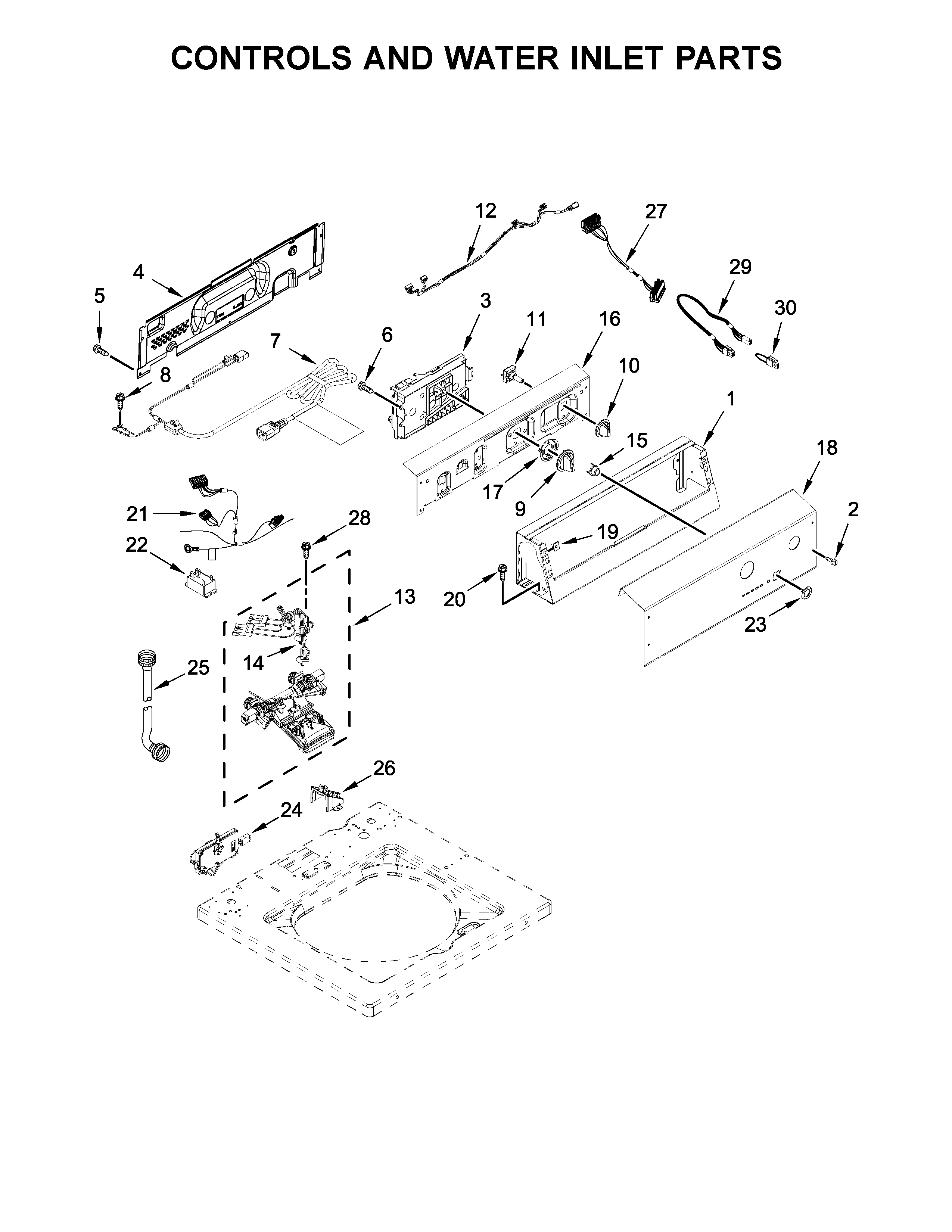

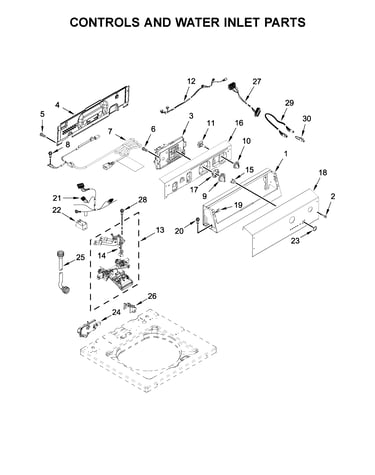

    Controls and water inlet parts diagram

    Tap screw

    Part #90767

    Replaced by #WP90767

    ?
    Manufacturer substitution
    This part replaces 90767. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.31
    19% OFF Phone Price : $5.31
    In Stock
  • Damper Assembly W10821942
    #14

    Basket and tub parts diagram

    Damper assembly

    Part #W10821942

    Replaced by #W10780046

    ?
    Manufacturer substitution
    This part replaces W10821942. Substitute parts can look different from the original.
    BEST SELLER
    $98.57
    11% OFF Phone Price : $110.57
    In Stock
  • Appliance Spray Paint (white) 350930
    #NI

    Optional parts (not included) diagram

    Appliance spray paint (white)

    Part #350930

    BEST SELLER
    This item is not returnable
    $17.27
    10% OFF Phone Price : $19.27
    In Stock
