Model # 867808610 Official Kenmore indoor blower cabinet
Here are the diagrams and repair parts for Official Kenmore 867808610 indoor blower cabinet, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
867808610 Indoor Blower Cabinet
#2

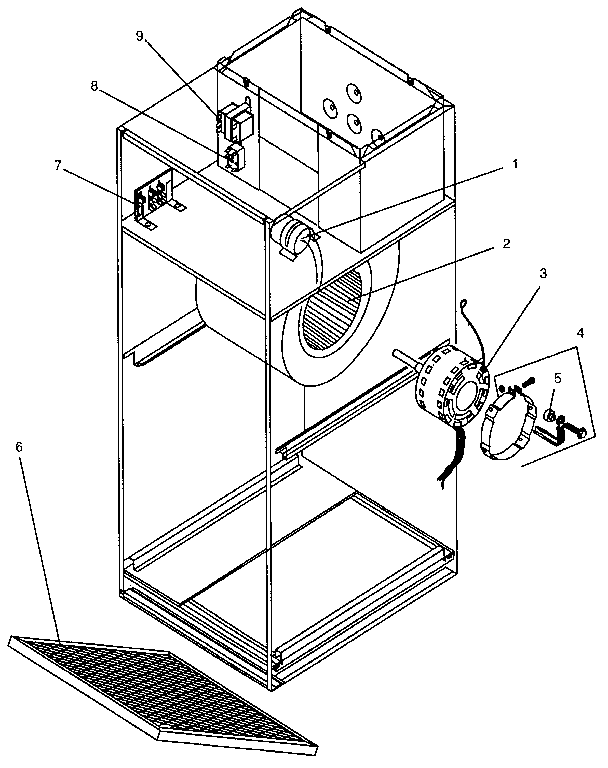

Blower assembly diagram
Blower wheel
Part #600585
Replaced by #600586
?
Manufacturer substitution
This part replaces 600585. Substitute parts can look different from the original.
$127.13 |
9% OFF Phone Price : $139.13
In Stock
#3

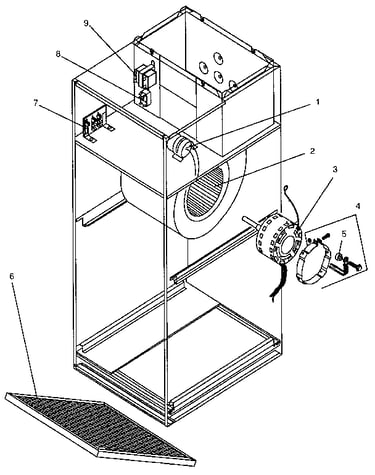

Blower assembly diagram
Motor
Part #1055080
$586.88
In Stock
#4
Blower assembly diagram
Mount kit
Part #1050254
$125.18
In Stock
#5
Blower assembly diagram
Grommet
Part #609194
Replaced by #1149537
?
Manufacturer substitution
This part replaces 609194. Substitute parts can look different from the original.
$34.96
In Stock
#1
Blower assembly diagram
Capacitor
Part #706338
Replaced by #12907
?
Manufacturer substitution
This part replaces 706338. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
#9
Blower assembly diagram
Transformer
Part #1056899
Replaced by #90-4031F
?
Manufacturer substitution
This part replaces 1056899. Substitute parts can look different from the original.
$10.99
In Stock
#8
Blower assembly diagram
Relay spdt
Part #1058148
The manufacturer no longer makes this part, and there's no substitute part
#1

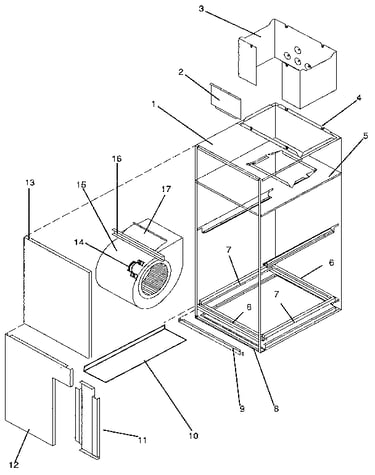

Cabinet diagram
Top plate
Part #1055108
The manufacturer no longer makes this part, and there's no substitute part
#8
Cabinet diagram
Sup plate
Part #1055113
The manufacturer no longer makes this part, and there's no substitute part
#15
Cabinet diagram
Blowr hsg
Part #1055138
The manufacturer no longer makes this part, and there's no substitute part
