Model # 6-9777X1 Official Murray 24" women's bicycle

Here are the diagrams and repair parts for Official Murray 6-9777X1 24" women's bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Inner Tube 139X2
#13B

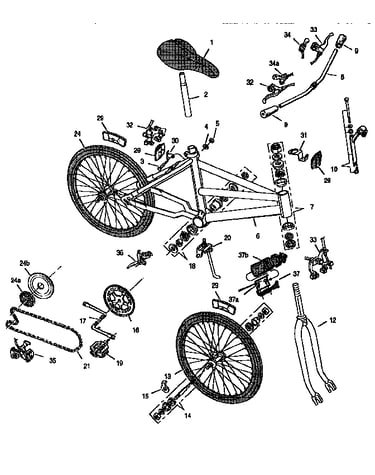

Ladies 24" ridge runner diagram

Inner tube

Part #139X2

The manufacturer no longer makes this part, and there's no substitute part

R Derailleur 50091
#35

Ladies 24" ridge runner diagram

R derailleur

Part #50091

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 302336
#20

Ladies 24" ridge runner diagram

Kickstand

Part #302336

The manufacturer no longer makes this part, and there's no substitute part

Cable Casing 308525
#34B

Ladies 24" ridge runner diagram

Cable casing

Part #308525

The manufacturer no longer makes this part, and there's no substitute part

Bracket 49540
#37

Ladies 24" ridge runner diagram

Bracket

Part #49540

The manufacturer no longer makes this part, and there's no substitute part

Saddle 98X719
#1

Ladies 24" ridge runner diagram

Saddle

Part #98X719

The manufacturer no longer makes this part, and there's no substitute part

Paint 309999-650

#NI

All parts diagram

Paint

Part #309999-650

The manufacturer no longer makes this part, and there's no substitute part

Bearing Set 303384
#7

Ladies 24" ridge runner diagram

Bearing set

Part #303384

The manufacturer no longer makes this part, and there's no substitute part

Stem Assembly 51133
#10

Ladies 24" ridge runner diagram

Stem assembly

Part #51133

The manufacturer no longer makes this part, and there's no substitute part

Water Bottle 49541
#37B

Ladies 24" ridge runner diagram

Water bottle

Part #49541

The manufacturer no longer makes this part, and there's no substitute part
